Model Image
Manufacturer

Sony

Model Number

FW55BZ35F

Description

2018 Tv

Interactive Exploded View

Parts List

Part Number Description
4-741-618-01 4-741-618-01 BEZEL(D) (760.02E0V.0001) BLACK (UC2) (PANEL PART)
4-741-617-01 4-741-617-01 BEZEL(D) (760.02E0W.0001) SILVER (UC2) (PANEL PART)
4-741-611-01 4-741-611-01 BEZEL(L) (760.02E09.0001) BLACK (UC2) (PANEL PART)
4-741-612-01 4-741-612-01 BEZEL(L) (760.02E0G.0001) SILVER (UC2) (PANEL PART)
4-741-613-01 4-741-613-01 BEZEL(R) (760.02E0A.0001) BLACK (UC2) (PANEL PART)
4-741-614-01 4-741-614-01 BEZEL(R) (760.02E0H.0001) SILVER (UC2) (PANEL PART)
4-741-615-01 4-741-615-01 BEZEL(U) (760.02E05.0001) BLACK (UC2) (PANEL PART)
4-741-616-01 4-741-616-01 BEZEL(U) (760.02E0F.0001) SILVER (UC2) (PANEL PART)
4-727-395-61 4-727-395-61 BRACKET SIDE (HRH) (UC2)
4-726-393-61 4-726-393-61 BRACKET SIDE (HRH) (UC2)
A-2201-063-A A-2201-063-A COMPL_SVC_BCH_B2B_WW (UC2)
1-910-806-39 1-910-806-39 CONNECTOR ASSY 30P (UC2)

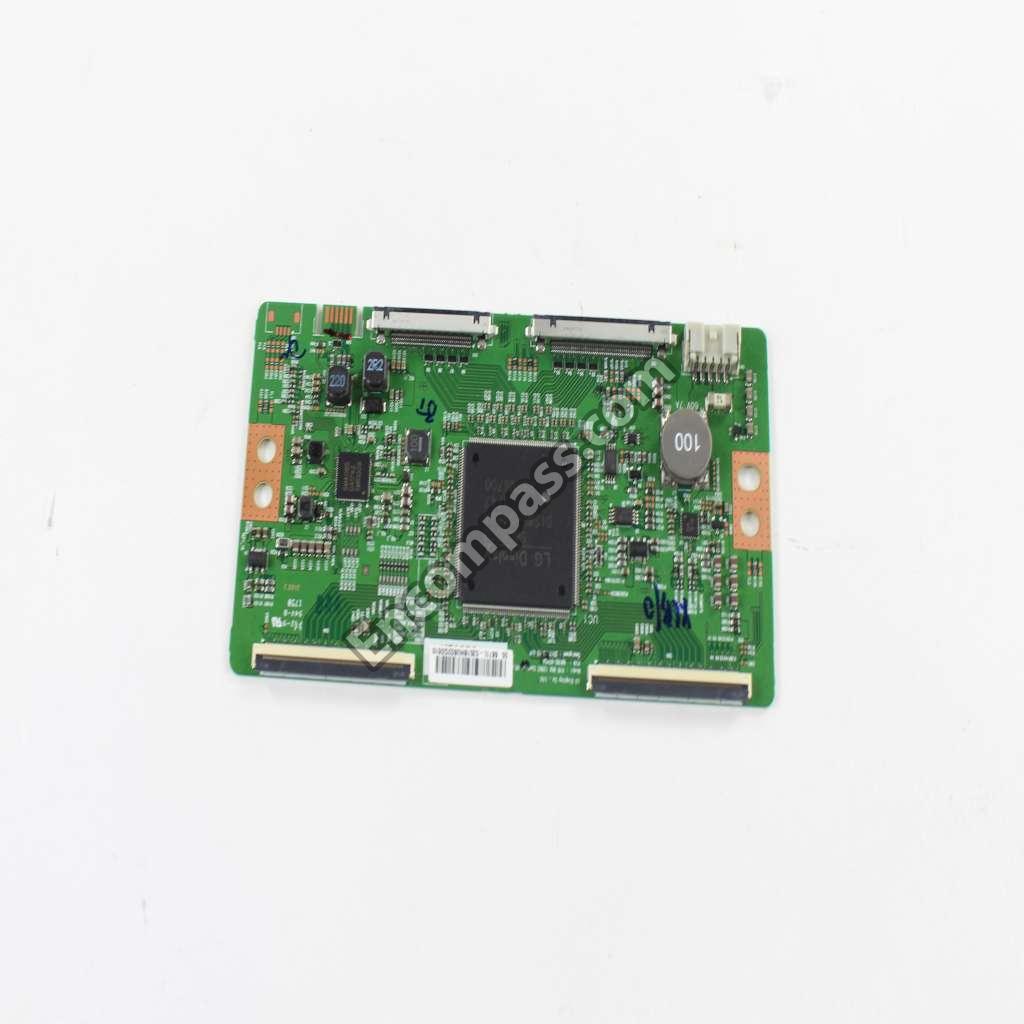

1-897-314-11 1-897-314-11 CONTROL MT BOARD (6871L-5351B) (UC2) (PANEL PART)
4-741-638-01 4-741-638-01 CUSHION (740.02F11.0001) (UC2) (PANEL PART)
1-912-766-11 1-912-766-11 FFC (750.02E01.0001) BM11 (UC2) (PANEL PART)
1-912-767-11 1-912-767-11 FFC (750.02E01.0011) BM10 (UC2) (PANEL PART)
1-912-529-11 1-912-529-11 FLEXIBLE FLAT CABLE 41P (UC2)
1-912-558-11 1-912-558-11 FLEXIBLE FLAT CABLE 51P (UC2)
1-474-731-11 1-474-731-11 GL81-STATIC CONVERTER (TV) (UC2)
1-910-806-38 1-910-806-38 HARNESS ASSY (UC2)
4-732-834-01 4-732-834-01 LABEL, REAR TERMINAL (HRH) (UC2)
4-731-521-51 4-731-521-51 LABEL, SIDE TERMINAL (HRH) (UC2)
4-741-608-01 4-741-608-01 POLARIZER F/CF (6308L-7934A) (UC2) (PANEL PART)
4-734-761-21 4-734-761-21 PROFESSIONAL GUIDE (B2B) (UC2)
4-726-582-11 4-726-582-11 REAR COVER (L_HRH) A (UC2)
4-735-232-11 4-735-232-11 REFERENCE GUIDE (UC2)
1-493-483-11 1-493-483-11 REMOTE COMMANDER (RMT-TB400U) (UC2)
4-735-250-11 4-735-250-11 SETUP GUIDE (UC2)
4-728-674-01 4-728-674-01 SHT, INSULATION (HRH L) (UC2)
4-726-588-01 4-726-588-01 SLIDER L (L HRH) (UC2)
4-726-589-01 4-726-589-01 SLIDER R (L HRH) (UC2)
1-897-317-11 1-897-317-11 SOURCE DRIVER IC MT BOARD (0ISWL-0466B) (UC2) (PANEL PART)
4-741-631-01 4-741-631-01 TAPE (740.01P0P.0001) (UC2) (PANEL PART)
4-741-640-01 4-741-640-01 TAPE, BOTTOM CORNER(L) (747.02E0W.0001) (UC2) (PANEL PART)
4-741-639-01 4-741-639-01 TAPE, BOTTOM CORNER(R) (747.02E0S.0001) (UC2) (PANEL PART)
4-741-641-01 4-741-641-01 TAPE, TOP CORNER (747.02E0X.0001) (UC2) (PANEL PART)
4-741-647-01 4-741-647-01 THERMAL SHEET, BC(15X15X2) (734.02E0D.0001) (UC2) (PANEL PART)
4-741-642-01 4-741-642-01 THERMAL SHEET, TCON(10X10X1.8) (734.02E0B.0001) (UC2) (PANEL PART)
4-741-643-01 4-741-643-01 THERMAL SHEET, TCON(20X20X1.8) (734.02E0A.0011) (UC2) (PANEL PART)
4-741-648-01 4-741-648-01 THERMAL SHEET, TCON(20X20X4.5) (734.02E0H.0001) (UC2) (PANEL PART)
4-741-644-01 4-741-644-01 THERMAL SHEET, TCON(31X31X3.8) (734.02E09.0001) (UC2) (PANEL PART)
4-741-649-01 4-741-649-01 THERMAL SHEET, TCON(41X41X1.8) (734.02E0E.0001) (UC2) (PANEL PART)
