Model Image
Manufacturer

Sony

Model Number

FW55BZ40L

Description

55-inch Bravia 4k Professional Display

Interactive Exploded View

Parts List

Part Number Description
5-015-521-01 5-015-521-01 +PSW M6*16 W14 (UCF)
5-022-225-12 5-022-225-12 BAG, CL ASSY (2L LYX) (UCF)
5-039-835-31 5-039-835-31 BEZEL ASSY OC (L PHN) (UCF)
5-039-835-41 5-039-835-41 BEZEL ASSY OC (L PHN) (UCF) (PANEL PART)
5-009-217-12 5-009-217-12 BRACKET COVER (COM) (UCF) (PANEL PART)
5-021-551-61 5-021-551-61 BRACKET SIDE (BNN) A (UCF)
5-025-406-15 5-025-406-15 BRACKET STAND L (PHN) (UCF) (PANEL PART)
5-027-154-15 5-027-154-15 BRACKET STAND L (PHN) (UCF) (PANEL PART)
5-009-258-12 5-009-258-12 BRACKET, WIFI(BNN) (UCF)

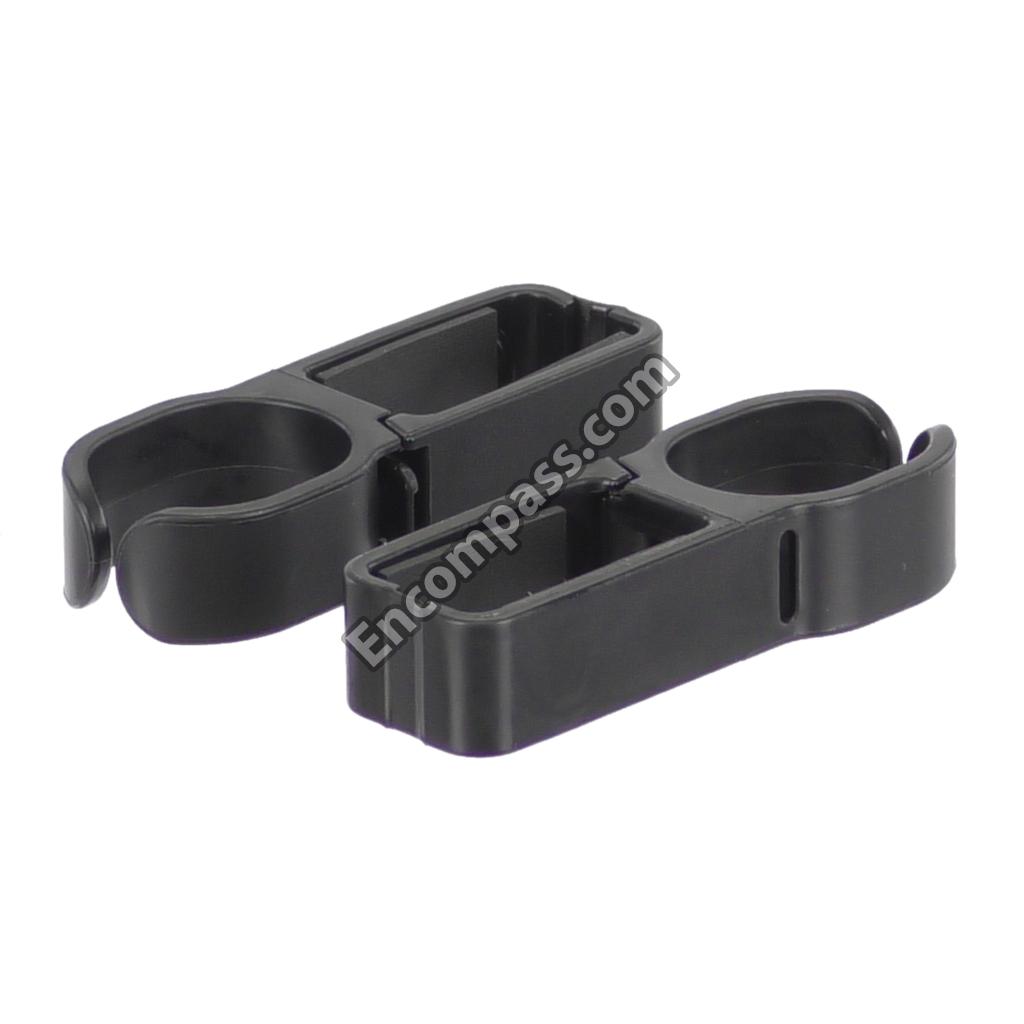

5-009-030-01 5-009-030-01 CLAMPER,CABLE L(BNN) (UCF) (PANEL PART)
5-009-031-02 5-009-031-02 CLAMPER,CABLE S(BNN) (UCF) (PANEL PART)
A-5057-156-A A-5057-156-A COMPL_BM5A23_TKB_TXB_B2B_WW (UCF)
1-006-502-11 1-006-502-11 CONNECTOR ASSY 30P (UCF)
1-006-437-12 1-006-437-12 CONNECTOR ASSY 4P (LS) (UCF) (PANEL PART)
1-006-437-21 1-006-437-21 CONNECTOR ASSY 4P (LS) (UCF) (PANEL PART)
1-006-501-43 1-006-501-43 CONNECTOR ASSY 4P (SP) (UCF)
5-041-187-11 5-041-187-11 COVER, BTM(L PHN2) A (UCF)
5-023-069-24 5-023-069-24 COVER, TOP (COM) (UCF)
5-025-411-01 5-025-411-01 DIFFUSER PLATE (PHN L) (UCF) (PANEL PART)
1-006-505-12 1-006-505-12 FLEXIBLE FLAT CABLE 20P (UCF)
1-006-509-12 1-006-509-12 FLEXIBLE FLAT CABLE 25P (UCF)
1-010-542-12 1-010-542-12 FLEXIBLE FLAT CABLE 51P (UCF)
1-014-424-11 1-014-424-11 FLEXIBLE FLAT CABLE 68P (UCF)
1-014-423-12 1-014-423-12 FLEXIBLE FLAT CABLE 68P (UCF) (PANEL PART)
A-5055-531-A A-5055-531-A FY23_HT3_WW_EVSI MOUNT (UCF)
4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (UCF) (PANEL PART)

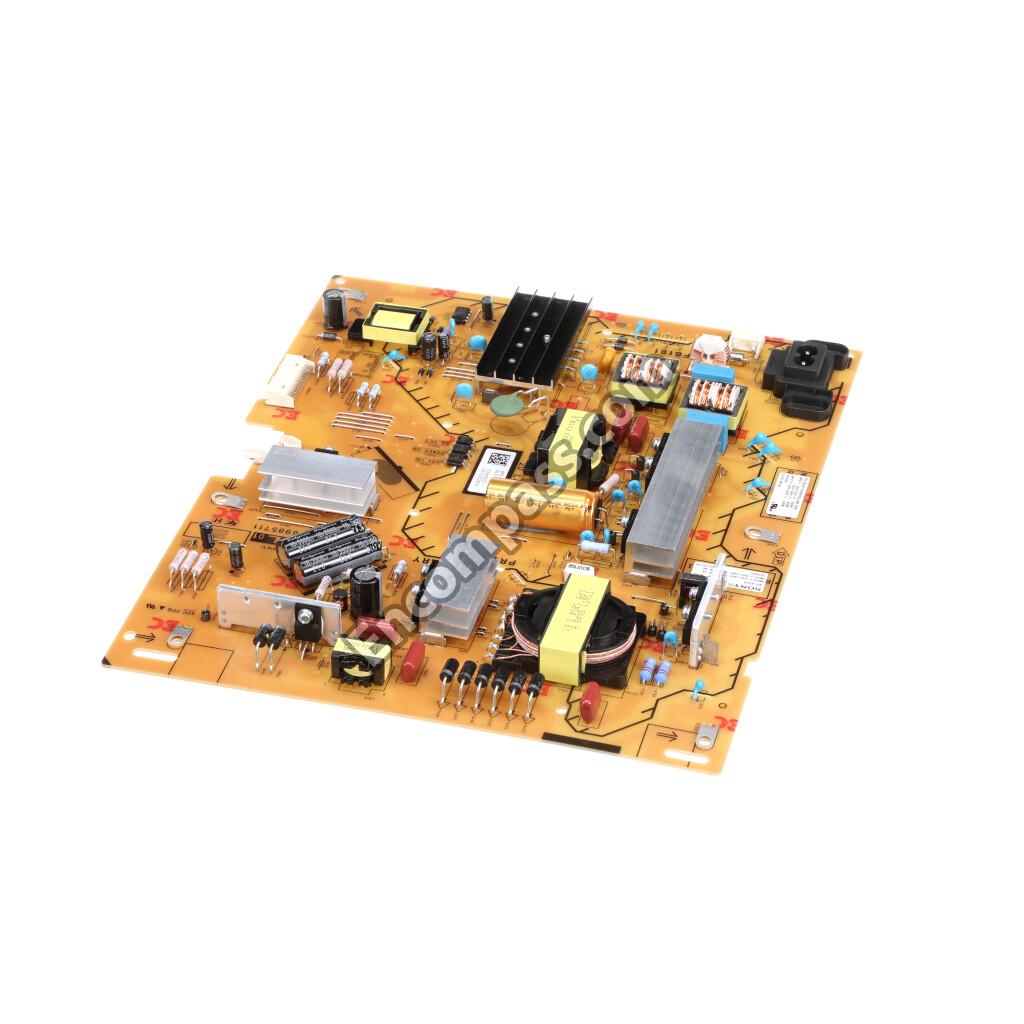

1-004-422-22 1-004-422-22 GL01B-STATIC CONVERTER (TV) (UCF)
1-009-801-22 1-009-801-22 GL13P-STATIC CONVERTER (TV) (UCF)
1-017-141-21 1-017-141-21 LIQUID CRYSTAL ELEMENT(B55QUB) (UCF)
5-039-839-01 5-039-839-01 MIDDLE CHASSIS B (L PHN) A (UCF) (PANEL PART)
5-039-839-11 5-039-839-11 MIDDLE CHASSIS B (L PHN) A (UCF) (PANEL PART)
5-039-841-01 5-039-841-01 MIDDLE CHASSIS L (L PHN) A (UCF) (PANEL PART)
5-039-841-11 5-039-841-11 MIDDLE CHASSIS L (L PHN) A (UCF) (PANEL PART)
5-039-843-01 5-039-843-01 MIDDLE CHASSIS R (L PHN) A (UCF) (PANEL PART)
5-039-843-11 5-039-843-11 MIDDLE CHASSIS R (L PHN) A (UCF) (PANEL PART)
5-039-837-01 5-039-837-01 MIDDLE CHASSIS T (L PHN) A (UCF) (PANEL PART)
5-039-837-11 5-039-837-11 MIDDLE CHASSIS T (L PHN) A (UCF) (PANEL PART)
1-017-142-21 1-017-142-21 MOUNTED PWB E-T-CON (55) (UCF)
1-013-269-12 1-013-269-12 MOUNTED PWB LS BAR (EPH L) (UCF)
A-5059-990-A A-5059-990-A P-MOD (YSDM055INO11) (UCF)
5-058-317-01 5-058-317-01 POLARIZER F/CF (38-100C955) (UCF) (PANEL PART)
1-005-642-12 1-005-642-12 POWER-SUPPLY CORD SET (UCF)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UCF)
5-023-500-11 5-023-500-11 REAR COVER (L PHN) A (UCF)
5-052-891-01 5-052-891-01 REF.POL.ON.POP (KPTB L) (UCF) (PANEL PART)
5-037-626-01 5-037-626-01 REFLECTIVE SHEET (EPH L) (UCF) (PANEL PART)
1-493-483-11 1-493-483-11 REMOTE COMMANDER (RMT-TB400U) (UCF)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UCF)
4-690-738-01 4-690-738-01 SCREW, +LH M3X3 (PUC) (UCF) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCF) (PANEL PART)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UCF)
4-597-645-11 4-597-645-11 SCREW, M3X3.6 (UCF) (PANEL PART)
5-052-506-11 5-052-506-11 SETUP GUIDE (UCF)
5-027-740-02 5-027-740-02 SHEET, INSULATION (L PHN) A (UCF)
5-051-258-01 5-051-258-01 SHEET, THERMAL (EPH2) (UCF) (PANEL PART)
5-027-341-01 5-027-341-01 SHEET, THERMAL (RIS) (UCF) (PANEL PART)
4-457-451-12 4-457-451-12 SHEET, THERMAL(BAF) (UCF)
5-049-560-01 5-049-560-01 SHIFT BKT(S) A (COM PHNB2) (UCF)
1-016-162-11 1-016-162-11 SOURCE DRIVER IC MT BOARD (47-7013057) (UCF) (PANEL PART)
1-004-510-51 1-004-510-51 SP-BOX ASSY,FY21 W30L-EA (UCF)
1-004-510-61 1-004-510-61 SP-BOX ASSY,FY21 W30L-EB (UCF)
5-022-204-24 5-022-204-24 STAND, L (2L LYX) A
5-022-205-24 5-022-205-24 STAND, R (2L LYX) A
5-009-047-11 5-009-047-11 SUPPORTER PIN (COM) (UCF) (PANEL PART)
5-013-482-11 5-013-482-11 SUPPORTER PIN (COM) (UCF) (PANEL PART)
5-014-770-11 5-014-770-11 SUPPORTER PIN (COM) (UCF) (PANEL PART)
7-600-036-11 7-600-036-11 TAPE (1350FB-1) 30MMX66M BLK (UCF) (PANEL PART)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK (UCF) (PANEL PART)
5-014-076-01 5-014-076-01 TAPE LIGHT LEAKAGE (UCF) (PANEL PART)
5-009-861-02 5-009-861-02 VESA SPACER A (COM) (UCF)
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC) (UCF)
