Model Image
Manufacturer

Sony

Model Number

FW65BZ40H

Description

65-inch Led 4k Hdr Professional Display

Interactive Exploded View

Parts List

Part Number Description

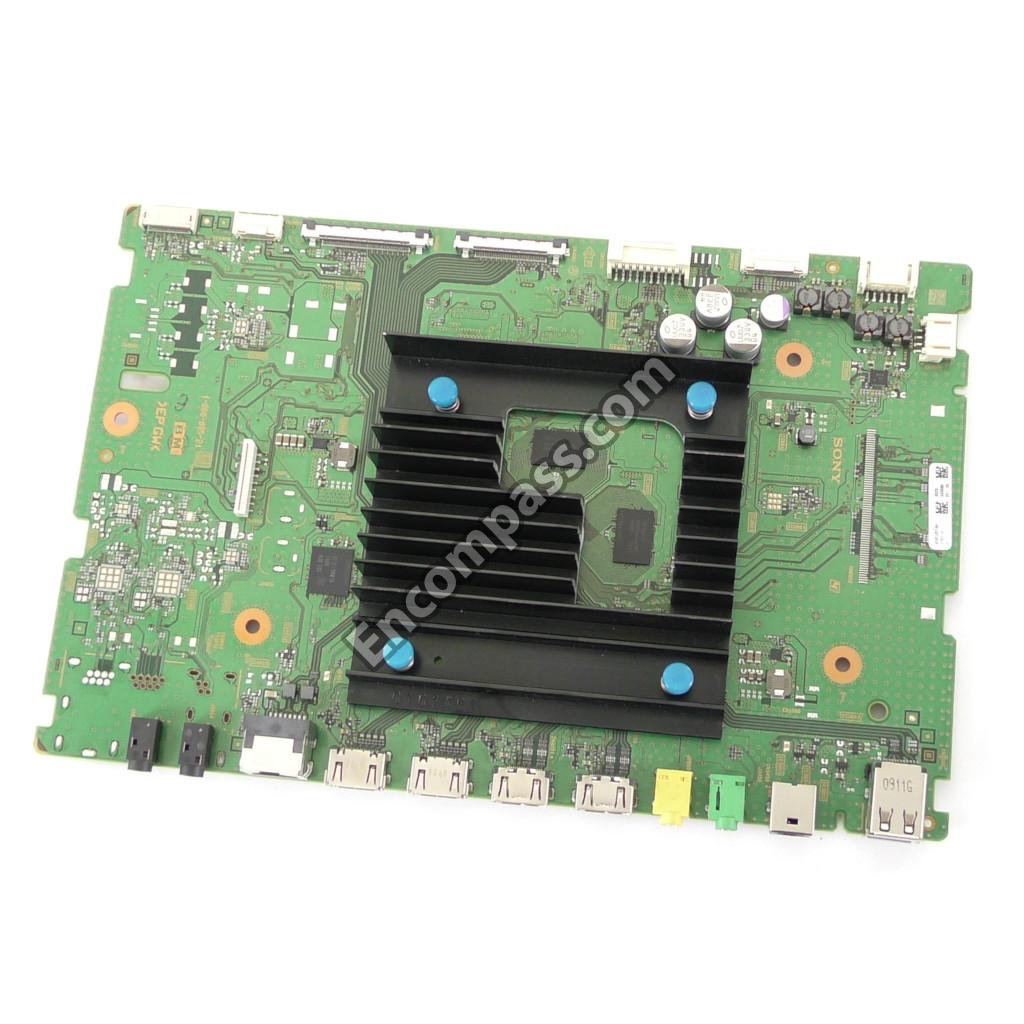

A-5014-274-A A-5014-274-A (MAIN CBA) COMPL SVC BM5_WW_B2B (UCF)
5-009-142-22 5-009-142-22 BEZEL B ASSY (2L APL) (NX BLACK, BOTTOM) (UCF) (PANEL PART)
5-009-142-21 5-009-142-21 BEZEL B ASSY (2L APL) (NX BLACK, BOTTOM) (UCF) (PANEL PART)
5-009-142-61 5-009-142-61 BEZEL B ASSY (2L APL) (NXB BLACK, BOTTOM) (UCF) (PANEL PART)
5-009-138-22 5-009-138-22 BEZEL L ASSY (2L APL) (NX BLACK, LEFT) (UCF) (PANEL PART)
5-009-138-21 5-009-138-21 BEZEL L ASSY (2L APL) (NX BLACK, LEFT) (UCF) (PANEL PART)
5-009-138-61 5-009-138-61 BEZEL L ASSY (2L APL) (NXB BLACK, LEFT) (UCF) (PANEL PART)
5-009-140-22 5-009-140-22 BEZEL R ASSY (2L APL) (NX BLACK, RIGHT) (UCF) (PANEL PART)
5-009-140-21 5-009-140-21 BEZEL R ASSY (2L APL) (NX BLACK, RIGHT) (UCF) (PANEL PART)
5-009-140-61 5-009-140-61 BEZEL R ASSY (2L APL) (NXB BLACK, RIGHT) (UCF) (PANEL PART)
5-009-136-21 5-009-136-21 BEZEL T ASSY (2L APL) (NX BLACK, TOP ) (UCF) (PANEL PART)
5-009-136-22 5-009-136-22 BEZEL T ASSY (2L APL) (NX BLACK, TOP) (UCF) (PANEL PART)
5-009-136-61 5-009-136-61 BEZEL T ASSY (2L APL) (NXB BLACK, TOP) (UCF) (PANEL PART)
5-015-416-61 5-015-416-61 BRACKET SIDE (BNN) A (UCF)
1-005-634-11 1-005-634-11 C7L AC POWER CORD SETS (EU) (UCF)

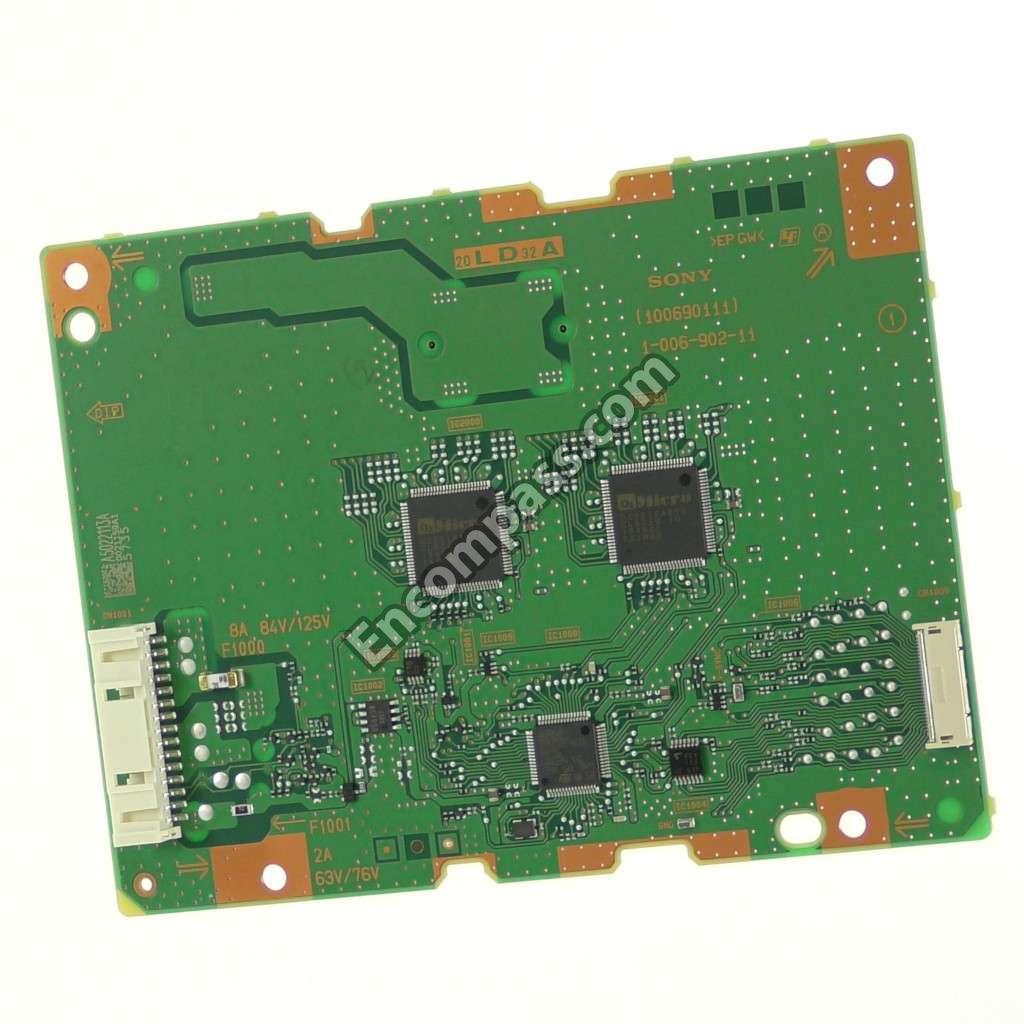

A-5022-113-A A-5022-113-A COMPL SVC 20LD32A2 (UCF) (PANEL PART)
1-005-549-11 1-005-549-11 FFC (65) (UCF) (PANEL PART)

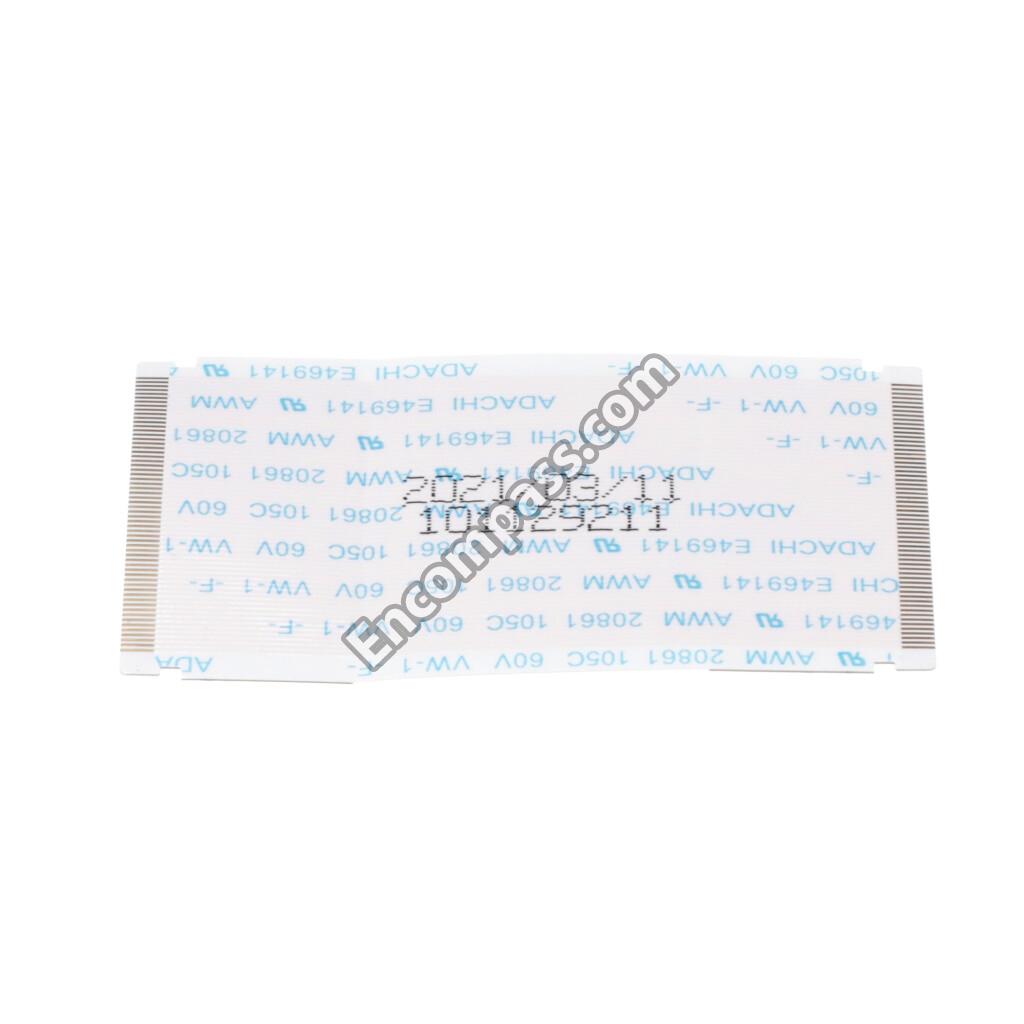

1-011-292-11 1-011-292-11 FLEXIBLE FLAT CABLE 60P (UCF) (PANEL PART)
1-007-112-11 1-007-112-11 FLEXIBLE FLAT CABLE 80P (UCF) (PANEL PART)

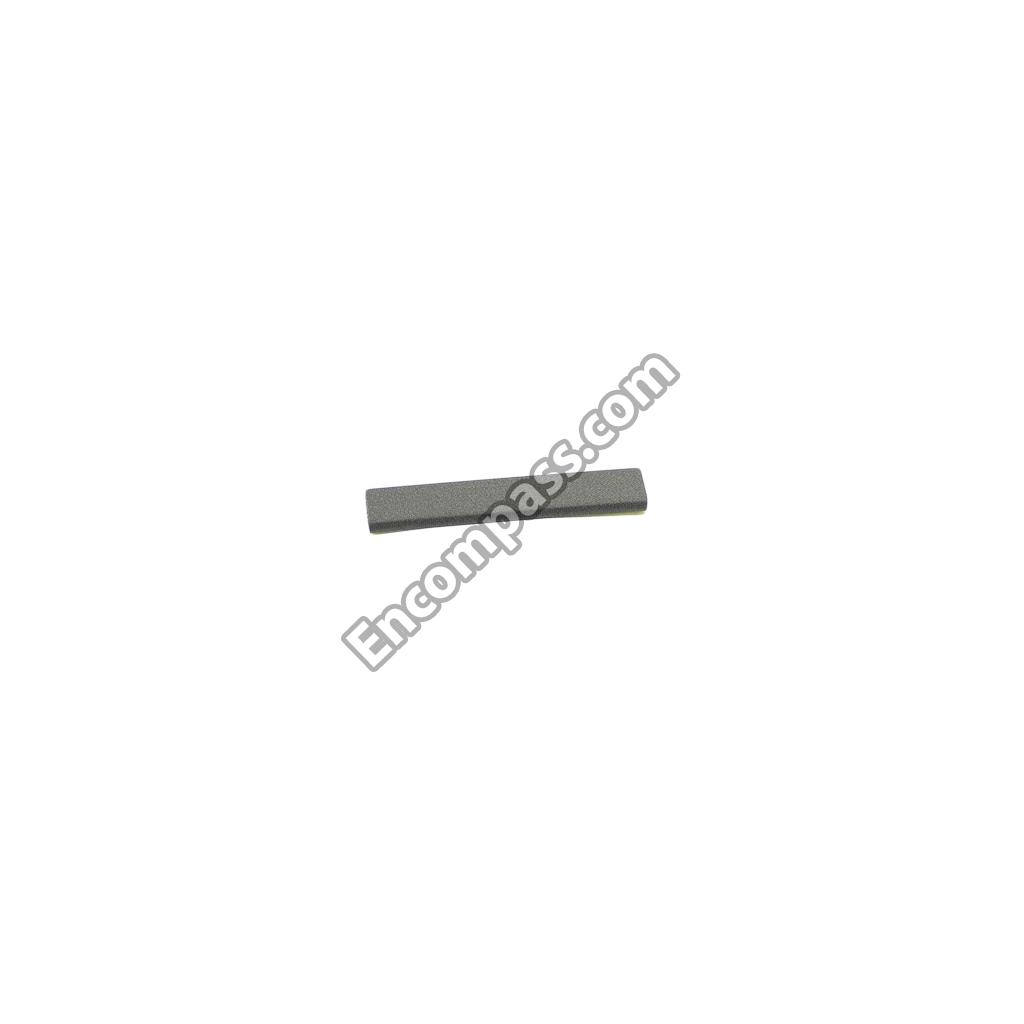

4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (UCF) (PANEL PART)
5-011-453-01 5-011-453-01 GASKET, TCON CH (APL) (UCF) (PANEL PART)
5-012-173-41 5-012-173-41 LABEL, SIDE TERMINAL (APL) (UCF)
1-010-483-11 1-010-483-11 LIQUID CRYSTAL ELEMENT(A65QVN) (UCF) (PANEL PART)
1-014-973-11 1-014-973-11 LIQUID CRYSTAL ELEMENT(C65D03) (CSOT PART) (UCF) (PANEL PART)
1-007-574-12 1-007-574-12 LIQUID CRYSTAL ELEMENT(S65FF3) (SDC PART) (UCF) (PANEL PART)
1-007-574-11 1-007-574-11 LIQUID CRYSTAL ELEMENT(S65FF3) (UCF) (PANEL PART)
5-009-011-22 5-009-011-22 MID CHASSIS B ASSY (2L APL) (BOTTOM) (UCF) (PANEL PART)
5-009-011-21 5-009-011-21 MID CHASSIS B ASSY (2L APL) (BOTTOM) (UCF) (PANEL PART)
5-009-013-22 5-009-013-22 MID CHASSIS L ASSY (2L APL) (LEFT) (UCF) (PANEL PART)
5-009-015-22 5-009-015-22 MID CHASSIS R ASSY (2L APL) (RIGHT) (UCF) (PANEL PART)
5-009-009-22 5-009-009-22 MID CHASSIS T ASSY (2L APL) (TOP) (UCF) (PANEL PART)

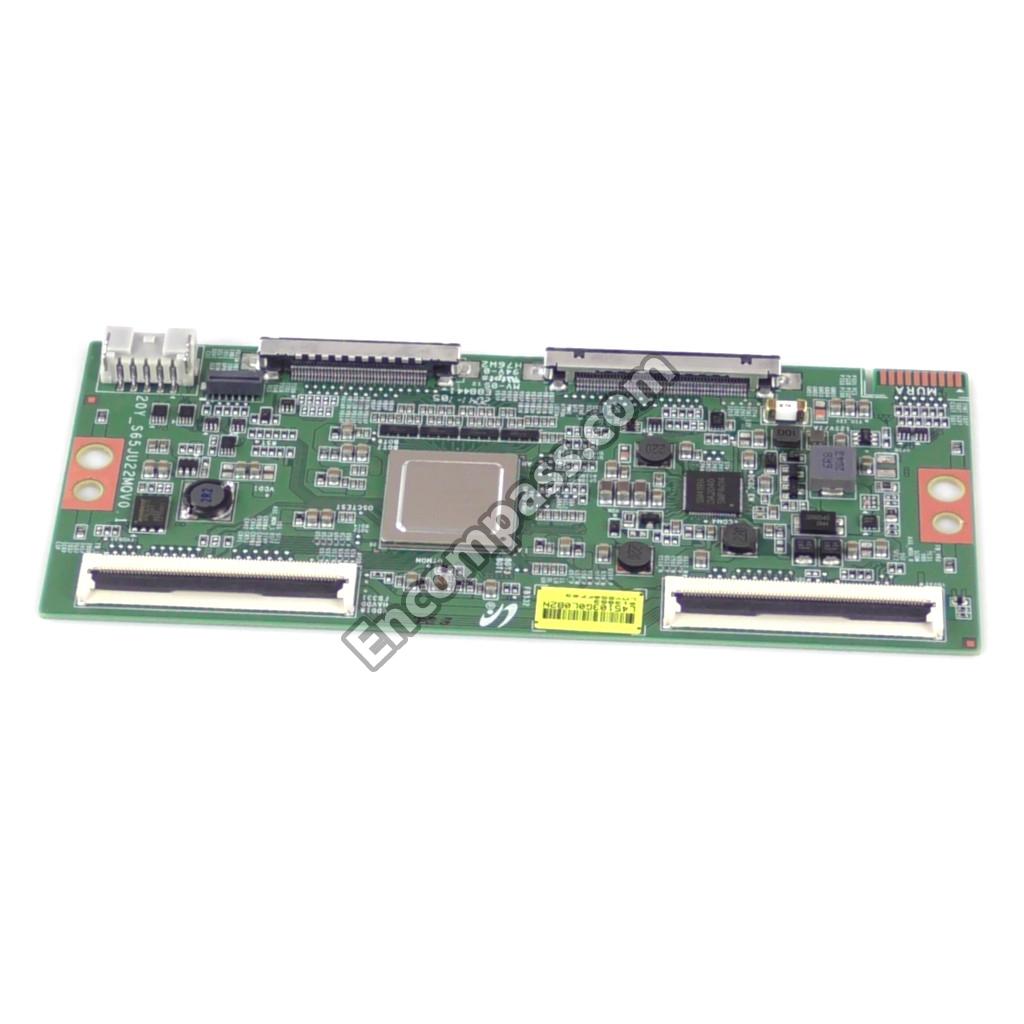

1-014-974-11 1-014-974-11 MOUNTED PWB E-T-CON(65) (CSOT PART) (UCF) (PANEL PART)
1-007-575-12 1-007-575-12 MOUNTED PWB E-T-CON(65) (UCF) (PANEL PART)
1-010-484-11 1-010-484-11 MOUNTED PWB E-T-CON(65) (UCF) (PANEL PART)
5-021-534-01 5-021-534-01 POLARIZER C/F (LJ01-12302A) (UCF) (PANEL PART)
5-031-200-01 5-031-200-01 POLARIZER F/CF (66.C4U57.395) (UCF) (PANEL PART)
5-044-583-01 5-044-583-01 POLARIZER F/CF (CSOT PART) (UCF) (PANEL PART)
5-044-582-01 5-044-582-01 POLARIZER F/CF (CSOT PART) (UCF) (PANEL PART)
5-044-581-01 5-044-581-01 POLARIZER F/CF (CSOT PART) (UCF) (PANEL PART)
5-021-535-01 5-021-535-01 POLARIZER TFT (LJ01-12303A) (UCF) (PANEL PART)
5-014-879-11 5-014-879-11 REFERENCE GUIDE (UCF)
5-009-852-01 5-009-852-01 SCREW, +F M2.5X2 (UCF) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCF) (PANEL PART)
4-726-549-01 4-726-549-01 SCREW, M3X3 (BLACK - FOR NX & NXB) (UCF) (PANEL PART)
5-027-341-01 5-027-341-01 SHEET, THERMAL (RIS) (UCF) (PANEL PART)
5-020-359-01 5-020-359-01 SHEET, THERMAL CSOT (APL) (UCF) (PANEL PART)
4-699-975-02 4-699-975-02 SHEET,THERMAL(5567H) (UCF) (PANEL PART)
1-012-387-11 1-012-387-11 SOURCE DRIVER IC MT BOARD (46.S0966.386) (UCF) (PANEL PART)
1-013-084-11 1-013-084-11 SOURCE DRIVER IC MT BOARD (CSOT PART) (UCF) (PANEL PART)
1-009-289-11 1-009-289-11 SOURCE DRIVER IC MT BOARD (LJ13-04011A) (UCF) (PANEL PART)
5-013-482-11 5-013-482-11 SUPPORTER PIN (COM) (UCF) (PANEL PART)
5-014-770-11 5-014-770-11 SUPPORTER PIN (COM) (UCF) (PANEL PART)
5-009-047-11 5-009-047-11 SUPPORTER PIN (COM) (UCF) (PANEL PART)
5-014-076-01 5-014-076-01 TAPE LIGHT LEAKAGE (UCF) (PANEL PART)
