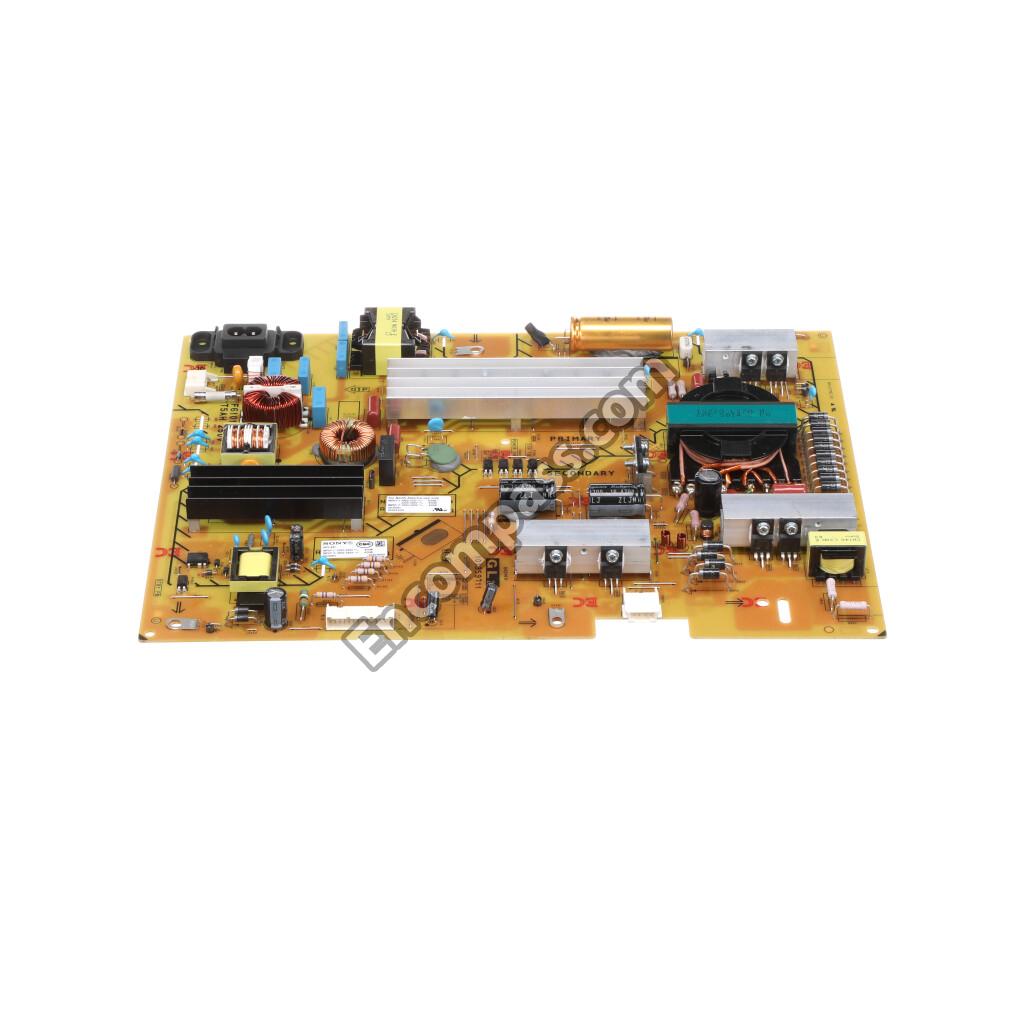

Model Image
Manufacturer

Sony

Model Number

FW65BZ40L

Description

65-inch 4k Commercial Monitor

Interactive Exploded View

Parts List

Part Number Description
5-015-521-01 5-015-521-01 Sony +PSW M6*16 W14 (UCF)
5-022-225-12 5-022-225-12 Sony BAG, CL ASSY (2L LYX) (UCF)
5-027-100-41 5-027-100-41 Sony BEZEL ASSY (2L PHN) (UCF)
5-022-642-71 5-022-642-71 Sony BEZEL ASSY (2L PHN) (UCF) (PANEL PART)
5-022-642-61 5-022-642-61 Sony BEZEL ASSY (2L PHN) (UCF) (PANEL PART)
5-009-217-12 5-009-217-12 Sony BRACKET COVER (COM) (UCF) (PANEL PART)
5-021-551-61 5-021-551-61 Sony BRACKET SIDE (BNN) A (UCF)
5-027-154-15 5-027-154-15 Sony BRACKET STAND L (PHN) (UCF) (PANEL PART)
5-025-406-15 5-025-406-15 Sony BRACKET STAND L (PHN) (UCF) (PANEL PART)
5-009-258-12 5-009-258-12 Sony BRACKET, WIFI(BNN) (UCF)
5-009-030-01 5-009-030-01 Sony CLAMPER,CABLE L(BNN) (UCF) (PANEL PART)
5-009-031-02 5-009-031-02 Sony CLAMPER,CABLE S(BNN) (UCF) (PANEL PART)
A-5057-156-A A-5057-156-A Sony COMPL_BM5A23_TKB_TXB_B2B_WW (UCF)
1-006-502-11 1-006-502-11 Sony CONNECTOR ASSY 30P (UCF)
1-006-438-21 1-006-438-21 Sony CONNECTOR ASSY 4P (LS) (UCF) (PANEL PART)
1-006-438-12 1-006-438-12 Sony CONNECTOR ASSY 4P (LS) (UCF) (PANEL PART)
1-006-513-34 1-006-513-34 Sony CONNECTOR ASSY 4P (SP) (UCF)
5-046-946-11 5-046-946-11 Sony COVER, BTM (L PHNR) A (UCF)
5-023-069-24 5-023-069-24 Sony COVER, TOP (COM) (UCF)
5-044-470-01 5-044-470-01 Sony DIFFUSER PLATE (EPH 2L) (UCF) (PANEL PART)
5-026-877-02 5-026-877-02 Sony DIFFUSER PLATE (LYX 2L) (UCF) (PANEL PART)
1-006-505-12 1-006-505-12 Sony FLEXIBLE FLAT CABLE 20P (UCF)
1-006-509-12 1-006-509-12 Sony FLEXIBLE FLAT CABLE 25P (UCF)
1-010-542-12 1-010-542-12 Sony FLEXIBLE FLAT CABLE 51P (UCF)
1-014-424-11 1-014-424-11 Sony FLEXIBLE FLAT CABLE 68P (UCF)
1-014-423-12 1-014-423-12 Sony FLEXIBLE FLAT CABLE 68P (UCF) (PANEL PART)
A-5055-530-A A-5055-530-A Sony FY23_HT3_WW_EVSI MOUNT (UCF)
4-744-177-01 4-744-177-01 Sony GASKET SB (3L BGO) (UCF) (PANEL PART)
1-013-509-11 1-013-509-11 Sony GL24P-STATIC CONVERTER (TV) (UCF)
1-017-143-21 1-017-143-21 Sony LIQUID CRYSTAL ELEMENT(B65QUB) (UCF)
5-028-046-21 5-028-046-21 Sony MIDDLE CHASSIS B (2L PHN) A (UCF) (PANEL PART)
5-028-046-11 5-028-046-11 Sony MIDDLE CHASSIS B (2L PHN) A (UCF) (PANEL PART)
5-008-987-21 5-008-987-21 Sony MIDDLE CHASSIS L (2L BNN) A (UCF) (PANEL PART)
5-008-987-11 5-008-987-11 Sony MIDDLE CHASSIS L (2L BNN) A (UCF) (PANEL PART)
5-008-989-21 5-008-989-21 Sony MIDDLE CHASSIS R (2L BNN) A (UCF) (PANEL PART)
5-008-989-11 5-008-989-11 Sony MIDDLE CHASSIS R (2L BNN) A (UCF) (PANEL PART)
5-008-983-23 5-008-983-23 Sony MIDDLE CHASSIS T (2L BNN) A (UCF) (PANEL PART)
5-008-983-13 5-008-983-13 Sony MIDDLE CHASSIS T (2L BNN) A (UCF) (PANEL PART)
1-017-144-22 1-017-144-22 Sony MOUNTED PWB E-T-CON (65) (UCF)
1-018-751-11 1-018-751-11 Sony MOUNTED PWB LS BAR (XENB 2L) (UCF)
A-5059-988-A A-5059-988-A Sony P-MOD (YSDM065INO11) (UCF)
5-058-316-01 5-058-316-01 Sony POLARIZER F/CF (38-100C949) (UCF) (PANEL PART)
1-005-642-12 1-005-642-12 Sony POWER-SUPPLY CORD SET (UCF)
7-600-040-44 7-600-040-44 Sony RADIATOR ADHESIVE (SV380C) (UCF)
5-023-503-11 5-023-503-11 Sony REAR COVER (2L PHN) A (UCF)
5-052-892-01 5-052-892-01 Sony REF.POL.ON.POP (KPTB 2L) (UCF) (PANEL PART)
5-035-537-01 5-035-537-01 Sony REFLECTIVE SHEET (HRS 2L) (UCF) (PANEL PART)
1-493-483-11 1-493-483-11 Sony REMOTE COMMANDER (RMT-TB400U) (UCF)
4-579-926-01 4-579-926-01 Sony SCREW M3X3.0 STEP (UCF)
4-690-738-01 4-690-738-01 Sony SCREW, +LH M3X3 (PUC) (UCF) (PANEL PART)
4-472-518-11 4-472-518-11 Sony SCREW, +PSW M3X6 (UCF) (PANEL PART)
2-580-592-01 2-580-592-01 Sony SCREW, +PSW M3X8 (UCF)
4-597-645-11 4-597-645-11 Sony SCREW, M3X3.6 (UCF) (PANEL PART)
5-052-506-11 5-052-506-11 Sony SETUP GUIDE (UCF)
5-027-741-01 5-027-741-01 Sony SHEET, INSULATION (2L PHN) A (UCF)
5-051-258-01 5-051-258-01 Sony SHEET, THERMAL (EPH2) (UCF) (PANEL PART)
4-457-451-12 4-457-451-12 Sony SHEET, THERMAL(BAF) (UCF)
5-049-561-01 5-049-561-01 Sony SHIFT BKT(L) A (COM PHNB2) (UCF)
1-016-163-11 1-016-163-11 Sony SOURCE DRIVER IC MT BOARD (47-7011711) (UCF) (PANEL PART)
1-004-510-51 1-004-510-51 Sony SP-BOX ASSY,FY21 W30L-EA (UCF)
1-004-510-61 1-004-510-61 Sony SP-BOX ASSY,FY21 W30L-EB (UCF)
5-014-770-11 5-014-770-11 Sony SUPPORTER PIN (COM) (UCF) (PANEL PART)
5-013-482-11 5-013-482-11 Sony SUPPORTER PIN (COM) (UCF) (PANEL PART)
5-009-047-11 5-009-047-11 Sony SUPPORTER PIN (COM) (UCF) (PANEL PART)
7-600-036-11 7-600-036-11 Sony TAPE (1350FB-1) 30MMX66M BLK (UCF) (PANEL PART)
5-014-076-01 5-014-076-01 Sony TAPE LIGHT LEAKAGE (UCF) (PANEL PART)
5-009-861-02 5-009-861-02 Sony VESA SPACER A (COM) (UCF)
1-005-419-13 1-005-419-13 Sony WLAN/BT MODULE(11AC) (UCF)
