Manufacturer
Sony
Model Number
FW75BZ30J
Description
75-inch Class Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
(MAIN CBA) COMPL_SVC_BM5A_APHB_WW (UCF) |
|
|

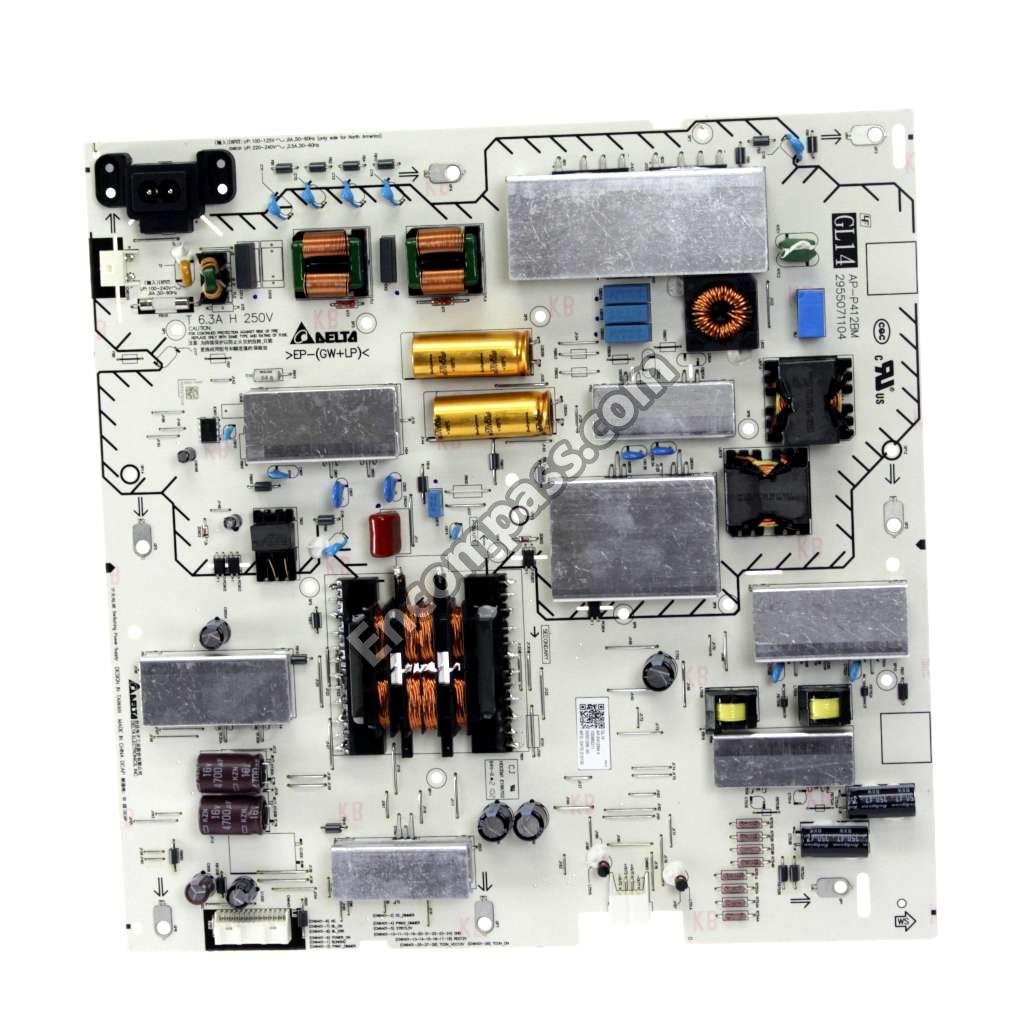

(POWER CBA) GL14-STATIC CONVERTER (TV) (UCF) |
|
|
+PSW M6*16 W14 (UCF) |
|
|
BAG, CL ASSY (3L LYX) (UCF) |
|
|
BEZEL ASSY (3L PHN) (UCF) |
|
|
BEZEL ASSY (3L PHN) (UCF) |
|
|
BEZEL ASSY (3L PHN) (UCF) (PANEL PART) |
|
|
BRACKET SIDE (BNN) A (UCF) |
|
|
BRACKET SIDE (BNN) A (UCF) |
|
|
BRACKET, WIFI(BNN) (UCF) |
|
|
BRACKET, WIFI(BNN) (UCF) |
|
|
C7L AC POWER CODE SETS (EU) (UCF) |
|
|
C7L AC POWER CODE SETS (US) (UCF) |
|
|
C7L AC POWER CORD SETS (EU) (UCF) |
|
|
CONNECTOR ASSY 30P (UCF) |
|
|
CONNECTOR ASSY 4P (SP) (UCF) |
|
|
COVER, BTM(L PHN) A (UCF) |
|
|
COVER, TOP(COM) (UCF) |
|
|
COVER, TOP(COM) (UCF) |
|
|
DIFFUSER PLATE (3L) (UCF) (PANEL PART) |
|
|
FLEXIBLE FLAT CABLE 20P (UCF) |
|
|
FLEXIBLE FLAT CABLE 20P (UCF) |
|
|
FLEXIBLE FLAT CABLE 25P (UCF) |
|
|
FLEXIBLE FLAT CABLE 25P (UCF) |
|
|
FLEXIBLE FLAT CABLE 51P (UCF) |
|
|
FLEXIBLE FLAT CABLE 51P (UCF) |
|
|
FLEXIBLE FLAT CABLE 68P (UCF) (PANEL PART) |
|
|
GASKET SB (3L BGO) (UCF) (PANEL PART) |
|
|
HT2_WW_CT_PR MOUNT (UCF) |
|
|
HT2_WW_EV_PR MOUNT (UCF) |
|
|
LABEL, SIDE TERMINAL(PHN) (UCF) |
|
|
LIQUID CRYSTAL ELEMENT(B750QUB (UCF) (PANEL PART) |
|
|
LIQUID CRYSTAL ELEMENT(L750EQJ (UCF) |
|
|
LIQUID CRYSTAL ELEMENT(L750EQY (UCF) |
|
|
MICROLENS ON PRISM (3L) (UCF) (PANEL PART) |
|
|
MIDDLE CHASSIS B (3L PHN) A (UCF) (PANEL PART) |
|
|
MIDDLE CHASSIS L (3L BNN) A (UCF) (PANEL PART) |
|
|
MIDDLE CHASSIS R (3L BNN) A (UCF) (PANEL PART) |
|
|
MIDDLE CHASSIS T (3L PHN) A (UCF) (PANEL PART) |
|
|

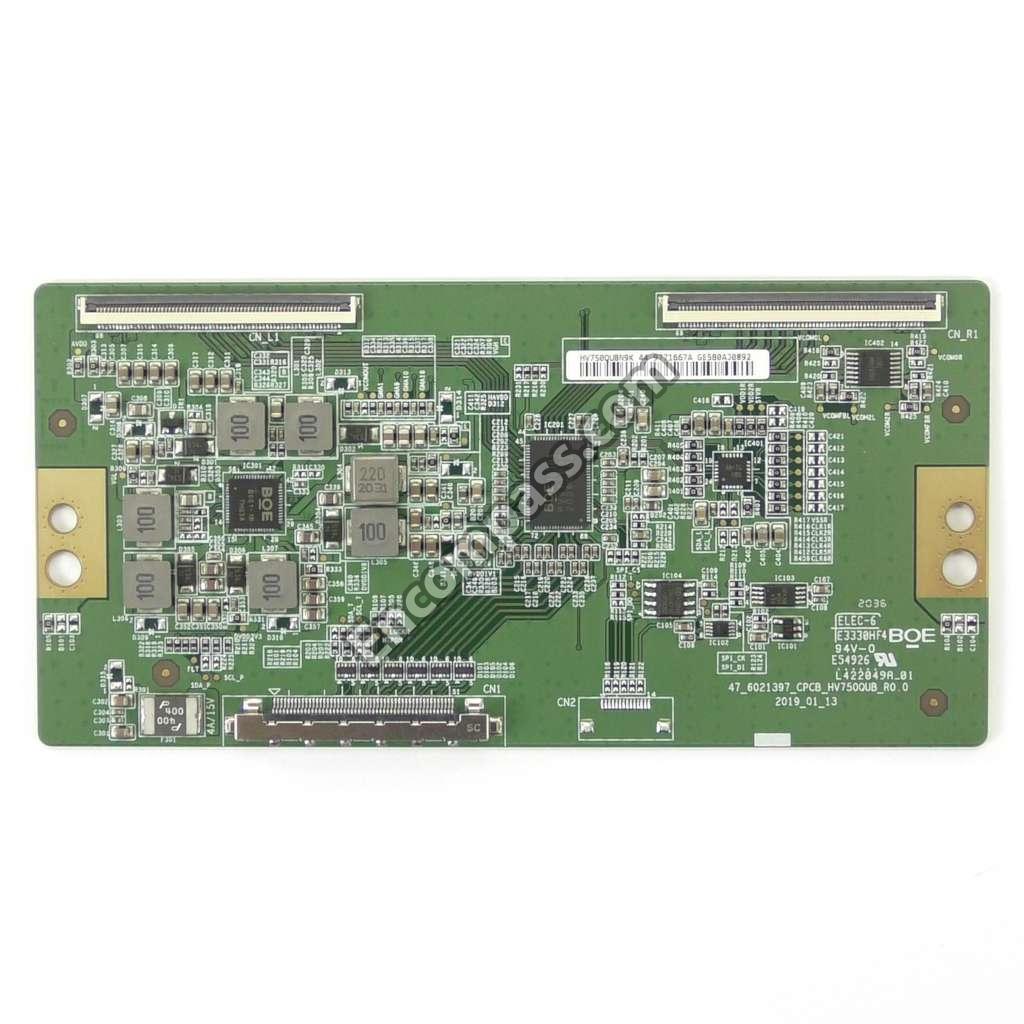

MOUNTED PWB E-T-CON (75) (44-9771667A) (UCF) (PANEL PART) |
|
|

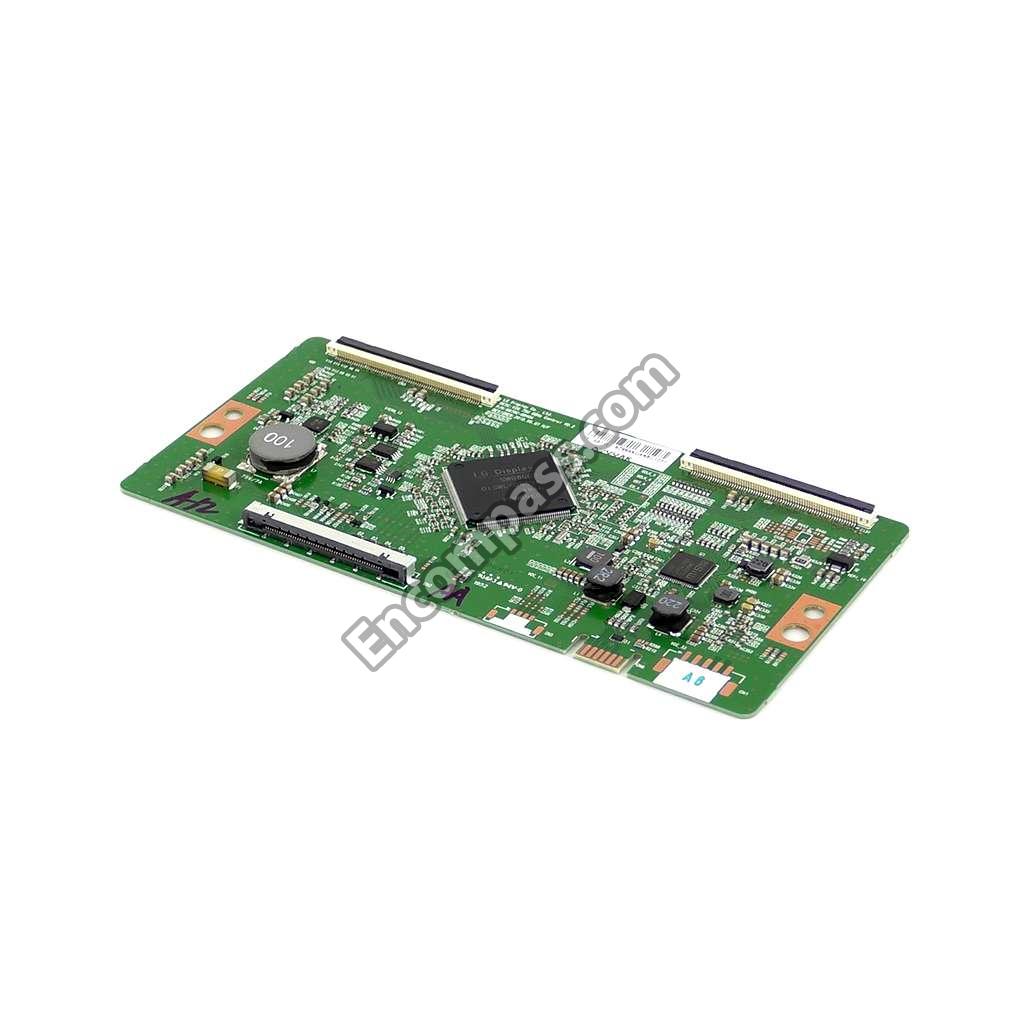

MOUNTED PWB E-T-CON (75) (UCF) |
|
|
MOUNTED PWB LS BAR (PHN 3L) (UCF) (PANEL PART) |
|
|
P-MOD (YSBM075CNG11) (UCF) |
|
|
P-MOD (YSBM075CNO02) (UCF) |
|
|
P-MOD (YSBM075CNO11) (UCF) |
|
|
POLARIZER F/CF (38-1007085) (UCF) (PANEL PART) |
|
|
POLARIZER R/TFT (38-1007086) (UCF) (PANEL PART) |
|
|
POWER-SUPPLY CORD SET (UCF) |
|
|
RADIATOR ADHESIVE (SV380C) (UCF) |
|
|
REAR COVER (3L PHN) A (UCF) |
|
|
REFERENCE GUIDE (UCF) |
|
|
REFLECTIVE SHEET (PHN 3L) (UCF) (PANEL PART) |
|
|
REMOTE COMMANDER (RMT-TB400U) (UCF) |
|
|
SCREW M3X3.0 STEP (UCF) |
|
|
SCREW, +PSW M3X6 (UCF) (PANEL PART) |
|
|
SCREW, +PSW M3X8 (UCF) |
|
|
SHEET, INSULATION (3L PHN) A (UCF) |
|
|
SHEET, THERMAL(BAF) (UCF) |
|
|
SHEET, THERMAL(BM) (UCF) (PANEL PART) |
|
|
SOURCE DRIVER IC MT BOARD (47-7012176) (UCF) (PANEL PART) |
|
|
SPACER(26) WF +C (UCF) |
|
|
SPEAKER BOX ASSY (FY20 W30XL-A) (UCF) |
|
|
SPEAKER BOX ASSY (FY20 W30XL-B) (UCF) |
|
|
STAND, L (3L LYX) A (UCF) |
|
|
STAND, R (3L LYX) A (UCF) |
|
|
VESA SPACER A (COM) (UCF) |
|
|
VESA SPACER A (COM) (UCF) |
|
|
WLAN/BT MODULE (11AC) (UCF) |
