Model Image
Manufacturer

Sony

Model Number

FW85BZ40L

Description

85-inch 4k Professional Display

Interactive Exploded View

Parts List

Part Number Description
5-015-521-01 5-015-521-01 +PSW M6*16 W14 (UCF)
5-009-158-62 5-009-158-62 BEZEL B ASSY (4L APL) (UCF)
5-009-154-61 5-009-154-61 BEZEL L ASSY (4L APL) (UCF)
5-009-156-61 5-009-156-61 BEZEL R ASSY (4L APL) (UCF)
5-009-152-61 5-009-152-61 BEZEL T ASSY (4L APL) (UCF)
5-021-551-61 5-021-551-61 BRACKET SIDE (BNN) A (UCF)
5-025-407-14 5-025-407-14 BRACKET STAND 3L (PHN) (UCF) (PANEL PART)
5-009-258-12 5-009-258-12 BRACKET, WIFI(BNN) (UCF)
5-009-030-01 5-009-030-01 CLAMPER,CABLE L(BNN) (UCF) (PANEL PART)
5-009-031-02 5-009-031-02 CLAMPER,CABLE S(BNN) (UCF) (PANEL PART)
A-5057-156-A A-5057-156-A COMPL_BM5A23_TKB_TXB_B2B_WW (UCF)
1-006-518-11 1-006-518-11 CONNECTOR ASSY 30P (UCF)
1-017-275-11 1-017-275-11 CONNECTOR ASSY 4P (LS) (46.S0966.450) (UCF) (PANEL PART)
1-006-517-11 1-006-517-11 CONNECTOR ASSY 4P (SP) (UCF)
5-050-453-11 5-050-453-11 COVER, BTM (4L PHN) A (UCF)
5-023-069-24 5-023-069-24 COVER, TOP (COM) (UCF)
5-048-486-01 5-048-486-01 DIFFUSER PLATE (HRS 4L P3) (UCF) (PANEL PART)

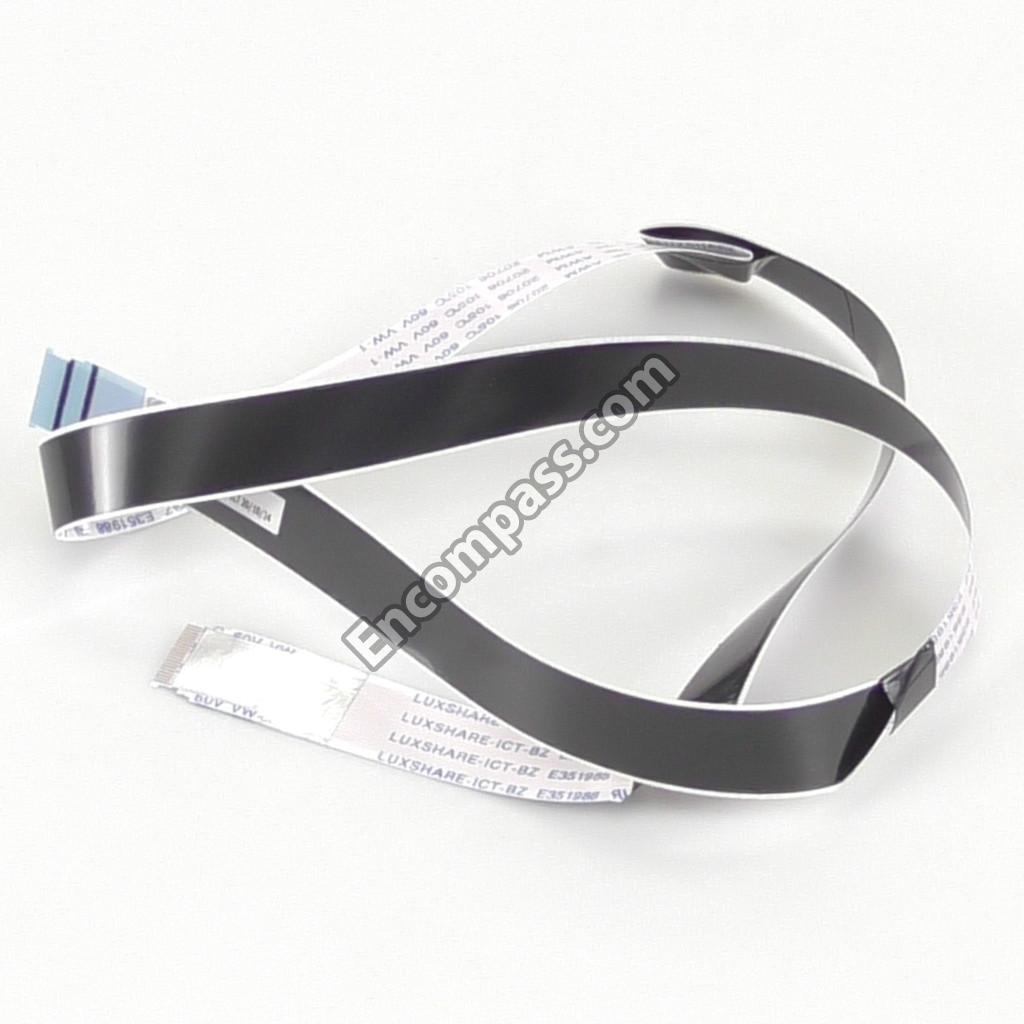

1-006-521-11 1-006-521-11 FLEXIBLE FLAT CABLE 20P (UCF)
1-011-605-11 1-011-605-11 FLEXIBLE FLAT CABLE 25P (UCF)
1-006-519-11 1-006-519-11 FLEXIBLE FLAT CABLE 51P (UCF)
1-017-274-11 1-017-274-11 FLEXIBLE FLAT CABLE 96P (UCF)
1-017-273-11 1-017-273-11 FLEXIBLE FLAT CABLE 96P (UCF) (PANEL PART)
A-5055-530-A A-5055-530-A FY23_HT3_WW_EVSI MOUNT (UCF)
4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (UCF) (PANEL PART)
5-018-307-11 5-018-307-11 GASKET, TCON SS (4L APL) (UCF) (PANEL PART)
5-018-307-01 5-018-307-01 GASKET, TCON SS (4L APL) (UCF) (PANEL PART)
1-004-424-61 1-004-424-61 GL03BP STATIC CONVERTER (TV) (UCF)
4-081-035-03 4-081-035-03 JOINT (UCF) (PANEL PART)
5-050-832-02 5-050-832-02 LABEL, UP B2B (UCF)
1-017-171-21 1-017-171-21 LIQUID CRYSTAL ELEMENT(A85QVN) (UCF)
5-019-446-25 5-019-446-25 MID CHASSIS BL ASSY (4L APL) (UCF) (PANEL PART)
5-019-447-25 5-019-447-25 MID CHASSIS BR ASSY (4L APL) (UCF) (PANEL PART)
5-019-448-23 5-019-448-23 MID CHASSIS L ASSY (4L APL) (UCF) (PANEL PART)
5-019-449-23 5-019-449-23 MID CHASSIS R ASSY (4L APL) (UCF) (PANEL PART)
5-019-444-25 5-019-444-25 MID CHASSIS TL ASSY (4L APL) (UCF) (PANEL PART)
5-019-445-25 5-019-445-25 MID CHASSIS TR ASSY (4L APL) (UCF) (PANEL PART)
1-017-172-21 1-017-172-21 MOUNTED PWB E-T-CON (85) (UCF)
1-017-110-11 1-017-110-11 MOUNTED PWB LS BAR (EPH2 4L) (UCF)
A-5059-984-A A-5059-984-A P-MOD (YSDM085INU11) (UCF)
5-058-321-01 5-058-321-01 POLARIZER F/CF (UCF) (PANEL PART)
1-005-642-12 1-005-642-12 POWER-SUPPLY CORD SET (UCF)
5-013-391-12 5-013-391-12 REAR COVER (4L BNN) A (UCF)
A-5049-611-A A-5049-611-A REF, POLARIZER ON POP (FT85)Q5 (UCF) (PANEL PART)
5-049-510-11 5-049-510-11 REFERENCE GUIDE (UCF)
5-035-538-01 5-035-538-01 REFLECTIVE SHEET (HRS 4L) (66.C4V57.349 ) (UCF) (PANEL PART)
1-493-483-11 1-493-483-11 REMOTE COMMANDER (RMT-TB400U) (UCF)
5-009-852-01 5-009-852-01 SCREW, +F M2.5X2 (UCF) (PANEL PART)
4-690-738-01 4-690-738-01 SCREW, +LH M3X3 (PUC) (UCF) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCF) (PANEL PART)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UCF)
4-726-549-01 4-726-549-01 SCREW, M3X3 (UCF) (PANEL PART)
4-597-645-01 4-597-645-01 SCREW, M3X3.6 (UCF) (PANEL PART)
5-053-617-11 5-053-617-11 SETUP GUIDE (UCF)
5-027-742-11 5-027-742-11 SHEET, INSULATION (3L PHN) A (UCF)
4-457-451-12 4-457-451-12 SHEET, THERMAL(BAF) (UCF)
5-049-561-01 5-049-561-01 SHIFT BKT(L) A (COM PHNB2) (UCF)
1-019-123-11 1-019-123-11 SOURCE DRIVER IC MT BOARD (UCF) (PANEL PART)
1-004-511-12 1-004-511-12 SPEAKER BOX ASSY (FY20 W30XL-A) (UCF)
1-004-511-22 1-004-511-22 SPEAKER BOX ASSY (FY20 W30XL-B) (UCF)
5-014-770-11 5-014-770-11 SUPPORTER PIN (COM) (UCF) (PANEL PART)
5-009-047-11 5-009-047-11 SUPPORTER PIN (COM) (UCF) (PANEL PART)
7-600-036-11 7-600-036-11 TAPE (1350FB-1) 30MMX66M BLK (UCF) (PANEL PART)
5-019-179-31 5-019-179-31 TAPE, REF FIX (UCF) (PANEL PART)
5-009-861-02 5-009-861-02 VESA SPACER A (COM) (UCF)
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC) (UCF)
