Model Image
Manufacturer

Sony

Model Number

GDM20E40

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

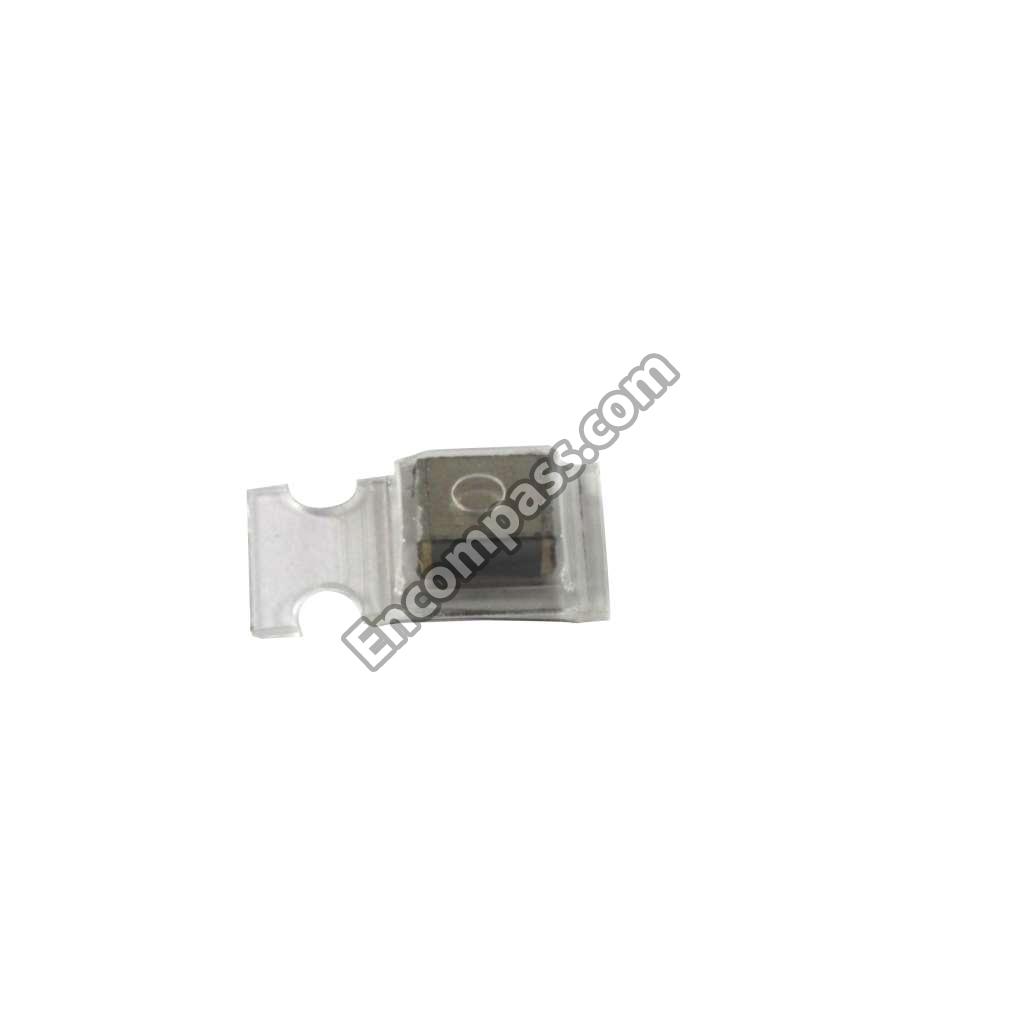

1-104-561-11 1-104-561-11 0.068MF/16V, FILM CAP.
1-218-478-11 1-218-478-11 1/4W 330H,CHIP RESIS.
1-216-617-11 1-216-617-11 39 RESISTOR,METAL,FILM CH
4-044-799-01 4-044-799-01 BAG,PROTECTION
X-4031-834-1 X-4031-834-1 BEZEL ASSY
1-107-924-11 1-107-924-11 CAP, ELECT 0.47MF
1-107-846-11 1-107-846-11 CAPACITOR 0.10MF 400.00V
1-107-848-11 1-107-848-11 CAPACITOR 0.72MF 400.0V
1-900-076-10 1-900-076-10 CONNECTOR ASSY
4-044-711-01 4-044-711-01 COVER, AC INLET
4-043-391-02 4-043-391-02 CUSHION, LOWER
4-043-390-02 4-043-390-02 CUSHION, UPPER
4-044-443-01 4-044-443-01 INDIVIDUAL CARTON
1-216-865-11 1-216-865-11 RESISTOR,CHIP 1.3K 1/10W(
4-034-937-21 4-034-937-21 SCREW (M3X12) TAPPING
