Model Image
Manufacturer

Sony

Model Number

HCDDP7

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4-231-810-01 4-231-810-01 BUTTON (EDIT)
X-4953-306-1 X-4953-306-1 HOLDER (BU) (BU30) ASSY
6-703-156-01 6-703-156-01 IC LA1845
8-759-827-69 8-759-827-69 IC NJL63H400A-1
4-231-818-01 4-231-818-01 INDICATOR (BLUE)
4-231-513-01 4-231-513-01 PULLEY (B) (BU-30), CHUCK

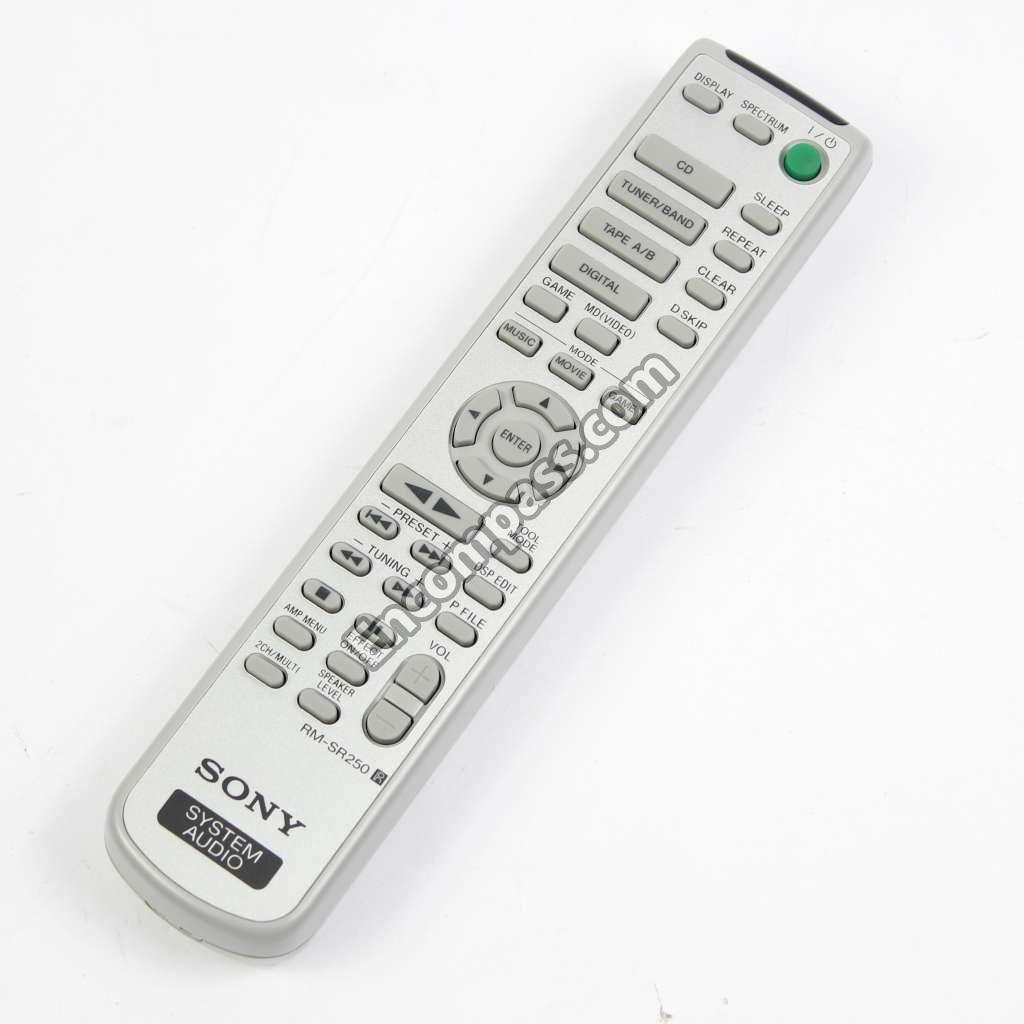

1-476-447-11 1-476-447-11 REMOTE CONTROL(RM-6R250
1-227-385-21 1-227-385-21 RESISTOR,ADJ 680
4-231-803-01 4-231-803-01 RING (VOL)
4-231-836-01 4-231-836-01 SPRING (HEART CAM-A)
4-231-841-01 4-231-841-01 SPRING (HEART CAM-B)
4-231-837-01 4-231-837-01 SPRING (TC-A)
4-231-838-01 4-231-838-01 SPRING (TC-B)
1-786-143-11 1-786-143-11 SWITCH
4-231-452-04 4-231-452-04 TABLE (NEW)
1-796-001-11 1-796-001-11 TOUCH PAD
1-757-420-11 1-757-420-11 WIRE, FLAT TYPE (23 CORE)
