Model Image
Manufacturer

Sony

Model Number

HCDGX99

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-754-399-11 1-754-399-11 ANTENNA, ROOP

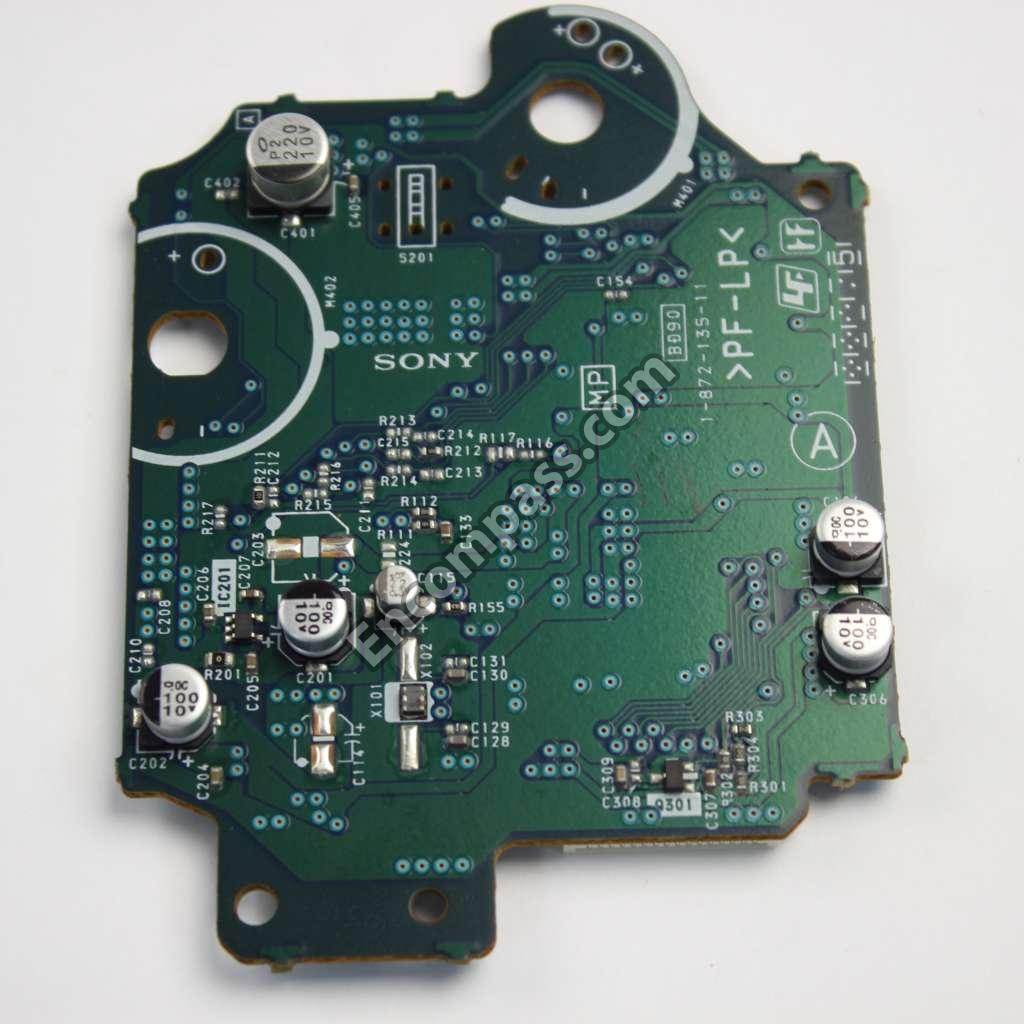

A-1217-914-A A-1217-914-A BD90 BOARD, COMPLETE

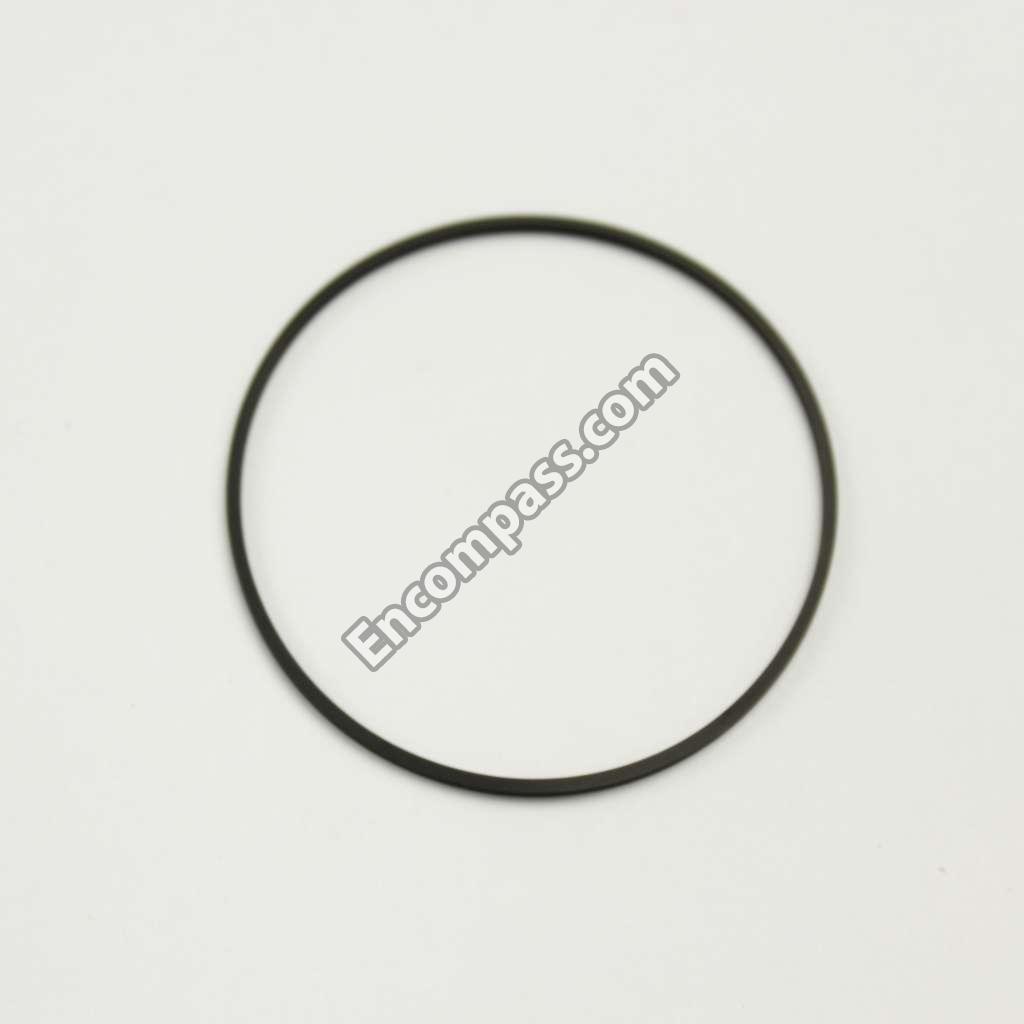

2-688-622-01 2-688-622-01 BELT (MAIN)
2-649-132-21 2-649-132-21 BUTTON (CASS)
2-890-821-01 2-890-821-01 BUTTON (DISC)
2-890-818-01 2-890-818-01 BUTTON (FUNCTION)
X-2177-496-1 X-2177-496-1 BUTTON (POWER) ASSY
2-890-819-01 2-890-819-01 BUTTON (TUNING)
1-797-575-11 1-797-575-11 DECK, MECHANICAL
2-890-827-01 2-890-827-01 DOOR (CD)
1-787-344-11 1-787-344-11 FAN, DC
2-890-826-01 2-890-826-01 KNOB (VOL)
A-1218-539-A A-1218-539-A MAIN BOARD, COMPLETE (EC77: US, CND)
1-797-193-62 1-797-193-62 MECHANICAL, CD (DLM3A23-11)
A-4735-357-A A-4735-357-A OPTICAL PICK UP ASSY
2-890-830-01 2-890-830-01 PANEL (R), SIDE
2-890-829-01 2-890-829-01 PANEL (TOP)
A-1218-504-A A-1218-504-A PANEL BOARD, COMPLETE (GX99)
1-790-757-51 1-790-757-51 POWER CORD
1-771-853-11 1-771-853-11 SWITCH, DETECTION (LIMIT)
1-445-113-11 1-445-113-11 TRANSFORMER, POWER
2-890-817-01 2-890-817-01 WINDOW
