Model Image
Manufacturer

Sony

Model Number

HCDNX1

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

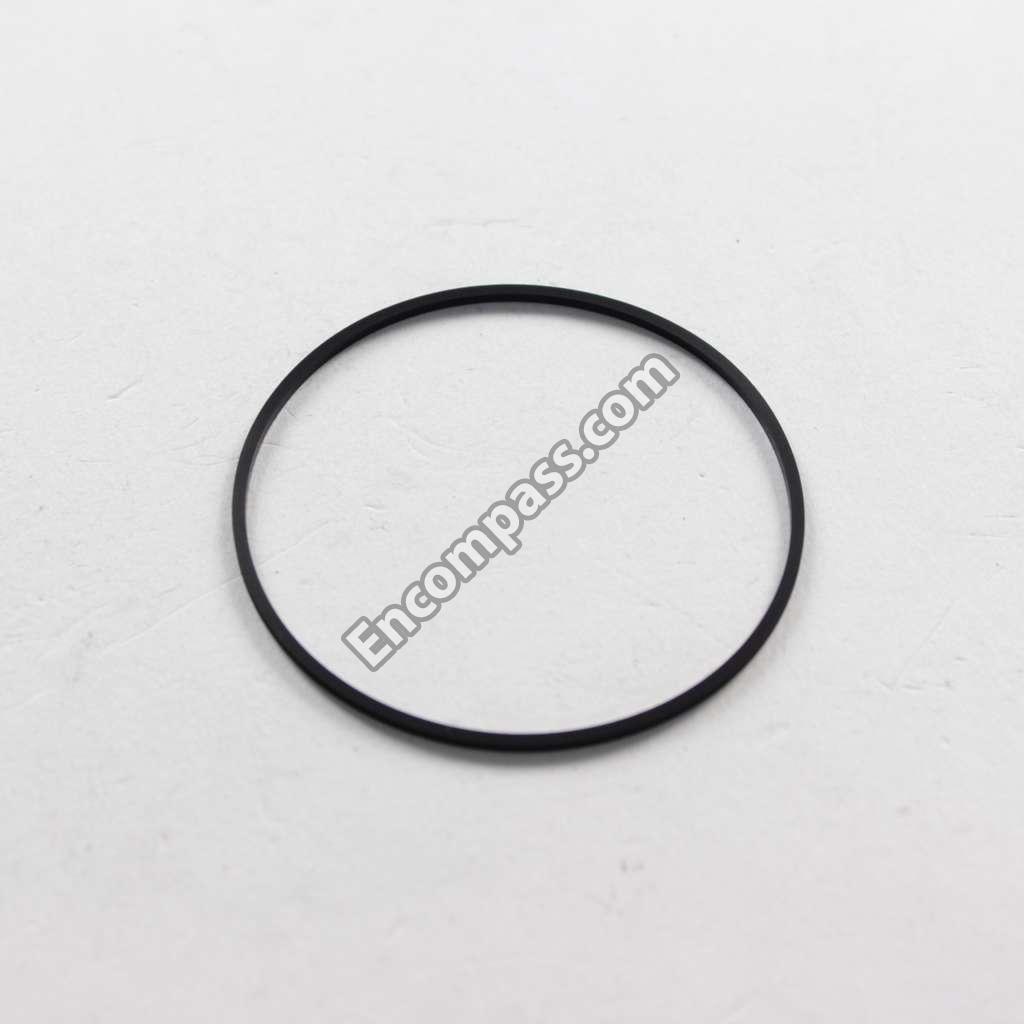

4-211-237-01 4-211-237-01 BELT (MODE)
1-784-786-11 1-784-786-11 CONNECTOR, FFC 25P
1-791-075-21 1-791-075-21 CORD, CONNECTION
J-2501-174-A J-2501-174-A EXTENSION BORDA
1-763-478-11 1-763-478-11 FAN, DC
8-759-654-53 8-759-654-53 IC M30622MA-A13FP
1-792-029-11 1-792-029-11 LEAD (WITH CONNECTOR)
4-221-446-01 4-221-446-01 LEVER (B), EJECT
A-4426-238-A A-4426-238-A MOUNTED C.BOARD,PA
4-221-432-01 4-221-432-01 PANEL (CD), SUB
1-785-315-11 1-785-315-11 PIN, CONNECTOR (STRAIGHT)
4-221-444-01 4-221-444-01 PLATE
J-2501-194-A J-2501-194-A POWER SUPPLY JIG
1-674-803-11 1-674-803-11 PRINTED C.BOARD,TRANS.
4-221-370-01 4-221-370-01 SHEET, DIFFUSION
4-211-223-01 4-211-223-01 SLIDER (U/D) (//C)
1-793-351-11 1-793-351-11 SOCKET, CONNECTOR 19P
4-216-879-01 4-216-879-01 SPRING (GEAR) ,COIL
4-221-447-01 4-221-447-01 SPRING (HOLDER A)
4-221-448-01 4-221-448-01 SPRING (HOLDER B)
4-212-676-01 4-212-676-01 SPRING (LID) , TORSION
4-212-678-01 4-212-678-01 SPRING (SHUTTER) ,TENSION
4-211-245-01 4-211-245-01 SPRING , COMPRESSION
1-771-537-12 1-771-537-12 SWITCH, LEAF
4-211-212-53 4-211-212-53 TRAY (SUB)
1-828-993-11 1-828-993-11 WIRE (FLAT TYPE) (17 CORE
1-773-170-11 1-773-170-11 WIRE (FLAT TYPE) (21 CORE
1-773-168-11 1-773-168-11 WIRE (FLAT TYPE) (21 CORE
