Model Image
Manufacturer

Sony

Model Number

HCDSHAKE55

Description

Home Receiver For Shake55 Mini Hifi Component Syst

Interactive Exploded View

Parts List

Part Number Description

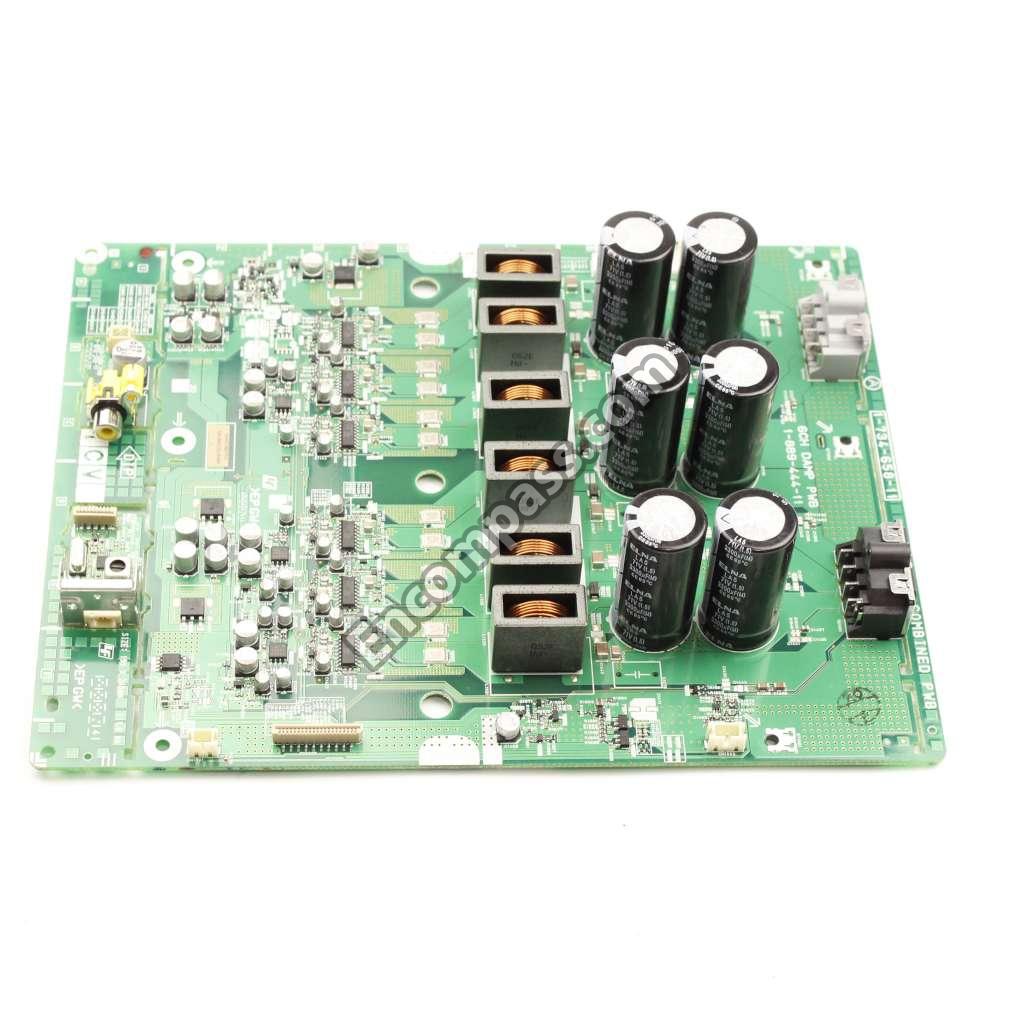

A-2058-003-A A-2058-003-A 6CH DAMP BOARD, COMPLETE

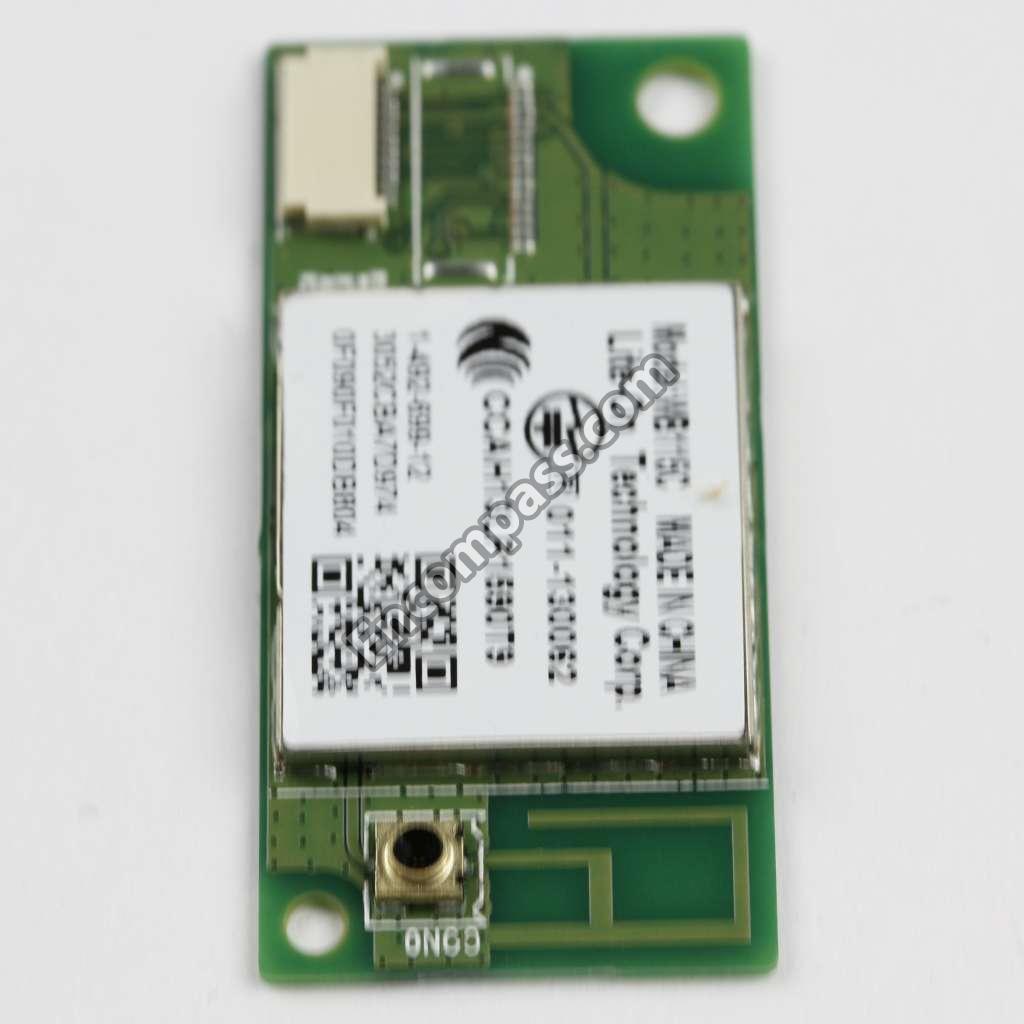

1-492-699-12 1-492-699-12 BLUETOOTH MODULE
4-462-250-31 4-462-250-31 CASE, OVERALL
4-130-554-01 4-130-554-01 CATCHER, RUBBER
3-703-150-11 3-703-150-11 CLAMP
1-500-082-11 1-500-082-11 CLAMP, SLEEVE FERRITE
1-837-308-11 1-837-308-11 CORD, POWER-SUPPLY (US)
4-449-063-01 4-449-063-01 CUSHION (NFC)

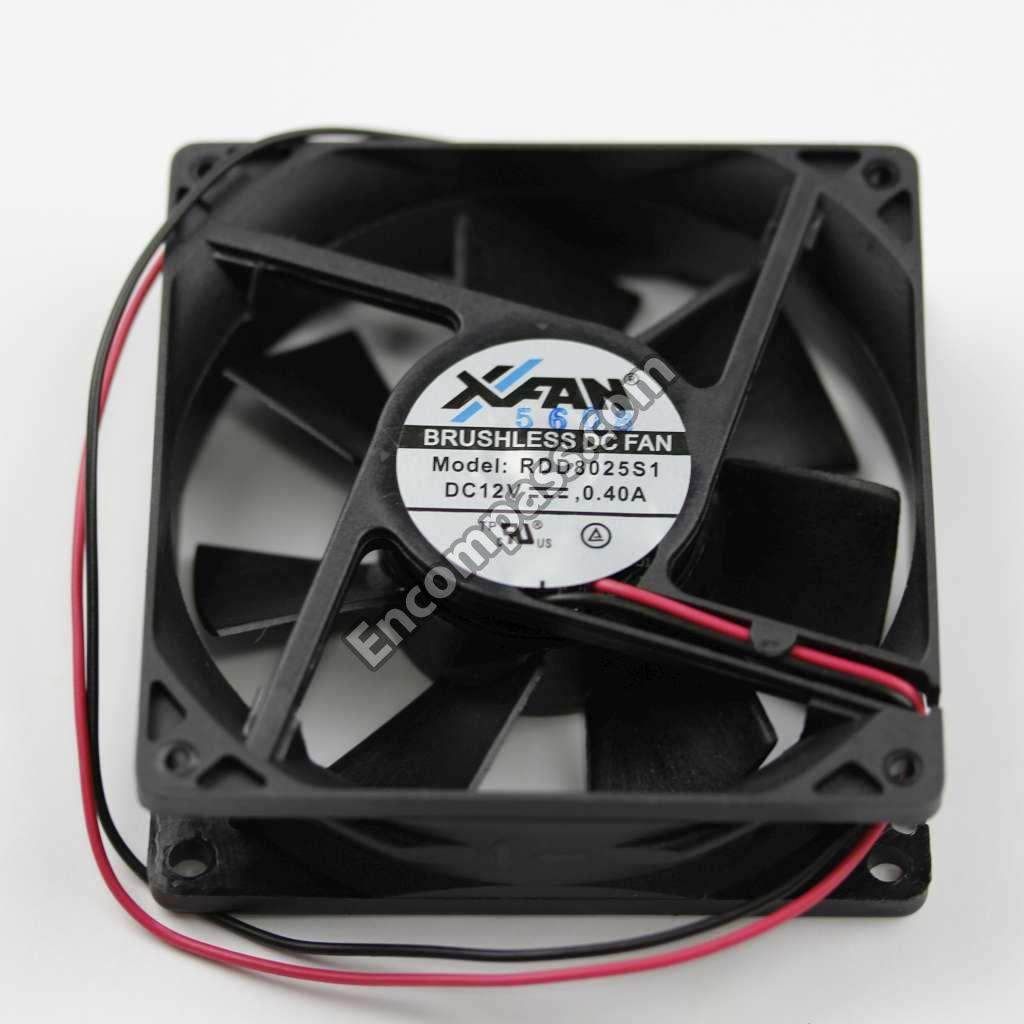

1-855-006-51 1-855-006-51 DC FAN
1-855-340-11 1-855-340-11 DC FAN

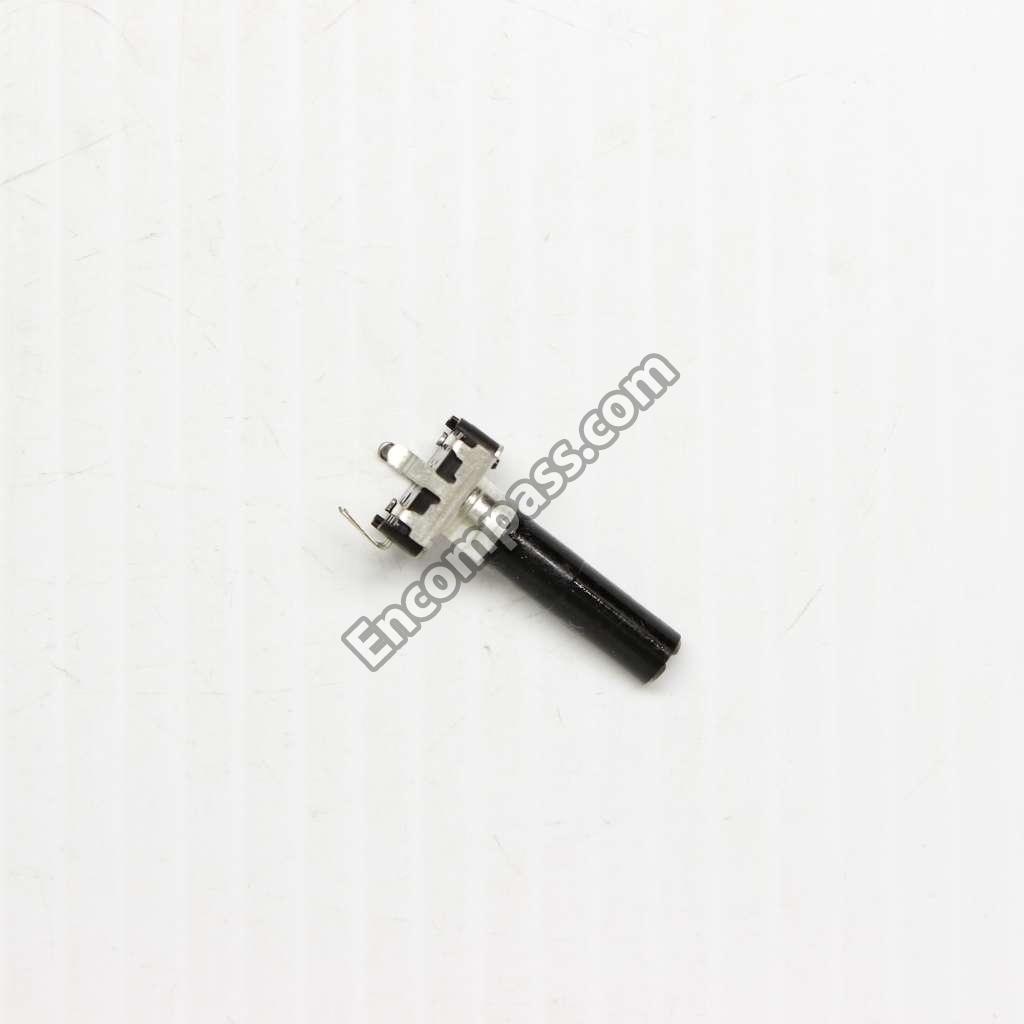

1-786-417-11 1-786-417-11 ENCODER, ROTARY (VOLUME / DJ CONTROL)
A-1977-123-A A-1977-123-A FL BOARD, COMPLETE
4-176-619-01 4-176-619-01 FOOT, RUBBER
4-462-223-01 4-462-223-01 HANDLE, TOP R
2-634-618-21 2-634-618-21 INSULATOR
3-087-599-01 3-087-599-01 INSULATOR SCREW
4-411-587-01 4-411-587-01 KNOB (MIC)

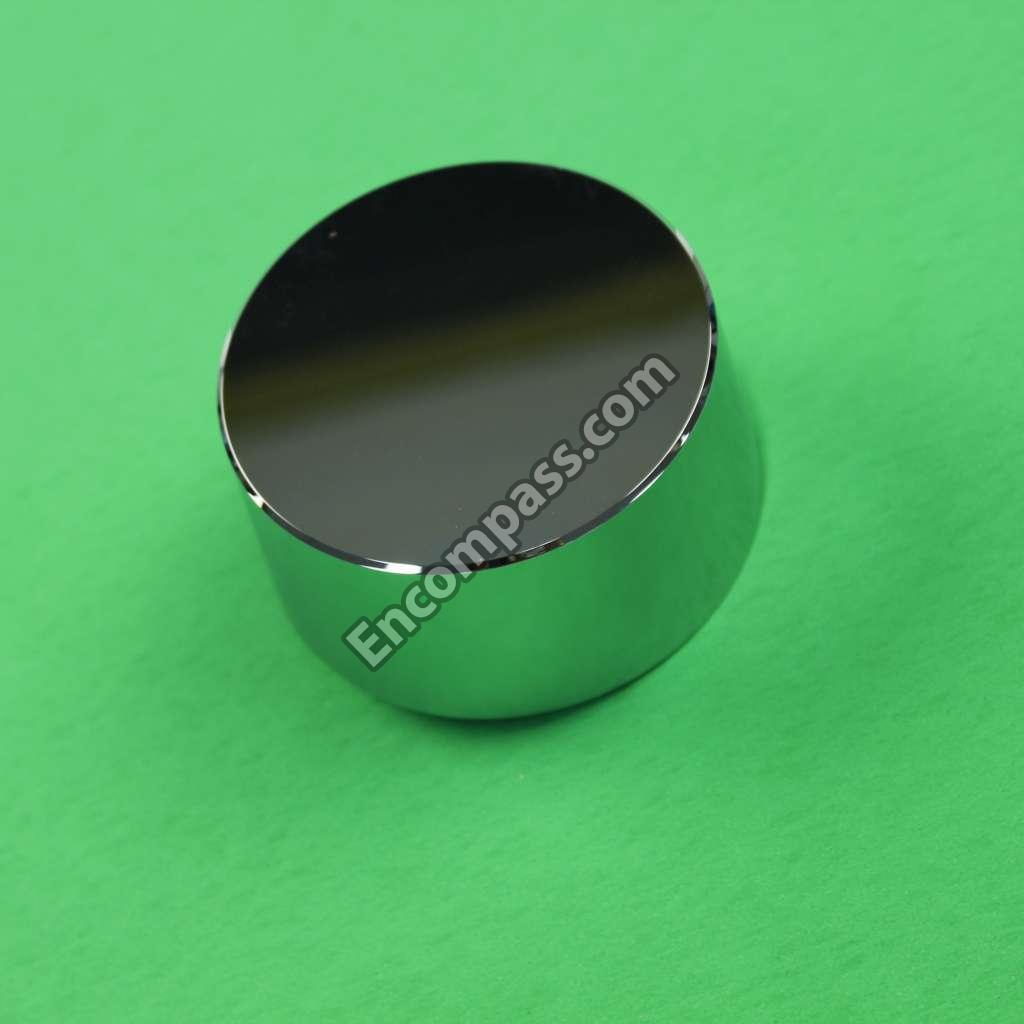

4-462-229-01 4-462-229-01 KNOB, VOLUME
A-1896-391-B A-1896-391-B LOADING COMPLETE ASSY (T) (INCLUDING MS-476 BOARD)
A-2043-344-A A-2043-344-A MOTHERBOARD BOARD, COMPLETE (TYPE A)
A-2062-227-A A-2062-227-A MOTHERBOARD BOARD, COMPLETE (TYPE B)
X-2589-132-1 X-2589-132-1 PANEL, FRONT ASSY (U2)
X-2587-390-1 X-2587-390-1 PANEL, LOADING ASSY
4-462-227-01 4-462-227-01 PROTECTOR, REAR L
4-462-226-01 4-462-226-01 PROTECTOR, REAR R
8-989-470-00 8-989-470-00 RC-S801/A (WW)
7-685-646-79 7-685-646-79 SCREW BVTP 3X8 TYPE2 IT-3
4-464-752-01 4-464-752-01 SCREW, TAPPING (HEX)
A-2046-956-A A-2046-956-A SERVICE, OPTICAL DEVICE
4-295-431-01 4-295-431-01 SPRING, LOADING
1-483-465-41 1-483-465-41 VACUUM FLUORESCENT DISPLAY
1-828-701-61 1-828-701-61 WIRE (FLAT TYPE) (10 CORE)
1-828-381-21 1-828-381-21 WIRE (FLAT TYPE) (23 CORE)
1-846-951-11 1-846-951-11 WIRE (FLAT TYPE) (24 CORE)
1-828-293-21 1-828-293-21 WIRE (FLAT TYPE) (5 CORE)
1-828-692-61 1-828-692-61 WIRE (FLAT TYPE) (8 CORE)
1-828-309-21 1-828-309-21 WIRE (FLAT TYPE) (9 CORE)
