Sony

Model Number

HDCX300

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
3-669-607-22 3-669-607-22 +PSW (SMALL ROUND) (2.6)
1-791-549-12 1-791-549-12 CABLE ASSY, COAXIAL
9-910-999-UU 9-910-999-UU CHASSIS, REAR
1-456-815-11 1-456-815-11 COIL, VARIABLE
1-569-577-42 1-569-577-42 CONNECTOR, D-SUB 15P
1-778-645-31 1-778-645-31 CONNECTOR, FFC/FPC(ZIF) AN 10P

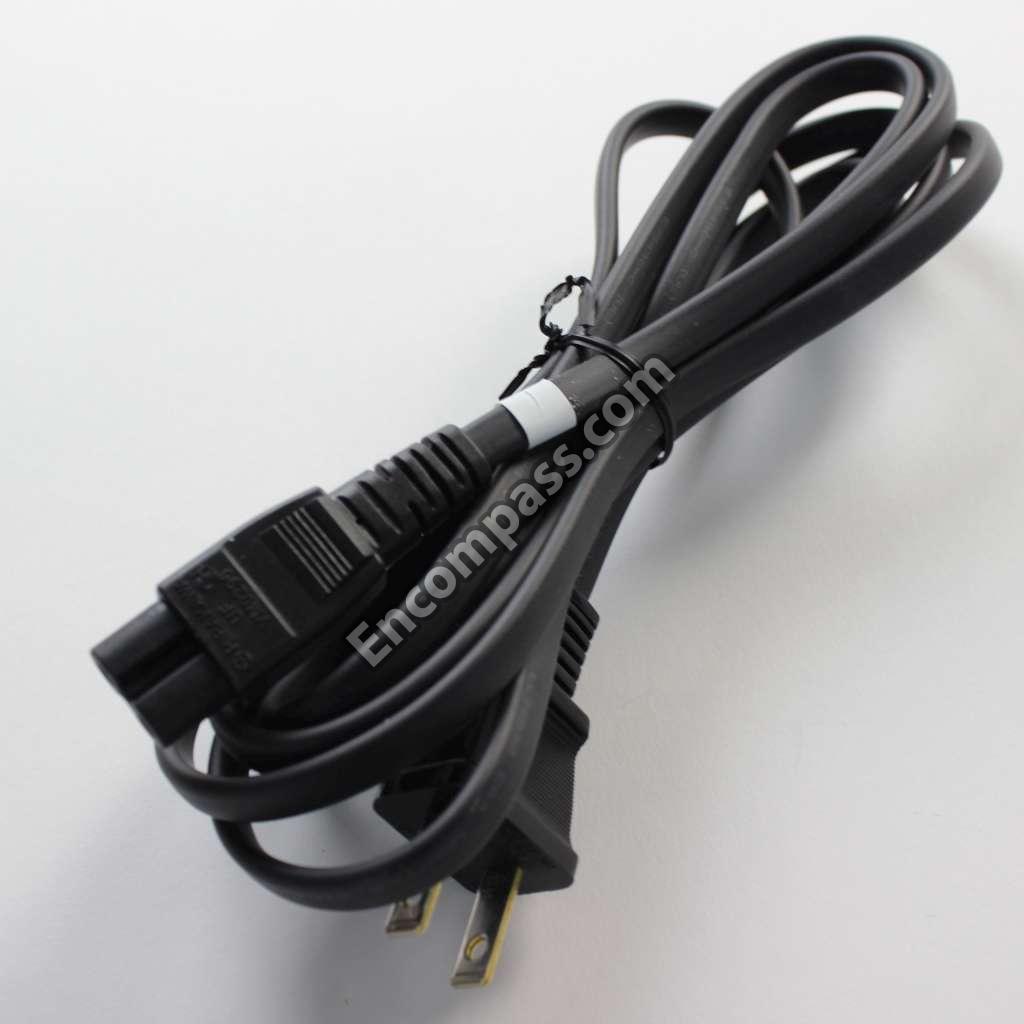

1-757-562-61 1-757-562-61 CORD, POWER
3-854-651-01 3-854-651-01 COVER, TALLY
6-502-361-01 6-502-361-01 DI MA3S132EGLS0
6-501-207-01 6-501-207-01 DIODE CL-201HR-C-TSL
3-853-884-01 3-853-884-01 FILTER, FAN
6-706-358-01 6-706-358-01 IC AD5424YCPZ-REEL7
6-710-022-01 6-710-022-01 IC CAT24FC256XI-TE13
8-753-240-64 8-753-240-64 IC CXA3647BR-T4
8-753-238-42 8-753-238-42 IC CXA3647BR-T4
8-753-261-02 8-753-261-02 IC CXA3648AR-T4
6-706-863-01 6-706-863-01 IC LMH6732MFX/NOPB
6-706-357-01 6-706-357-01 IC LTC1664IGN#TR
1-414-458-11 1-414-458-11 INDUCTOR, CHIP (K) 3.9NH
1-788-174-21 1-788-174-21 LENS, ZOOM (VCL-719BXS)
A-1154-266-A A-1154-266-A MOUNTED C.BOARD, AT-159G COMPL
A-1154-256-A A-1154-256-A MOUNTED C.BOARD, CN-2550G
A-1154-255-A A-1154-255-A MOUNTED C.BOARD, CN-2566G
A-1154-264-A A-1154-264-A MOUNTED C.BOARD, DPR-253G
A-1154-260-A A-1154-260-A MOUNTED C.BOARD, TG-240G COMPL
A-1154-262-A A-1154-262-A MOUNTED C.BOARD, VA-221G COMPL
3-618-078-03 3-618-078-03 RING, RETAINING, CE TYPE
8-729-143-43 8-729-143-43 TRANSISTOR 2SA1463IK
8-729-019-94 8-729-019-94 TRANSISTOR 2SK-1589 (200MW)
