Model Image
Manufacturer

Sony

Model Number

HDRCX110

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-838-205-11 1-838-205-11 A/V CONNECTING CABLE
1-490-430-23 1-490-430-23 AC-L200C/L200D AC ADAPTOR
4-171-761-01 4-171-761-01 BLIND, HINGE
4-171-820-01 4-171-820-01 BT FRAME
4-171-817-01 4-171-817-01 BT PANEL
4-171-970-01 4-171-970-01 CABINET (M) P (BLA
4-171-970-21 4-171-970-21 CABINET (M), P
4-171-970-11 4-171-970-11 CABINET (M), P
A-1757-179-A A-1757-179-A CABINET (R (337B))
A-1757-180-A A-1757-180-A CABINET (R (337L)) ASSY
A-1757-181-A A-1757-181-A CABINET (R (337R)) ASSY
A-1757-257-A A-1757-257-A CABINET (T) BLOCK ASSY
A-1757-256-A A-1757-256-A CABINET (T) BLOCK ASSY
4-171-812-01 4-171-812-01 CABINET BM
A-1757-196-A A-1757-196-A CABINET F (337B) ASSY
A-1757-197-A A-1757-197-A CABINET F (337L) ASSY
A-1757-198-A A-1757-198-A CABINET F (337R) ASSY
A-1757-261-A A-1757-261-A CABINET L (337B) ASSY
A-1757-262-A A-1757-262-A CABINET L (337L) ASSY
A-1757-263-A A-1757-263-A CABINET L (337R) ASSY
A-1757-226-A A-1757-226-A CABINET P (B) 3370 ASSY
A-1757-228-A A-1757-228-A CABINET P (L) 3370 ASSY
A-1757-227-A A-1757-227-A CABINET P (R) 3370 ASSY
A-1757-250-A A-1757-250-A CABINET T BLOCK ASSY
4-170-890-05 4-170-890-05 CD-ROM "HANDYCAM APPLICATION
A-1756-539-A A-1756-539-A CM114 BOARD COMPLETE
1-457-893-11 1-457-893-11 COIL, CHOKE 10UH
1-837-287-11 1-837-287-11 CORD CONNECTION (USB 5P)
1-834-646-11 1-834-646-11 CORD, CONNECTION (AV MULTIPLE)
1-880-344-11 1-880-344-11 FLEXIBLE PRINTED CIRCUIT
4-171-975-01 4-171-975-01 FPC CLAMPER
4-177-121-01 4-177-121-01 GASKET (L (337))
4-172-027-01 4-172-027-01 HEAT SINK BM (337)
4-172-025-01 4-172-025-01 HEAT SINK LE
4-172-026-01 4-172-026-01 HEAT SINK VC
4-171-819-01 4-171-819-01 HEAT SINK, BT
4-171-661-21 4-171-661-21 HINGE COVER O
4-171-661-11 4-171-661-11 HINGE COVER O
4-171-661-01 4-171-661-01 HINGE COVER O (BLA
4-171-660-01 4-171-660-01 HINGE COVER U
X-2546-139-1 X-2546-139-1 HINGE M (1) ASSY
6-714-937-01 6-714-937-01 IC BA2904SFVM-TR
6-714-865-01 6-714-865-01 IC BH76095GU-E2
6-714-866-01 6-714-866-01 IC BU76310GU-E2
1-822-470-31 1-822-470-31 JACK, DC
4-171-759-01 4-171-759-01 JK FRAME
4-171-758-01 4-171-758-01 JK LID R
4-172-031-01 4-172-031-01 JK RETAINER L (337)
4-171-760-01 4-171-760-01 JK RETAINER R
A-1756-550-A A-1756-550-A JK395 BOARD COMPLETE
4-165-732-01 4-165-732-01 LABEL, FUSE REPLACEMENT CAUTION
4-171-972-01 4-171-972-01 LCD CUSHION
1-811-015-11 1-811-015-11 LCD MODULE WITH TOUCH PANEL
4-171-973-01 4-171-973-01 LCD RETAINER
1-471-504-11 1-471-504-11 MAGNET (ND5X3.5X2.4-B)
1-542-821-11 1-542-821-11 MICROPHONE UNIT
A-1756-534-A A-1756-534-A MOUNTED C.BOARD, FP-1189
A-1756-546-A A-1756-546-A MS431 BOARD COMPLETE
8-022-373-30 8-022-373-30 NP-FV50 RECHARGEABLE BATTERY
3-088-080-51 3-088-080-51 NUT (920), Z
1-856-061-21 1-856-061-21 OPTICAL FILTERBLOCK(OFB-04-35)
4-171-971-01 4-171-971-01 PLATE P, GROUND
1-880-343-11 1-880-343-11 PWB FP-1183 FLEXI
1-880-345-11 1-880-345-11 PWB, FP-1185 FLEXIBLE
1-880-351-11 1-880-351-11 PWB, FP-1191 FLEXIBLE
A-1757-195-A A-1757-195-A RETAINER ASSY, MICROPHONE
4-163-258-01 4-163-258-01 RUBBER (1181), SEAL
3-283-643-21 3-283-643-21 SCREW TRIPOD
4-174-979-01 4-174-979-01 SHEET (AN), RADIATION
4-172-039-01 4-172-039-01 SHEET (CM), SHIELD
4-177-119-01 4-177-119-01 SHEET (MF), SHIELD
4-177-123-01 4-177-123-01 SHEET (MS), SHIELD
4-177-120-01 4-177-120-01 SHEET (VC), SHIELD
4-172-029-01 4-172-029-01 SHEET CM, RADIATION
4-172-028-01 4-172-028-01 SHEET VC, RADIATION
A-1757-283-A A-1757-283-A SLOT ASSY MS
1-487-575-11 1-487-575-11 SWITCH BLOCK, CONTROL(PS33700)

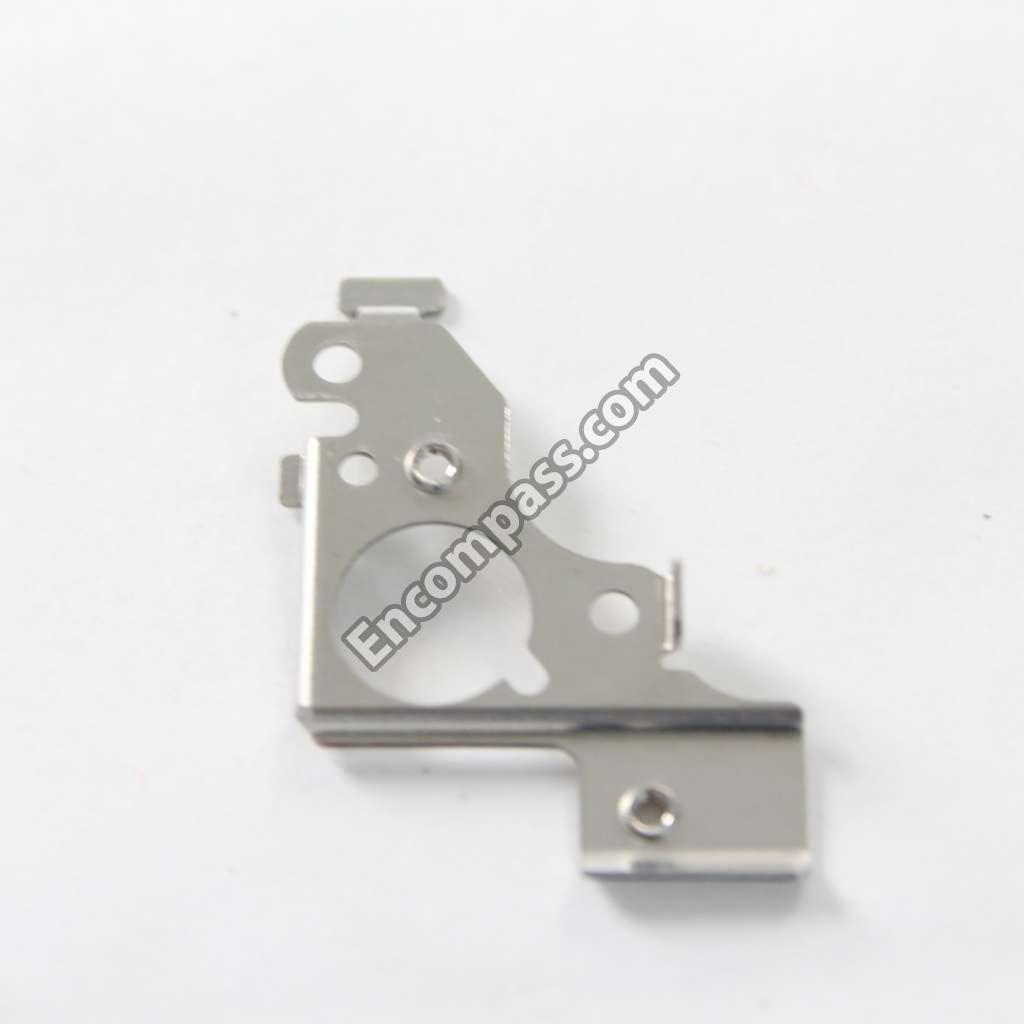

4-171-813-01 4-171-813-01 TRIPOD RETAINER
A-1757-117-A A-1757-117-A VC-590 BOARD COMPLETE SVC
A-1757-118-A A-1757-118-A VC590 BOARD COMPLETE
