Model Image
Manufacturer

Sony

Model Number

HDRCX630V

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

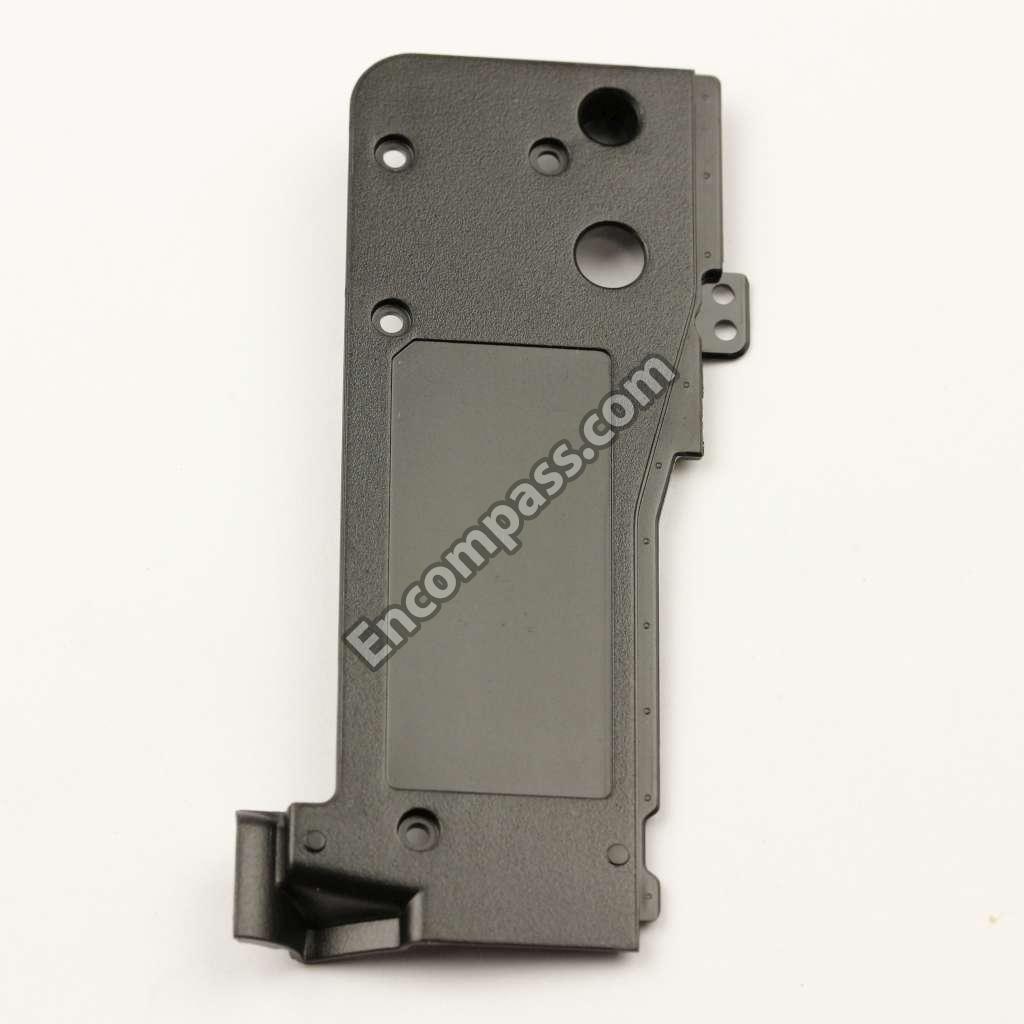

4-451-004-01 4-451-004-01 CABINET (BM)
A-1917-342-A A-1917-342-A CABINET (C (4230B)) BLOCK ASSY
A-1917-380-A A-1917-380-A CABINET (F) ASSY
A-1917-341-A A-1917-341-A CABINET (L) ASSY
4-450-910-01 4-450-910-01 CABINET (M (423)), P

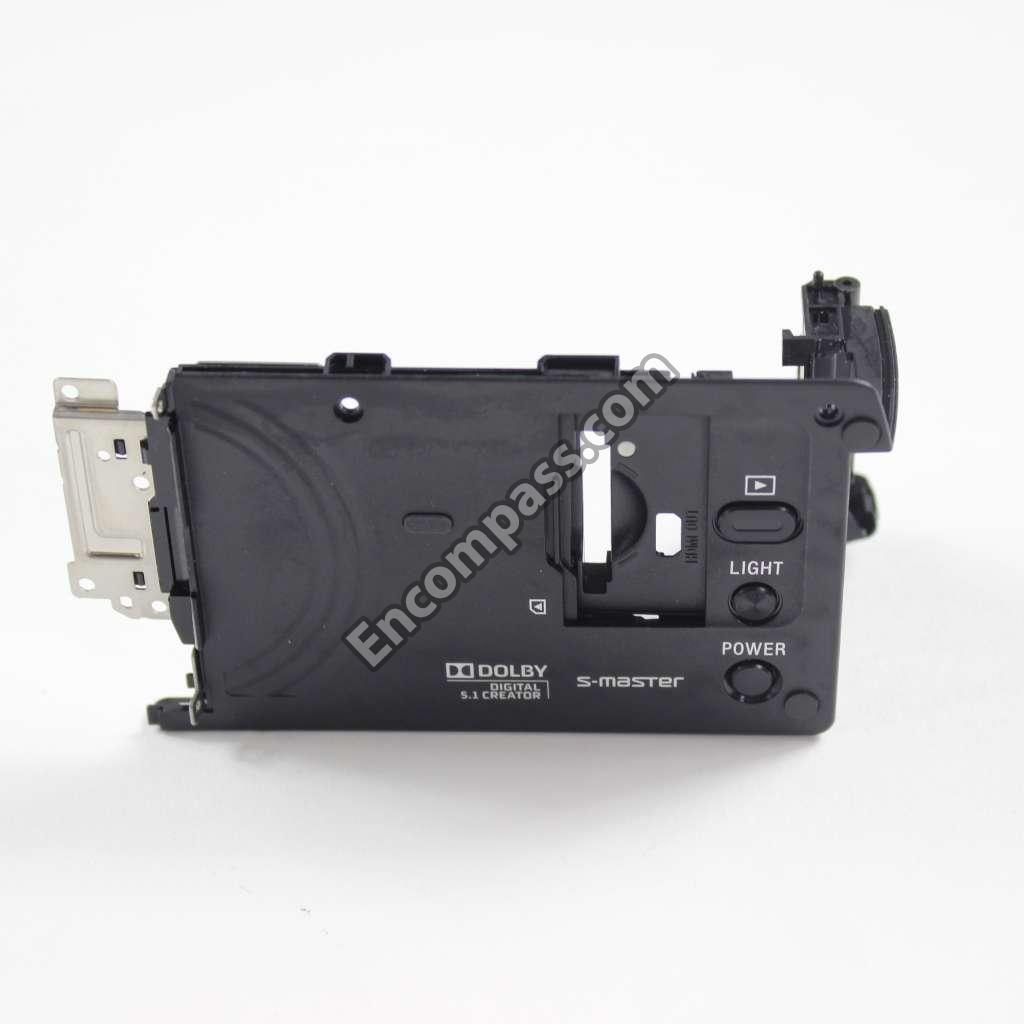

A-1917-390-A A-1917-390-A CABINET (R (4230)) ASSY
A-1917-332-A A-1917-332-A CABINET ASSY (423B), TOP
4-450-964-01 4-450-964-01 COVER (O (423)), HINGE
4-450-990-01 4-450-990-01 COVER (R (423)), HINGE
4-450-914-01 4-450-914-01 COVER (U (423)), HINGE
4-451-003-01 4-451-003-01 COVER, L
4-451-056-01 4-451-056-01 CUSHION, MICROPHONE
4-449-608-01 4-449-608-01 FRAME (LOWER), F
4-451-060-01 4-451-060-01 FRAME, CABINET (BM)
4-451-058-02 4-451-058-02 FRAME, HS
4-451-057-01 4-451-057-01 FRAME, MICROPHONE
4-450-995-01 4-450-995-01 FRAME, PS
4-451-052-01 4-451-052-01 FRAME, RH
4-451-047-01 4-451-047-01 FRAME, VC
4-434-853-01 4-434-853-01 FRAME-E-SUB-A(0010)
4-434-854-01 4-434-854-01 FRAME-E-SUB-B(0010)
4-434-855-01 4-434-855-01 FRAME-F-SUB-A(0010)
4-434-856-01 4-434-856-01 FRAME-F-SUB-B(0010)
4-449-525-01 4-449-525-01 GRILLE, MICROPHONE
4-450-957-01 4-450-957-01 GUARD, BELT
4-451-055-01 4-451-055-01 GUARD, VC FLEXIBLE
4-451-049-01 4-451-049-01 HEAT SINK (A), VC
4-451-054-01 4-451-054-01 HEAT SINK (B), VC
4-450-913-01 4-450-913-01 HOLDER (423), SP
4-451-059-01 4-451-059-01 HOLDER (L), JACK
6-719-358-01 6-719-358-01 IC MM3416A25URE
4-450-912-01 4-450-912-01 INSULATING SHEET (PD)
4-449-591-01 4-449-591-01 INSULATOR, MICROPHONE
4-450-165-01 4-450-165-01 MANUAL, INSTRUCTION

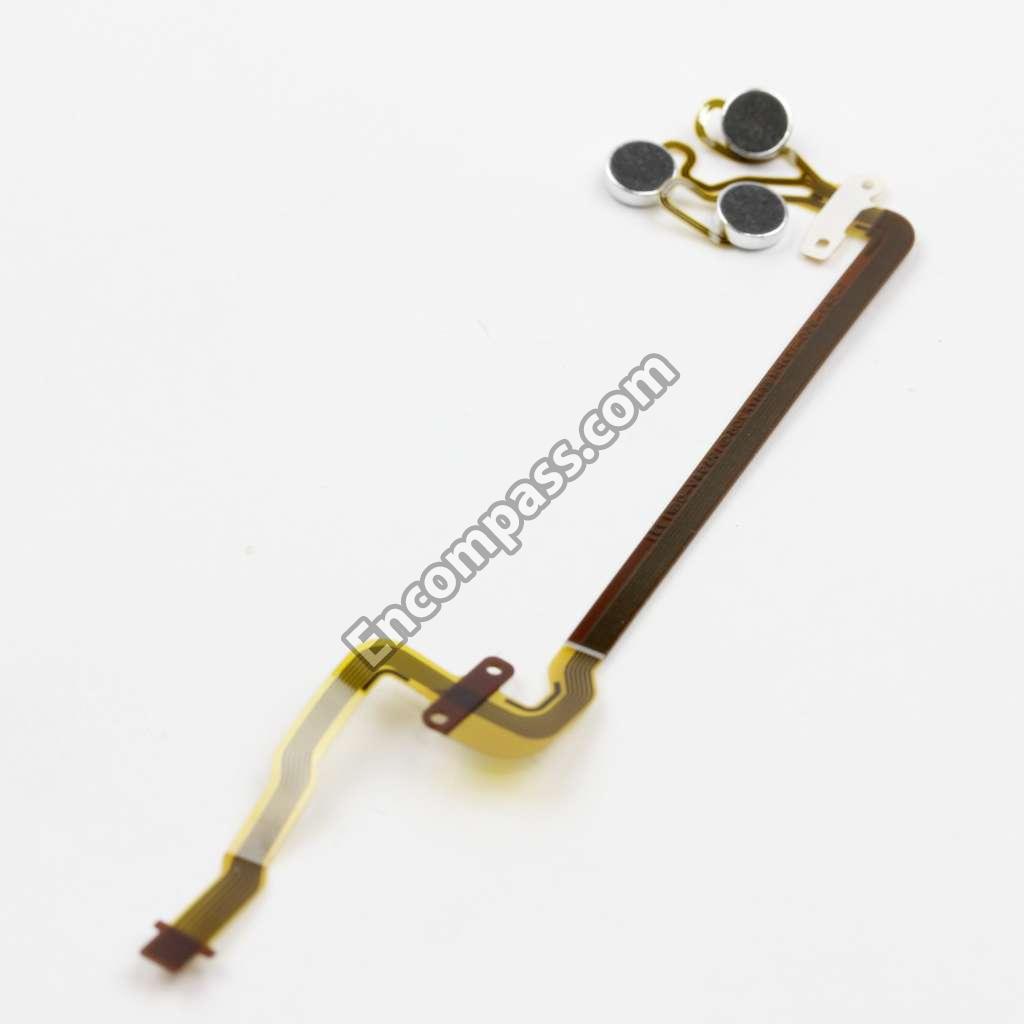

1-542-950-11 1-542-950-11 MICROPHONE UNIT
1-855-220-11 1-855-220-11 MOTOR-A(0010)
1-855-221-11 1-855-221-11 MOTOR-B(0010)
A-1918-221-A A-1918-221-A MOUNTED C, BOARD MM-102
A-1917-913-A A-1917-913-A MOUNTED C.BOARD FP-2105
A-1917-915-A A-1917-915-A MOUNTED C.BOARD FR-1003

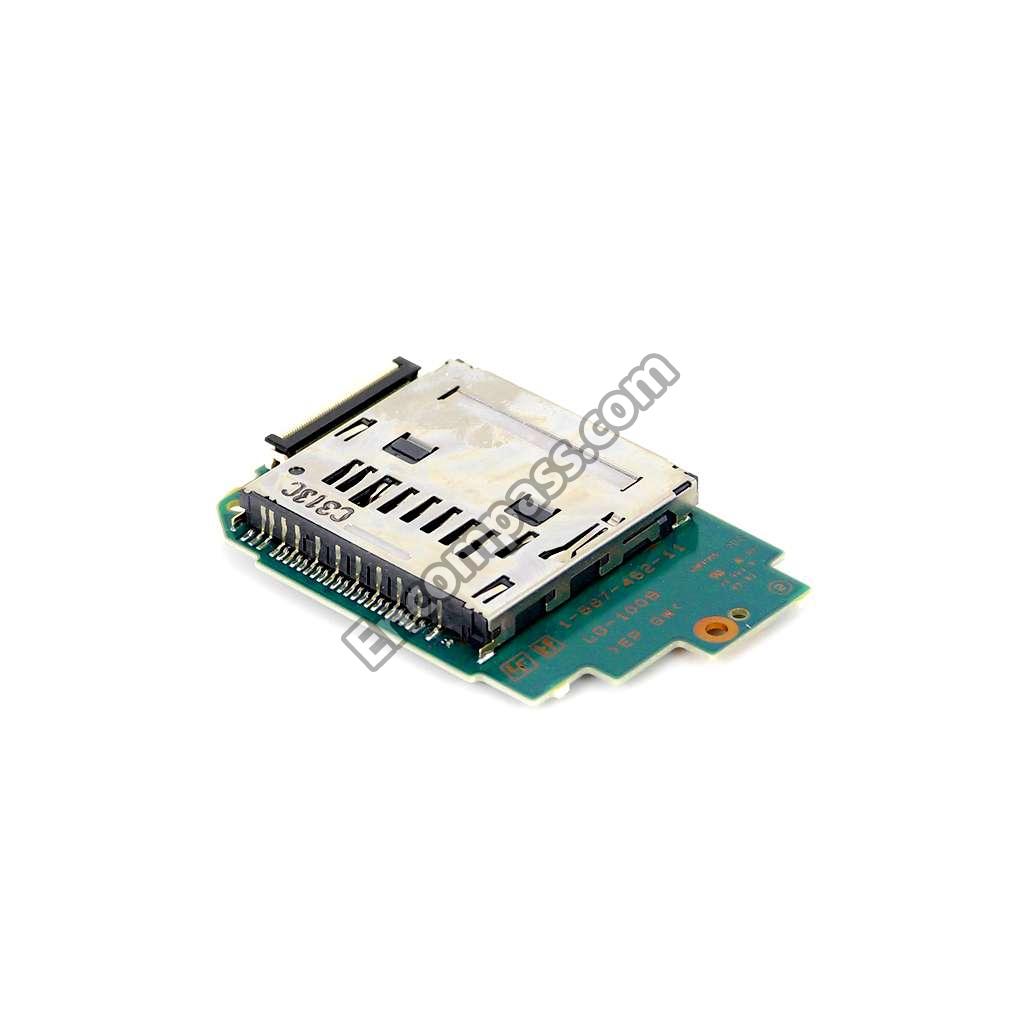

A-1921-247-A A-1921-247-A MOUNTED C.BOARD LD-1008 (S)
A-1917-502-A A-1917-502-A MOUNTED C.BOARD LF-2025
1-887-303-13 1-887-303-13 MOUNTED C.BOARD LF-2026

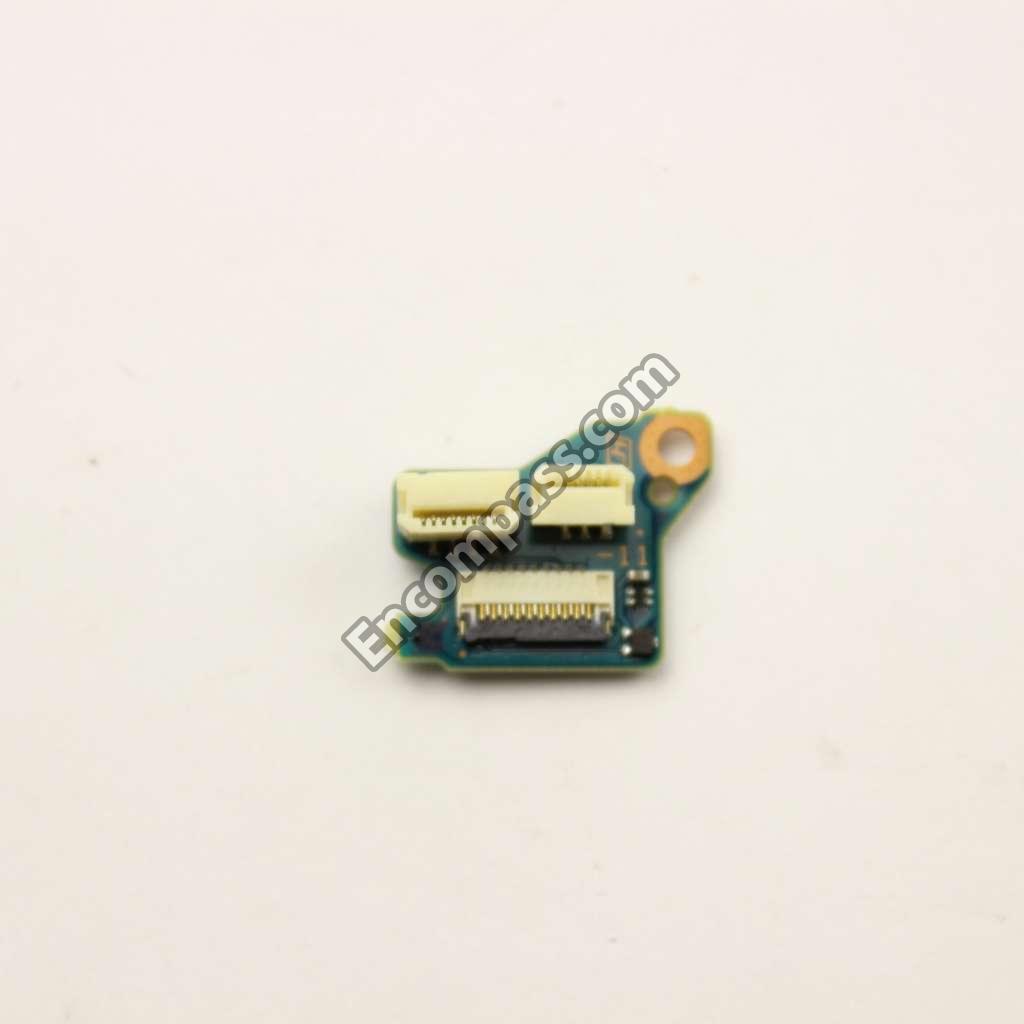

A-1917-914-A A-1917-914-A MOUNTED C.BOARD OC-1002
A-1917-947-A A-1917-947-A MOUNTED C.BOARD PD-1022
A-1917-948-A A-1917-948-A MOUNTED C.BOARD PJ-1005
4-434-848-01 4-434-848-01 ORNAMENT, FRONT(0010)
4-451-698-01 4-451-698-01 ORNAMENT, LENS
4-449-574-01 4-449-574-01 ORNAMENT, MICROPHONE
4-450-908-01 4-450-908-01 PLATE (P (423)), GROUND
1-887-469-12 1-887-469-12 PWB, FP-2096 FLEXIBLE

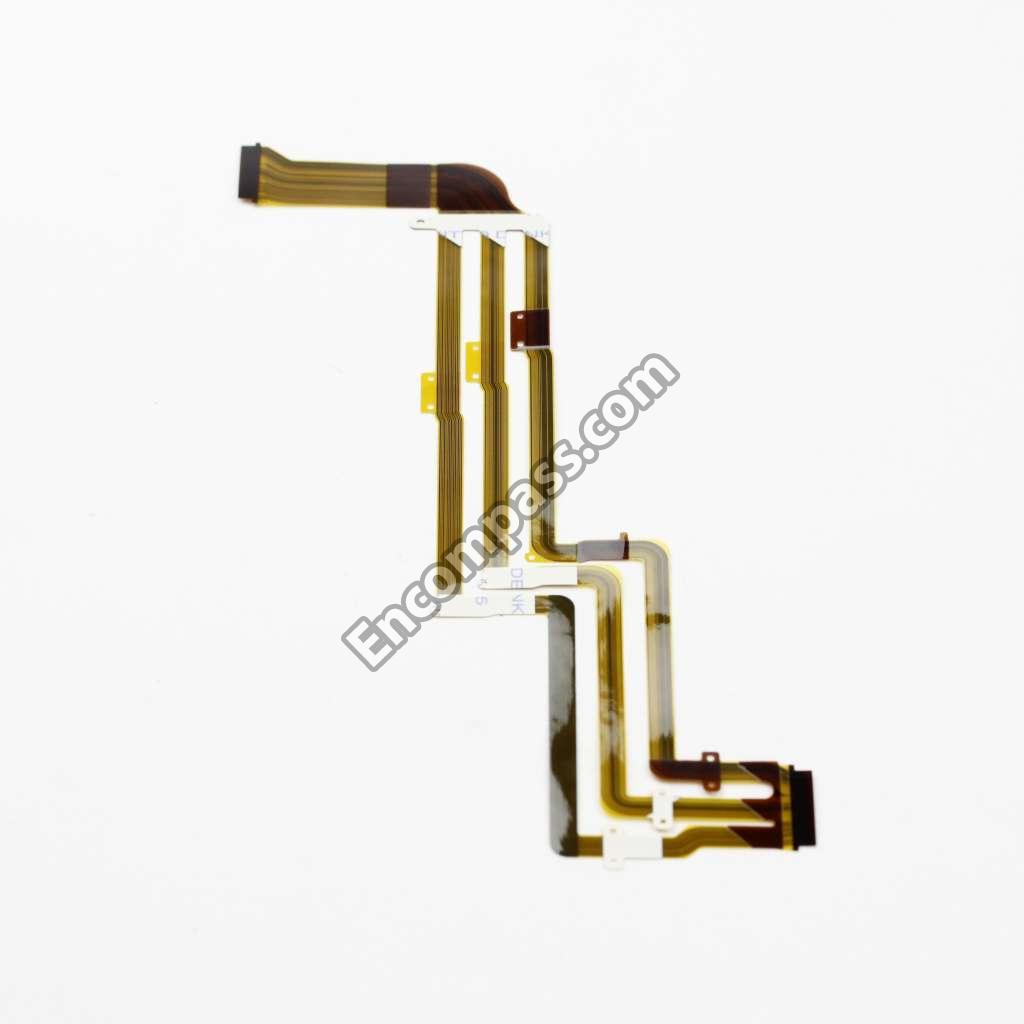

1-887-471-11 1-887-471-11 PWB, FP-2098 FLEXIBLE
1-887-472-11 1-887-472-11 PWB, FP-2099 FLEXIBLE
1-887-473-12 1-887-473-12 PWB, FP-2100 FLEXIBLE
1-887-474-11 1-887-474-11 PWB, FP-2101 FLEXIBLE
1-887-475-11 1-887-475-11 PWB, FP-2102 FLEXIBLE
1-887-304-11 1-887-304-11 PWB, LF-2027 FLEXIBLE(0010)
4-450-911-01 4-450-911-01 RETAINER (423), LCD
4-449-592-02 4-449-592-02 RETAINER, GRILLE
4-451-050-01 4-451-050-01 RETAINER, HDMI
4-451-051-01 4-451-051-01 RETAINER, USB
X-2586-368-2 X-2586-368-2 RING ASSY, STEP DOWN
4-449-590-01 4-449-590-01 SCREEN, WIND
4-451-048-01 4-451-048-01 SHEET (A), RADIATION
4-451-053-01 4-451-053-01 SHEET (B), RADIATION
4-456-304-01 4-456-304-01 SHEET (GPS), SHIELD
4-456-305-01 4-456-305-01 SHEET (LCD), SHIELD
4-463-552-01 4-463-552-01 SHEET (NAME RING), ADHESIVE
4-456-306-01 4-456-306-01 SHEET (R), SHIELD
4-450-956-01 4-450-956-01 SHEET METAL (R), BELT
4-434-849-01 4-434-849-01 SHEET METAL-A(0010)
4-434-850-01 4-434-850-01 SHEET METAL-B(0010)
4-434-851-01 4-434-851-01 SHEET METAL-C(0010)
4-434-852-01 4-434-852-01 SHEET METAL-D-SUB(0010)
4-450-738-01 4-450-738-01 SHEET, CM RADIATION
4-457-518-01 4-457-518-01 SHEET, MM FLEXIBLE
A-1917-378-A A-1917-378-A ST BLOCK ASSY
4-434-857-01 4-434-857-01 STOPPER(0010)

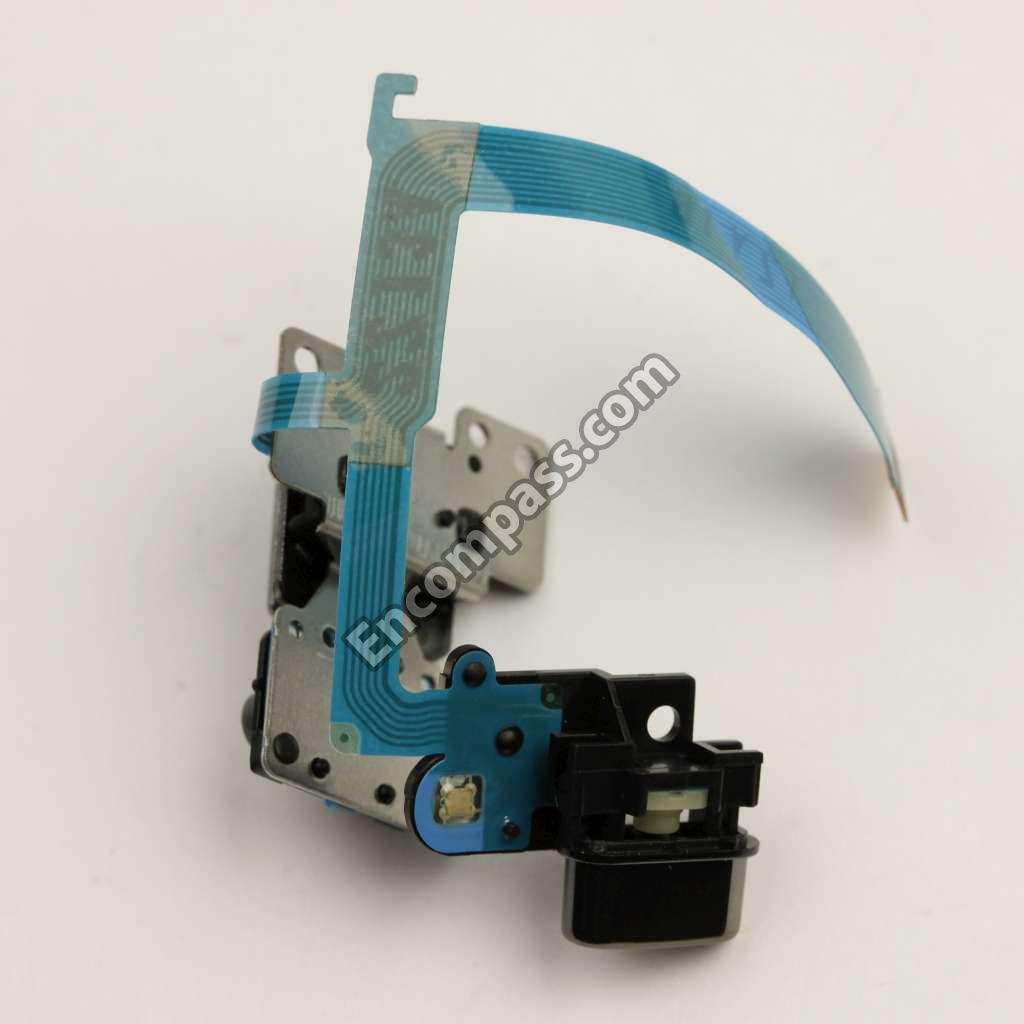

1-491-936-11 1-491-936-11 SWITCH BLOCK, CONTROL(PS42300)
1-491-937-11 1-491-937-11 SWITCH BLOCK, CONTROL(RS42300)
