Model Image
Manufacturer

Sony

Model Number

HDRGW77V

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

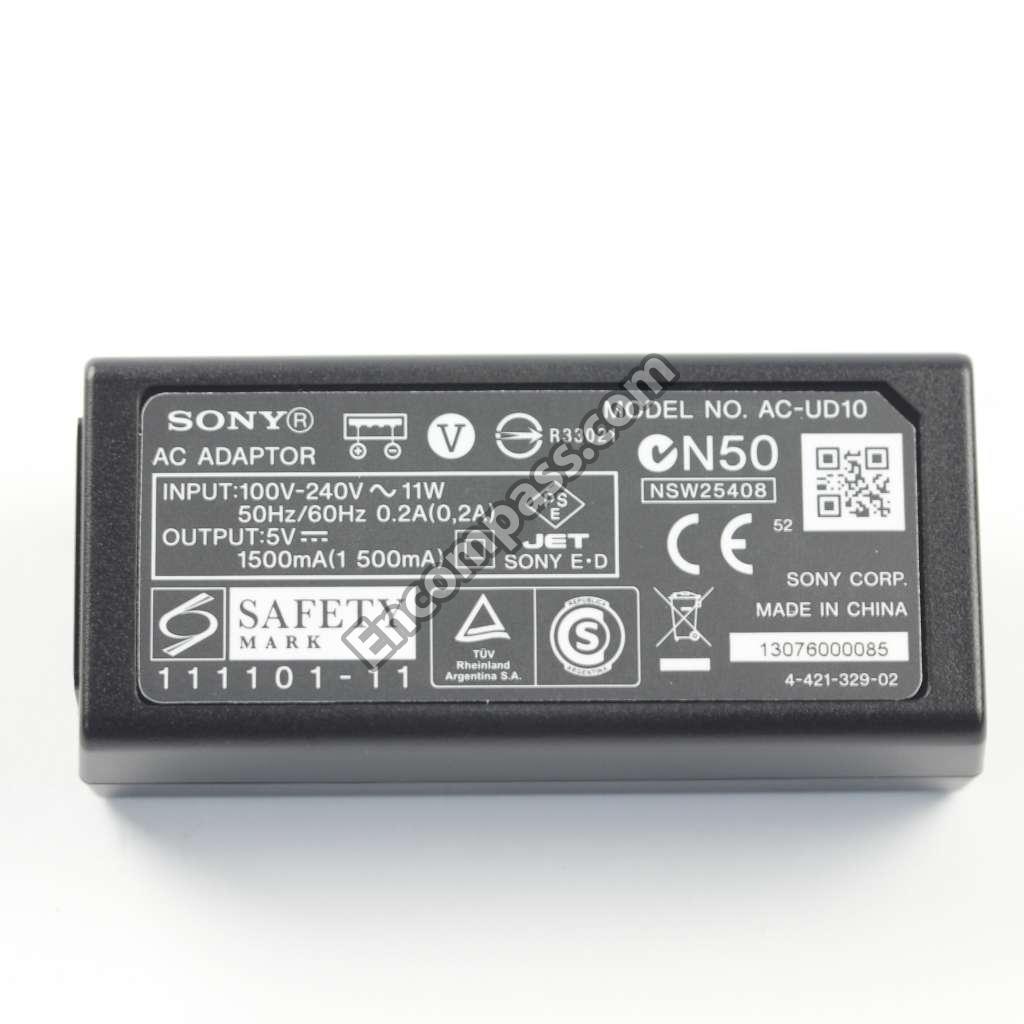

1-489-928-54 1-489-928-54 ADAPTOR (AC-UD10), AC
1-489-928-53 1-489-928-53 ADAPTOR (AC-UD10), AC
1-489-928-52 1-489-928-52 ADAPTOR (AC-UD10), AC
A-1885-938-A A-1885-938-A BOTTOM (291-E23), CABINET
A-1885-937-A A-1885-937-A BOTTOM (291-E23), CABINET
A-1885-936-A A-1885-936-A BOTTOM (291-E23), CABINET
A-1885-932-A A-1885-932-A BOTTOM (291-J1), CABINET
A-1885-931-A A-1885-931-A BOTTOM (291-J1), CABINET
A-1885-930-A A-1885-930-A BOTTOM (291-J1), CABINET
A-1885-935-A A-1885-935-A BOTTOM (291-UC2), CABINET
A-1885-934-A A-1885-934-A BOTTOM (291-UC2), CABINET
A-1885-933-A A-1885-933-A BOTTOM (291-UC2), CABINET
X-2584-418-3 X-2584-418-3 BUTTON ASSY, CONTROL
A-1885-909-A A-1885-909-A CABINET (G (291-E23-1))
A-1885-908-A A-1885-908-A CABINET (G (291-E23-1))
A-1885-907-A A-1885-907-A CABINET (G (291-E23-1))
A-1885-903-A A-1885-903-A CABINET (G (291-J1-1)), SERVICE
A-1885-902-A A-1885-902-A CABINET (G (291-J1-1)), SERVICE
A-1885-901-A A-1885-901-A CABINET (G (291-J1-1)), SERVICE
A-1885-906-A A-1885-906-A CABINET (G (291-UC2-1))
A-1885-905-A A-1885-905-A CABINET (G (291-UC2-1))
A-1885-904-A A-1885-904-A CABINET (G (291-UC2-1))
X-2584-407-3 X-2584-407-3 CABINET (L) ASSY
4-427-588-11 4-427-588-11 CABINET (M), P
4-427-588-01 4-427-588-01 CABINET (M), P
A-1887-603-A A-1887-603-A CABINET (R) BLOCK ASSY, SERVICE
A-1887-602-A A-1887-602-A CABINET (R) BLOCK ASSY, SERVICE
1-118-127-11 1-118-127-11 CAPACITOR
4-427-600-21 4-427-600-21 COVER (O), HINGE
4-427-600-11 4-427-600-11 COVER (O), HINGE
4-427-600-01 4-427-600-01 COVER (O), HINGE
4-451-029-01 4-451-029-01 CUSHION L
4-427-583-01 4-427-583-01 CUSHION, LENS
4-427-586-01 4-427-586-01 CUSHION, MICROPHONE
4-427-568-01 4-427-568-01 CUSHION, SPEAKER
4-271-679-11 4-271-679-11 EMBLEM (NO3), SONY
1-490-053-11 1-490-053-11 FLASH UNIT
4-427-580-01 4-427-580-01 FRAME (R), BT
X-2584-406-1 X-2584-406-1 FRAME ASSY, BT
4-427-582-01 4-427-582-01 FRAME, LENS
X-2583-972-1 X-2583-972-1 HINGE ASSY, S TYPE
4-427-593-01 4-427-593-01 HOLDER (P), GROMMET
4-427-594-01 4-427-594-01 HOLDER (R), GROMMET
4-427-585-01 4-427-585-01 HOLDER, MICROPHONE
6-718-737-01 6-718-737-01 IC MAX8976EEWA+TCBL
4-179-356-11 4-179-356-11 INSPECTION, WATER SHEET
4-431-696-11 4-431-696-11 LABEL, BT LID
4-424-096-02 4-424-096-02 MANUAL, INSTRUCTION
1-542-912-11 1-542-912-11 MICROPHONE UNIT
A-1880-924-A A-1880-924-A MOUNTED C.BOARD CM-128(SVC)
A-1880-226-A A-1880-226-A MOUNTED C.BOARD, CK-243
A-1880-243-A A-1880-243-A MOUNTED C.BOARD, FP-1526
A-1880-244-A A-1880-244-A MOUNTED C.BOARD, FP-1527
A-1880-388-A A-1880-388-A MOUNTED C.BOARD, GP055
A-1880-227-A A-1880-227-A MOUNTED C.BOARD, PD-463
1-471-620-11 1-471-620-11 MR MAGNET
X-2584-415-2 X-2584-415-2 ORNAMENT ASSY (BK), CABINET (F)
X-2584-412-1 X-2584-412-1 ORNAMENT ASSY (BL), (TOP)
X-2584-417-2 X-2584-417-2 ORNAMENT ASSY (BL), CABINET (F)
X-2584-411-1 X-2584-411-1 ORNAMENT ASSY (WH), (TOP)
X-2584-416-2 X-2584-416-2 ORNAMENT ASSY (WH), CABINET (F)
X-2584-410-1 X-2584-410-1 ORNAMENT ASSY(BK), (TOP)

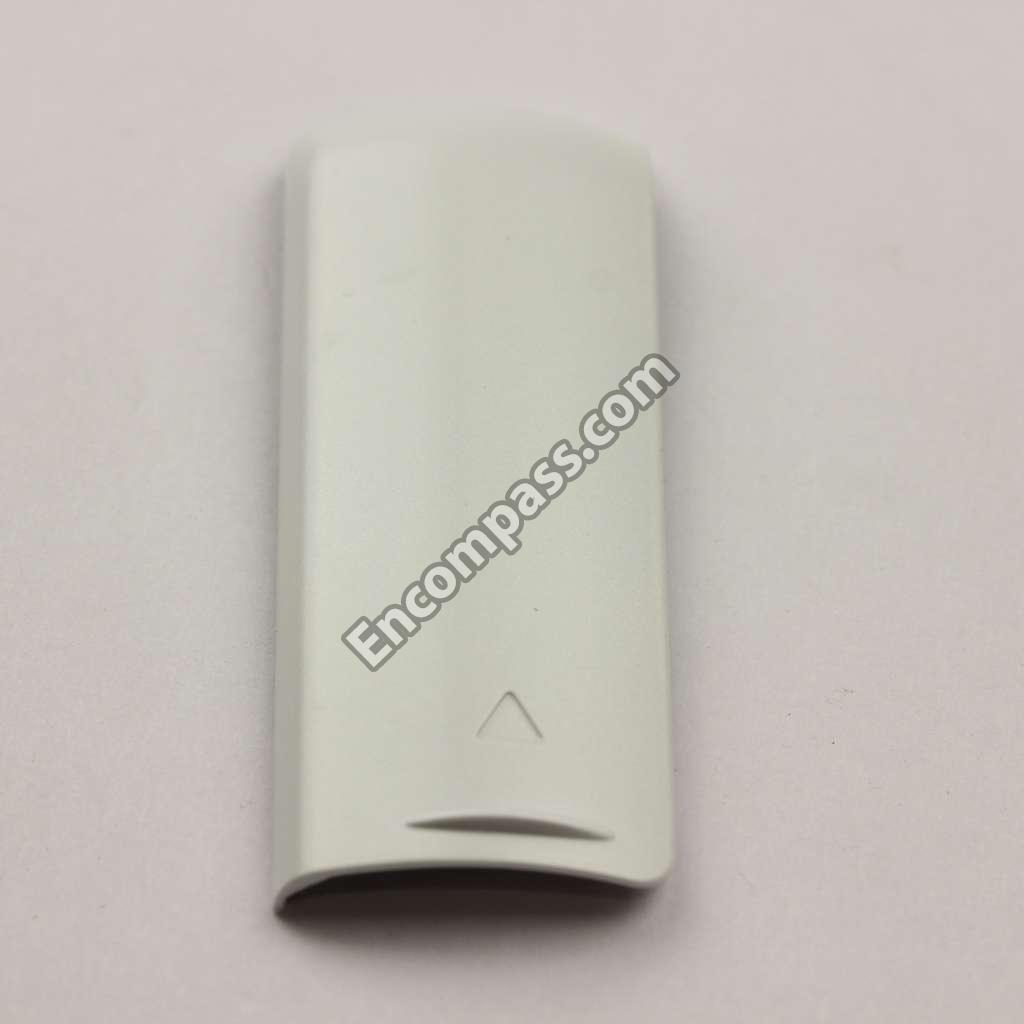

A-1896-347-B A-1896-347-B ORNAMENT, BT LID (BK), SERVICE
4-427-605-02 4-427-605-02 ORNAMENT, BT LID (BK), SERVICE
A-1896-349-B A-1896-349-B ORNAMENT, BT LID (BL), SERVICE
4-427-605-22 4-427-605-22 ORNAMENT, BT LID (BL), SERVICE
A-1896-348-B A-1896-348-B ORNAMENT, BT LID (W), SERVICE
4-427-605-12 4-427-605-12 ORNAMENT, BT LID (W), SERVICE
4-427-601-21 4-427-601-21 ORNAMENT, CABINET (REAR)
4-427-601-11 4-427-601-11 ORNAMENT, CABINET (REAR)
4-427-601-01 4-427-601-01 ORNAMENT, CABINET (REAR)
4-427-602-21 4-427-602-21 ORNAMENT, P CABINET (C)
4-427-602-11 4-427-602-11 ORNAMENT, P CABINET (C)
4-427-602-01 4-427-602-01 ORNAMENT, P CABINET (C)
4-427-537-01 4-427-537-01 PACKING (BT LID)
4-427-598-01 4-427-598-01 PACKING (LR)
4-427-576-01 4-427-576-01 PACKING (PS)
4-427-587-01 4-427-587-01 PLATE, GP GROUND
4-427-584-01 4-427-584-01 PLATE, HEAT SINK
4-427-577-01 4-427-577-01 PLATE, PS
1-885-154-11 1-885-154-11 PWB, FP-1524
1-885-155-11 1-885-155-11 PWB, FP-1525 FLEXIBLE
1-885-158-11 1-885-158-11 PWB, FP-1528
1-885-159-11 1-885-159-11 PWB, FP-1529
1-885-160-11 1-885-160-11 PWB, FP-1530
4-427-599-01 4-427-599-01 REINFORCEMENT (GOLD), R
4-178-987-31 4-178-987-31 SCREW (M1.4), (FLAT) PRECISION
4-427-607-01 4-427-607-01 SCREW 2MAIN TORASUTA M1.7RIGHT
4-427-578-01 4-427-578-01 SHAFT, PS
4-428-101-01 4-428-101-01 SHEET (A), RADIATION
4-427-575-01 4-427-575-01 SHEET (F), CM SHIELD
4-430-673-01 4-430-673-01 SHEET (G), SHIELD
4-427-572-01 4-427-572-01 SHEET (K), SHIELD
4-427-569-01 4-427-569-01 SHEET (L), RADIATION
4-427-591-01 4-427-591-01 SHEET (LCD), ADHESIVE
4-427-573-01 4-427-573-01 SHEET (LE)
4-427-571-01 4-427-571-01 SHEET (PS), SHIELD
4-427-574-01 4-427-574-01 SHEET (PU), SHIELD
4-427-589-01 4-427-589-01 SHEET (TP), ADHESIVE
4-427-581-01 4-427-581-01 SHEET, BT
4-427-606-01 4-427-606-01 SHEET, MICROPHONE
4-431-704-01 4-431-704-01 SHEET, MICROPHONE GUARD
4-427-579-01 4-427-579-01 SPRING, BT DISCHARGE
4-433-693-01 4-433-693-01 TAPE (A (291))
4-427-546-01 4-427-546-01 TAPE (MICROPHONE), COVER
A-1892-834-A A-1892-834-A VC-657 ASSY (SERVICE)
