Model Image
Manufacturer

Sony

Model Number

HDRHC7

Description

High Definition Camcorder

Interactive Exploded View

Parts List

Part Number Description
1-837-287-11 1-837-287-11 (USB CABLE 5P) CORD WITH CONNE
1-838-205-11 1-838-205-11 A/V CONNECTING CABLE
1-490-430-23 1-490-430-23 AC-L200 AC ADAPTOR
X-2176-782-1 X-2176-782-1 BASE ASSY, SLIDE
A-1922-672-A A-1922-672-A BATTERY PACK (NP-FV50)
3-095-875-01 3-095-875-01 BLIND, HINGE
3-095-822-01 3-095-822-01 BRACKET (242), AD
3-095-795-01 3-095-795-01 BRACKET (242), SHOE
X-2177-013-1 X-2177-013-1 BRACKET ASSY, MS
3-095-825-01 3-095-825-01 BRACKET, BL
3-095-778-01 3-095-778-01 BRACKET, IR CHASSIS
X-2176-779-2 X-2176-779-2 BUTTON ASSY, AD
X-2176-788-1 X-2176-788-1 CABINET (C ) ASSY P
3-095-755-01 3-095-755-01 CABINET (G)
X-2176-769-3 X-2176-769-3 CABINET (L) ASSY (242)
X-2176-785-1 X-2176-785-1 CABINET (R ) ASSY E
X-2176-783-1 X-2176-783-1 CABINET (R) ASSY
X-2176-768-1 X-2176-768-1 CABINET ASSY
3-095-855-01 3-095-855-01 CABINET, VF
1-833-788-11 1-833-788-11 CABLE, FLEXIBLE FLAT (FFC-107)
1-112-766-11 1-112-766-11 CAPACITOR ELECT 70MF
3-093-914-04 3-093-914-04 CD-ROM HANDYCAM APPLICATION S
3-095-754-01 3-095-754-01 CLAMP (ST), FLEXIBLE
1-813-880-11 1-813-880-11 COMMON MODE CHOKE COIL
1-829-414-63 1-829-414-63 COMPONENT VIDEO CABLE
1-820-560-21 1-820-560-21 CONNECTOR, COAXIAL(RECEPTACLE)
1-820-729-61 1-820-729-61 CONNECTOR, FPC (ZIF) 51P
1-790-107-61 1-790-107-61 CORD POWER
1-792-549-41 1-792-549-41 CORD, POWER
3-095-747-01 3-095-747-01 COVER (DCIN), JACK
3-095-770-01 3-095-770-01 COVER (HDMI), JACK
3-095-748-01 3-095-748-01 COVER (MIC), JACK
3-095-879-01 3-095-879-01 COVER (REAR), HINGE
X-2176-763-1 X-2176-763-1 COVER ASSY SHOE (HC7/HC7E)
A-1870-876-A A-1870-876-A DEVICE LENS LSV-1190A
6-501-597-01 6-501-597-01 DIODE NSSW008DT-T108
3-095-753-01 3-095-753-01 ESCUTCHEON, MICROPHONE
1-479-888-11 1-479-888-11 FLASH UNIT
1-871-774-12 1-871-774-12 FP-659 FLEX BOARD- CABLE TO LCD MONITOR PANEL
X-2176-772-1 X-2176-772-1 FRAME (L) ASSY (242), LENS
X-2176-774-1 X-2176-774-1 FRAME (R) ASSY (242), LENS
X-2176-765-1 X-2176-765-1 FRAME ASSY, MD
3-095-752-01 3-095-752-01 FRAME, HDMI
3-098-451-01 3-098-451-01 GASKET (HDMI)
3-196-455-01 3-196-455-01 GASKET (ST)
3-095-873-01 3-095-873-01 GUARD, JK
1-965-256-31 1-965-256-31 HARNESS (HN-045)
3-095-786-01 3-095-786-01 HEAT SINK (CMOS) (242)
1-757-541-13 1-757-541-13 I. LINK CABLE
6-710-770-01 6-710-770-01 IC AD9889BBBCZRL-80
6-710-240-01 6-710-240-01 IC IR3Y65M4
6-710-783-01 6-710-783-01 IC MB8AA1121BGL-G-ERE1
6-807-637-01 6-807-637-01 IC MB91195ABGL-G-240-ERE1
6-807-916-01 6-807-916-01 IC MB91195ABGL-G-252-ERE1
1-400-674-21 1-400-674-21 INDUCTOR 4.7UH (2012)
1-818-055-21 1-818-055-21 JACK
1-793-995-31 1-793-995-31 JACK, SUPER SMALL TYPE
A-1228-786-A A-1228-786-A LCD901 LCD MONITOR DISPLAY PANEL
A-1231-928-A A-1231-928-A LD-221 BOARD COMPLETE
A-1217-971-A A-1217-971-A LENS BARRIER UNIT
3-095-749-01 3-095-749-01 LID, CPC
A-1154-545-A A-1154-545-A M901 DRUM (DEH-33E-R) CYLINDER
2-319-806-61 2-319-806-61 MANUAL, INSTRUCTION
2-319-806-51 2-319-806-51 MANUAL, INSTRUCTION
2-319-806-32 2-319-806-32 MANUAL, INSTRUCTION
2-319-806-22 2-319-806-22 MANUAL, INSTRUCTION
2-319-806-12 2-319-806-12 MANUAL, INSTRUCTION
2-319-806-01 2-319-806-01 MANUAL, INSTRUCTION
A-1883-414-A A-1883-414-A MD (N100) SUB ASSEMBLY A- TAPE MECH (NO DRUM)
1-542-658-11 1-542-658-11 MIC UNIT
1-787-561-11 1-787-561-11 MOTOR UNIT (GEARD MOTOR)
A-1449-756-A A-1449-756-A MOUNTED C. BOARD, PD-325(RM)
A-1231-935-A A-1231-935-A MOUNTED C.BOARD BL-007
A-1231-936-A A-1231-936-A MOUNTED C.BOARD CK-177
A-1231-940-A A-1231-940-A MOUNTED C.BOARD FP-643
A-1231-943-A A-1231-943-A MOUNTED C.BOARD FP-644 (R)
A-1231-941-A A-1231-941-A MOUNTED C.BOARD FP-645
A-1231-942-A A-1231-942-A MOUNTED C.BOARD FP-646
A-1231-934-A A-1231-934-A MOUNTED C.BOARD MS-361
A-1234-567-A A-1234-567-A MOUNTED C.BOARD ST-164
A-1231-933-A A-1231-933-A MOUNTED C.BOARD US-013
A-1599-883-A A-1599-883-A NP-FH60 BATTERY SQX-3065(UC)
X-2176-776-6 X-2176-776-6 PANEL ASSY (242), F
X-2176-780-2 X-2176-780-2 PANEL ASSY, BT
3-095-871-01 3-095-871-01 PLATE (HINGE), GROUND
3-095-876-01 3-095-876-01 PLATE (P), GROUND
3-095-872-01 3-095-872-01 PLATE, JK RETAINER
1-871-763-21 1-871-763-21 PWB, FP-648 FLEXIBLE
1-871-764-11 1-871-764-11 PWB, FP-649 FLEXIBLE
1-871-765-21 1-871-765-21 PWB, FP-650 FLEXIBLE
1-871-766-11 1-871-766-11 PWB, FP-651 FLEXIBLE
1-871-767-11 1-871-767-11 PWB, FP-652 FLEXIBLE
1-871-770-11 1-871-770-11 PWB, FP-655 FLEXIBLE
1-871-771-11 1-871-771-11 PWB, FP-656 FLEXIBLE
1-871-772-21 1-871-772-21 PWB, FP-657 FLEXIBLE
1-871-773-21 1-871-773-21 PWB, FP-658 FLEXIBLE
3-095-837-01 3-095-837-01 RETAINER, BT TERMINAL
3-095-874-01 3-095-874-01 RETAINER, JK TERMINAL
3-095-824-01 3-095-824-01 RETAINER, MICROPHONE
3-095-779-01 3-095-779-01 RETAINER, ST
3-097-852-01 3-097-852-01 RETAINER, USB TERMINAL
1-478-495-41 1-478-495-41 RMT-831 REMOTE COMANDER
3-095-810-01 3-095-810-01 SCREW (242), FILTER
3-098-733-01 3-098-733-01 SHEET (BT), ELECTROSTATIC
3-095-859-01 3-095-859-01 SHEET (CAPACITOR), INSULATING
3-095-788-01 3-095-788-01 SHEET (CMOS) (C), RADIATION
3-095-789-01 3-095-789-01 SHEET (CMOS) (R), RADIATION
3-095-797-01 3-095-797-01 SHEET (CMOS), SHIELD
3-095-751-01 3-095-751-01 SHEET (VC), INSULATING
3-098-734-01 3-098-734-01 SHEET (VC1), ELECTROSTATIC
3-098-924-01 3-098-924-01 SHEET, MICROPHONE RETAINER

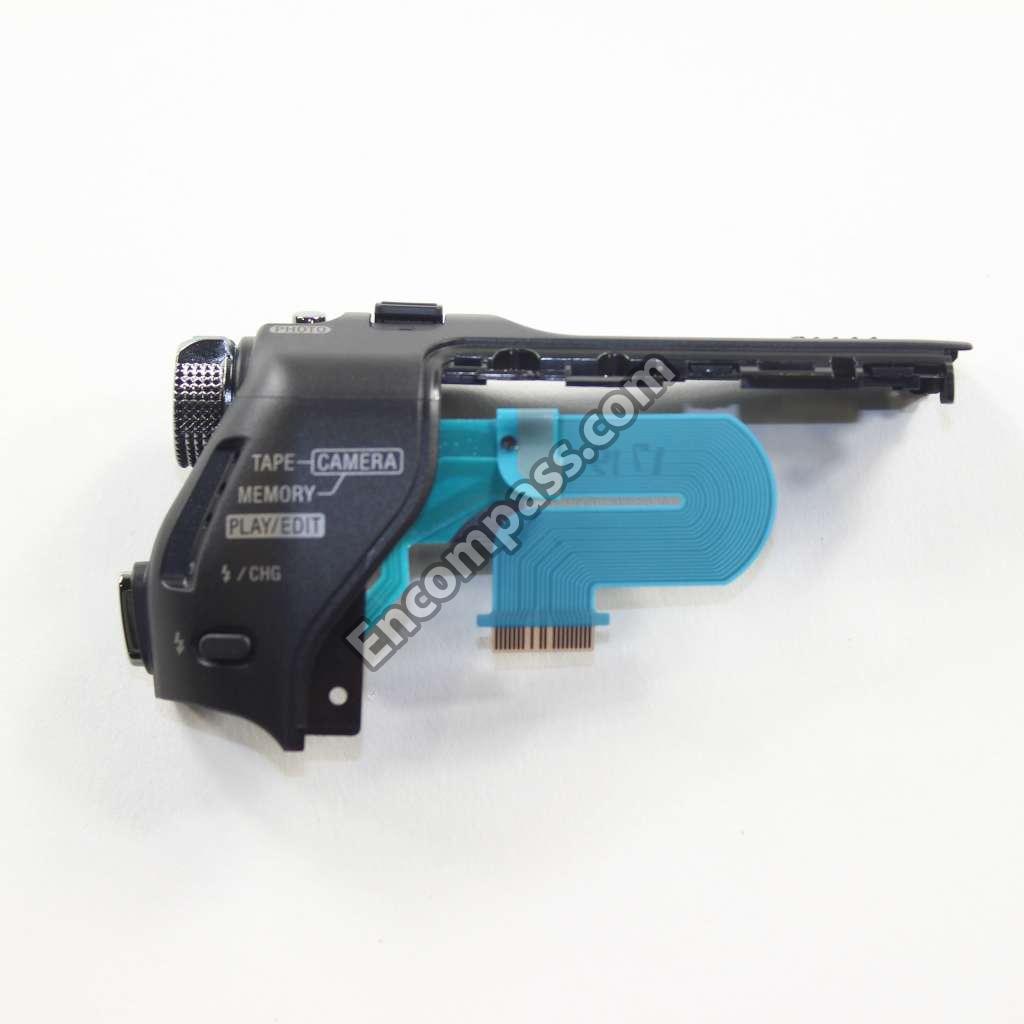

1-479-895-31 1-479-895-31 SWITCH BLOCK, CONTROL
1-479-895-21 1-479-895-21 SWITCH BLOCK, CONTROL (PS24200
1-479-004-31 1-479-004-31 SWITCH BLOCK, CONTROL(AD11800)
1-479-895-11 1-479-895-11 SWITCH BLOCK, CONTROL(PS24200)
6-550-384-01 6-550-384-01 TRANSISTOR DTC123JMT2L
3-095-744-01 3-095-744-01 TRIPOD
1-802-250-11 1-802-250-11 VARISTOR (SMD)
A-1237-526-A A-1237-526-A VC-500 BOARD COMPLETE (SERVIC
