HDRPJ790V

Description

High Definition Projector Handycam Camcorder

Interactive Exploded View

Parts List

Part Number Description
1-490-430-23 1-490-430-23 AC ADAPTOR (AC-L200D)
4-443-859-01 4-443-859-01 BLIND (429), MICROPHONE
A-1919-919-A A-1919-919-A CABINET
A-1919-284-A A-1919-284-A CABINET (C (429)) ASSY, P
X-2585-835-1 X-2585-835-1 CABINET (L (429)) ASSY
4-443-867-01 4-443-867-01 CABINET (M (429)), P
X-2585-836-1 X-2585-836-1 CABINET (R(429)) ASSY
A-1919-737-A A-1919-737-A CABINET (TOP) BLOCK ASSY
1-846-391-11 1-846-391-11 CABLE, FLEXIBLE FLAT (FFC-1037
1-118-458-11 1-118-458-11 CAP, CERAMIC 0.1MF X5R 0603
4-443-871-01 4-443-871-01 COVER (C (429)), HINGE
4-443-872-01 4-443-872-01 COVER (M (429)), HINGE
4-443-884-01 4-443-884-01 COVER (R (429)), HINGE
A-1937-932-A A-1937-932-A E3T 0.3 WVGAEM DLP OPT ENG(S)
X-2584-162-1 X-2584-162-1 EYE CUP ASSY (EVF MODEL)
4-443-880-02 4-443-880-02 FRAME (429), SHOE
X-2584-161-1 X-2584-161-1 FRAME ASSY, VF
4-422-371-01 4-422-371-01 FRAME, CABINET
4-443-858-01 4-443-858-01 GRILLE (429), MICROPHONE
4-443-876-01 4-443-876-01 GRILLE (429), SP
4-443-883-01 4-443-883-01 GUARD (429), CM FLEXIBLE
4-447-534-01 4-447-534-01 GUARD (429), MIC FLEXIBLE
4-443-882-01 4-443-882-01 GUARD (429), VF FLEXIBLE
1-846-548-12 1-846-548-12 HDMI CABLE
4-443-875-01 4-443-875-01 HEAT SINK (429), P
4-443-879-01 4-443-879-01 HEAT SINK (429), VC
4-443-870-01 4-443-870-01 HOLDER (429), SP
4-443-885-01 4-443-885-01 HOLDER (L (429)), JACK
4-443-873-01 4-443-873-01 INSULATING SHEET (PD (429))
1-822-470-22 1-822-470-22 JACK, DC
4-443-874-01 4-443-874-01 KNOB (429) FOCUS
1-811-013-11 1-811-013-11 LCD MODULE
X-2584-166-2 X-2584-166-2 LENS HOOD
4-457-497-01 4-457-497-01 LID, MICROPHONE INSULATOR
4-443-857-01 4-443-857-01 LOWER (429), MICROPHONE CABINET
4-452-094-12 4-452-094-12 MANUAL, INSTRUCTION
4-452-094-31 4-452-094-31 MANUAL, INSTRUCTION
4-452-095-01 4-452-095-01 MANUAL, INSTRUCTION
1-542-959-11 1-542-959-11 MICROPHONE UNIT
A-1919-755-A A-1919-755-A MM-102 BOARD, COMPLETE
A-1919-241-A A-1919-241-A MOUNTED C.BOARD MM-102(96G)
A-1917-763-A A-1917-763-A MOUNTED C.BOARD, FP-2111
A-1917-764-A A-1917-764-A MOUNTED C.BOARD, FP-2112
A-1917-765-A A-1917-765-A MOUNTED C.BOARD, FP-2113
A-1919-701-A A-1919-701-A MOUNTED C.BOARD, LD-1007(S)

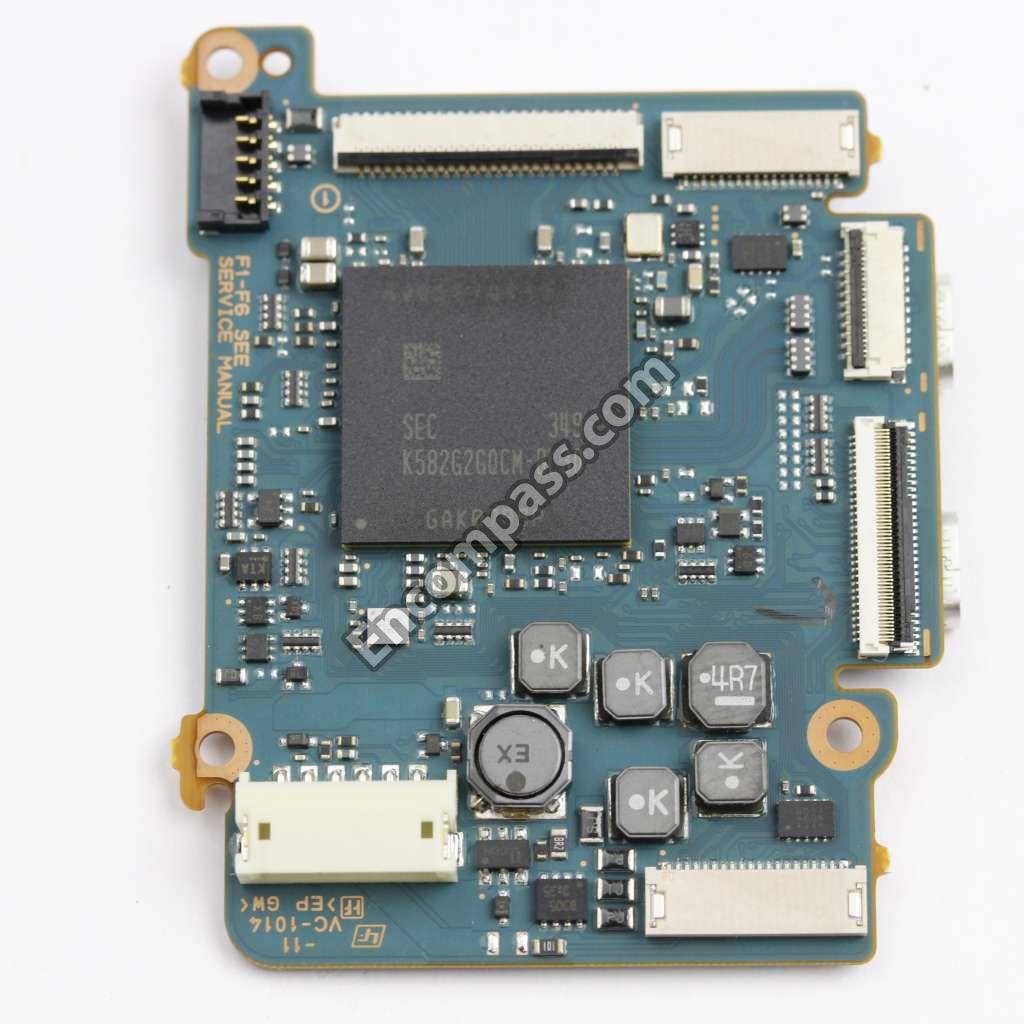

A-1919-754-B A-1919-754-B MOUNTED C.BOARD, VC-1014
A-1917-761-A A-1917-761-A MOUNTED C.BOARDPD-1018
A-1917-762-A A-1917-762-A MOUNTED C.BOARDPJ-1004
4-443-866-01 4-443-866-01 ORNAMENT (429), P CABINET (C)
4-457-455-01 4-457-455-01 P, MICROPHONE INSULATOR
4-443-868-01 4-443-868-01 PLATE (429), LCD GROUND
1-846-101-51 1-846-101-51 POWER CORD (MAINS LEAD)
1-887-507-11 1-887-507-11 PWB, FP-2107 FLEXIBLE
1-887-508-11 1-887-508-11 PWB, FP-2108 FLEXIBLE
1-887-509-11 1-887-509-11 PWB, FP-2109 FLEXIBLE
1-887-510-11 1-887-510-11 PWB, FP-2110 FLEXIBLE
1-887-716-11 1-887-716-11 PWB, FP-2127 FLEXIBLE
4-443-869-01 4-443-869-01 RETAINER (429), LCD
4-422-368-01 4-422-368-01 RETAINER, USB ARM
A-1917-760-A A-1917-760-A RH-1001 BOARD COMPLETE
1-479-275-51 1-479-275-51 RMT-835 WIRELSES REMOTE COMM.
A-1854-190-C A-1854-190-C SERVICE, LSV-1550A
4-443-886-01 4-443-886-01 SHEET (429), FLEXIBLE GUARD
4-461-251-01 4-461-251-01 SHEET (429), MM RADIATION
4-443-878-01 4-443-878-01 SHEET (429), P RADIATION
4-456-268-01 4-456-268-01 SHEET (429), PJ SHIELD
4-443-881-01 4-443-881-01 SHEET (429), VC RADIATION
4-425-108-11 4-425-108-11 SHEET (A), RADIATION
4-422-370-11 4-422-370-11 SHEET, CM FLEXIBLE GUARD
X-2584-165-1 X-2584-165-1 STEP DOWN RING
1-489-964-21 1-489-964-21 SWITCH BLOCK, CONTROL(PS39900)
4-443-856-01 4-443-856-01 UPPER (429), MICROPHONE CABINET
A-1919-754-A A-1919-754-A VC-1014 BOARD, COMPLETE (SVC)
4-447-872-01 4-447-872-01 WIND SCREEN
