Manufacturer

Sony

Model Number

HDRSR11

Description

High Definition, Hard Disk Drive Handycam Camcorde

Interactive Exploded View

Parts List

Part Number	Description
1-848-676-11	(USB CABLE 5P) CORD WITH CONNE
1-480-307-11	3 AXIS ACCELEROMETOR
1-838-205-11	A/V CONNECTING CABLE
1-490-430-23	AC-L200 AC ADAPTOR
X-2189-073-1	BASE (900) ASSY, SHOE COVER
X-2189-075-1	BASE ASSY, VF TILT
2-664-928-41	BELT, GRIP
1-756-615-61	BH7301 - HOLDER, BATTERY
1-480-358-21	BLOCK, LIGHT GUIDE PLATE
1-756-134-15	BT7301 - BATTERY, STORAGE, LIT
1-114-393-11	C5006 - CAPACITOR ELECT 70MF
X-2188-804-1	CABINET (700) ASSY, BOTTOM
X-2189-088-1	CABINET (C (900B)) ASSY,
X-2189-054-1	CABINET (F (900B)) ASSY
X-2189-053-1	CABINET (F (900S)) ASSY
3-290-483-03	CABINET (L)
3-292-323-01	CABINET (LOWER), VF
X-2189-086-3	CABINET (R (900)) ASSY
3-292-322-11	CABINET (UPPER), VF
A-1526-526-A	CABINET(G(900))(SR11CA2)
A-1526-527-A	CABINET(G(900))(SR11E23)
A-1526-522-A	CABINET(G(900))(SR11J1)
A-1526-524-A	CABINET(G(900))(SR11JE3)
A-1526-528-A	CABINET(G(900))(SR11KR2)
3-290-650-01	CABINET, MS
3-292-372-01	CLAMP, FLEXIBLE
A-1512-350-A	CMOS BLOCK ASSY. W/CM-904 COMP
1-457-614-21	COIL, CHOKE 10UH
1-479-275-41	COMMANDER, STANDARD; REMOTE CO
1-818-890-11	CONNECTOR, EXTERNAL
1-817-698-81	CONNECTOR, FPC (ZIF) 21P
1-821-202-81	CONNECTOR, FPC (ZIF) 45P
1-820-857-81	CONNECTOR, FPC (ZIF) 51P
1-821-166-41	CONNECTOR, HDMI

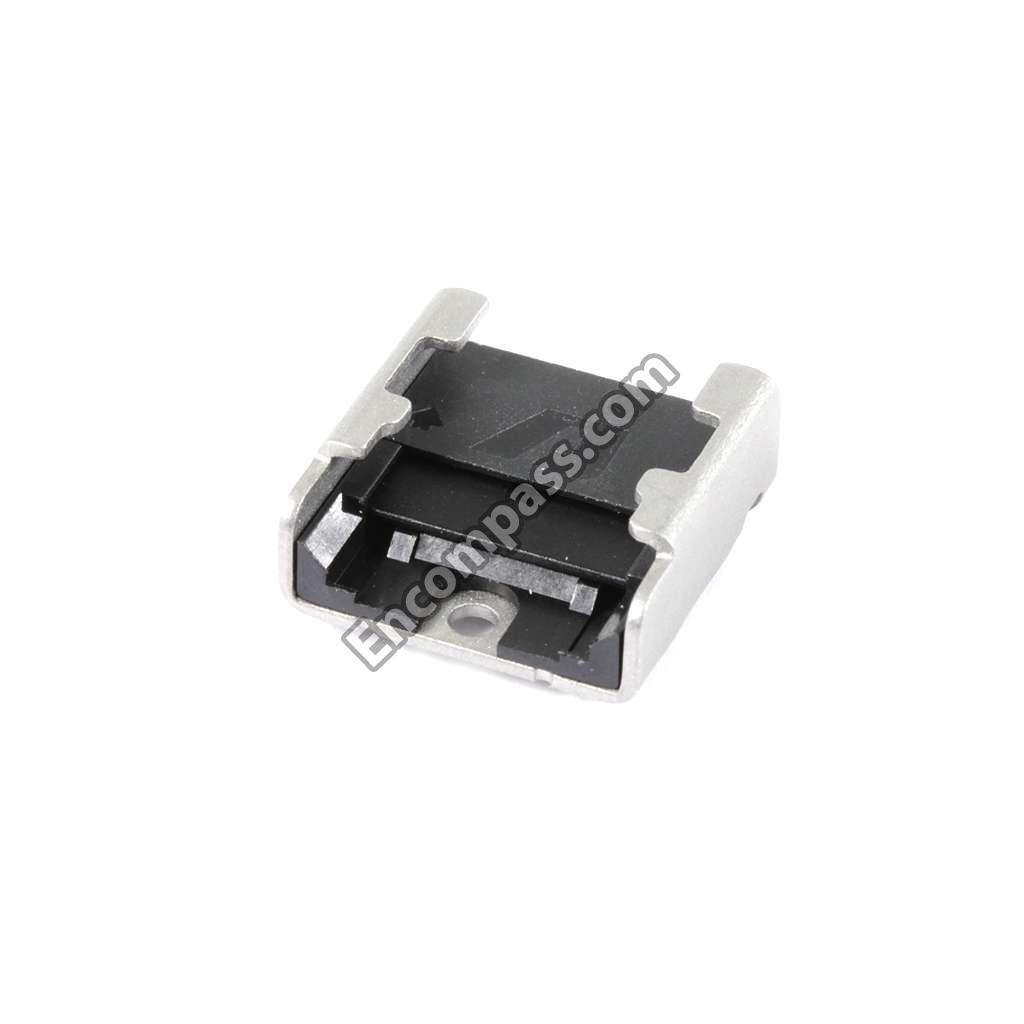

1-821-664-21	CONNECTOR, MULTIPLE (PLUG) 32P
1-834-646-11	CORD, CONNECTION (AV MULTI)
1-834-646-21	CORD, CONNECTION (AV MULTIPLE)
1-790-107-61	CORD, POWER
1-481-251-11	CORE, FERRITE
X-2189-072-1	COVER (900B) ASSY, SHOE
X-2189-071-1	COVER (900S) ASSY, SHOE
3-292-370-01	COVER (O (900)), HINGE
3-292-369-11	COVER (R (900)), HINGE
3-292-369-01	COVER (R (900)), HINGE
3-292-324-11	COVER, VF BASE
3-292-324-01	COVER, VF BASE
3-292-377-01	CUSHION(900), TP
2-638-819-01	CUSHION, LCD
1-821-575-21	DC JACK INCLUDES BH901 & J901
6-502-890-01	DI MAZS056G08S0
X-2189-076-1	EYE CUP ASSY
1-816-654-61	FFC/FPC CONNECTOR (LIF) 6P
1-788-709-11	FILTER BLOCK, OPTICAL
1-480-263-11	FLASH UNIT
3-290-649-01	FRAME (700), BT TERMINAL
3-292-212-01	FRAME (900), F
3-292-181-01	FRAME (900), LF
3-292-178-01	FRAME (900), MAIN
3-292-213-01	FRAME (900), MICROPHONE
3-292-296-01	FRAME (900), SHOE
6-716-673-02	FRAME (R (900)), LENS
3-290-485-01	FRAME, BELT
3-290-644-01	FRAME, BOTTOM CABINET
3-290-672-01	FRAME, JK
3-292-208-01	GUARD (900), ST
2-664-672-01	GUIDE, LAMP
3-286-588-02	HANDYCAM APPLICATION SOFTWARE
1-965-256-31	HARNESS (HN-045)
1-840-184-51	HDD (MK6014GAL-60GB)
3-292-206-01	HEAT SINK (A (900)), VC
3-292-179-01	HEAT SINK (B (900)), VC
X-2189-085-1	HINGE (Y), 08 STYLE ASSY
X-2189-056-1	HOLDER (900B) ASSY, MICROPHONE
X-2189-055-1	HOLDER (900S) ASSY, MICROPHONE
X-2189-052-1	HOLDER ASSY, ST
6-712-123-01	IC ADV7520NKBBCZRL-80
6-807-895-01	IC BU2343AGLU-E2
8-753-330-98	IC CXD4214GG-1-T6
6-710-768-01	IC NN12923B-BB
6-712-050-01	IC SN65LVDS301ZQER
6-712-051-01	IC SN65LVDS302ZQER
6-711-583-01	IC TS3USB221RSER
2-638-818-01	ILLUMINATOR

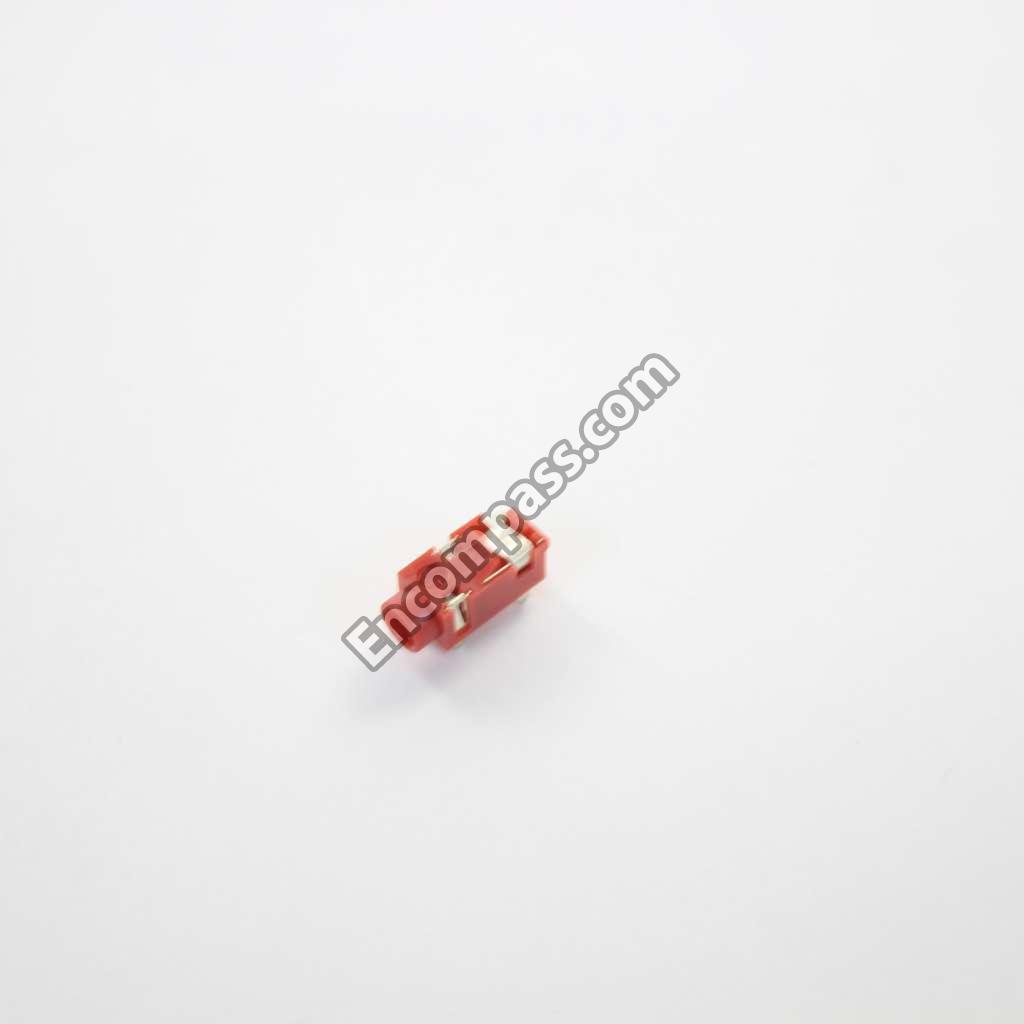

1-569-950-42	J7221 - JACK (SMALL TYPE) (HEA
1-691-737-42	J7222 - JACK (SMALL TYPE) (MIC
3-290-678-01	LABEL,FUSE REPLACEMENT CA
A-1363-618-A	LCD901 LCD MONITOR DISPLAY 32ESHGU08
8-753-241-14	LCD902- LCD LCX076AKE-1 IN VIEWFINDER
A-1217-971-A	LENS BARRIER UNIT
X-2189-050-1	LF (900) ASSY, CABINET
A-1497-729-A	LSV-1270A (SERVICE); LENS
1-471-278-11	MAGNET
A-1494-359-A	MOUNTED C. BOARD, BL-017
A-1494-360-A	MOUNTED C. BOARD, CK-185
A-1494-362-A	MOUNTED C. BOARD, CR-089
A-1494-357-A	MOUNTED C. BOARD, FP-798
A-1508-570-A	MOUNTED C. BOARD, FR-278
A-1494-355-A	MOUNTED C. BOARD, JK-356
A-1494-364-A	MOUNTED C. BOARD, LD-230
A-1494-358-A	MOUNTED C. BOARD, MS-381
A-1494-361-A	MOUNTED C. BOARD, PD-343
A-1494-365-A	MOUNTED C. BOARD, ST-185
A-1508-553-A	MOUNTED C. BOARD, VC516 N
A-1239-344-A	MOUNTED C.BOARD FP-454
A-1527-539-A	P CABINET(C (900)) SILVER
2-668-134-01	PANEL (CF), POLARIZATION
3-292-373-01	PLATE (900), P GROUND
2-638-816-01	PLATE (TFT), DEFLECTION
1-874-798-21	PWB, FP-799 FLEXIBLE
9-910-999-TF	PWB, FP-801 FLEXIBLE
1-874-801-11	PWB, FP-802 FLEXIBLE
1-874-802-11	PWB, FP-803 FLEXIBLE
1-874-803-11	PWB, FP-804 FLEXIBLE
1-874-804-11	PWB, FP-805 FLEXIBLE
1-874-806-11	PWB, FP-807 FLEXIBLE
1-874-807-11	PWB, FP-808 FLEXIBLE
1-874-808-21	PWB, FP-809 FLEXIBLE
1-874-810-11	PWB, FP-811 FLEXIBLE
1-874-811-11	PWB, FP-812 FLEXIBLE
1-814-258-31	QUARTZ CRYSTAL OSCILLATOR
3-292-376-01	RETAINER (900), SP
3-290-651-01	RETAINER, DC IN
3-290-484-01	RETAINER, GRIP BELT
3-292-211-11	RING (900), LENS
3-292-211-01	RING (900), LENS
3-216-044-01	RUBBER (1270), SEAL
2-599-475-01	SCREW(M1.7)
2-635-562-31	SCREW(M1.7)
2-660-401-01	SCREW(M1.7),NEW TRU-STAR,
3-078-890-11	SCREW, TAPPING
3-080-204-21	SCREW, TAPPING, P2
2-664-982-01	SCREW, TRIPOD
3-292-209-01	SHEET (900), CM RADIATION
3-290-676-01	SHEET (A), VC RADIATION
3-398-042-01	SHEET (AN), SHIELD
3-290-677-01	SHEET (B), VC RADIATION
2-890-813-01	SHEET (CK), SHIELD
3-876-485-01	SHEET (DR)
3-292-378-01	SHEET (P), INSULATING
4-113-123-01	SHEET LE
1-825-262-82	SP901 - LOUD SPEAKER (1.6CM)
2-664-671-01	SPACER, LCD
A-1599-883-A	SQX-3065(UC) NP-FH60; RECHARGE
1-480-432-11	SWITCH BLOCK, CONTROL (RS28900
1-480-427-51	SWITCH BLOCK, CONTROL(PS28100)
1-480-458-11	SWITCH BLOCK, CONTROL(SB28900)
3-080-272-01	TAPE (A)
X-2189-070-1	TOP (900B) ASSY
X-2189-068-1	TOP (900S) ASSY
6-550-237-01	TR 2SC5846G0LS0
6-552-345-01	TR UNR31AFG0LS0
6-551-930-01	TR US5U35TR
1-443-568-31	TRANSFORMER, D.C.-D.C.CONVERTER
6-551-686-01	TRANSISTOR TIG030TS-S-TL-E
X-2179-016-1	YOKE ASSY (1270), SS
