Model Image
Manufacturer

Sony

Model Number

HDRUX20

Description

High Definition Dvd Handycam Camcorder

Interactive Exploded View

Parts List

Part Number Description
1-837-287-11 1-837-287-11 (USB CABLE 5P) CORD WITH CONNE
1-838-205-11 1-838-205-11 A/V CONNECTING CABLE
1-790-107-61 1-790-107-61 AC POWER CORD - NEEDS AC ADAPT
1-490-430-23 1-490-430-23 AC-L200 AC ADAPTOR
2-664-928-41 2-664-928-41 BELT, GRIP
1-756-615-61 1-756-615-61 BH5801 - HOLDER, BATTERY
3-291-554-11 3-291-554-11 BLIND (266), HINGE
A-1506-691-A A-1506-691-A BLOCK ASSY (08), SERVICE - DDX
1-756-134-15 1-756-134-15 BT901 - BATTERY, STORAGE, LITH
3-292-022-01 3-292-022-01 CABINET (266), EJECT
3-291-509-01 3-291-509-01 CABINET (266), INNER
3-292-023-11 3-292-023-11 CABINET (266), SHOE
3-291-469-11 3-291-469-11 CABINET (267), TOP
3-291-469-21 3-291-469-21 CABINET (267), TOP
X-2189-024-1 X-2189-024-1 CABINET (268) ASSY, CF
X-2189-023-1 X-2189-023-1 CABINET (268J) ASSY, CF
X-2188-947-1 X-2188-947-1 CABINET (C (267)) ASSY, P
A-1504-785-A A-1504-785-A CABINET (C) BLOCK ASSY (20-J)
3-292-021-01 3-292-021-01 CABINET (L (UPPER)) (266)
A-1504-778-A A-1504-778-A CABINET (L) BLOCK ASSY (20-CA)
A-1504-776-A A-1504-776-A CABINET (L) BLOCK ASSY (20-J)
A-1504-777-A A-1504-777-A CABINET (L) BLOCK ASSY (20-U)
X-2188-953-1 X-2188-953-1 CABINET (R (268)) ASSY
X-2188-954-1 X-2188-954-1 CABINET (R (268J)) ASSY
X-2188-912-1 X-2188-912-1 CABINET (TOP (267)) ASSY
A-1504-779-A A-1504-779-A CABINET(L) BLOCK ASSY(20-E23)
1-833-210-11 1-833-210-11 CABLE, FLEXIBLE FLAT (FFC-089)
1-834-864-11 1-834-864-11 CABLE, FLEXIBLE FLAT (FFC-134)
1-834-865-11 1-834-865-11 CABLE, FLEXIBLE FLAT (FFC-135)
1-834-866-11 1-834-866-11 CABLE, FLEXIBLE FLAT (FFC-136)
1-834-867-11 1-834-867-11 CABLE, FLEXIBLE FLAT (FFC-138)
1-834-869-11 1-834-869-11 CABLE, FLEXIBLE FLAT (FFC-141)
2-899-659-01 2-899-659-01 CAP (215), INNER
3-286-118-01 3-286-118-01 CD-ROM HANDYCAM APPLICATION SO
1-818-890-11 1-818-890-11 CN901 - CONNECTOR, EXTERNAL
1-834-646-11 1-834-646-11 CORD, CONNECTION (AV MULTI)
3-292-060-11 3-292-060-11 COVER (266), SHOE
3-292-012-01 3-292-012-01 COVER (266), ST PC BOARD
3-291-560-21 3-291-560-21 COVER (C (266)), HINGE
3-291-560-11 3-291-560-11 COVER (C (266)), HINGE
3-291-561-01 3-291-561-01 COVER (M (266)), HINGE
3-291-562-01 3-291-562-01 CUSHION (266), TP
2-638-819-01 2-638-819-01 CUSHION, LCD
3-281-811-01 3-281-811-01 CUSHION, MICROPHONE
3-452-452-01 3-452-452-01 DC (266), SHEET
2-694-514-01 2-694-514-01 DIFFUSION SHEET (2.7)
A-1498-087-A A-1498-087-A EJECT UNIT 2
X-2188-941-1 X-2188-941-1 EYE CUP (266) ASSY
1-788-709-11 1-788-709-11 FILTER BLOCK, OPTICAL
1-480-263-31 1-480-263-31 FLASH UNIT
3-292-011-01 3-292-011-01 FRAME (266), SHOE
3-291-479-01 3-291-479-01 FRAME (UPPER) (266), FRONT
X-2189-015-1 X-2189-015-1 FRAME ASSY (266), MD
X-2189-016-1 X-2189-016-1 FRAME ASSY (266), MIDWAY
2-694-516-01 2-694-516-01 FRONT FRAME (2.7)
3-294-466-01 3-294-466-01 GASKET (H) (266)
3-294-465-01 3-294-465-01 GASKET (M) (266)
3-291-371-11 3-291-371-11 GRILLE (266), MICROPHONE
3-291-345-01 3-291-345-01 GUIDE (266), GRIP BELT
2-664-672-01 2-664-672-01 GUIDE, LAMP
1-965-608-11 1-965-608-11 HARNESS (HN-048)
1-965-617-11 1-965-617-11 HARNESS (HN-057)
3-292-013-01 3-292-013-01 HEAT SINK (266), BOTTOM
3-292-014-01 3-292-014-01 HEAT SINK (266), CM
X-2187-936-1 X-2187-936-1 HINGE ASSY (281M)
3-292-019-01 3-292-019-01 HOLDER (266), CAPACITOR
3-292-018-01 3-292-018-01 HOLDER (266), ST
3-281-808-01 3-281-808-01 HOLDER, MICROPHONE
2-638-818-01 2-638-818-01 ILLUMINATOR
3-291-467-01 3-291-467-01 INSULATOR (266)
1-821-575-31 1-821-575-31 J901 - DC JACK
1-480-497-11 1-480-497-11 KEY BLOCK, CONTROL (PS26600)
3-292-070-01 3-292-070-01 LABEL (266), CAUTION
A-1228-786-A A-1228-786-A LCD901 - TP BLOCK ASSY., LCD
8-753-241-14 8-753-241-14 LCD902 - LCX076AKE-1; LCD
A-1419-023-A A-1419-023-A LENS BARRIER UNIT
3-292-020-01 3-292-020-01 LID (266), CPC
X-2188-910-3 X-2188-910-3 LID ASSY (267), D
X-2188-936-1 X-2188-936-1 LID ASSY (267), HDMI JACK
2-666-801-21 2-666-801-21 LIGHT GUIDE (2.7)
A-1497-728-A A-1497-728-A LSV-1260A (SERVICE)
3-285-372-61 3-285-372-61 MANUAL, INSTRUCTION
3-285-372-51 3-285-372-51 MANUAL, INSTRUCTION
3-285-372-41 3-285-372-41 MANUAL, INSTRUCTION
3-285-372-01 3-285-372-01 MANUAL, INSTRUCTION
A-1538-642-A A-1538-642-A MDL4060S3C COMPLETE ASSY
1-542-723-31 1-542-723-31 MIC901 - MICROPHONE UNIT
A-1441-559-A A-1441-559-A MOUNTED C. BOARD, BL-023
A-1441-563-A A-1441-563-A MOUNTED C. BOARD, CK-193
A-1441-569-A A-1441-569-A MOUNTED C. BOARD, FP-832
A-1498-447-A A-1498-447-A MOUNTED C. BOARD, FR-283
A-1441-568-A A-1441-568-A MOUNTED C. BOARD, JK-363
A-1441-565-A A-1441-565-A MOUNTED C. BOARD, MS-393
A-1441-561-A A-1441-561-A MOUNTED C. BOARD, OC-013
A-1441-564-A A-1441-564-A MOUNTED C. BOARD, PD-353
A-1441-560-A A-1441-560-A MOUNTED C. BOARD, SW-523
A-1498-445-A A-1498-445-A MOUNTED C. BOARD, VC-521
A-1153-842-A A-1153-842-A MOUNTED C.BOARD, FP-386
A-1599-883-A A-1599-883-A NP-FH60 BATTERY PACK
X-2188-942-1 X-2188-942-1 PANEL (266) ASSY, BT
X-2188-935-1 X-2188-935-1 PANEL (267) ASSY, F
2-899-660-01 2-899-660-01 PANEL (CF), POLARIZATION
3-291-473-11 3-291-473-11 PLATE (266), F ORNAMENTAL
2-638-816-01 2-638-816-01 PLATE (TFT), DEFLECTION
2-694-513-01 2-694-513-01 PRISM SHEET H (2.7)
2-694-512-01 2-694-512-01 PRISM SHEET V (2.7)

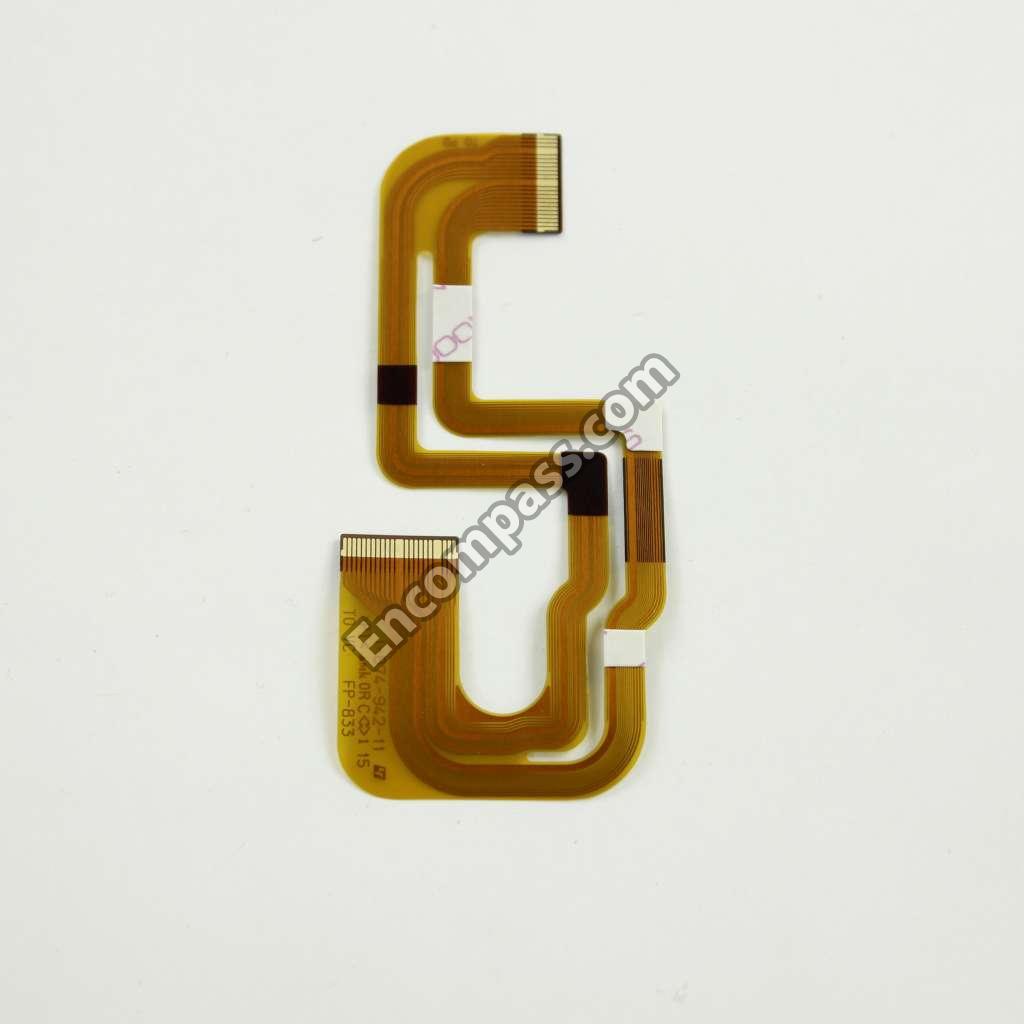

1-874-942-11 1-874-942-11 PWB, FP-833
1-874-943-11 1-874-943-11 PWB, FP-834
1-874-944-11 1-874-944-11 PWB, FP-835
1-874-945-11 1-874-945-11 PWB, FP-836
2-694-515-01 2-694-515-01 REFLECTION SHEET (2.7)
1-479-275-41 1-479-275-41 REMOTE CONTROL RMT835
3-291-468-01 3-291-468-01 RETAINER (266), MICROPHONE
3-292-062-11 3-292-062-11 RETAINER (266), SHOE COVER
3-291-555-01 3-291-555-01 RETAINER (266), SPEAKER
3-291-477-11 3-291-477-11 RING (266), FRONT
3-217-744-01 3-217-744-01 RUBBER (1260), SEAL
3-281-807-01 3-281-807-01 SCREEN, WIND
2-635-562-31 2-635-562-31 SCREW(M1.7)
2-599-475-31 2-599-475-31 SCREW(M1.7)
2-660-401-01 2-660-401-01 SCREW(M1.7),NEW TRU-STAR,
2-586-337-01 2-586-337-01 SCREW, MD
3-078-890-11 3-078-890-11 SCREW, TAPPING
3-283-643-21 3-283-643-21 SCREW, TRIPOD
3-090-616-01 3-090-616-01 SHAFT (F), STRAP
3-291-979-01 3-291-979-01 SHEET (266), LENS GUARD
3-452-336-01 3-452-336-01 SHEET (266), MUFFLE
3-292-015-01 3-292-015-01 SHEET (266), OP FLEXIBLE
3-398-510-01 3-398-510-01 SHEET (266), PROTECTION
3-294-467-01 3-294-467-01 SHEET (266), TRIPOD
3-291-480-01 3-291-480-01 SHEET (266),LIGHT INTERCEPTION
3-295-427-01 3-295-427-01 SHEET (700), CM RADIATION
3-292-016-01 3-292-016-01 SHEET (A(266)), VC RADIATION
3-292-017-01 3-292-017-01 SHEET (E (266)), VC RADIATION
3-452-335-01 3-452-335-01 SHEET (VC) (266), RADIATION
3-291-519-01 3-291-519-01 SHEET METAL (266), DC
3-291-344-01 3-291-344-01 SHEET METAL(266), STRAP
1-825-262-82 1-825-262-82 SP901 - LOUD SPEAKER (1.6CM)
2-664-671-01 2-664-671-01 SPACER, LCD
1-479-926-11 1-479-926-11 SWITCH BLOCK, CONTROL(SB22100)
3-080-272-01 3-080-272-01 TAPE (A)
3-083-393-01 3-083-393-01 TAPE (P)
