Model Image
Manufacturer

Sony

Model Number

HDRXR200V

Description

120gb Hdd High Definition Camcorder

Interactive Exploded View

Parts List

Part Number Description
1-838-205-11 1-838-205-11 A/V CONNECTING CABLE
1-490-430-23 1-490-430-23 AC-L200C/L200D AC ADAPTOR
1-480-681-11 1-480-681-11 BLOCK LIGHT
X-2345-270-1 X-2345-270-1 CABINET (310) ASSY, TOP
A-1706-842-A A-1706-842-A CABINET (G (XR200V-CA2))
X-2348-558-1 X-2348-558-1 CABINET (L) ASSY
4-132-271-01 4-132-271-01 CABINET (M (310)), P
X-2345-282-1 X-2345-282-1 CABINET (R (310)) ASSY
4-131-923-02 4-131-923-02 CABINET ASSY BOTTOM
1-116-036-11 1-116-036-11 CAPACITOR, ELECT 80MF
4-136-320-01 4-136-320-01 CD-ROM HANDYCAP APLICATION
4-132-297-01 4-132-297-01 CLAMP (310), CM FLEXIBLE
A-1671-595-A A-1671-595-A CMOS BLOCK ASSY (1260SC)
1-479-275-51 1-479-275-51 COMMANDER, STANDARD
1-691-394-61 1-691-394-61 CONNECTOR, FFC/FPC 30P
1-834-646-11 1-834-646-11 CORD, CONNECTION (AV MULTIPLE)
4-132-272-01 4-132-272-01 COVER (O (310)), HINGE
X-2345-266-1 X-2345-266-1 COVER (R (310)) ASSY, HINGE
4-132-273-01 4-132-273-01 COVER (U (310)), HINGE
4-132-293-01 4-132-293-01 FRAME (L (310)), LENS
4-132-294-01 4-132-294-01 FRAME (R (310)), LENS
X-2345-268-1 X-2345-268-1 FRAME ASSY, MAIN
4-132-291-01 4-132-291-01 FRAME, BT
4-132-276-01 4-132-276-01 FRAME, P
4-132-318-01 4-132-318-01 FRAME, SHOE
1-576-287-31 1-576-287-31 FUSE, MICRO
1-523-069-31 1-523-069-31 FUSE, MICRO
1-523-068-31 1-523-068-31 FUSE, MICRO
4-132-310-01 4-132-310-01 GUARD, BELT
4-132-299-01 4-132-299-01 GUARD, ST
4-121-423-51 4-121-423-51 HANDBOOK(PDF)
4-121-423-01 4-121-423-01 HANDBOOK(PDF)
A-1889-754-A A-1889-754-A HDD SERVICE 120G
4-132-295-01 4-132-295-01 HEAT SINK (A (310)), VC

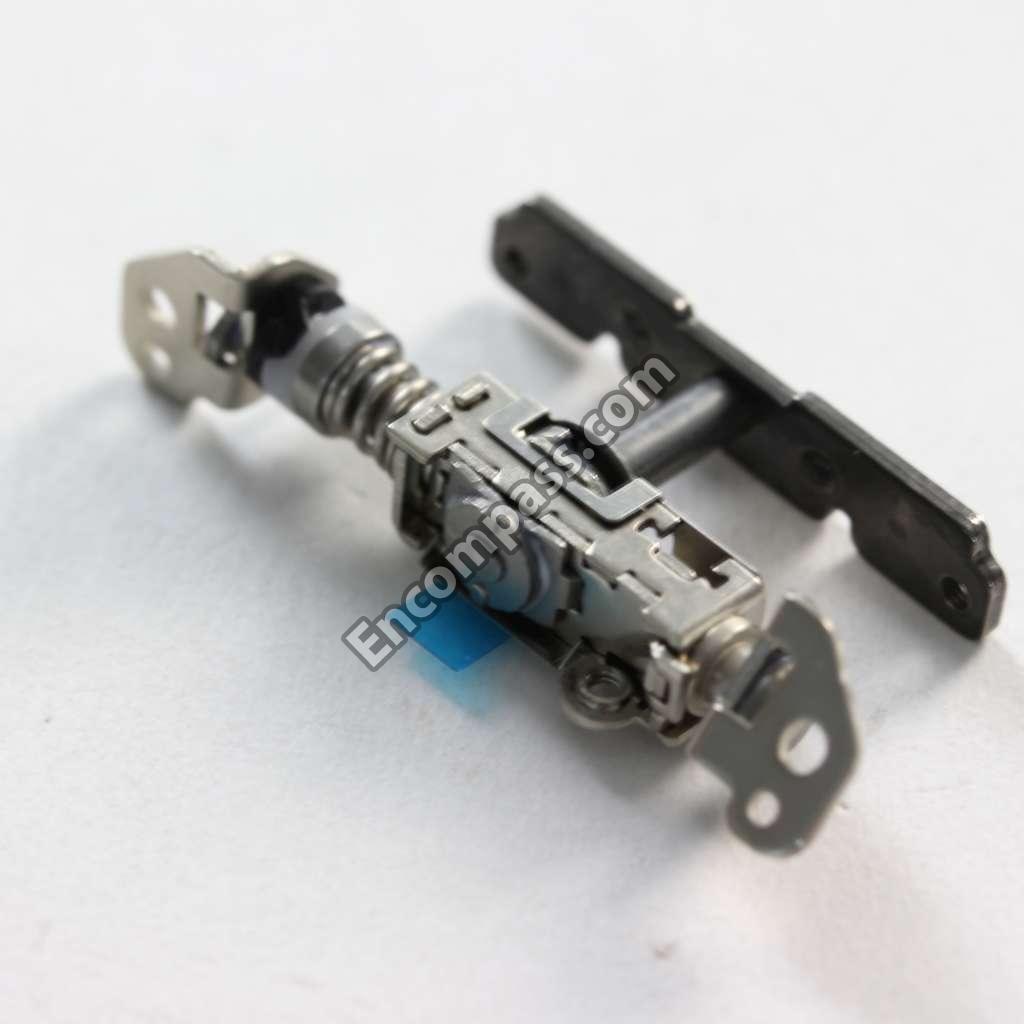

X-2345-273-1 X-2345-273-1 HINGE (NC)(09STYLE)ASSY
4-132-296-01 4-132-296-01 HOLDER, CAPACITOR
4-132-290-01 4-132-290-01 HOLDER, MS
4-132-298-01 4-132-298-01 HOLDER, ST
6-713-468-01 6-713-468-01 IC ADV7521NKBCBZRL-80
6-808-503-01 6-808-503-01 IC BU24130GU-E2
6-708-455-01 6-708-455-01 IC R1114Q271D-TR-FA
6-711-739-01 6-711-739-01 IC TC7WG126FK
4-132-315-01 4-132-315-01 LABEL, FUSE
A-1497-728-A A-1497-728-A LENS UNIT LSV-1260A (SERVICE)
1-471-505-11 1-471-505-11 MAGNET
NSI NSI MANUAL, INSTRUCTION(GPS)
4-132-274-01 4-132-274-01 MOLD, INNER
A-1665-628-A A-1665-628-A MOUNTED C.BOARD, CK-205 SC
A-1671-287-A A-1671-287-A MOUNTED C.BOARD, FP1010
A-1671-288-A A-1671-288-A MOUNTED C.BOARD, FP1011
A-1705-271-A A-1705-271-A MOUNTED C.BOARD, FR-296
A-1671-293-A A-1671-293-A MOUNTED C.BOARD, LD-244
A-1671-280-A A-1671-280-A MOUNTED C.BOARD, MS-410
A-1665-624-A A-1665-624-A MOUNTED C.BOARD, PD-375
A-1671-289-A A-1671-289-A MOUNTED C.BOARD, ST-206
A-1599-883-A A-1599-883-A NP-FH60 RECHARGEABLE BATTERY
X-2345-286-1 X-2345-286-1 PANEL (310) ASSY
X-2345-285-1 X-2345-285-1 PANEL ASSY, BT
4-132-308-01 4-132-308-01 PLATE (F), STRAP
4-132-309-01 4-132-309-01 PLATE (R), STRAP
4-132-312-01 4-132-312-01 PLATE, AU FIXED
4-132-305-01 4-132-305-01 PLATE, FR FIXED
4-132-311-01 4-132-311-01 PLATE, HD FIXED
4-132-275-01 4-132-275-01 PLATE, P GROUND
1-877-406-11 1-877-406-11 PWB FP1020
1-877-394-11 1-877-394-11 PWB, FP-1008
1-877-398-11 1-877-398-11 PWB, FP-1012
1-877-399-11 1-877-399-11 PWB, FP-1013
1-877-400-11 1-877-400-11 PWB, FP-1014
1-877-401-11 1-877-401-11 PWB, FP-1015
1-877-402-11 1-877-402-11 PWB, FP-1016
1-877-403-11 1-877-403-11 PWB, FP-1017
1-877-407-11 1-877-407-11 PWB, FP-1021
1-877-413-11 1-877-413-11 PWB, FP-1027
4-132-289-01 4-132-289-01 RETAINER, DC JACK
4-132-269-01 4-132-269-01 RETAINER, MICROPHONE
4-132-288-01 4-132-288-01 RETAINER, SP
1-479-275-41 1-479-275-41 RMT-835 REMOTE COMMANDER
4-135-260-01 4-135-260-01 SHEET (310), AG RADIATION
4-144-535-01 4-144-535-01 SHEET (310), CM RADIATION
4-141-654-01 4-141-654-01 SHEET (310), LD RADIATION
4-136-970-01 4-136-970-01 SHEET (310), PD RADIATION
4-141-655-01 4-141-655-01 SHEET (310), ST RADIATION
4-132-314-01 4-132-314-01 SHEET (B), VC RADIATION
4-139-505-01 4-139-505-01 SHEET METAL (L (310)), G
4-132-316-01 4-132-316-01 SHEET, AG RADIATION
4-136-969-01 4-136-969-01 SHEET, LF (RADIATION)
1-487-101-11 1-487-101-11 SWITCH BLOCK CONTROL (PS31000
1-487-100-11 1-487-100-11 SWITCH BLOCK, CONTROL(SB31000)
A-1228-786-A A-1228-786-A TP BLOCK ASSY (27ESHGU07)
6-553-055-01 6-553-055-01 TR TIG052TS-TL-E
1-837-287-11 1-837-287-11 USB CABLE
A-1705-314-A A-1705-314-A VC548 BOARD, COMPLETE
