Manufacturer
Sony
Model Number
HTCT780
Description

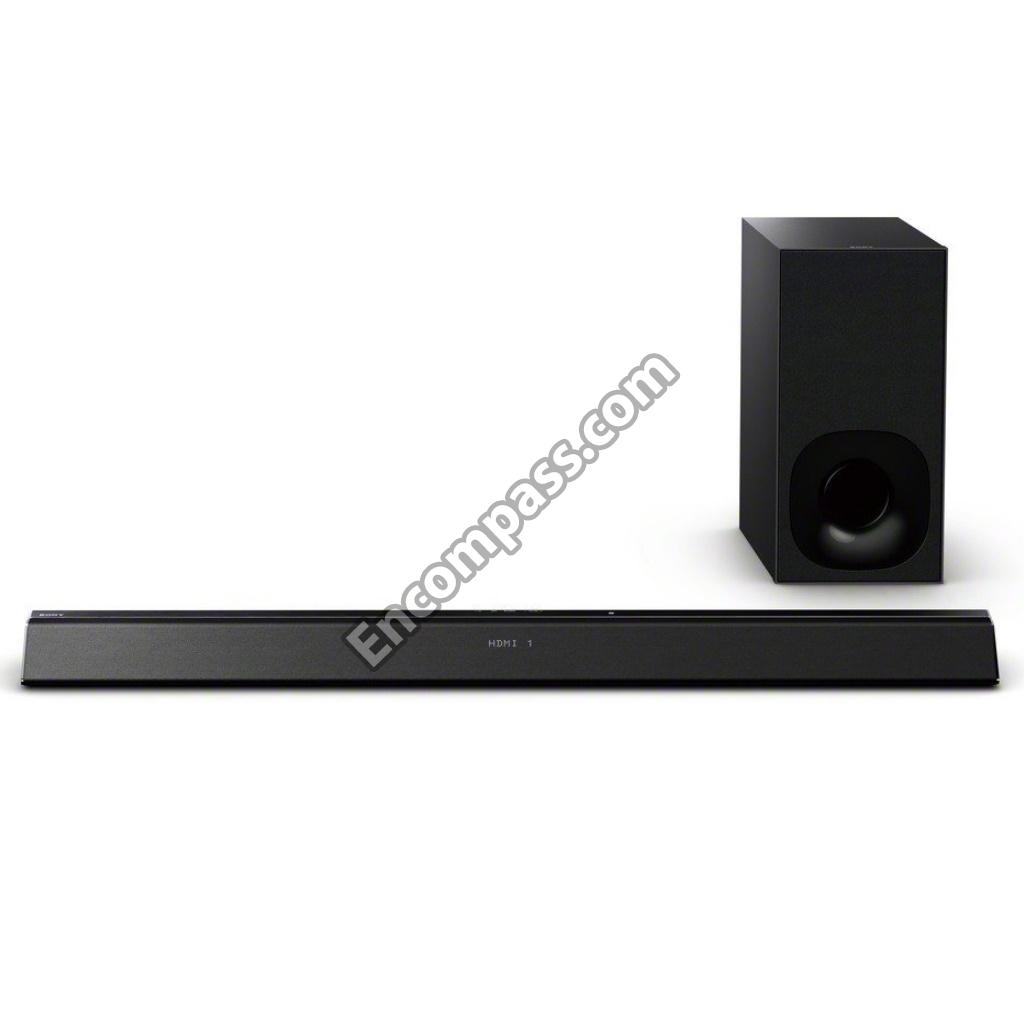

Home Theatre Sound Bar
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BLUETOOTH MODULE (US,CANADA) |
|
|
BOTTOM PANEL ASSY (US,CANADA) |
|
|
BUTTON(POWER-CZ2) (US,CANADA) |
|
|
CONNECTION CABLE W/ SPK (L) (US,CANADA) |
|
|
CONNECTION CABLE W/ SPK (R) (US,CANADA) |
|
|
CONNECTOR, FFC/FPC (LIF) 18P (US,CANADA) |
|
|
CUSHION SIDE (US,CANADA) |
|
|
GRILLE FRAME ASSY (US,CANADA) |
|
|
IC BR24G16FJ-3GTE2 (US,CANADA) |
|
|

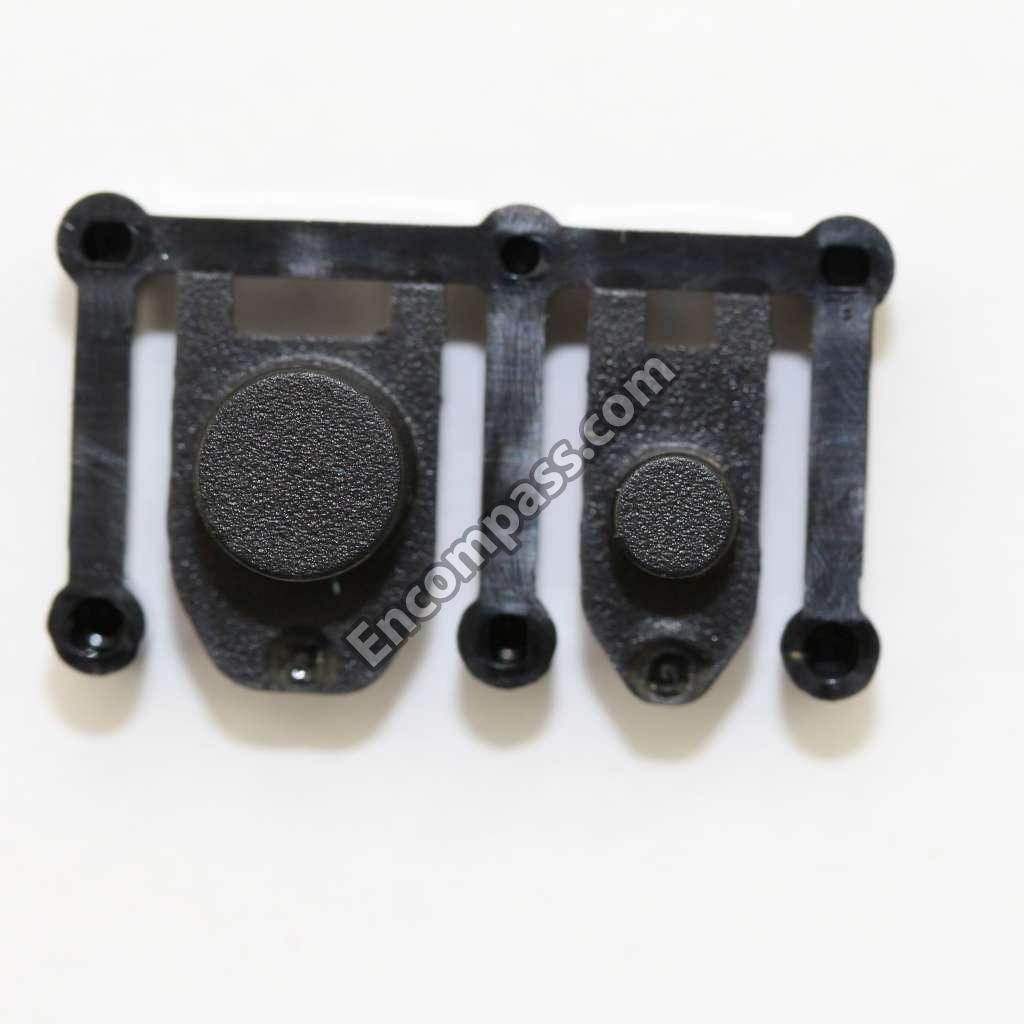

KEY (US,CANADA) |
|
|
KEY MOUNT (US,CANADA) |
|
|
LOUDSPEAKER (16CM)-098-11 (US,CANADA) |
|
|
MAIN COMPL F-1306-381-5 (BR1-BRAZIL) |
|
|
MANUAL, INSTRUCTION (BR1-BRAZIL) |
|
|
MANUAL, INSTRUCTION (US,CANADA) |
|
|
OPTICAL DIGITAL CABLE |
|
|
PANEL SIDE L (US,CANADA) |
|
|
PANEL SIDE R (US,CANADA) |
|
|
PANEL, FRONT (SZ-SW) (US,CANADA) |
|
|
POWER MOUNT (US,CANADA) |
|
|

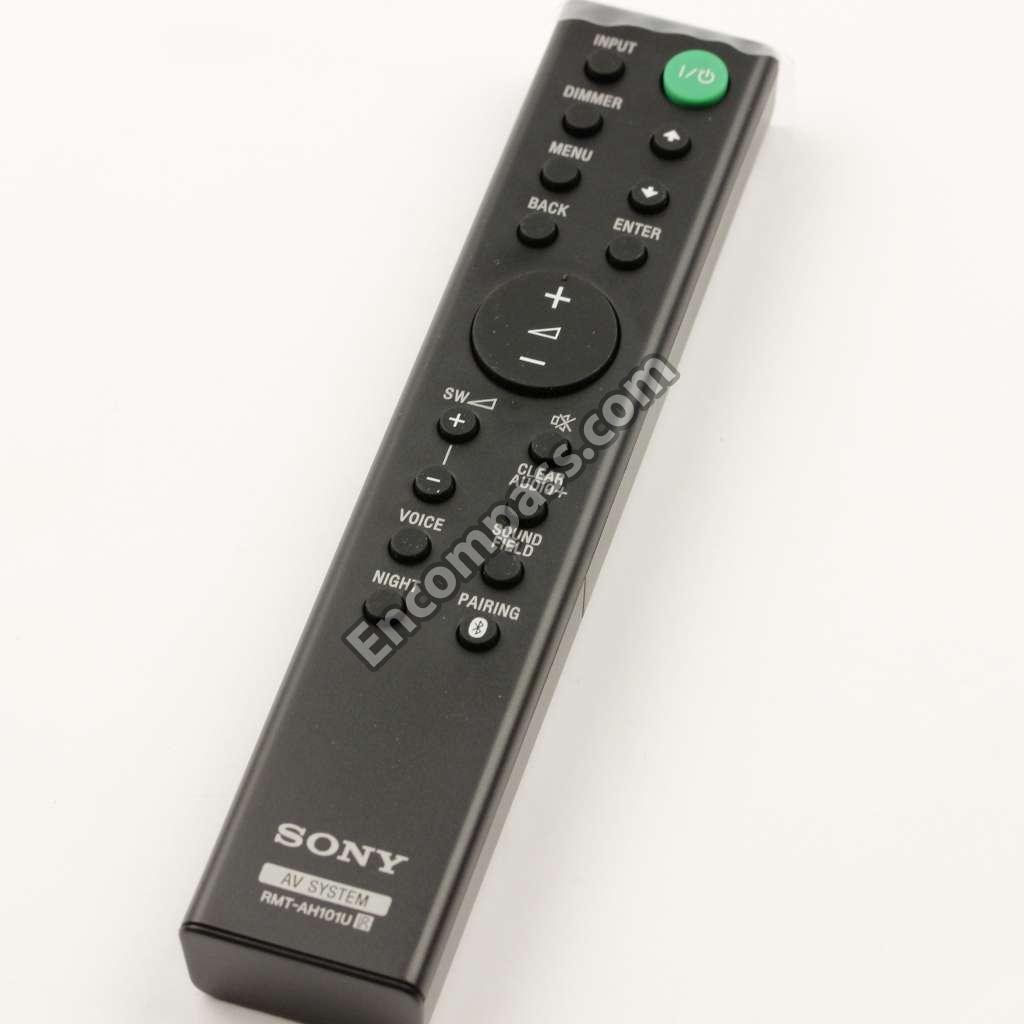

REMOTE |
|
|
SEALED PACKING CABI (US,CANADA) |
|
|

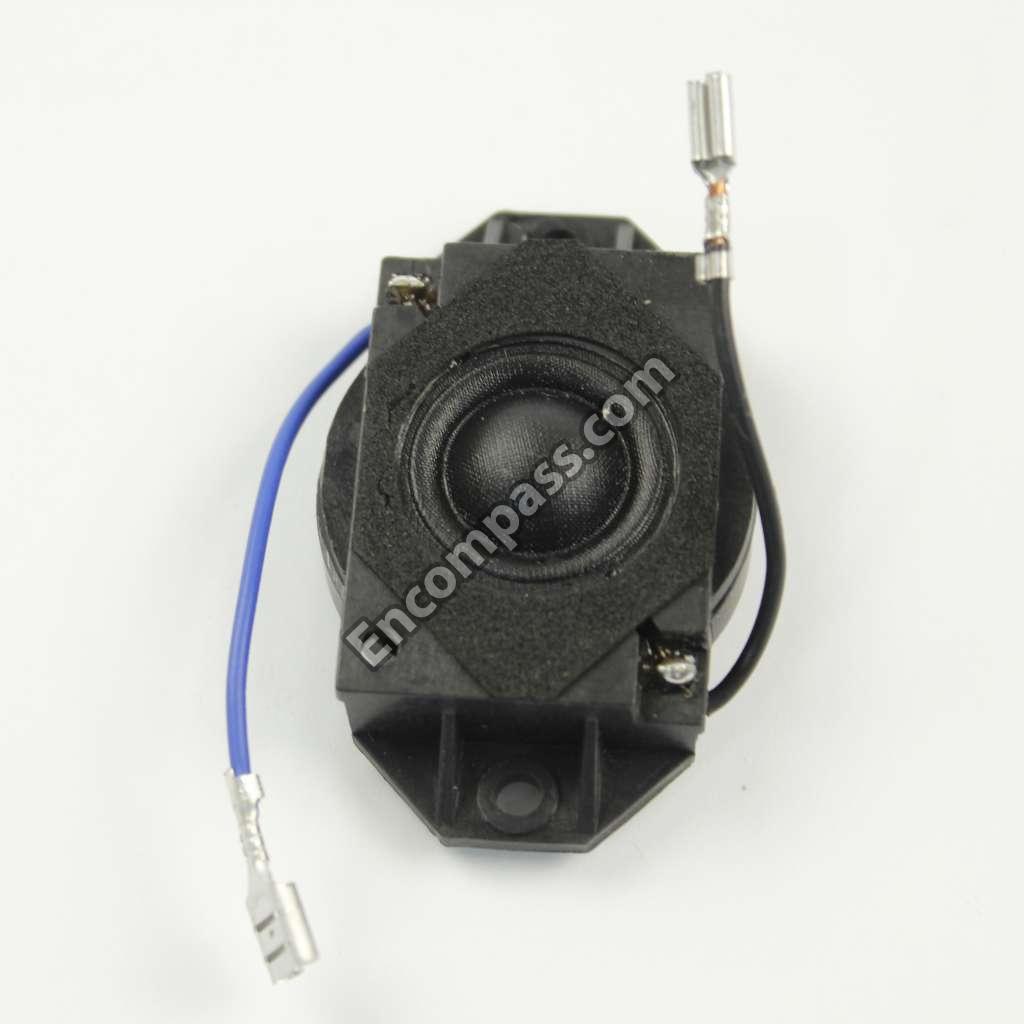

SPEAKER (19MM) (US,CANADA) |
|
|

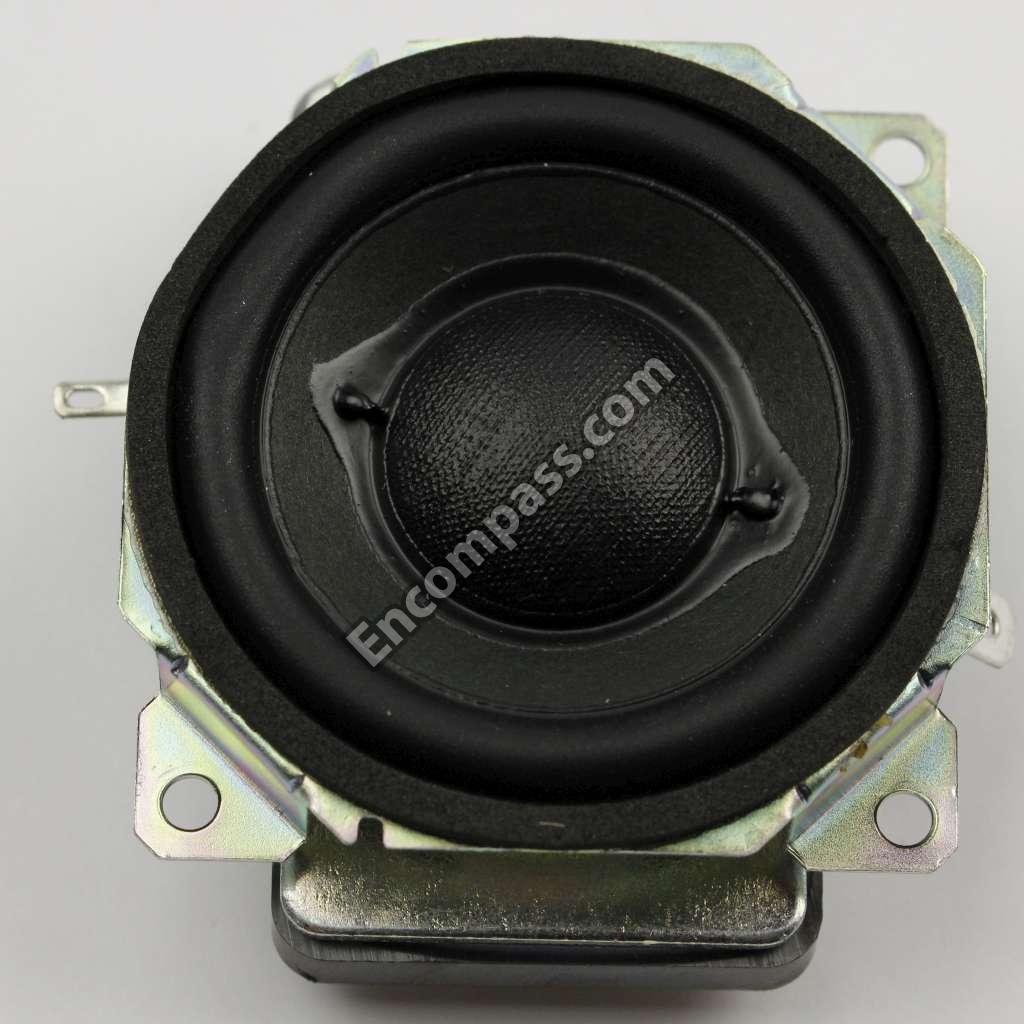

SPEAKER (60MM) (US,CANADA) |
|
|
SW-MAIN COMPL F-1306-381-5 (BR1-BRAZIL) |
|
|
SW-POWER MOUNT (US,CANADA) |
|
|
TOP PANEL ASSY (US,CANADA) |
|
|
USB CONNECTOR (US,CANADA) |
|
|
WALL STAND (US,CANADA) |
|
|
RF MODULATOR (SWA12-4V TX) (SEE BULLETIN) |
|
|
RF MODULATOR (SWA12-4V RX) (SEE BULLETIN) |
|
|
RF MODULATOR (SWA12-4V TX) (SEE BULLETIN) |
|
|
RF MODULATOR (SWA12-4V RX) (SEE BULLETIN) |
