Model Image
Manufacturer

Sony

Model Number

HVRZ1J

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
X-2023-940-1 X-2023-940-1 CABINET (C) ASSY (D), P
X-2023-996-1 X-2023-996-1 CABINET (D) ASSY, TERMINA
X-2023-941-1 X-2023-941-1 CABINET (DV) ASSY (D)
X-2023-945-1 X-2023-945-1 CABINET (FRONT) ASSY (D),
2-178-563-11 2-178-563-11 CABINET (FRONT), HANDLE
X-2023-939-1 X-2023-939-1 CABINET (L) ASSY (D)
X-2024-038-3 X-2024-038-3 CABINET (M) ASSY, P
2-179-123-21 2-179-123-21 CABINET (R (STEM LOWER))
2-179-122-21 2-179-122-21 CABINET (R (STEM UPPER))
X-2023-891-1 X-2023-891-1 CABINET (R D) SUB ASSY
X-2023-890-1 X-2023-890-1 CABINET (R) (D) ASSY
X-2023-934-1 X-2023-934-1 CABINET (UPPER) ASSY (D),
X-2023-936-1 X-2023-936-1 CABINET ASSY (D), HANDLE
X-2023-944-1 X-2023-944-1 CABINET ASSY (D), VF REAR
2-178-784-11 2-178-784-11 CHASSIS (CENTER)
1-573-919-51 1-573-919-51 CONNECTOR, FFC/FPC (ZIF) 10P
2-189-579-01 2-189-579-01 COVER (D), PANEL (SIDE)
2-189-583-01 2-189-583-01 COVER (D), TERMINAL
2-549-592-01 2-549-592-01 COVER (DCIN)
2-179-394-11 2-179-394-11 COVER (FRONT), HINGE
2-179-396-11 2-179-396-11 COVER (LOWER), HINGE
2-179-395-11 2-179-395-11 COVER (REAR), HINGE
2-179-108-11 2-179-108-11 COVER (RELEASE BUTTON)
2-189-574-01 2-189-574-01 COVER (VOL) (D), SWITCH
2-189-578-01 2-189-578-01 CUSHION (D), PANEL
A-1082-202-A A-1082-202-A DEH-30F-R
6-500-652-01 6-500-652-01 DIODE GL453SE0000F
2-179-124-21 2-179-124-21 ESCUTCHEON (GAIN)
A-1074-712-A A-1074-712-A FP-978 MOUNT
2-546-754-01 2-546-754-01 GASKET (CS)

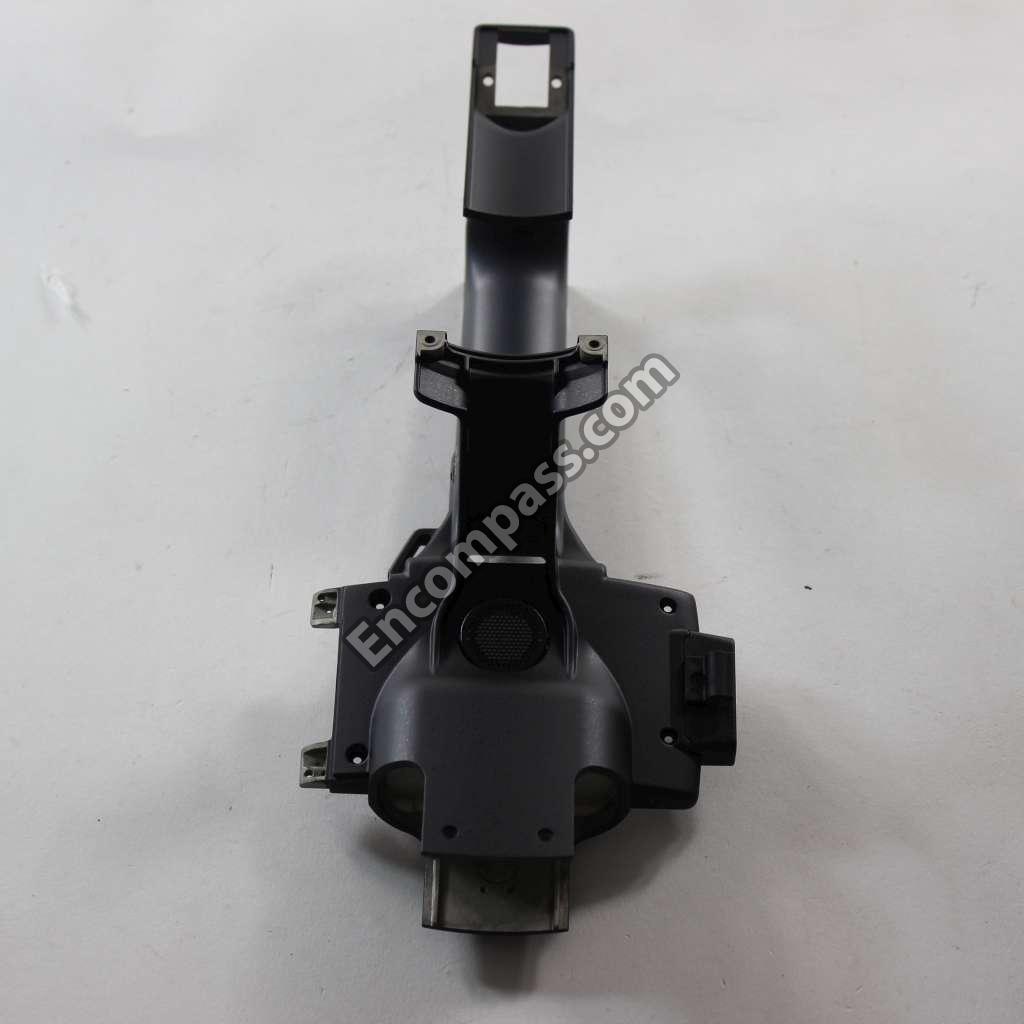

X-2023-998-3 X-2023-998-3 HANDLE ASSY (D)
X-2023-933-3 X-2023-933-3 HOLDER ASSY, MICROPHONE
9-913-200-19 9-913-200-19 HOOD, FIXED SCREW
6-805-131-01 6-805-131-01 IC MB89097LGA-G-189-ER
6-805-197-01 6-805-197-01 IC MB91194ALGA-G-206-ER
6-805-386-01 6-805-386-01 IC MB91194ALGA-G-212-ER
6-805-237-01 6-805-237-01 IC MB91194ALGA-G-215-ER
6-805-902-01 6-805-902-01 IC MB91195LGL-G-157-ERE1
6-807-127-01 6-807-127-01 IC MBM29Z0008-70PBT-03ERE1
A-1092-654-A A-1092-654-A JK-275 MOUNT
X-2023-895-1 X-2023-895-1 KNOB (D) ASSY, EJECT
X-2023-892-1 X-2023-892-1 KNOB (D) ASSY, F
X-2023-894-1 X-2023-894-1 LID (D) ASSY, CASSETTE
2-179-097-11 2-179-097-11 LID, CPC
2-179-168-11 2-179-168-11 LID, MD
2-514-606-01 2-514-606-01 MANUAL, INSTRUCTION
X-2023-937-1 X-2023-937-1 MASK ASSY (D), MICROPHONE
A-1171-909-B A-1171-909-B MD (Z302) SUB ASSY (Y)
A-1081-942-A A-1081-942-A MOUNTED C.BOARD DA-033 (F
A-1081-943-A A-1081-943-A MOUNTED C.BOARD DB-018 (F
A-1081-906-A A-1081-906-A MOUNTED C.BOARD MK-017 (F
A-1097-501-A A-1097-501-A MOUNTED C.BOARD MR-048 (F
A-1082-309-A A-1082-309-A MOUNTED C.BOARD VA-119 (F
A-1091-890-A A-1091-890-A MOUTED C.BOARD VC-367(F1D
X-2023-947-1 X-2023-947-1 PANEL ASSY (D), BATTERY
2-178-790-11 2-178-790-11 PLATE (BOTTOM)
1-864-139-41 1-864-139-41 PWB, FP-963 FLEXIBLE
1-478-954-12 1-478-954-12 REMOT COMMANDER (RMT-841)
3-703-816-19 3-703-816-19 SCREW (M1.4X4.0), SPECIAL

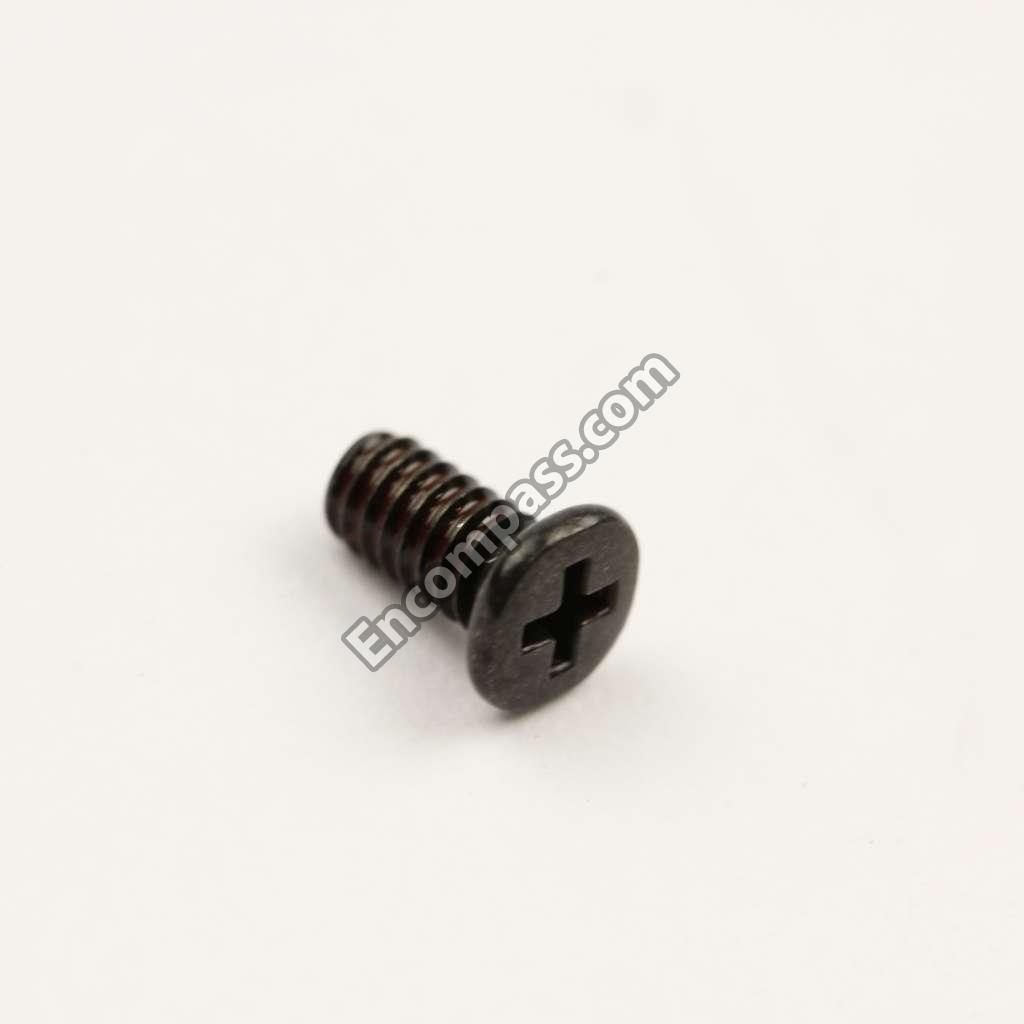

2-342-356-01 2-342-356-01 SCREW (M2 (ECO ,EG))
3-080-202-41 3-080-202-41 SCREW(M2),LOCK ACE,P2
2-547-787-01 2-547-787-01 SHEET (BB)
2-546-212-01 2-546-212-01 SHEET (CCD GUARD)
2-586-052-01 2-586-052-01 SHEET (COIL ,EMI)
2-549-852-01 2-549-852-01 SHEET (FP967), PROTECTION
2-546-215-01 2-546-215-01 SHEET (FP972,EMI)
2-546-211-01 2-546-211-01 SHEET (FP974)
2-546-216-01 2-546-216-01 SHEET (FP974,EMI)
2-178-780-02 2-178-780-02 SHEET (GF)
2-189-582-01 2-189-582-01 SHEET METAL (AV) (D), FIT
2-178-794-02 2-178-794-02 SHEET METAL (DV), FITTING
2-547-279-01 2-547-279-01 SPACER (DV)
1-478-876-32 1-478-876-32 SWITCH BLOCK, CONTROL (PS
1-479-239-11 1-479-239-11 SWITCH BLOCK, CONTROL(VV9
1-694-411-12 1-694-411-12 TERMINAL BOARD, BATTERY
8-729-017-65 8-729-017-65 TRANSISTOR 2SK1764
6-551-294-01 6-551-294-01 TRANSISTOR MCH6606-TL-E
A-1106-565-B A-1106-565-B UNIT (B165B (SERVICE ASSY))
