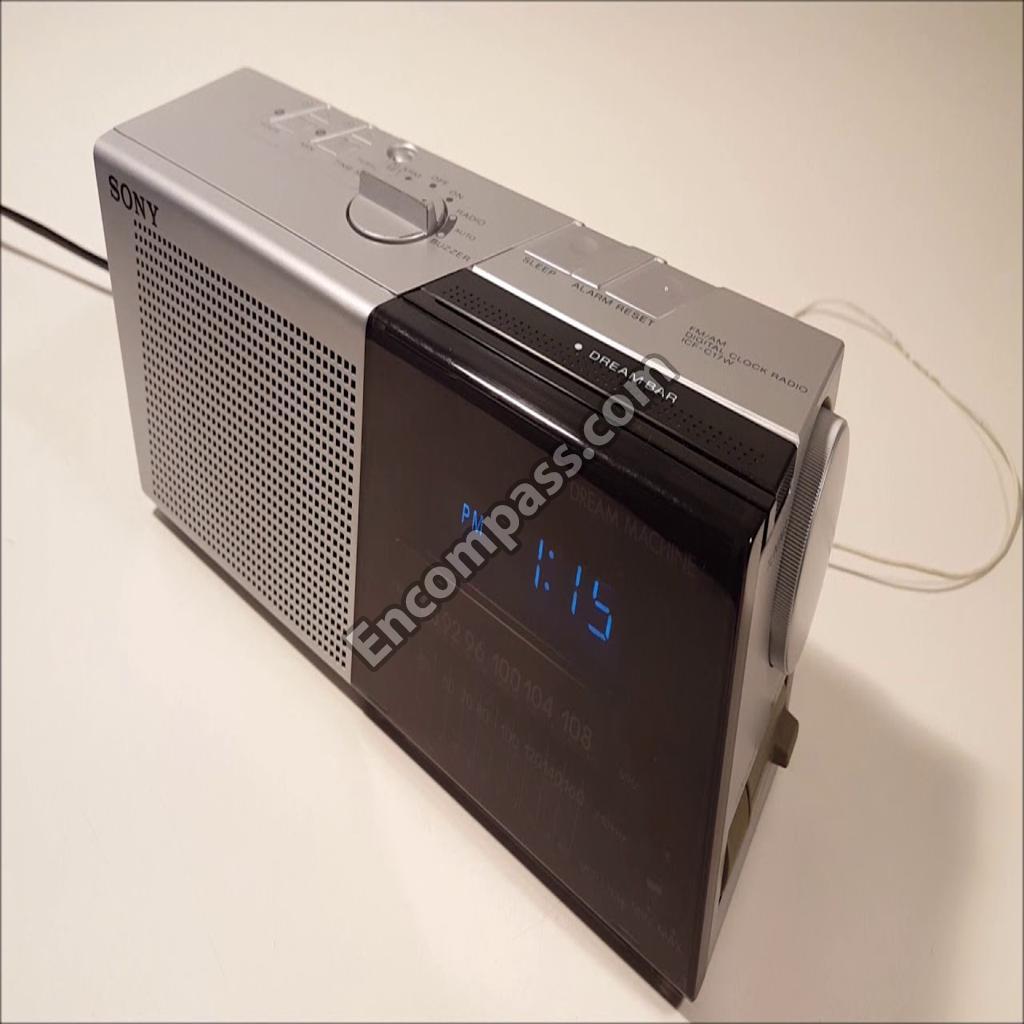

Model Image
Manufacturer

Sony

Model Number

ICFC17W

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-402-102-11 1-402-102-11 ANTENNA,FERRITE BAR
3-893-011-01 3-893-011-01 BRACKET,SPEAKER
3-893-008-01 3-893-008-01 BRACKET,TRANSFORMER
3-893-018-01 3-893-018-01 BUTTON B,PUSH (SILVER)
3-893-018-11 3-893-018-11 BUTTON B,PUSH (WOOD)
3-893-002-01 3-893-002-01 BUTTON,PUSH (SILVER)
3-893-002-11 3-893-002-11 BUTTON,PUSH (WOOD)
1-151-472-11 1-151-472-11 CAP TUNING POLY
3-893-024-01 3-893-024-01 CARTON ICF-C17W
1-406-102-11 1-406-102-11 COIL,OSC
1-406-103-11 1-406-103-11 COIL,OSC FW
3-893-035-01 3-893-035-01 CUSHION LEFT
3-893-036-01 3-893-036-01 CUSHION RIGHT
3-893-006-01 3-893-006-01 DRUM,DIAL
3-893-001-11 3-893-001-11 KNOB,CONTROL (WOOD)
3-893-001-01 3-893-001-01 KNOB,CONTROL SILVER
3-701-327-00 3-701-327-00 LABEL,PRODUCT COLOR
3-893-020-11 3-893-020-11 LEVER,BAND SELECTION (WOO
3-893-020-01 3-893-020-01 LEVER,BAND SELECTION SILV
3-893-022-11 3-893-022-11 LID,REAR (WOOD)
3-893-022-01 3-893-022-01 LID,REAR SILVER
A-3660-511-A A-3660-511-A MCB,MAIN
A-3666-022-A A-3666-022-A MCB,TUNER
3-893-023-01 3-893-023-01 PANEL,FRONT (SILVER)
3-893-023-11 3-893-023-11 PANEL,FRONT (WOOD)
3-893-034-01 3-893-034-01 PLATE (A),SHIDLD
3-893-010-01 3-893-010-01 PLATE (B),CONTACT
3-893-033-01 3-893-033-01 PLATE (B),SHIELD
3-893-032-01 3-893-032-01 PLATE (C),SHIELD
3-893-007-01 3-893-007-01 PLATE A,CONTACT
3-893-005-01 3-893-005-01 POINTER
1-504-685-11 1-504-685-11 SPEAKER
