Model Detail - Appliance Parts King

Manufacturer

Sony

Model Number

ICFSW1

Description

No description available

Interactive Exploded View

Parts List

Part Number	Description
1-125-618-11	0.047F CAPSITOR DOUBLE LA
1-164-005-11	0.47MF F CAPACITOR,CERAMI
1-162-942-11	12PF SL CAPACITOR,CERAMIC
1-162-943-11	15PF SL CAPACITOR, CERAMI
8-719-941-86	1SS304 DIODE
1-164-113-11	20PF SL CAPACITOR, CERAMI
1-216-850-11	270K RESISTOR,CHIP
8-729-123-86	2SK238-K16 TRANSISTOR
1-162-934-11	3.0PF SL CAPACITOR,CERAMI
1-164-149-11	36PF SL CAPACITOR,CERAMIC

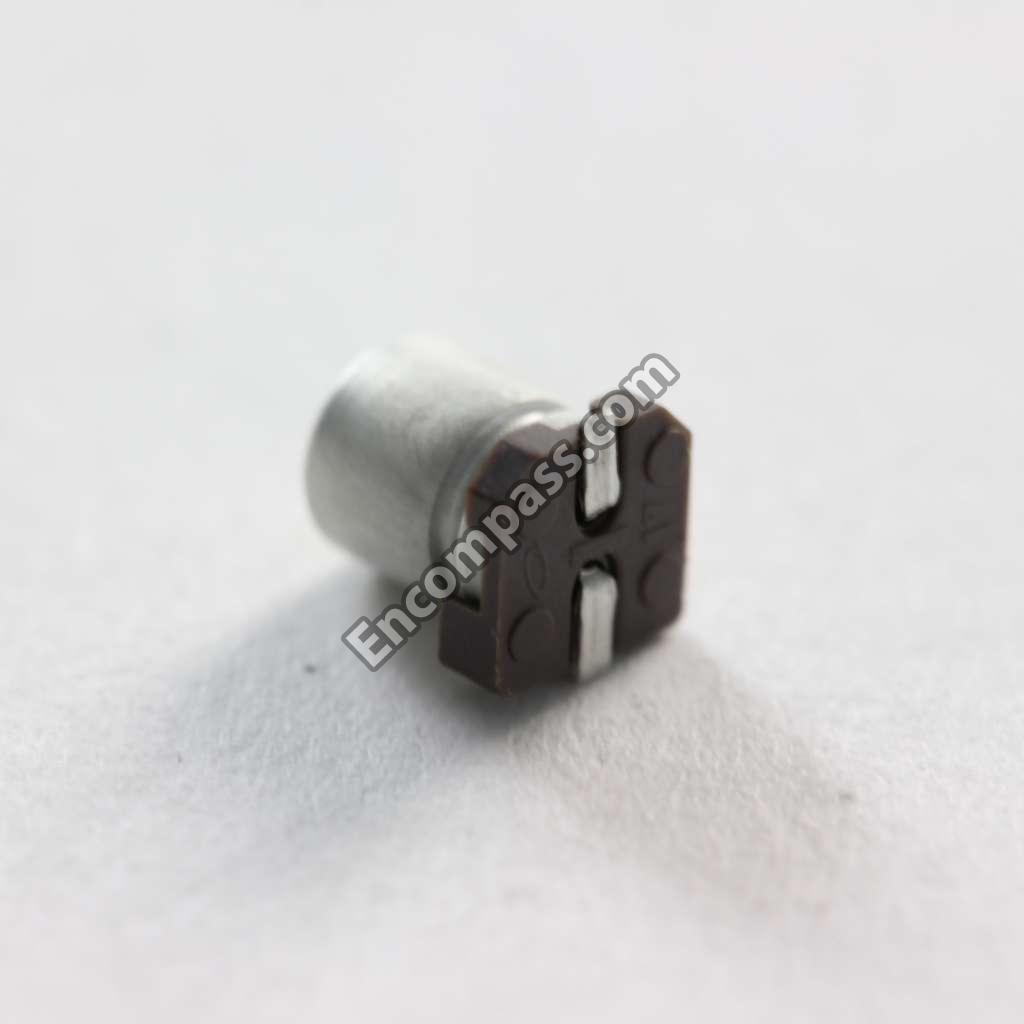

1-126-207-11	4V 33MF,ELECT (S) CAP.
1-162-950-11	56PF 50V CAP,CERAMIC
1-162-938-11	7.0PF SL CAPACITOR,CERAMI
1-162-939-11	8.0PF SL CAPACITOR,CERAMI
1-476-124-11	ADAPTOR, AC (AC-E311)
1-501-683-11	ANTENNA, FERRITE-ROD
1-501-793-11	ANTENNA, FERRITE-ROD (LW.
1-501-892-11	ANTENNA, FERRITE-ROD (MW)
1-501-658-21	ANTENNA, TELESCOPIC
1-402-633-11	ANTENNA,FERRITE-ROD (MW)
1-501-347-21	ANTENNA,TELESCOPIC
3-040-000-01	BASE (BAND)
1-756-305-11	BATTERY,LITHIUM SECONDARY
3-382-324-01	BELT (TUN)
3-929-840-01	BRACKET
3-899-526-01	BRACKET
3-009-769-01	CABINET (CLOCK) (FRONT)
3-009-770-01	CABINET (CLOCK) (REAR)
X-3377-982-1	CABINET (FRONT) ASSY
X-3377-981-1	CABINET (FRONT) ASSY
X-3365-618-1	CABINET (FRONT) ASSY
3-009-772-11	CABINET (LOWER) (RADIO)
3-009-772-01	CABINET (LOWER) (RADIO)
3-910-547-41	CABINET (REAR)
X-3379-224-1	CABINET (UPPER) (RADIO) A
1-163-377-11	CAPACITOR, CHIP CERAMIC 1
1-141-550-11	CAPACITOR, VAR
1-141-554-11	CAPACITOR,VAR
1-107-823-11	CAPASITOR,CERAMIC 0.47MF/
3-900-103-01	CARTON,ICF-SW1 BODY
3-900-104-01	CARTON,ICF-SW1,LID
3-009-795-01	CASE (LCD), SHIELD
3-015-954-01	CASE (LOWER)
3-015-953-01	CASE (UPPER)
3-899-522-01	CASE(AM LOCAL),SHIELD
3-930-303-01	CASE, CARRYING
3-899-524-01	CASE,SHIELD
3-899-523-01	CASE,SHIELD
3-910-548-01	CHASSIS
3-009-791-01	CHASSIS (COMBINED)
3-929-768-01	CHASSIS (MAIN)
1-412-011-31	CHIP INDCUTOR
1-410-733-11	CHIP INDUCTOR
3-565-241-01	CLOTH(B)1 UNWEAVED (FA
1-416-021-11	COIL (AM IFT)
1-416-749-11	COIL (LW OSC)
1-416-058-11	COIL (OSC)
1-416-057-11	COIL (OSC)
1-416-056-11	COIL (OSC)
1-416-055-11	COIL (OSC)
1-416-054-11	COIL (OSC)
1-416-053-11	COIL (OSC)
1-416-052-11	COIL (OSC)
1-416-051-11	COIL (OSC)
1-416-050-11	COIL (OSC)
1-409-515-11	COIL (OSC)
1-409-514-11	COIL (OSC)
1-409-513-11	COIL (OSC)
1-409-512-11	COIL (OSC)
1-409-511-11	COIL (OSC)
1-409-510-11	COIL (OSC)
1-409-509-11	COIL (OSC)
1-409-508-11	COIL (OSC)
1-406-271-11	COIL (OSC)
1-406-270-11	COIL (OSC)
1-416-049-11	COIL (WITH CORE)
1-411-446-21	COIL (WITH CORE)
1-411-445-21	COIL (WITH CORE)
1-403-637-11	COIL (WITH CORE)
1-403-636-11	COIL (WITH CORE)
1-403-632-11	COIL (WITH CORE)
1-403-638-11	COIL (WITH CORE) (OSC)
1-403-630-11	COIL (WITH CORE) (OSC)
1-403-629-11	COIL (WITH CORE) (OSC)
1-404-778-11	COIL,IF TRANSFORMER
1-537-683-11	CONDUCTIVE BOARD, CONNECT
1-779-000-11	CONNECTOR, FFC/FPC 5P
1-764-051-11	CONNECTOR,FFC
3-911-703-01	COPPER LEAF(FOIL)
3-913-419-01	CUSHION
3-900-105-01	CUSHION
3-014-730-01	CUSHION (LCD)
3-312-059-11	CUSHION, BATTERY
4-023-575-01	CUSHION, LID
8-719-044-76	DIODE 1SS356-TW11
8-719-976-69	DIODE DTZ2.2A
8-729-028-97	DTC114TU TRANSISTOR
1-760-238-71	FILTER, CERAMIC
1-760-199-11	FILTER, CERAMIC
1-577-065-31	FILTER, CERAMIC
1-760-198-11	FILTER, CRYSTAL
1-577-317-11	FILTER,CERAMIC
1-577-030-11	FILTER,CERAMIC
1-567-248-31	FILTER,CERAMIC
3-930-204-01	FOOT, RUBBER
3-910-062-01	FOOT, RUBBER
3-380-914-01	GEAR (A), TUNING CAPACITO
3-009-794-01	GEAR (VC) SUB
3-009-787-01	GEAR, IDLE
3-380-910-01	GEAR,MIDWAY
3-912-863-07	GUIDE, SHORT WAVE
3-380-924-01	HOLDER
3-009-774-01	HOLDER (LCD)
8-759-052-95	HOLE ELEMENT HW-101AFT-DE
8-759-481-53	IC AK93C65AF (E1)
8-752-064-32	IC CXA1376AM
8-752-064-78	IC CXA1622M-T4
6-700-361-01	IC LA5002M-TE-L
8-759-267-81	IC MSM64164C-031TS-K
8-759-267-82	IC MSM64164C-032TS-K
8-759-372-71	IC PST9009NL
8-759-255-03	IC S-80717SN-DE-T1
8-759-249-35	IC S-80719SN-DG-T1
8-759-255-00	IC S-80721SN-DJ-T1
8-759-255-02	IC S-80723SN-DL-T1
8-759-255-04	IC S-81220PG-PS-T1
8-759-254-73	IC UPD1724GB-599-1A7
8-759-351-32	IC UPD1724GB-687-1A7
8-759-392-05	IC UPD753012GC-E08-3B9
3-910-552-01	INDICATOR (A)
1-412-990-31	INDUCTOR (SMALL TYPE)
1-764-625-11	JACK

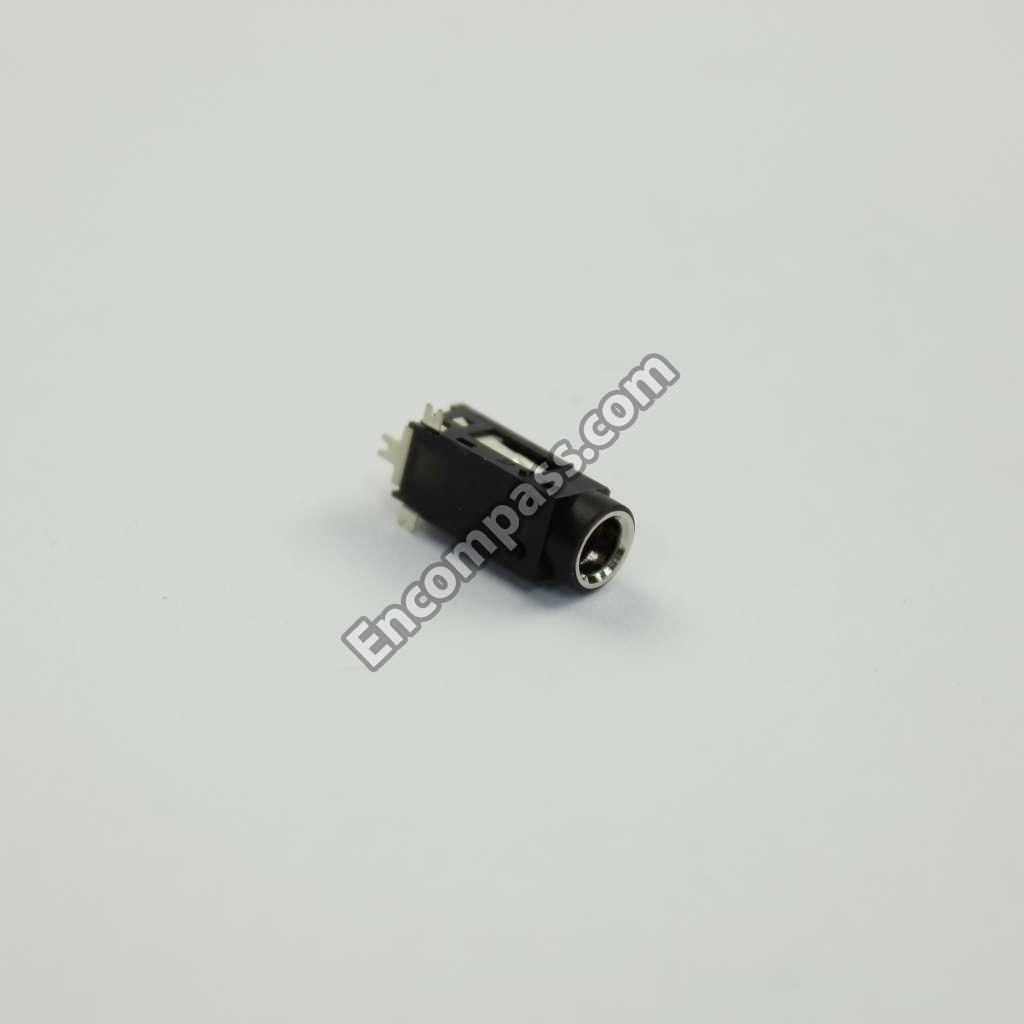

1-764-624-11	JACK

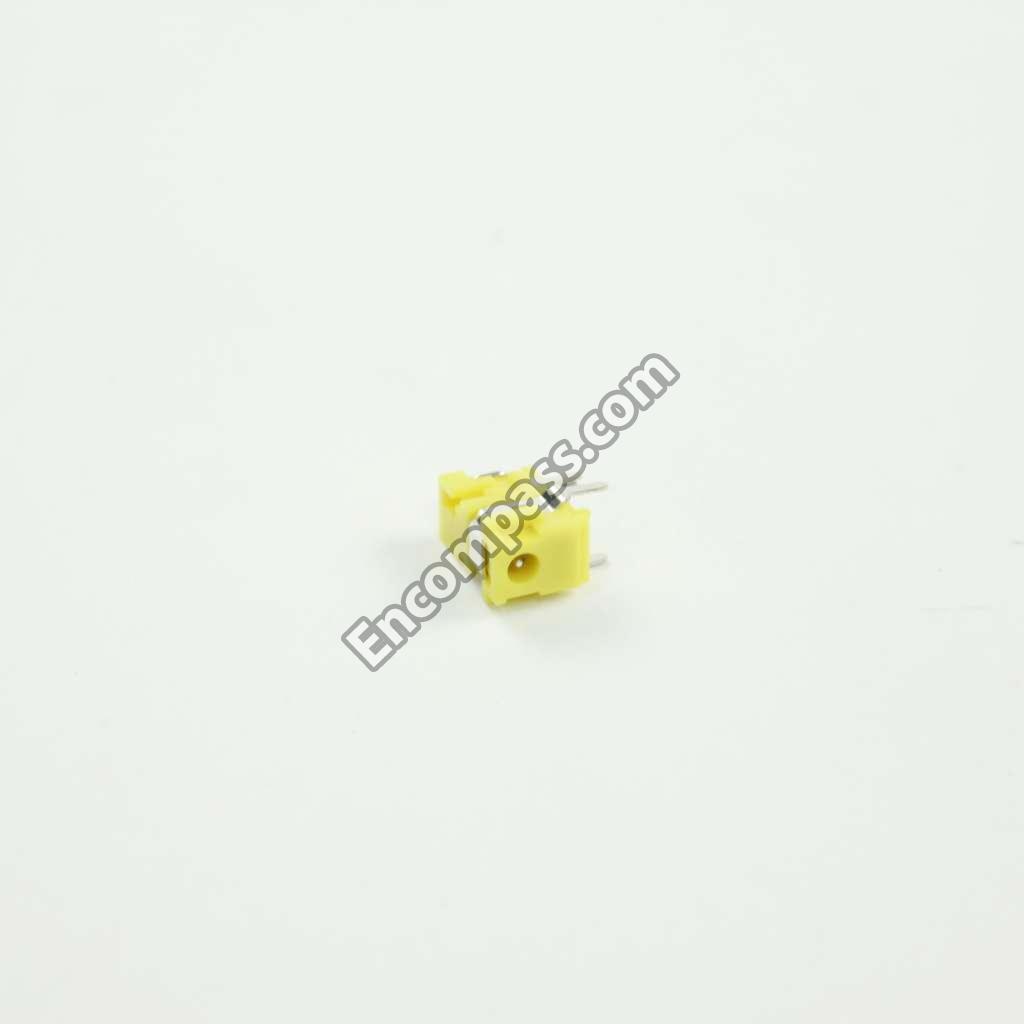

1-764-799-11	JACK, EXTERNAL POWER
1-764-628-11	JACK,DC(POLARITY UNIFIED
1-573-996-11	JACK,SMALL (WATERPROOF)
1-573-996-21	JACK,SMALL(WATERPROOF)
3-039-999-01	KNOB (BAND)
3-909-834-01	KNOB (POWER)
3-040-002-01	KNOB (POWER)
3-015-951-01	KNOB (POWER)
3-380-909-01	KNOB (TUN)
3-015-952-01	KNOB (TUNE))
3-009-775-01	KNOB (TUNING)
3-899-501-01	LABEL(MW STEP)
8-719-064-22	LED CL-220YG-C-TU
8-719-060-99	LED SML-210MTT86
X-3371-208-1	LID ASSY, CASSETTE
3-380-922-11	LID, BATTERY CASE
3-009-790-03	LID, BATTERY CASE
3-929-776-01	LOCKER, OPEN
3-859-292-31	MANUAL, INSTRUCTION
1-414-167-11	MICRO INDUCTOR
1-414-142-61	MICRO INDUCTOR
1-408-594-21	MICRO INDUCTOR 1.8UH
A-3679-565-A	MOUNTED C.BOARD, MAIN
A-3661-962-A	MOUNTED C.BOARD,ACTIVE AN
A-3679-854-A	MOUNTED C.BOARD,MAIN
A-3661-967-A	MOUNTED C.BOARD,MAIN
3-899-571-01	NUT (M2.6), PLATE
3-897-115-01	NUT, VOLUME (S
3-009-792-01	PANEL (CLOCK)
3-929-855-01	PANEL (SP)
3-009-802-01	PIN, SPRING
3-909-490-01	PLATE (A), CONTACT
3-929-856-01	PLATE (ANT), CONTACT
3-909-491-01	PLATE (B), CONTACT
3-929-845-01	PLATE (TC), CONTACT, BATT
X-3899-505-1	PLATE(1F)ASSY,SHIELD
X-3899-502-1	PLATE(A)ASSY,SHIELD
X-3899-506-1	PLATE(AF)ASSY,SHIELD
3-899-521-01	PLATE(CLOCK),SHIELD
X-3899-504-1	PLATE(VCO)ASSY,SHIELD
3-909-845-01	PLATE, LIGHT GUIDE
3-909-844-01	PLATE, TRANSPARENT
1-565-113-11	PLUG 1P
3-910-554-01	POINTER
3-039-998-01	POINTER
3-009-786-01	POINTER
1-658-876-11	PRINTED C.BOARD,FLEXIBLE(
1-658-875-11	PRINTED C.BOARD,FLEXIBLE(
1-658-874-11	PRINTED C.BOARD,FLEXIBLE(
3-009-789-01	RACK
3-015-950-01	REEL
3-899-525-01	REINFORCEMENT
1-223-589-11	RES, ADJ, CARBON 100K
1-241-597-11	RESISTOR, ADJ,METAL GRAZE
1-236-875-11	RESISTOR, NETWORK
1-236-855-11	RESISTOR, NETWORK
1-223-587-11	RESISTOR, VAR, CARBON 22K
1-238-094-11	RESISTOR,ADJ
1-225-208-11	RESISTOR,ADJ,CERMET 100K
1-223-276-11	RESISTOR,ADJ,CERMET 22K
1-225-451-11	RESISTOR,VAR
1-238-555-11	RESISTOR,VARIABLE 50K
3-040-003-01	RIBBON (BATTERY CASE LID)
3-039-997-01	SCALE, DIAL
3-009-793-02	SCALE, DIAL
3-009-793-01	SCALE, DIAL
3-384-797-01	SCREW
3-933-239-01	SCREW (+BTP) (2X10)
3-318-201-31	SCREW (B) 1.4X5, TAPPING
3-929-894-01	SCREW (M1.4), PRECISION S
2-370-905-31	SCREW(B)(2X3.5),TAPPING(S

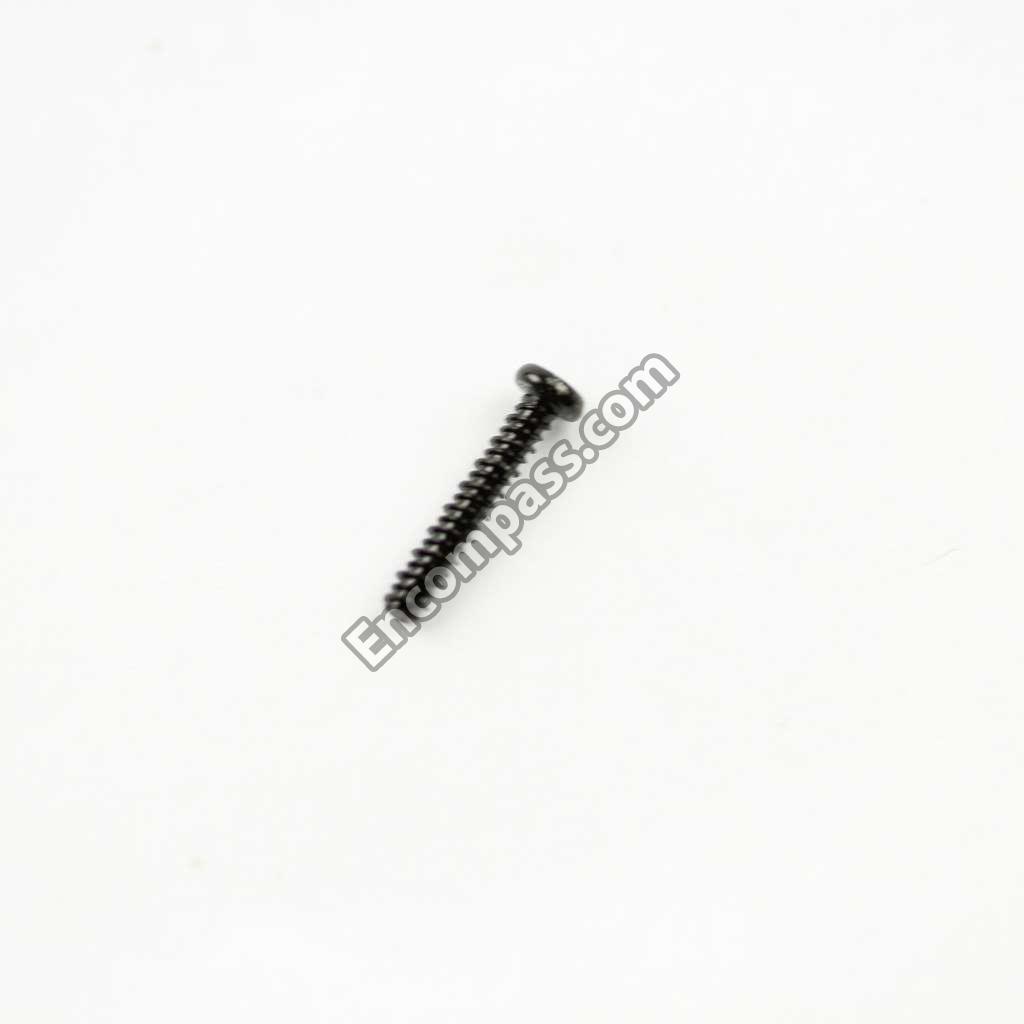

3-910-063-01	SCREW, TAPPING (1.7X10)
3-380-908-01	SHAFT (TUN)
3-378-826-01	SHEET (AB)
3-355-482-01	SHEET (KT), ADHESIVE
3-009-803-01	SHEET (LCD)
3-014-731-01	SHEET, DIFFUSION
3-014-732-01	SHEET, SPEAKER
3-909-850-01	SHIELD (DDCON)
3-909-849-01	SHIELD (LCD)
3-909-858-01	SHIELD (VCO)
1-414-027-11	SMALL INDUCTOR
1-414-021-11	SMALL INDUCTOR
1-565-073-11	SOCKET,CONNECTOR
3-899-586-01	SPACER
3-014-733-01	SPACER
3-931-354-01	SPACER (MD)
1-505-165-11	SPEAKER (4 CM)
3-907-747-01	SPRING (+/-.B), BATTERY C
3-907-745-01	SPRING (-), BATTERY COIL
3-929-656-02	SPRING (A), BATTERY COIL
3-930-222-01	SPRING (B), BATTERY COIL
3-911-701-01	SPRING (B), LEAF
3-013-492-01	SPRING (BAND), TENSION
3-929-844-01	SPRING (EJECT)
3-014-924-01	SPRING (LITHIUM), TENSION
3-930-223-01	SPRING (MINUS), BATTERY C
3-382-325-01	SPRING (SP)
3-911-534-01	SPRING (SP), PLUG
3-386-662-01	SPRING ,COMPRESSION
3-896-660-01	SPRING, COMPRESSION(COIL)
3-222-540-01	SPRING, RING
3-380-918-31	STAND
3-380-918-01	STAND
3-929-852-01	STRAP, HAND (N
3-919-786-01	STRAP,HAND (PP
3-899-567-01	SUCTION CUP
1-771-058-11	SWITCH, RUBBER KEY
1-762-932-11	SWITCH, SLIDE
1-692-846-11	SWITCH, SLIDE
1-571-850-91	SWITCH, SLIDE
1-692-016-11	SWITCH,KEY BOARD
1-692-100-11	SWITCH,LEAF
1-771-550-21	SWITCH,TACT
3-009-796-01	TERMINAL (+ LITHIUM), BAT
3-009-799-01	TERMINAL (+ RADIO), BATTE
3-009-797-02	TERMINAL (- LITHIUM), BAT
3-009-797-01	TERMINAL (- LITHIUM), BAT
3-009-800-01	TERMINAL (- RADIO), BATTE
3-043-282-01	TERMINAL (-), BATTERY
3-911-535-01	TERMINAL (MINUS), BATTERY
3-012-018-01	TERMINAL BOARD, ANTENNA
3-899-541-01	TERMINAL(+),BATTERY
3-899-542-01	TERMINAL(-),BATTERY
3-382-006-01	TERMINAL, BATTERY
3-899-529-01	TERMINAL,BATTERY
1-423-983-11	TRANSFORMER, HIGH FREQUEN
1-423-981-11	TRANSFORMER, HIGH FREQUEN
1-403-634-11	TRANSFORMER, IF
1-403-633-11	TRANSFORMER, IF
1-403-631-11	TRANSFORMER, IF
1-426-357-11	TRANSFORMER, RF
1-449-021-21	TRANSFORMER,DC-DC CONVERT
1-404-780-21	TRANSFORMER,IF
8-729-105-89	TRANSISTOR 2SK238-K16A
1-141-442-91	TRIMMER, CERAMIC
1-760-200-11	VIBRATOR, CERAMIC
1-760-201-11	VIBRATOR, CRYSTAL
1-760-197-11	VIBRATOR, CRYSTAL
1-579-686-11	VIBRATOR, CRYSTAL
1-579-685-11	VIBRATOR, CRYSTAL
1-579-684-11	VIBRATOR, CRYSTAL
1-579-744-21	VIBRATOR,CRYSTAL
3-563-515-01	WASHER (A), FIBER
1-782-339-11	WIRE (FLAT TYPE) (5 CORE)
