Manufacturer
Sony
Model Number
ILCE5100L
Description
Alpha A5100 Mirrorless Digital Camera 16-50mm Lens
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC ADAPTOR |
|
|
BATTERY PACK NP-FW50/UC |
|
|
BODY CAP (ILCE5100) |
|
|

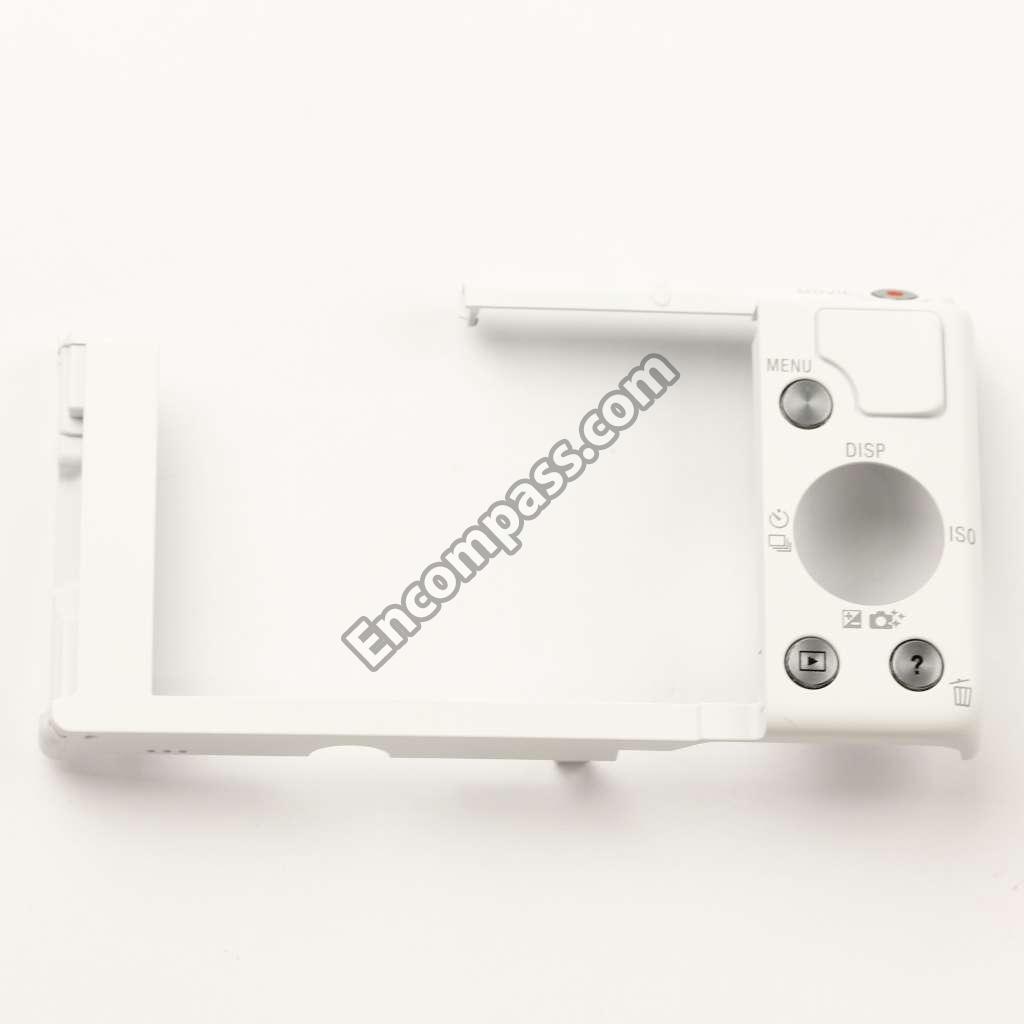

CABINET (REAR) ASSY (WH (773)) |
|
|
CABINET (REAR) ASSY(783) (BR) |
|
|

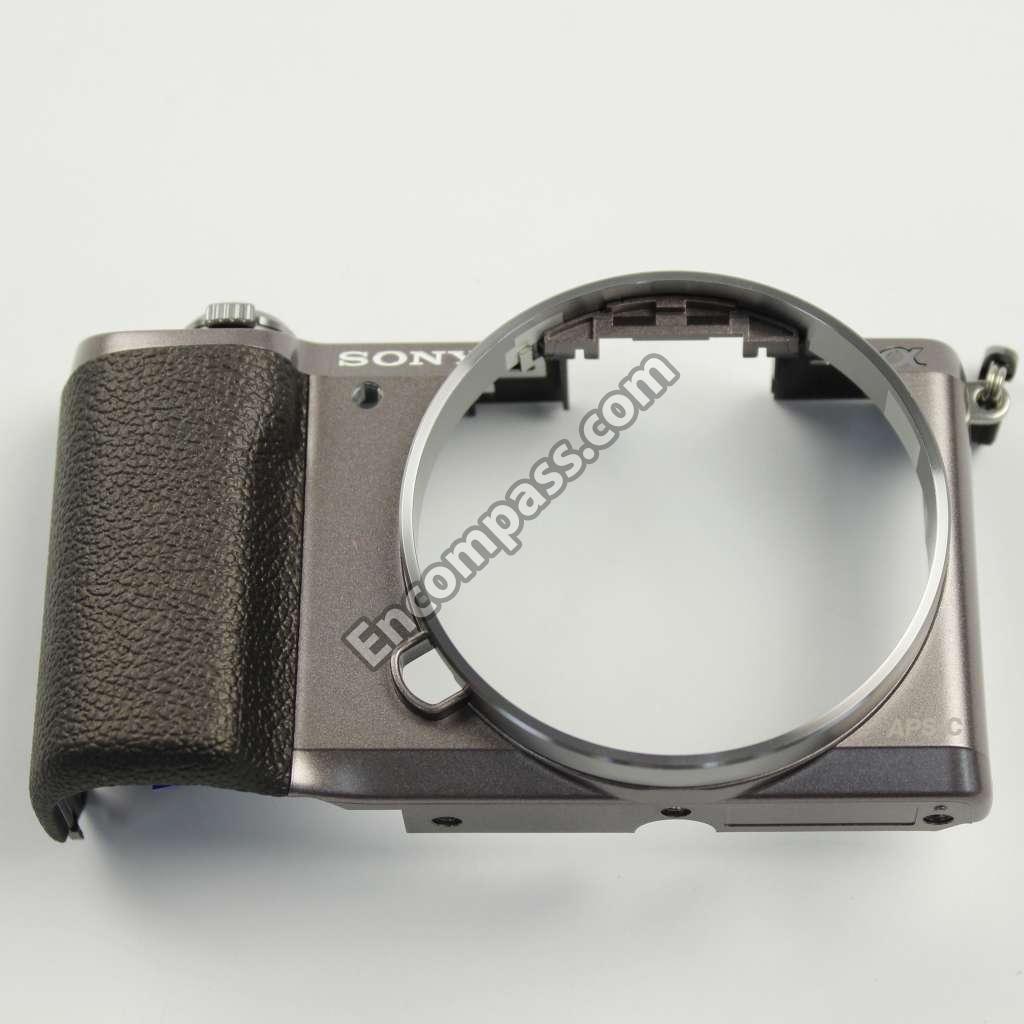

CABINET(FRONT)ASSY(783)(BR SA) |
|
|

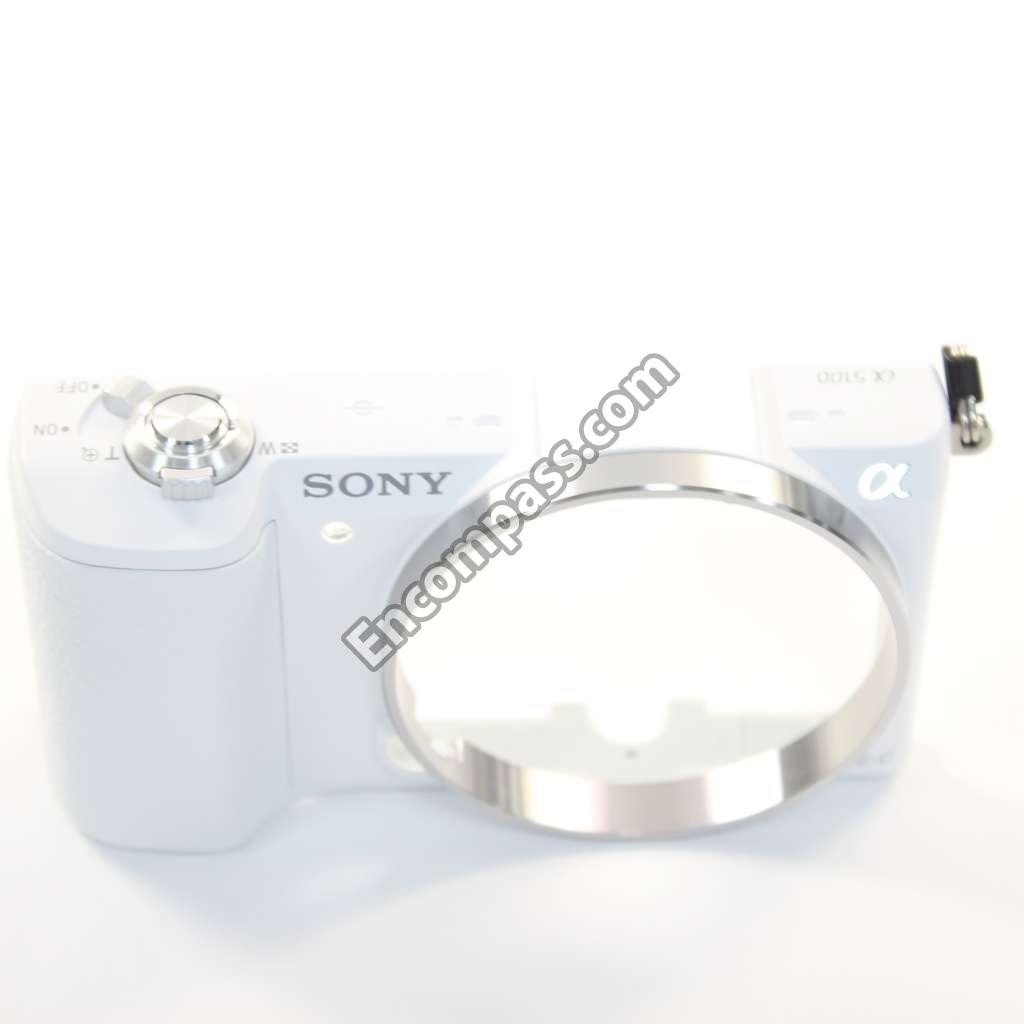

CABINET(FRONT)ASSY(783)(WH SA) |
|
|
COVER (783)(BR), ST |
|
|
COVER ASSY(783) (BR), HINGE |
|
|
FRONT LENS CAP (ILCE5100L/5100Y) |
|
|
FRONT LENS CAP (ILCE5100Y) |
|
|
FRONT SERVICE BLOCK ASSY (BR) |
|
|
FRONT SERVICE BLOCK ASSY (WH) |
|
|
GASKET SHEET (783) |
|
|
HOLDER ASSY(783) (BR), BT |
|
|
HOLDER ASSY(783) (WH), BT |
|
|
INSULATING SHEET(JACK)(783) |
|
|
LCD SERVICE BLOCK ASSY (BR) |
|
|

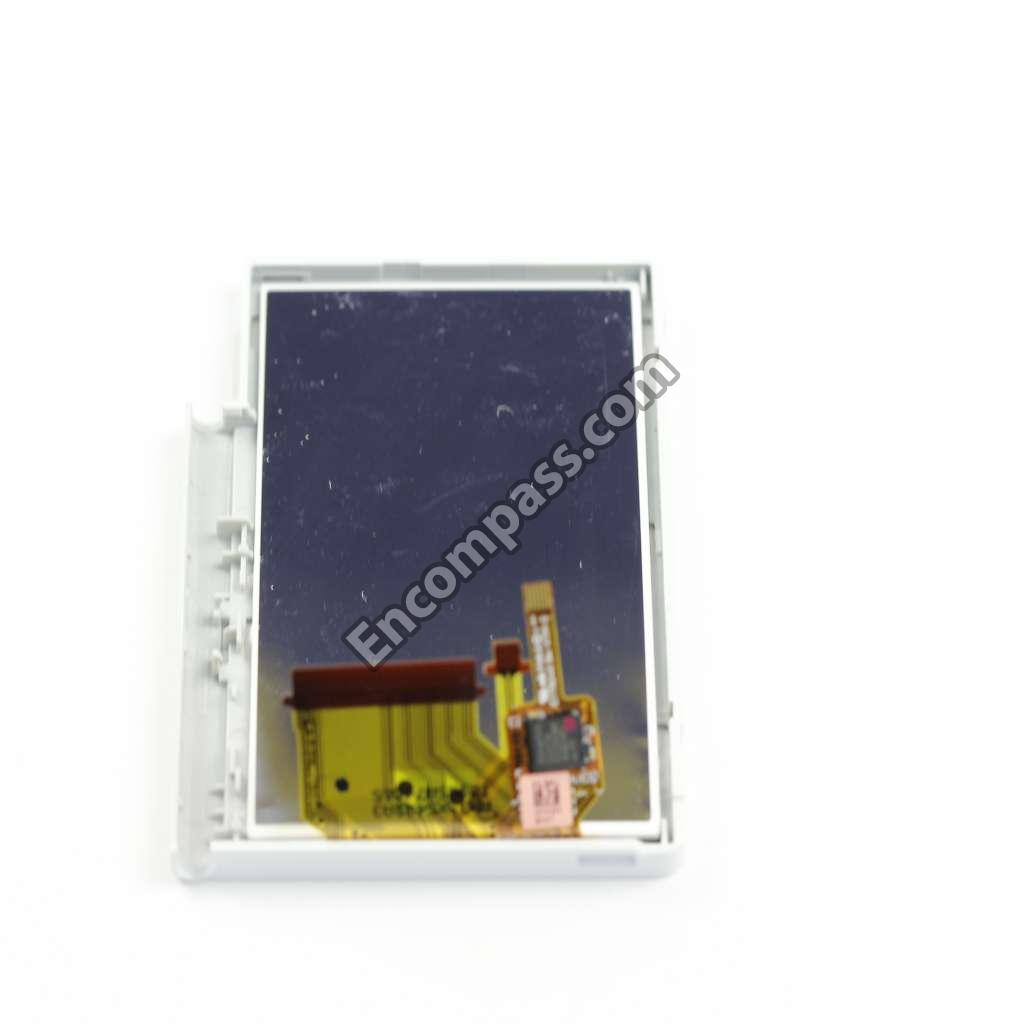

LCD SERVICE BLOCK ASSY (WH) |
|
|
LENS HOOD (ILCE5100Y) |
|
|
REAR LENS CAP ILCE5100Y |
|
|
SERVICE BLOCK ASSEMBLY RL |
|
|
SHEET FP ADHESIVE(783) |
|
|
SHOULDER STRAP |
|
|
STATIONARY BARREL |
|
|
USB CABLE |
