Model Image
Manufacturer

Sony

Model Number

ILCE6400L

Description

Alpha 6400 Mirrorless Interchangeable-lens Camera

Interactive Exploded View

Parts List

Part Number Description
1-493-085-14 1-493-085-14 AC ADAPTOR
A-2225-900-A A-2225-900-A AN-1028 MOUNT
8-328-301-51 8-328-301-51 BATTERY PACK(FW50)
A-5001-638-A A-5001-638-A CAB(UP)B-ASSY(626)(BK)SERVICE
A-5001-640-A A-5001-640-A CAB(UP)B-ASSY(626)(SI)SERVICE
4-745-029-11 4-745-029-11 CABINET (REAR SP) (62600)
4-745-029-01 4-745-029-01 CABINET (REAR SP) (62600)
X-2597-694-3 X-2597-694-3 CABINET REAR ASSY (62600)(BK)
X-2597-695-1 X-2597-695-1 CABINET REAR ASSY (62600)(SI)
X-2591-795-1 X-2591-795-1 CABINET(FRONT) ASSEMBLY(79160)
X-2597-739-3 X-2597-739-3 CABINET(FRONT) ASSY(62600)(BK)
1-846-486-43 1-846-486-43 CABLE, CONNECTOR (USB)
1-487-907-26 1-487-907-26 CHARGER BATTERY (BC-VW1)

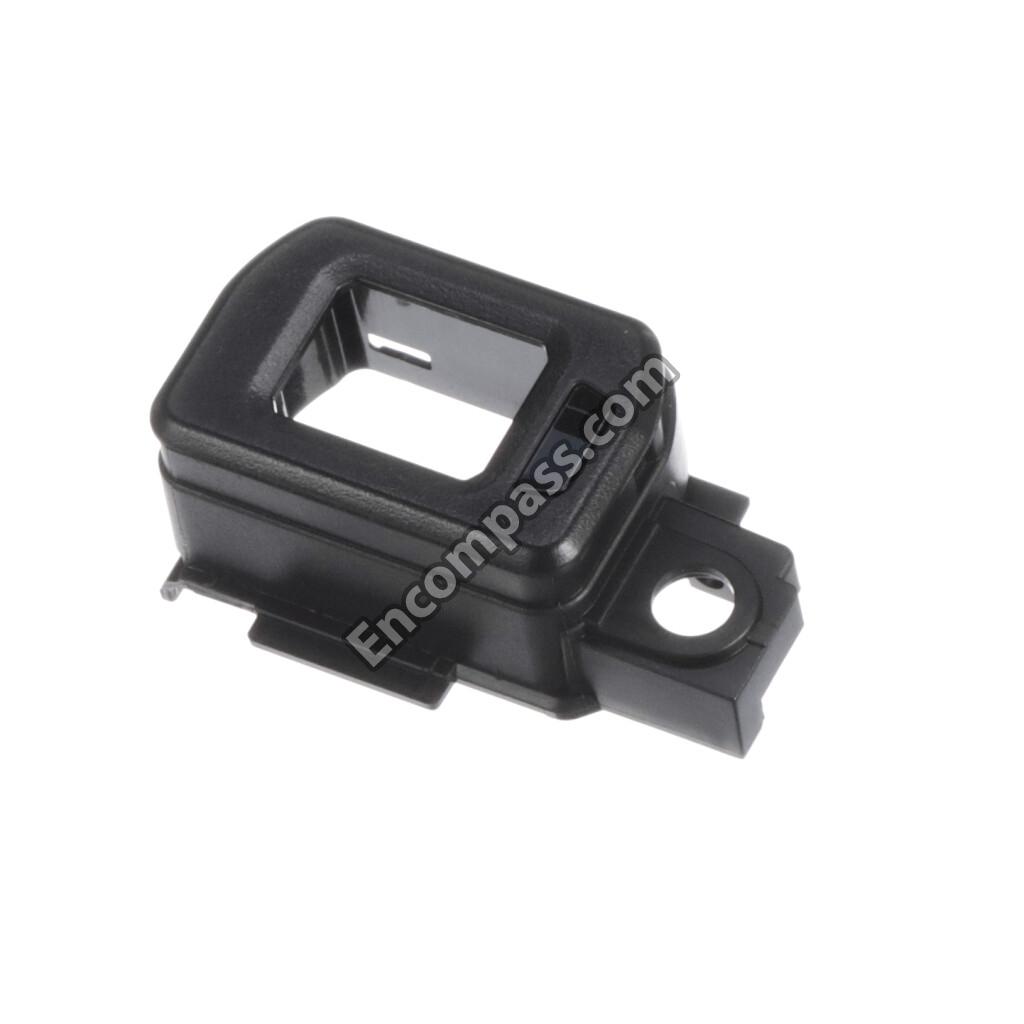

X-2597-726-2 X-2597-726-2 COVER ASSY (62600), FINDER
4-745-038-01 4-745-038-01 COVER(62600), REAR FLAME
4-746-660-01 4-746-660-01 CUSHION (HG (62600)),RETAINER
4-746-661-01 4-746-661-01 CUSHION (LC (62600)),RETAINER
4-746-682-01 4-746-682-01 CUSHION (LOWER (62600))
4-746-662-01 4-746-662-01 CUSHION (RE (62600)),RETAINER
4-746-681-01 4-746-681-01 CUSHION (UPPER (62600))
4-574-838-01 4-574-838-01 CUSHION, ST CAP (WP)
X-2597-742-2 X-2597-742-2 DIAL ASSY (62600) (BK), MD
X-2597-743-1 X-2597-743-1 DIAL ASSY (62600) (SI), MD
X-2593-773-1 X-2593-773-1 EYE-CUP

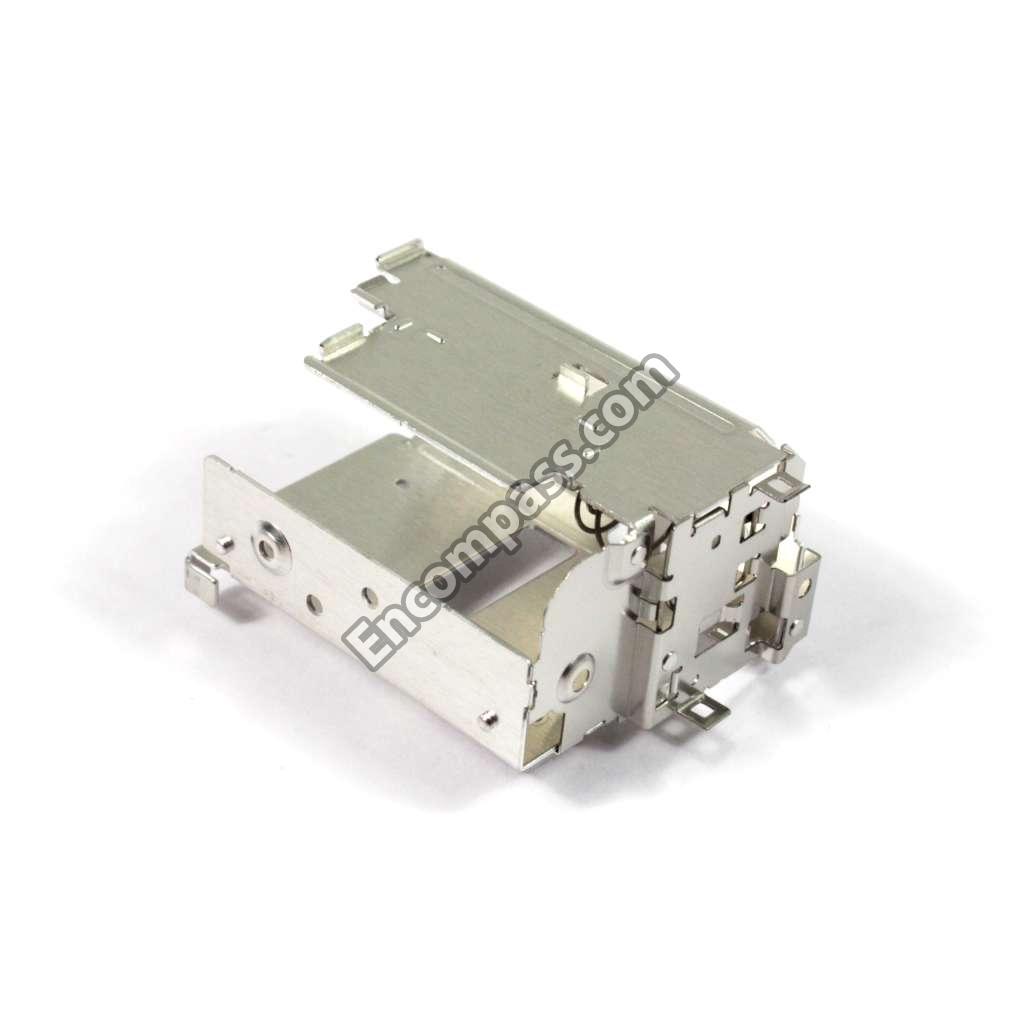

X-2597-738-1 X-2597-738-1 FRAME ASSY (62600), BT
4-745-040-01 4-745-040-01 FRAME(62600), REAR
4-745-041-01 4-745-041-01 FRAME(62600), REAR BUTTON
4-745-045-01 4-745-045-01 FRAME(62600), SY
4-746-674-01 4-746-674-01 GASKET(0.5X3(18)), SOFT
4-745-042-01 4-745-042-01 HEAT SINK (62600), BN
4-745-043-01 4-745-043-01 HEAT SINK (62600), SY
4-746-677-01 4-746-677-01 HOLDER (62600), SHEET (NFC)
4-745-034-01 4-745-034-01 HOLDER(62600), LC MAGNET1
4-745-035-01 4-745-035-01 HOLDER(62600), LC MAGNET2
4-745-028-01 4-745-028-01 HOLDER(62600), MIC JACK
4-745-031-01 4-745-031-01 HOLDER(62600), NFC
4-745-197-01 4-745-197-01 HOLDER(62600), YOKE MAGNET
4-746-666-01 4-746-666-01 INSULATING SHEET (62600), LC
4-746-669-01 4-746-669-01 INSULATING SHEET (62600), ST
4-746-670-01 4-746-670-01 INSULATING SHEET (62600),TRANS
4-746-667-01 4-746-667-01 INSULATING SHEET (A) (62600)
4-746-672-01 4-746-672-01 INSULATING SHEET BN (62600)
X-2597-699-3 X-2597-699-3 JK BASE ASSY (626)(BK)
X-2597-700-1 X-2597-700-1 JK BASE ASSY (62600)(SI)
A-2225-902-A A-2225-902-A JK-1024 MOUNT
X-2597-712-1 X-2597-712-1 LC CABNET REAR ASSY(62600)

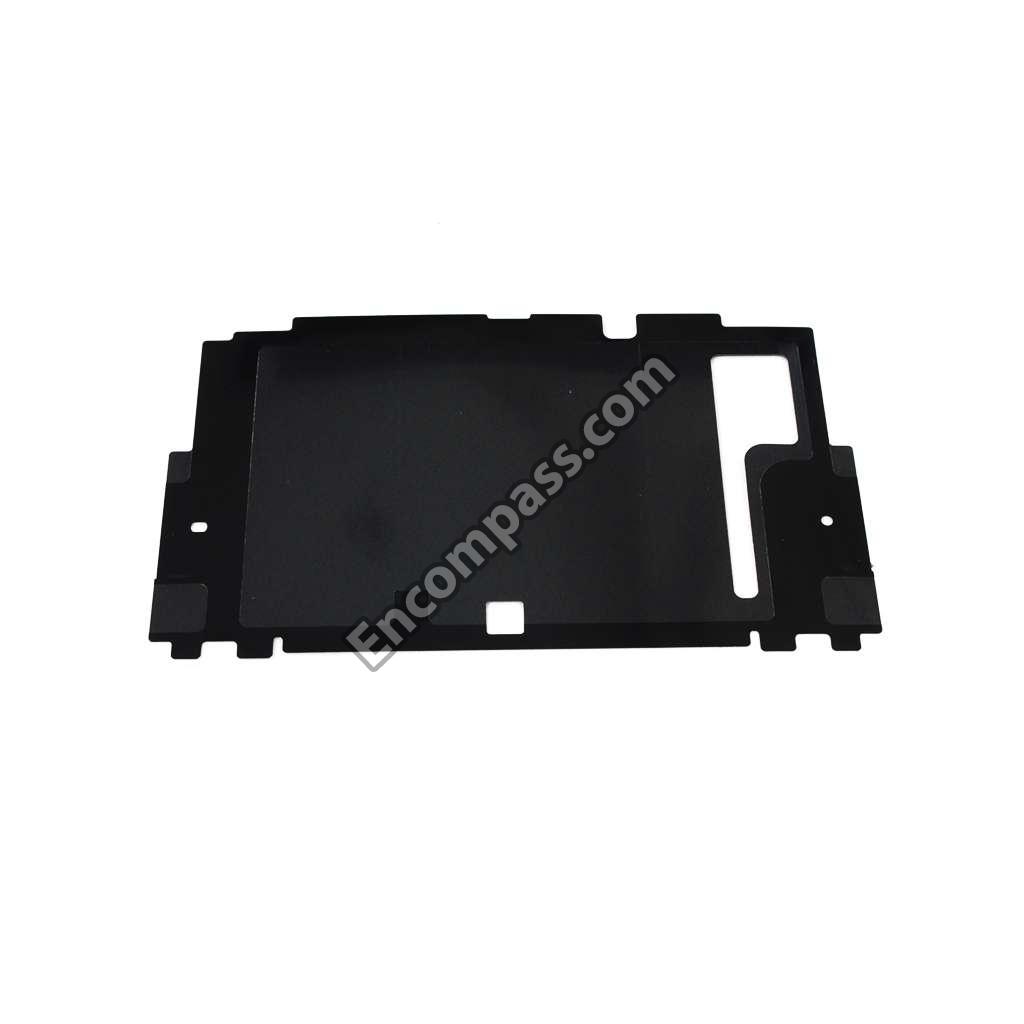

4-746-665-01 4-746-665-01 LC FPC PROTECTION SHEET(626)
X-2597-701-4 X-2597-701-4 LC HINGE ASSY(626)
4-745-032-01 4-745-032-01 LC INNER(62600)

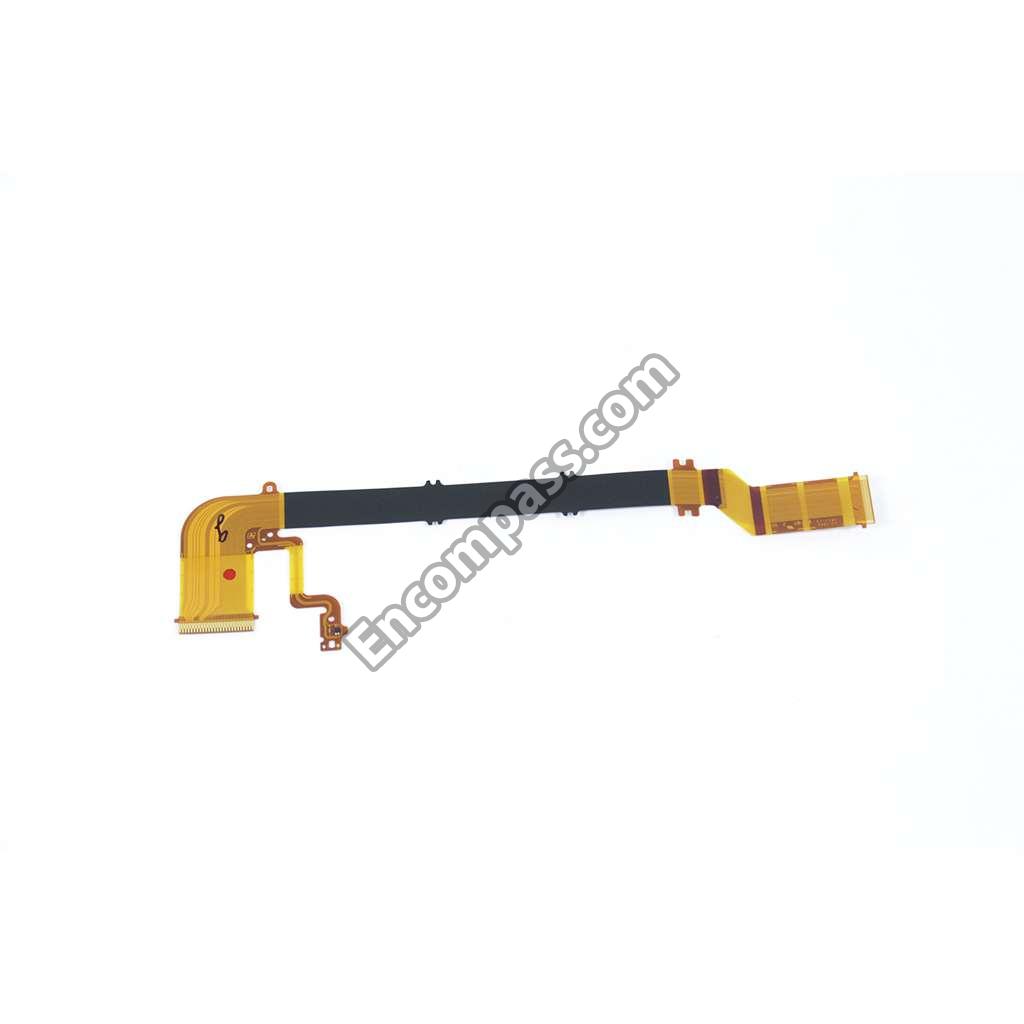

A-2225-905-A A-2225-905-A LC-1042 MOUNT
A-2225-901-A A-2225-901-A LC-1045 MOUNT
A-5028-650-A A-5028-650-A LCD BLOCK ASSY (BK) SERVICE
A-5001-639-A A-5001-639-A LCD BLOCK ASSY (SI) SERVICE
A-5028-651-A A-5028-651-A LCD BLOCK ASSY(A) (SI) SERVICE
1-471-549-31 1-471-549-31 MAGNET (ND7.9X2.9X1.2)
4-188-536-01 4-188-536-01 PLASTIC BODY CAP

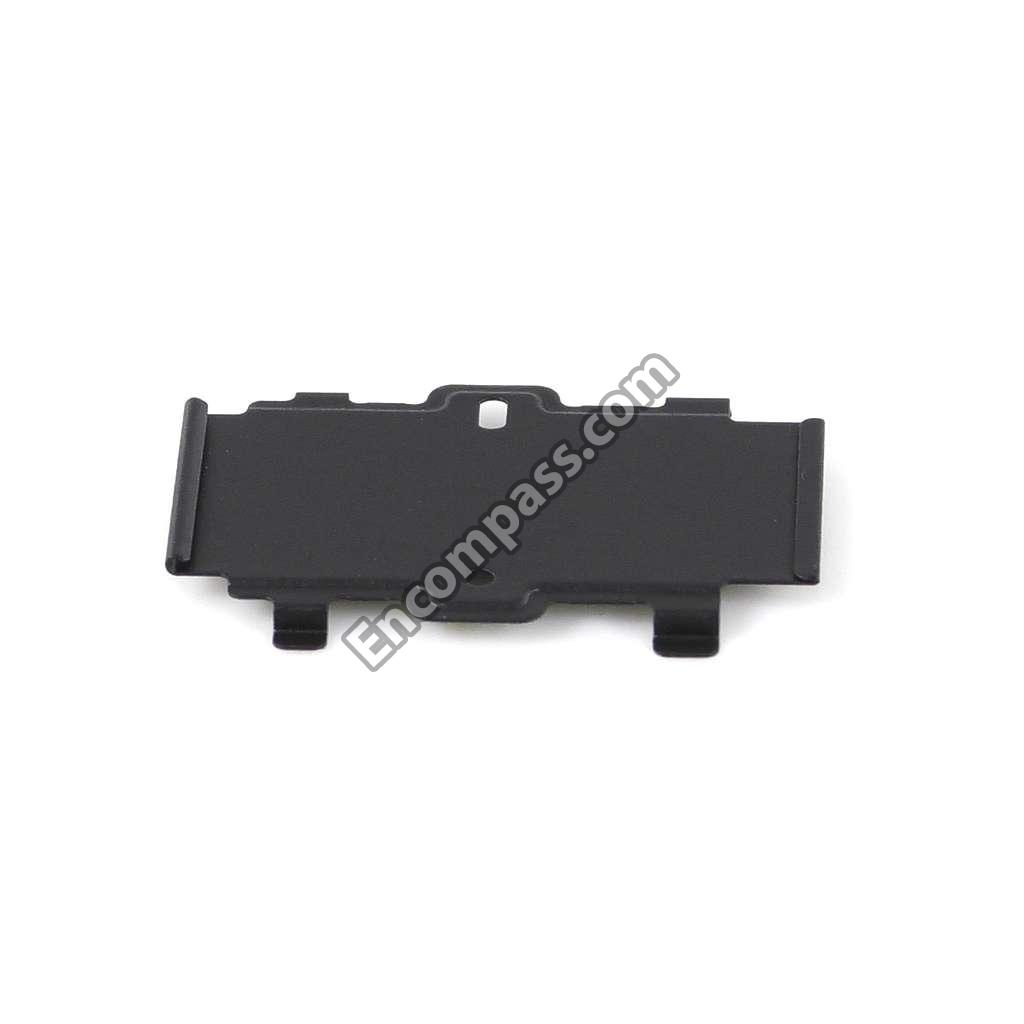

4-745-047-01 4-745-047-01 PLATE(62600), HINGE FPC COVER1
4-745-048-01 4-745-048-01 PLATE(62600), HINGE FPC COVER2
4-745-055-01 4-745-055-01 PLATE(62600), REC BUTTON
4-745-046-01 4-745-046-01 PLATE(62600), SHOE
4-745-044-01 4-745-044-01 PLATE(62600), STATIC (F-SY)
4-745-027-01 4-745-027-01 RETAINER (62600), AF WINDOW
A-2225-903-A A-2225-903-A RL-1060 MOUNT
A-2225-904-A A-2225-904-A RS-1013 MOUNT
A-5010-490-A A-5010-490-A SERVICE OPTFLTRBLK (OFB-01-171
A-2116-018-C A-2116-018-C SERVICE, DEVICE UNIT (2100)
A-5020-141-A A-5020-141-A SERVICE, DEVICE UNIT(2150)
4-746-678-01 4-746-678-01 SHEET (62600), (REAR) LABEL
4-542-507-01 4-542-507-01 SHEET (ANTENNA HOLDER) (783)
4-746-668-01 4-746-668-01 SHEET (LC) (62600),PROTECTION
4-746-680-01 4-746-680-01 SHEET (LOWER (62600))
4-746-676-01 4-746-676-01 SHEET (NFC (62600)), ADHESIVE
4-746-679-01 4-746-679-01 SHEET (UPPER (62600))
4-746-673-01 4-746-673-01 SHEET (UPPER (62600)), SY WP
5-005-415-01 5-005-415-01 SHEET EM SHIELD BN(62600)
5-000-685-01 5-000-685-01 SHEET EM SHIELD LC (62600)
5-000-869-01 5-000-869-01 SHEET EM SHIELD LC FPC (62600)
5-005-190-01 5-005-190-01 SHEET EM SHIELD ST UNIT(62600)
5-000-681-01 5-000-681-01 SHEET PLATE SHOE WP(62600)
5-000-683-01 5-000-683-01 SHEET SHOE WP(62600)
5-005-213-01 5-005-213-01 SHEET ST UNIT (62600)
5-000-682-01 5-000-682-01 SHEET TOP WP (62600)
4-746-675-01 4-746-675-01 SHEET(62600), MAINCON ADHESIVE
4-438-734-03 4-438-734-03 SHOE CAP (875)
4-438-734-31 4-438-734-31 SHOE CAP (SILVER)
4-591-474-03 4-591-474-03 STRAP
A-5040-413-B A-5040-413-B SY-1094(B) COMPL (SERVICE)
4-746-658-01 4-746-658-01 TAPE (62600), FPC CASE FIXED
4-746-657-01 4-746-657-01 TAPE (62600), FPC HINGE FIXED
4-747-087-01 4-747-087-01 TAPE (62600), LC REAR FIXED
4-746-659-01 4-746-659-01 TAPE (62600), MR SENSOR FIXED
4-746-663-01 4-746-663-01 TAPE (62600),LC PC BOARD FIXED
4-745-026-01 4-745-026-01 WINDOW (79160), AF
