Model Image
Manufacturer

Sony

Model Number

ILCE7RM3A

Description

Alpha 7r Iii With 35mm Full-frame Image Sensor Wit

Interactive Exploded View

Parts List

Part Number Description
4-698-372-01 4-698-372-01 ADHESIVE (799), NFC PERFORMANCE (NOTE) (UC)
4-729-623-01 4-729-623-01 AEL BUTTON (62000) (UC)
4-729-627-01 4-729-627-01 AEL BUTTON RUBBER (62000) (UC)
4-729-621-01 4-729-621-01 AF BUTTON (62000) (UC)

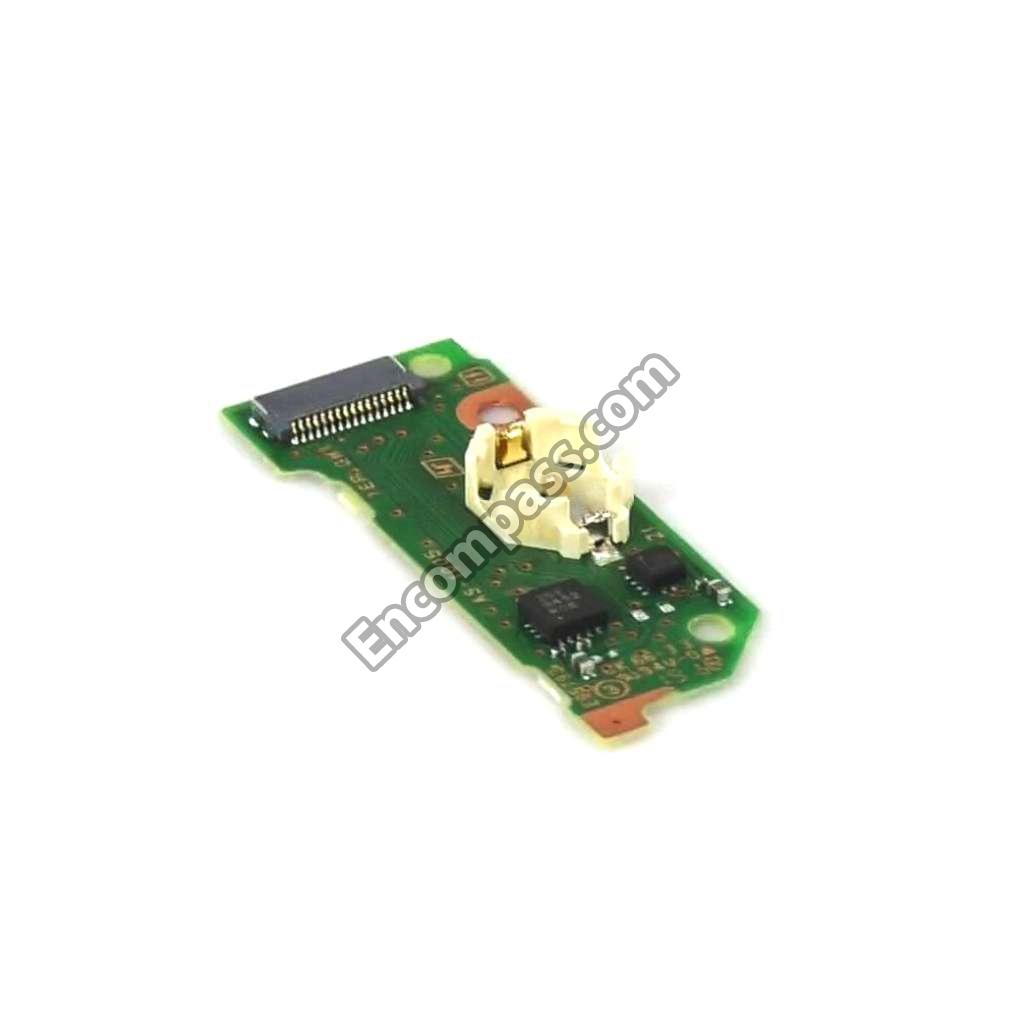

A-2178-916-A A-2178-916-A AN-1023 BOARD, COMPLETE (UC)
4-685-117-01 4-685-117-01 AS GRAPHITE SHEET BTM (5300) (UC)
4-685-118-01 4-685-118-01 AS GRAPHITE SHEET IMG (5300) (UC)
4-685-116-01 4-685-116-01 AS GRAPHITE SHEET TOP (5300) (UC)
A-2178-919-A A-2178-919-A AS-1005 BOARD, COMPLETE (UC)
4-692-131-02 4-692-131-02 BASE (799), NFC (UC)
1-493-243-13 1-493-243-13 BATTERY CHARGER (BC-QZ1) (US, CND, JE) (UC)
1-756-135-34 1-756-135-34 BATTERY, LITHIUM SECONDARY (NOTE) (UC)

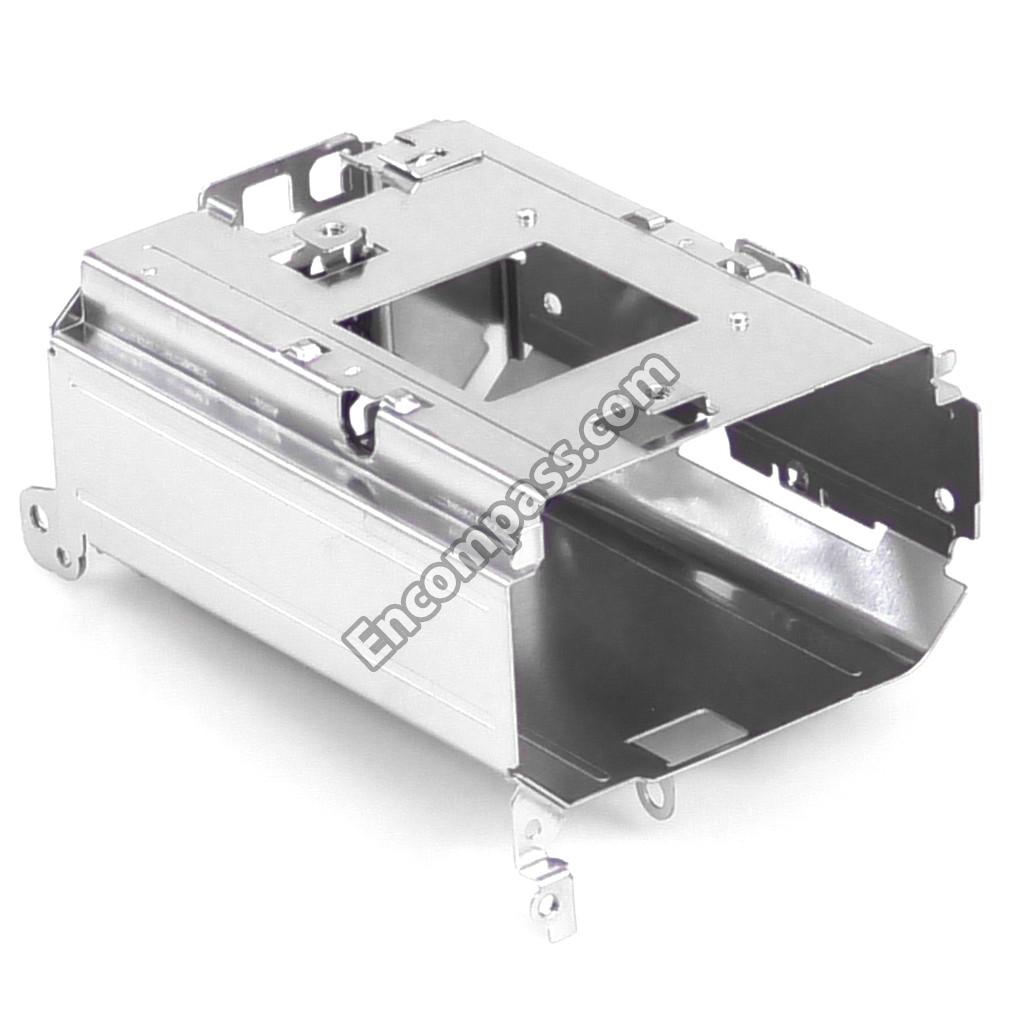

X-2595-848-3 X-2595-848-3 BT FRAME ASSY (62000) (UC)
A-2179-097-A A-2179-097-A BT SOLDER (BT-2019 FLEXIBLE BOARD, COMPLETE) (UC)
4-729-502-01 4-729-502-01 BTFPC PROTECTION SHEET (62000) (UC)
4-729-521-04 4-729-521-04 BTH (62000) (UC)
4-300-106-11 4-300-106-11 BTITE (1.4 (CH)) (L = 5.0 MM) (UC)
4-692-277-11 4-692-277-11 BUTTON (799), DELETE (UC)
4-692-275-11 4-692-275-11 BUTTON (799), FN (UC)
4-692-276-11 4-692-276-11 BUTTON (799), PLAYBACK (UC)
4-729-619-01 4-729-619-01 C3 BUTTON (62000) (UC)
4-729-625-01 4-729-625-01 C3 MENU BTN RUBBER (62000) (UC)
X-2594-259-1 X-2594-259-1 CABINET (REAR) ASSY (799), LC (UC)

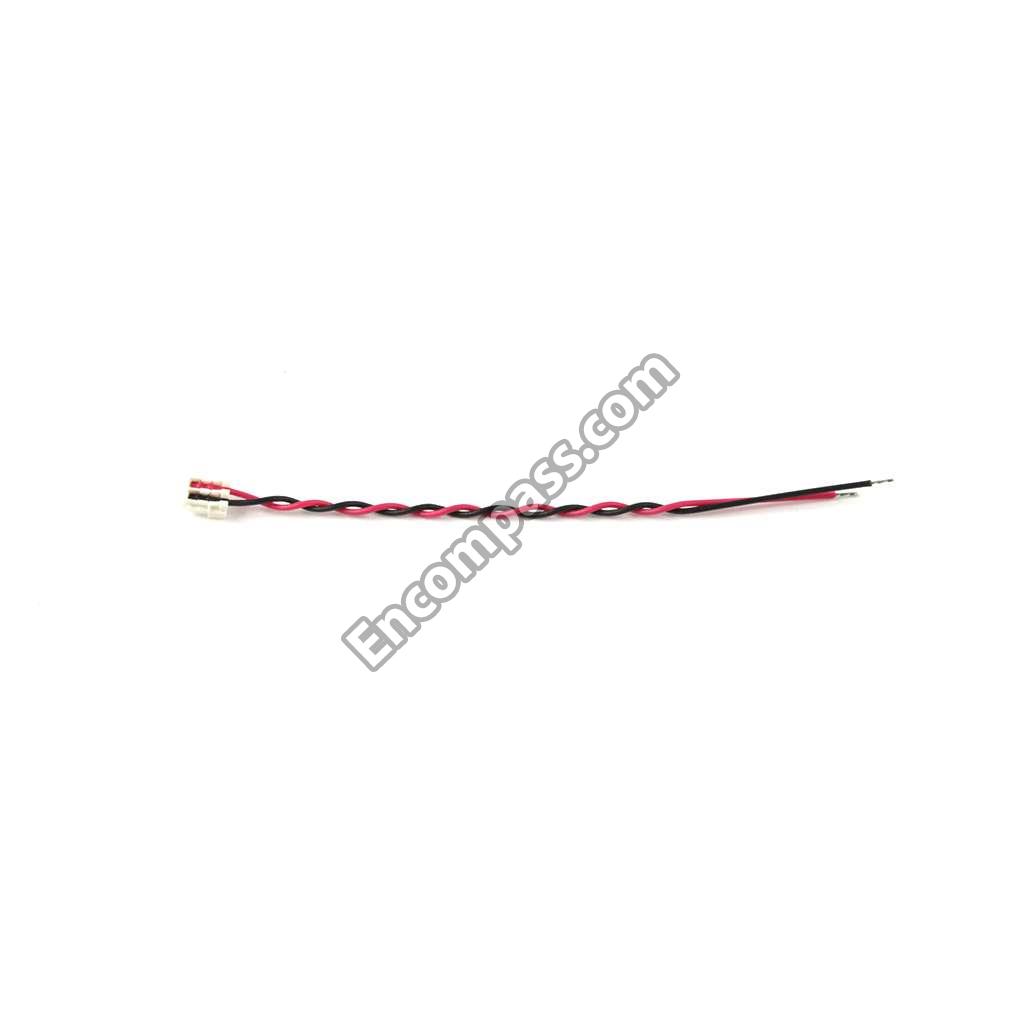

1-846-787-31 1-846-787-31 CABLE (UC)
1-848-550-11 1-848-550-11 CABLE (UC)
X-2595-689-2 X-2595-689-2 CABLE PROTECTOR (UC)
1-846-474-31 1-846-474-31 CABLE, COAXIAL (110 MM) (UC)
4-559-162-01 4-559-162-01 CAP (LC) (786), FLEXIBLE (UC)
4-188-536-01 4-188-536-01 CAP, BODY (NOTE) (UC)
4-729-536-01 4-729-536-01 CLAMPER FIX PLATE (62000) (UC)
4-692-146-02 4-692-146-02 CLAW (799), BT LOCK (UC)
4-729-501-01 4-729-501-01 CN PROTECTION SHEET (62000) (UC)
4-729-574-01 4-729-574-01 CNT DIAL R HOLD PLATE (62000) (UC)
5-059-947-01 5-059-947-01 COIN BATTERY WARNING LABEL (UC)
4-729-513-01 4-729-513-01 CONDUCTIVE SHEET GR (62000) (UC)
1-569-007-31 1-569-007-31 CONVERSION (2P) ADAPTOR (E: NTSC, JE) (UC)
4-692-310-11 4-692-310-11 COVER (799), BOTTOM (UC)
4-692-204-01 4-692-204-01 CUSHION (799), AF INTERCEPTION (UC)
4-692-149-01 4-692-149-01 CUSHION (799), GYRO (UC)
4-692-122-11 4-692-122-11 CUSHION (799), PROTECTION (UC)

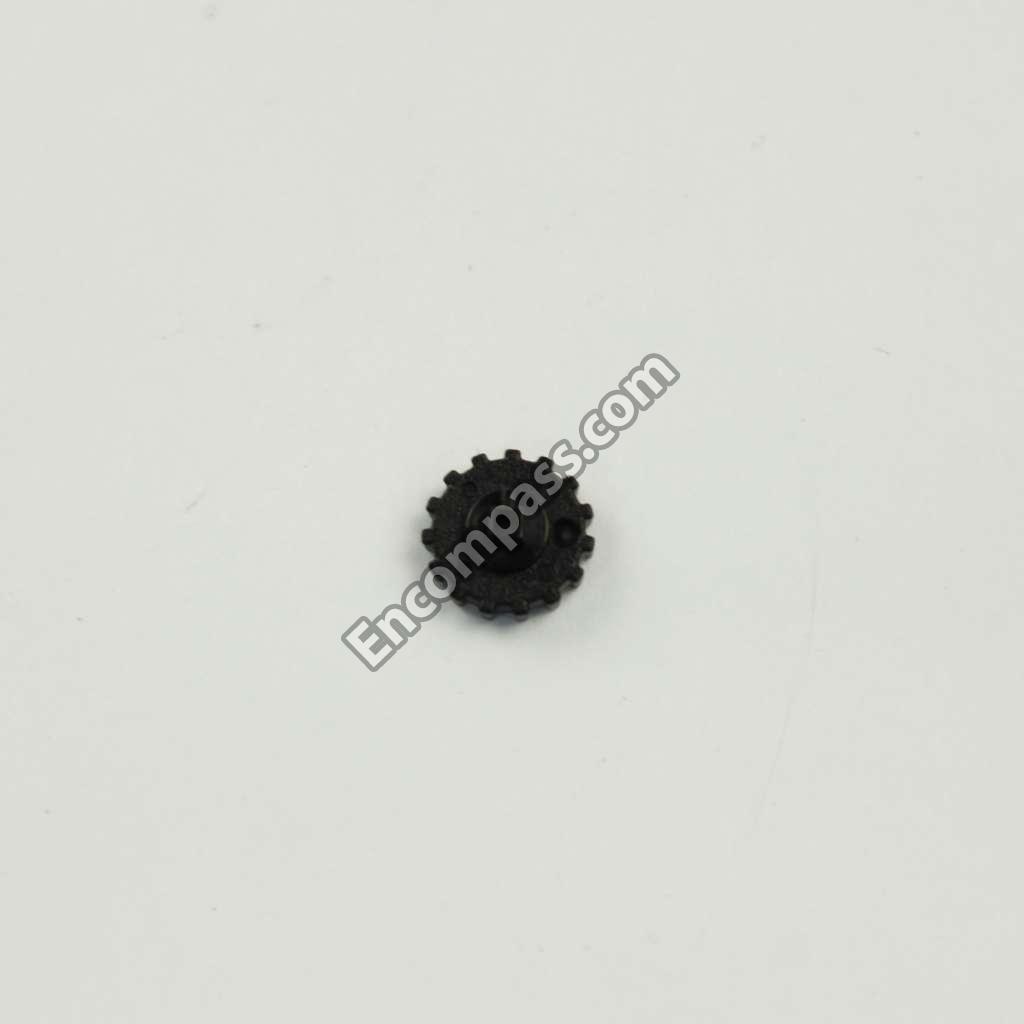

4-154-680-01 4-154-680-01 CV DIOPTER ADJUST DIAL (857) (UC)

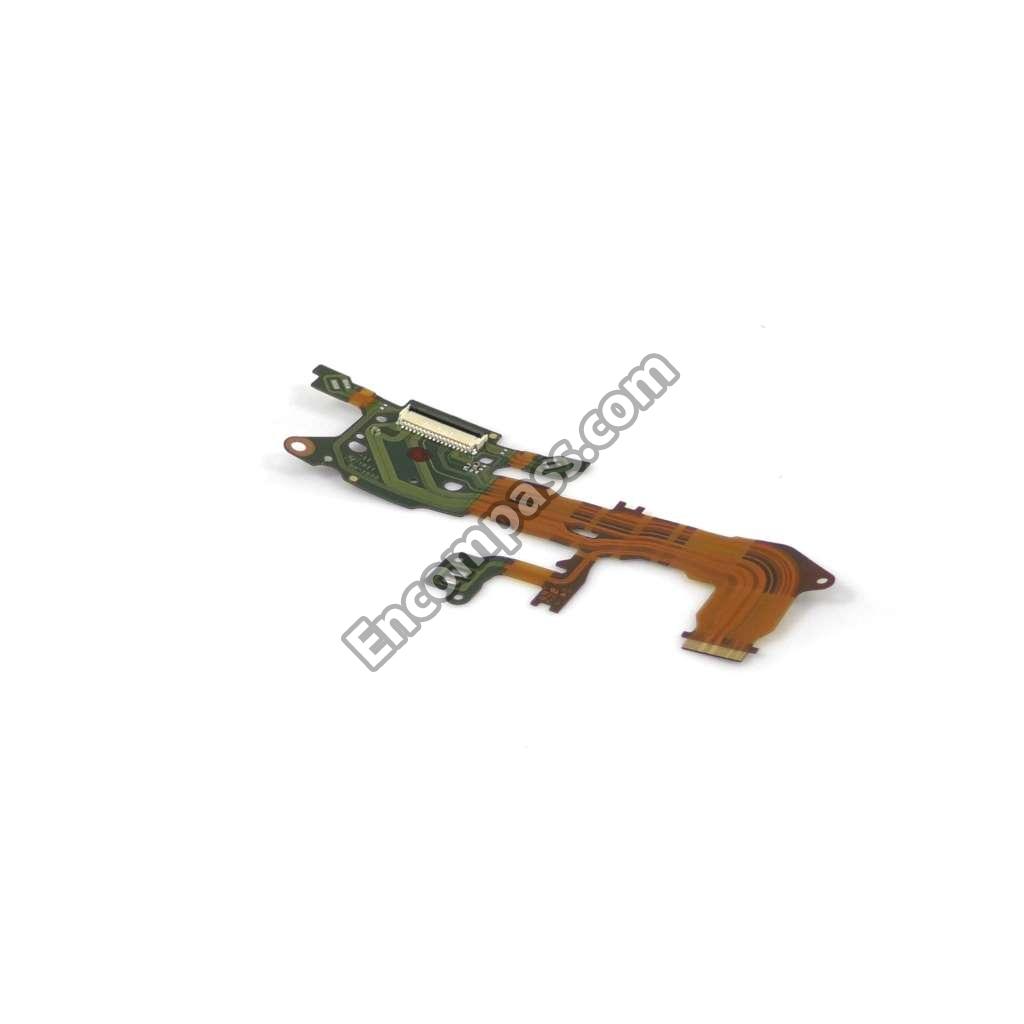

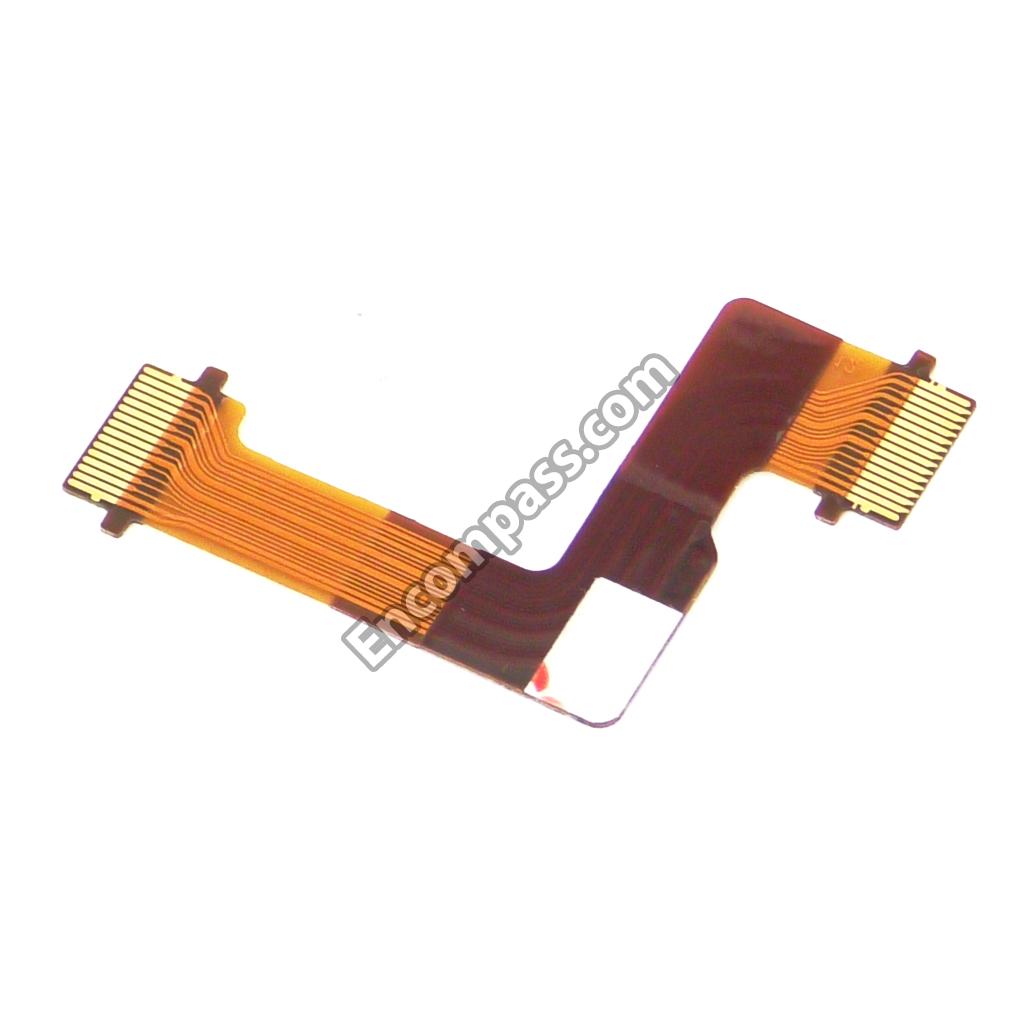

A-2178-921-A A-2178-921-A DL-1004 FLEXIBLE BOARD, COMPLETE (UC)

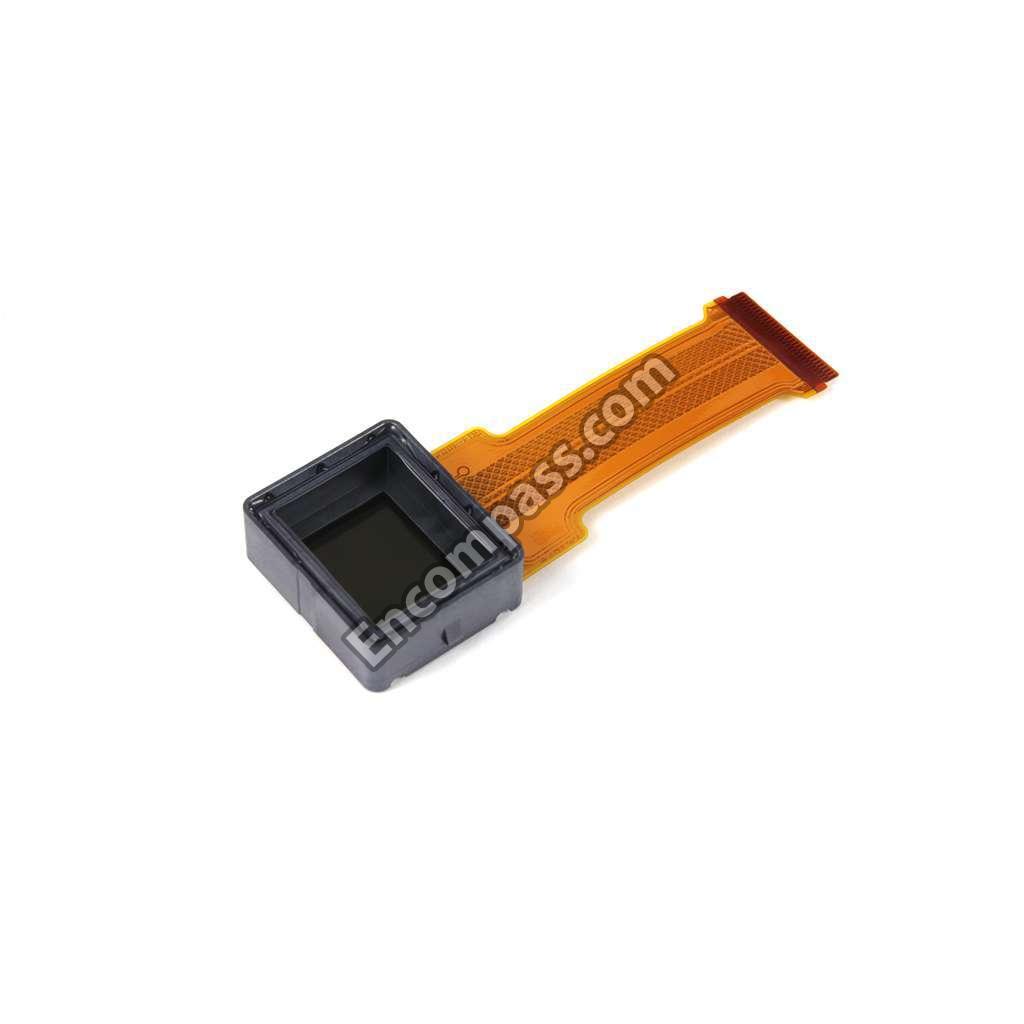

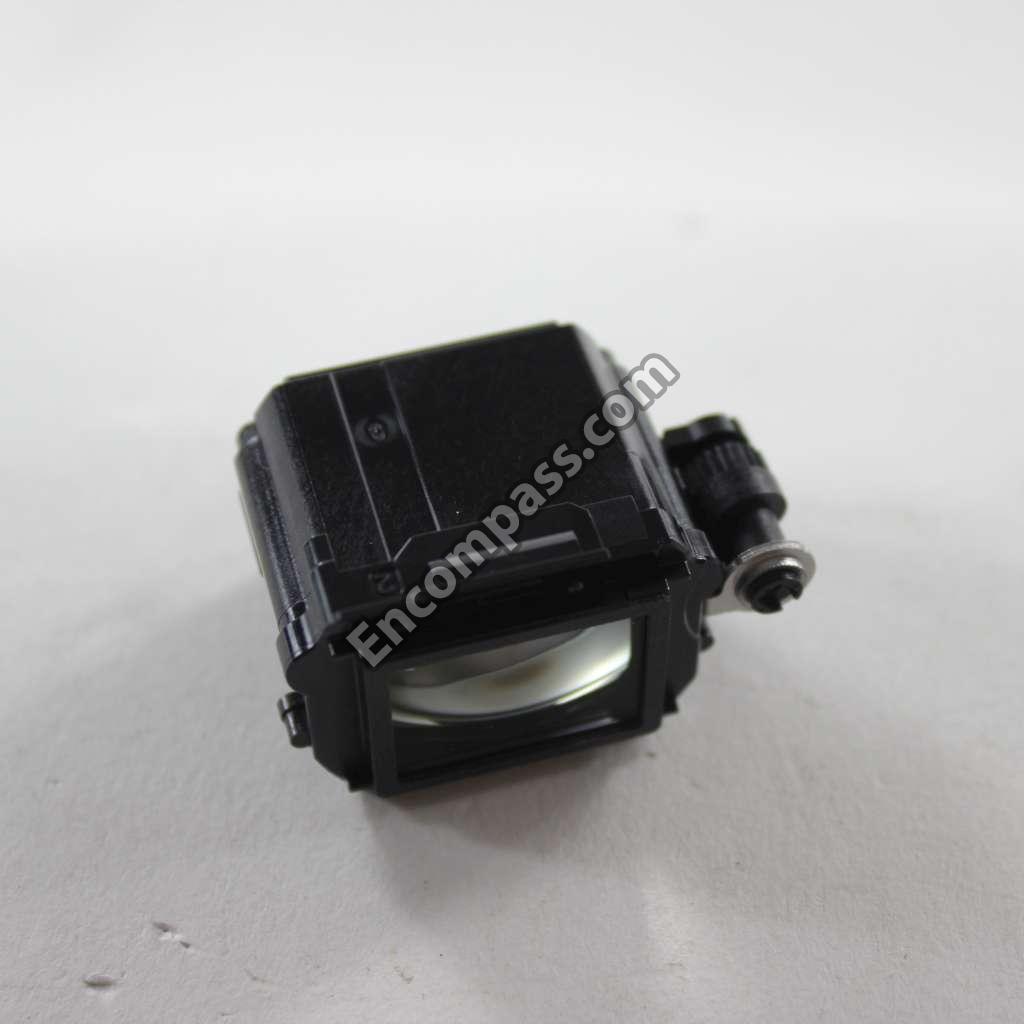

8-756-074-19 8-756-074-19 ECX337AA-1 (COLOR EVF UNIT) (UC)
A-2196-477-A A-2196-477-A ES-1005 FLEXIBLE BOARD, COMPLETE (UC)
4-729-593-01 4-729-593-01 EV PROTECTION SHEET (62000) (UC)
4-729-598-01 4-729-598-01 EV WP SHEET A (62000) (UC)
4-729-599-01 4-729-599-01 EV WP SHEET B (62000) (UC)

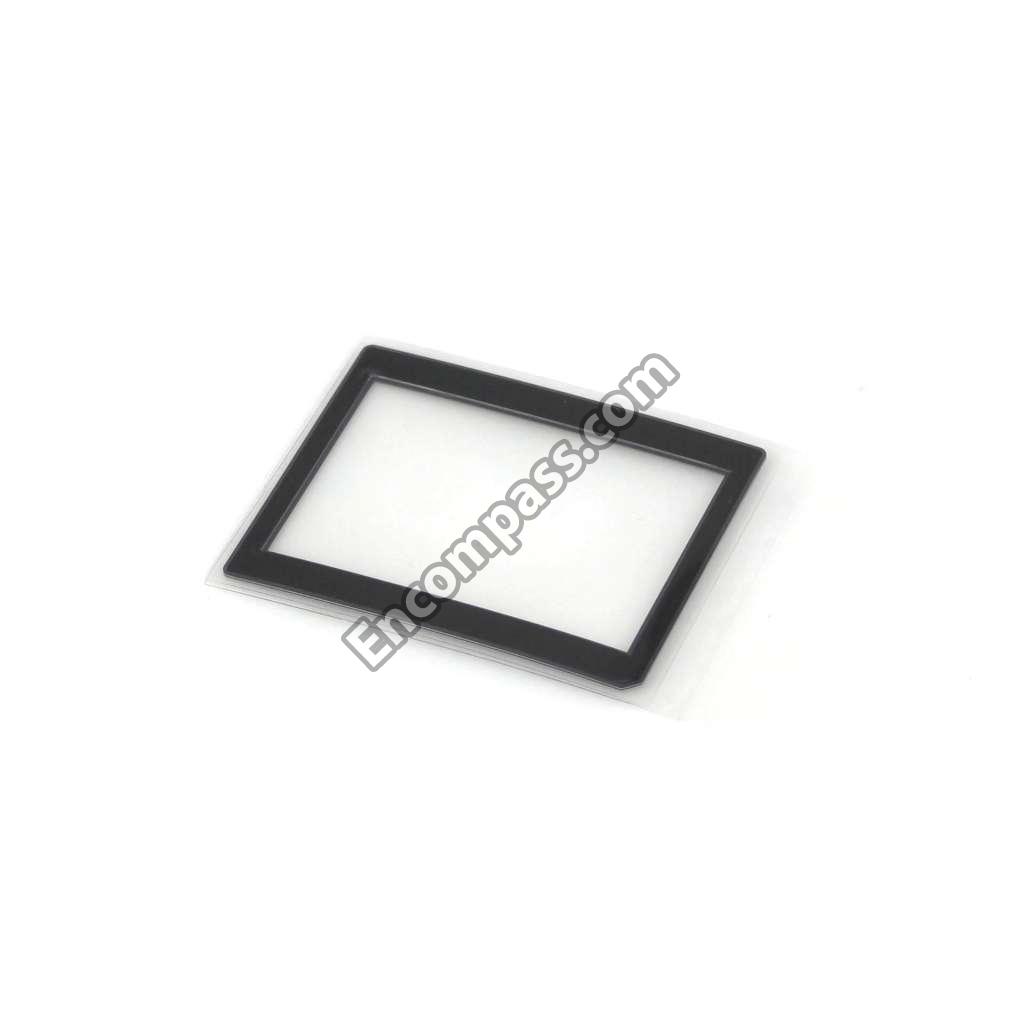

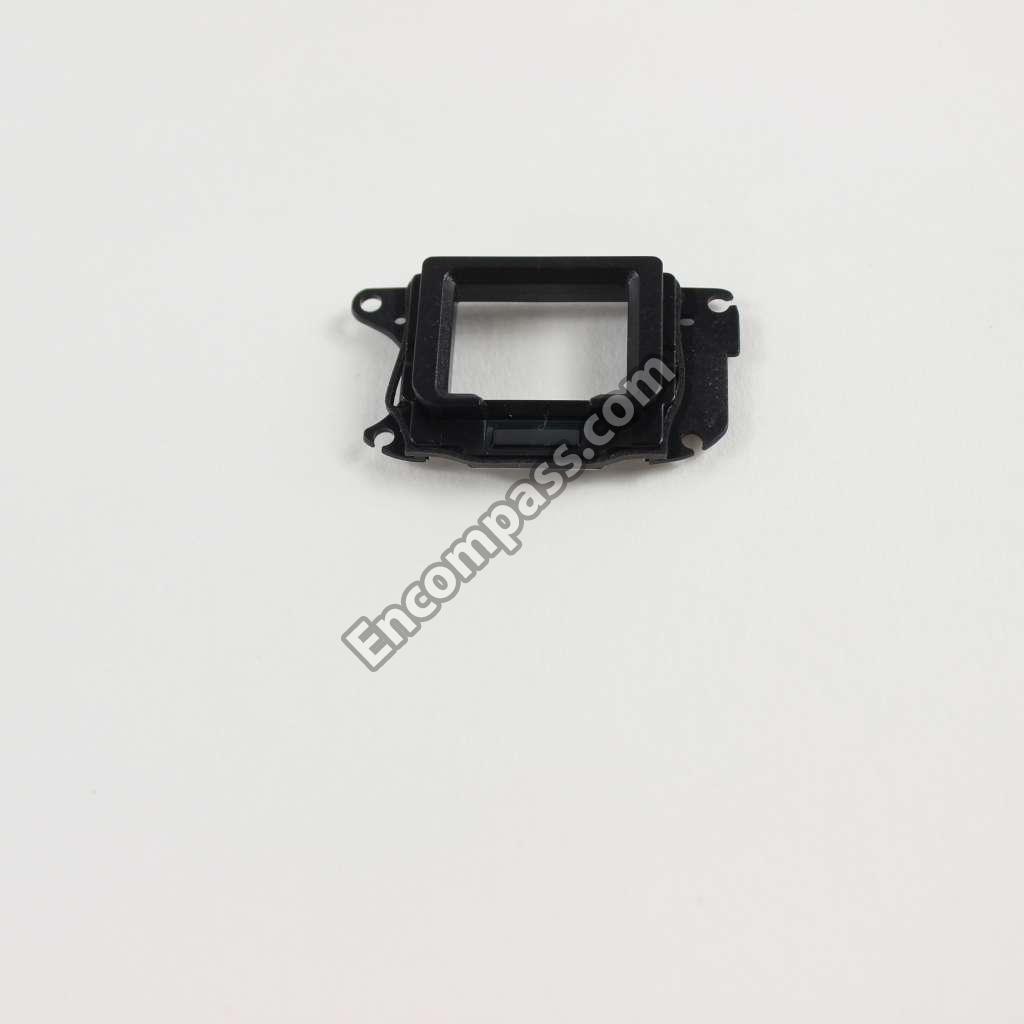

4-729-576-01 4-729-576-01 EVF PROTECTOR (62000) (UC)

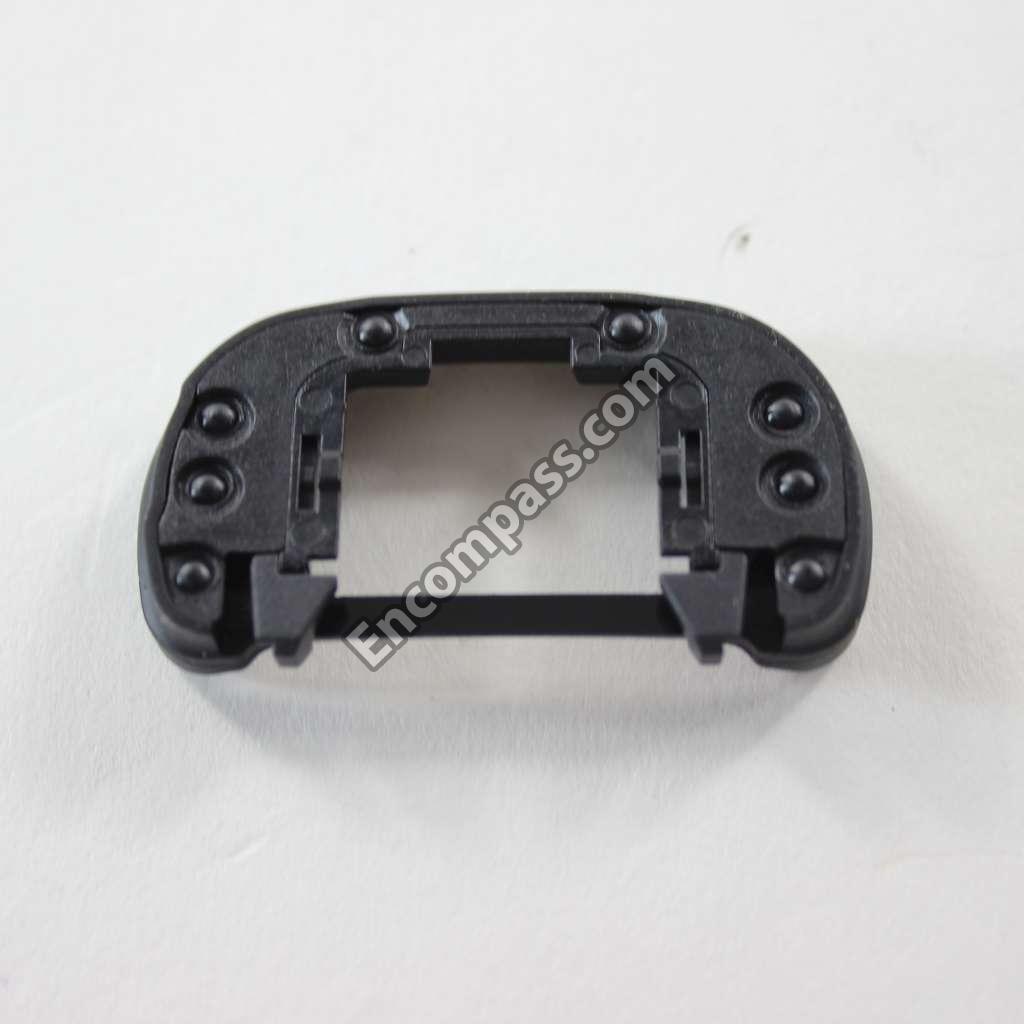

X-2594-593-1 X-2594-593-1 EYE CUP ASSY (799) (UC)
4-729-569-01 4-729-569-01 EYELET PLATE G (62000) (UC)
4-531-703-02 4-531-703-02 EYELET TRIANGLE (775) (UC)
4-729-512-01 4-729-512-01 F TAP PLATE (62000) (UC)
A-2196-432-A A-2196-432-A FINDER COVER ASSY (62000) (UC)
4-684-433-11 4-684-433-11 FLEXIBLE (799), SHEET (LCD) (UC)
1-981-579-12 1-981-579-12 FP-2394 FLEXIBLE BOARD (UC)
1-893-251-11 1-893-251-11 FPC-2010 FLEXIBLE BOARD (UC)
X-2596-412-2 X-2596-412-2 FRAME ASSY (62200), MEDIA (UC)
4-729-519-01 4-729-519-01 FRONT GRIP RUBBER (62000) (NOTE) (UC)
4-692-107-01 4-692-107-01 GASKET (CN (799)) (UC)
4-575-789-01 4-575-789-01 GASKET (F (795)) (UC)
4-692-095-01 4-692-095-01 GASKET (SY (799)) (UC)
4-729-498-01 4-729-498-01 GASKET USB (62000) (UC)
4-729-503-01 4-729-503-01 GF SHEET AS (62000) (UC)
4-729-504-01 4-729-504-01 GF SHEET LE (62000) (UC)

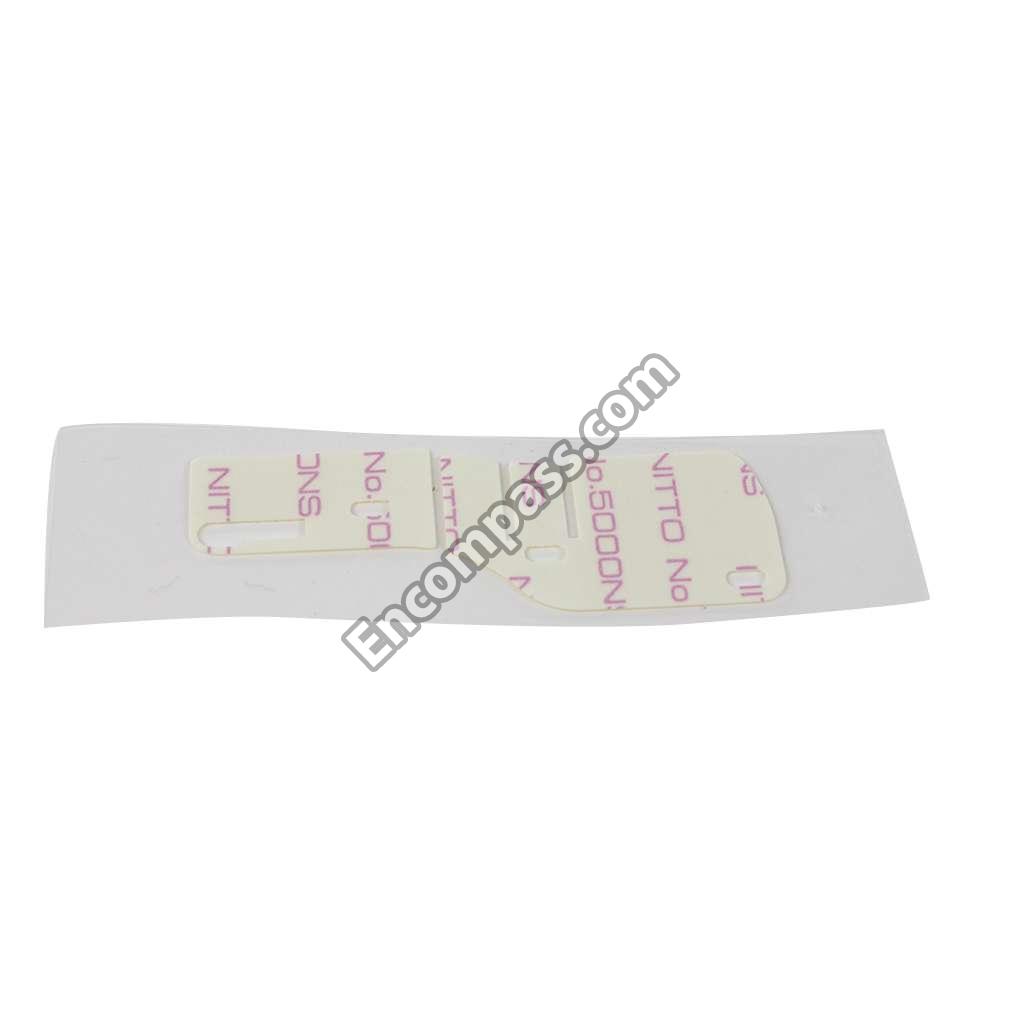

4-729-887-01 4-729-887-01 GRIP ADHESIVE 1 (62000) (NOTE) (UC)
4-729-516-01 4-729-516-01 GRIP ADHESIVE 2 (62000) (NOTE) (UC)
4-729-517-01 4-729-517-01 GRIP ADHESIVE 4 (62000) (NOTE) (UC)
4-729-518-01 4-729-518-01 GRIP ADHESIVE 5 (62000) (NOTE) (UC)
4-729-888-01 4-729-888-01 GRIP ADHESIVE 6 (62000) (NOTE) (UC)
4-729-515-01 4-729-515-01 GRIP BASE (62000) (UC)
A-2064-122-A A-2064-122-A GY-1008 BOARD, COMPLETE (UC)
A-2179-109-A A-2179-109-A GY-1014 BOARD, COMPLETE (SERVICE) (UC)
4-729-596-01 4-729-596-01 GYRO CUSHION T LOWER (62000) (UC)
4-729-597-01 4-729-597-01 GYRO CUSHION T UPPER (62000) (UC)
4-729-580-01 4-729-580-01 GYRO R HOLDER (62000) (UC)
4-729-499-01 4-729-499-01 HARNESS PROTECT SHEET (62000) (UC)
X-2593-925-5 X-2593-925-5 HINGE ASSY (799) (UC)
1-251-928-21 1-251-928-21 HOLDER, BATTERY (NOTE) (UC)
4-487-875-11 4-487-875-11 HOLDER, EYELET TRIANGLE (779) (UC)
4-729-497-01 4-729-497-01 HP HOLDER (62000) (UC)
4-729-533-02 4-729-533-02 HP LID (62000) (UC)
4-699-699-01 4-699-699-01 IM HEAT FRAME (5400) (UC)
4-597-750-01 4-597-750-01 IM IMAGER FIX SHAFT (5300) (UC)
4-575-430-01 4-575-430-01 IM MASK PLATE (5100) (UC)
4-558-386-02 4-558-386-02 IM PLATE (5000), GLASS RETAINER (UC)
4-724-002-01 4-724-002-01 IM RADIATION SHEET A (5400) (UC)
4-685-636-02 4-685-636-02 IM RADIATION SHEET B (5300) (UC)
4-688-448-02 4-688-448-02 IM RADIATION SHEET C (5300) (UC)
4-724-003-01 4-724-003-01 IM RADIATION SHEET D (5400) (UC)
4-725-468-01 4-725-468-01 IM SHIELD SHEET (5400) (ILCE-7RM3) (UC)
4-729-590-01 4-729-590-01 INSULATING SHEET (62000), SP (UC)
4-734-011-01 4-734-011-01 IR WP CUSHION (62000) (UC)
1-982-424-11 1-982-424-11 ISL-2009 FLEXIBLE BOARD (UC)
1-982-425-11 1-982-425-11 ISP-2008 FLEXIBLE BOARD (UC)
4-729-634-01 4-729-634-01 JK HINGE WP CUSHION (62000) (UC)
4-729-895-01 4-729-895-01 JK WP CUSHION B (62000) (UC)

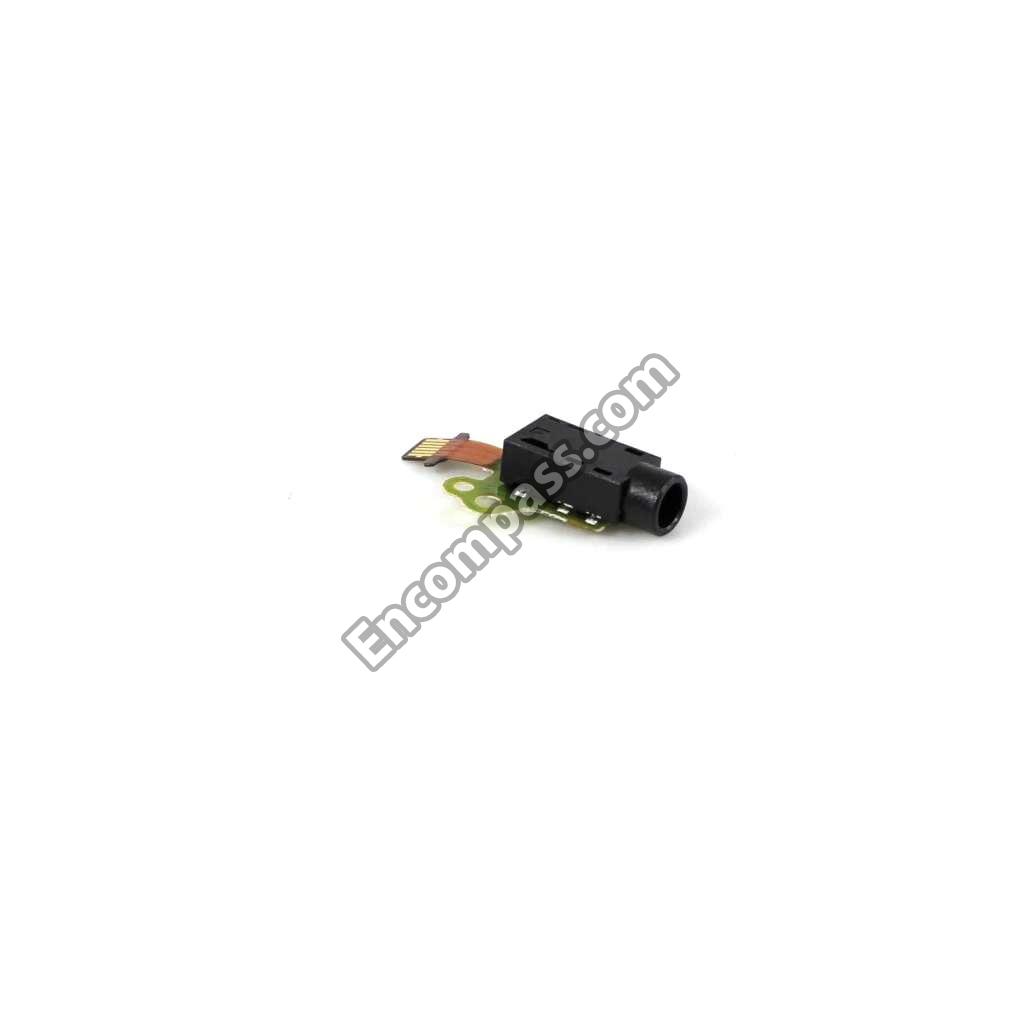

A-2196-478-B A-2196-478-B JK-1021 FLEXIBLE BOARD, COMPLETE (UC)
A-2196-479-A A-2196-479-A JK-1022 FLEXIBLE BOARD, COMPLETE (UC)
4-729-639-01 4-729-639-01 JOY BASE PLATE (62000) (UC)
4-729-640-01 4-729-640-01 JOY RETAINER PLATE (62000) (UC)
A-2178-923-A A-2178-923-A JS-1008 FLEXIBLE BOARD, COMPLETE (UC)
4-698-793-01 4-698-793-01 KNOB (799), JOY (UC)
4-731-377-01 4-731-377-01 LC RADIATION SHEET (62000) (UC)
4-729-638-01 4-729-638-01 LC WP CUSHION (62000) (UC)
1-982-474-11 1-982-474-11 LC-1039 FLEXIBLE BOARD (ILCE-7RM3) (UC)
1-008-232-11 1-008-232-11 LC-1054 FLEXIBLE BOARD (ILCE-7RM3A) (UC)
4-729-520-01 4-729-520-01 LENS BUTTON WP SHEET (62000) (UC)

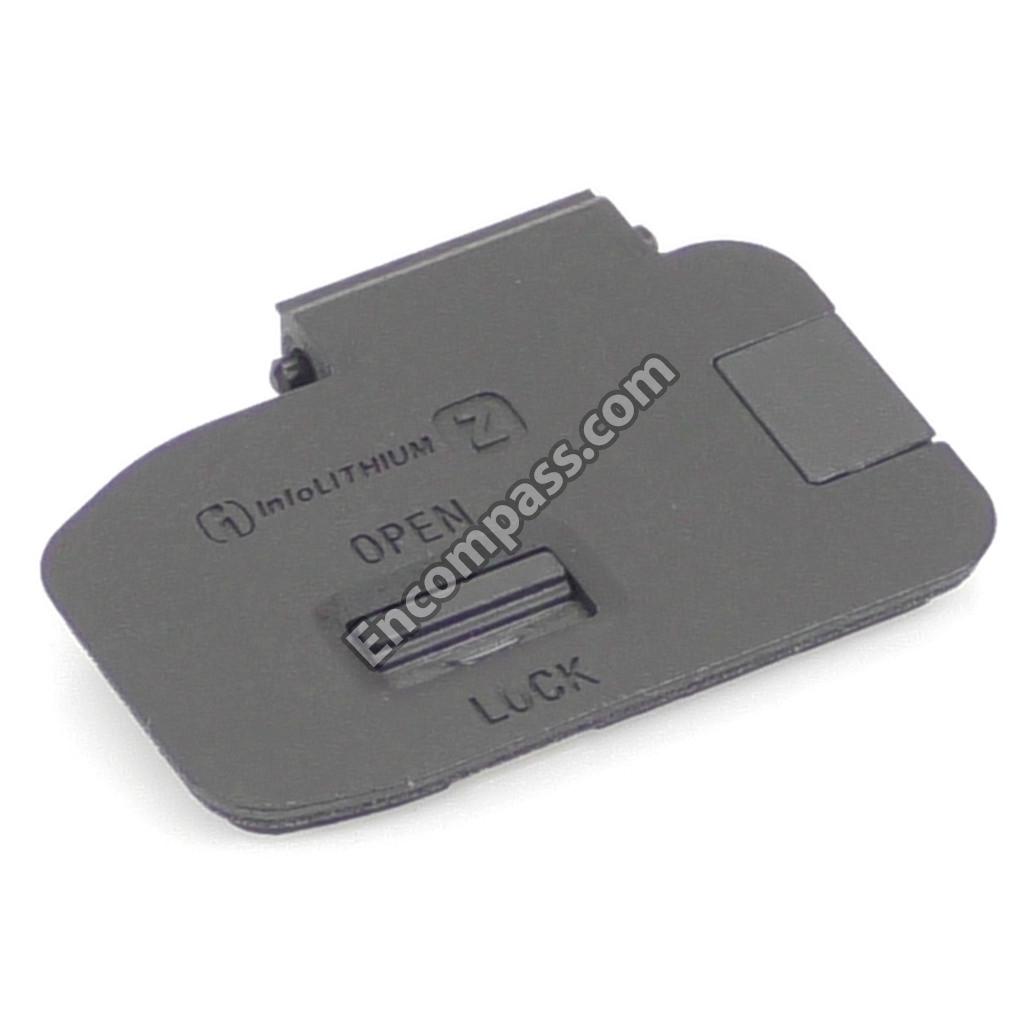

X-2594-592-3 X-2594-592-3 LID ASSY (799), BT (UC)
4-692-163-11 4-692-163-11 LIGHT (799), CHG GUIDE (UC)
1-859-210-12 1-859-210-12 LOUDSPEAKER (1.0 CM) (UC)
A-2189-047-D A-2189-047-D MB CHARGE UNIT (5400) (UC)
NSI NSI MB CUSHION SHEET (5400) (UC)
4-692-895-02 4-692-895-02 MB F PREVENTION SHEET (5300) (UC)
4-729-131-01 4-729-131-01 MB JACK SB SHEET (5400) (UC)
4-725-947-01 4-725-947-01 MB JACK SHIELD BLOCK (5400) (UC)

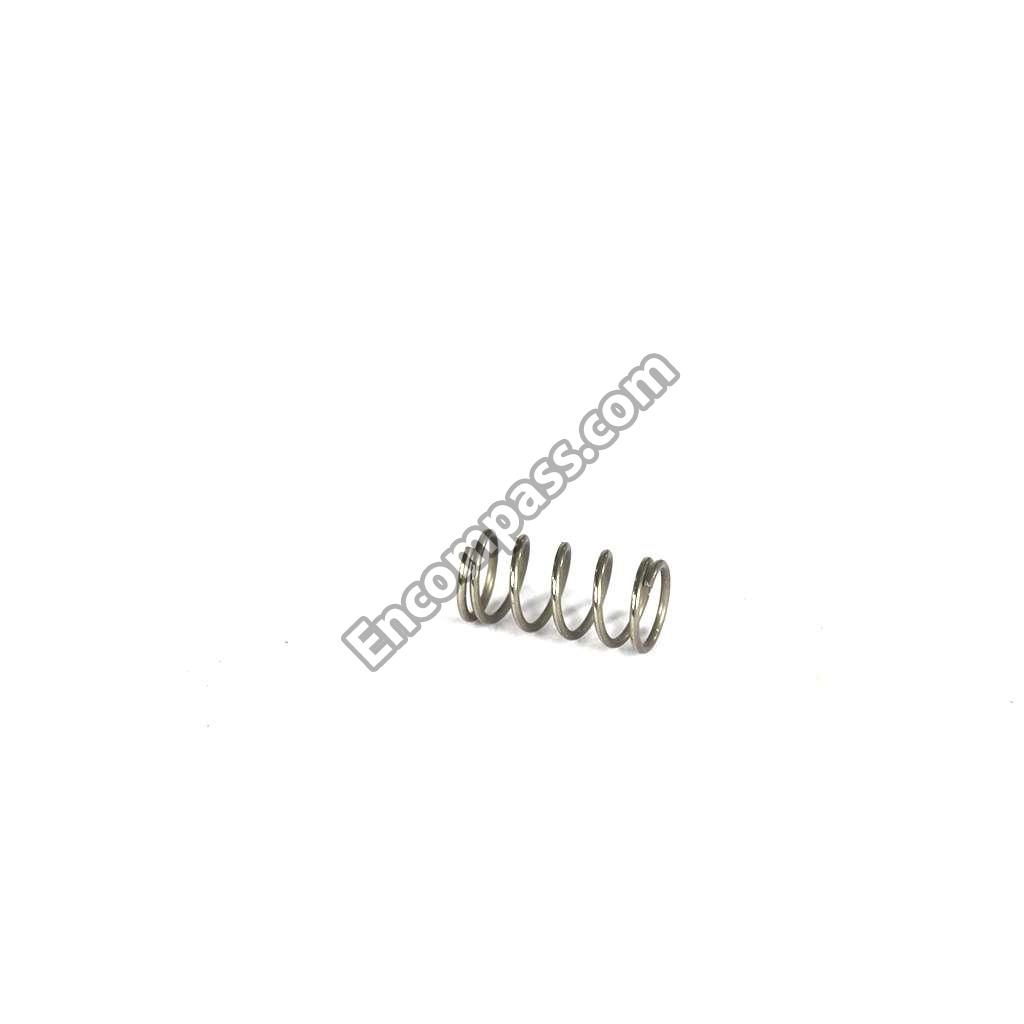

4-693-930-01 4-693-930-01 MB LENS LOCK SPRING (5300) (UC)
4-599-208-01 4-599-208-01 MB LL BUTTON (5300) (UC)
4-688-175-02 4-688-175-02 MB LL PIN (5300) (UC)
4-575-535-02 4-575-535-02 MB MASK SHEET (5100) (UC)
4-558-372-02 4-558-372-02 MB MASK SHEET TAPE (5000) (UC)
X-2594-611-2 X-2594-611-2 MB N CONTACT UNIT (5300) (UC)
4-692-620-01 4-692-620-01 MB N HOLDER A (5300) (UC)
5-007-195-01 5-007-195-01 MB N PLATE A (5300) (UC)
4-692-567-01 4-692-567-01 MB N PLATE SP (5300) (UC)
4-185-990-01 4-185-990-01 MB SCREW, CHARGE UNIT FIXED (M1.6 X 4.5) (UC)
X-2595-686-3 X-2595-686-3 MD DIAL ASSY (62000) (UC)
4-729-631-01 4-729-631-01 MEDIA LID SHAFT (62000) (UC)
4-729-624-02 4-729-624-02 MENU BUTTON (62000) (UC)
X-2595-685-1 X-2595-685-1 MIC GRILL ASSY (62000) (UC)
4-729-524-02 4-729-524-02 MIC LID (62000) (UC)
4-729-526-01 4-729-526-01 MIC WP CUSHION (62000) (UC)
1-542-721-81 1-542-721-81 MICROPHONE BLOCK (L) (UC)
A-2092-366-A A-2092-366-A MIS-2003 FLEXIBLE BOARD, COMPLETE (UC)
1-015-561-11 1-015-561-11 NFC ANTENNA (UC)
A-5026-901-A A-5026-901-A PD-1070 BOARD, COMPLETE (ILCE-7RM3A) (UC)
4-692-295-01 4-692-295-01 PLATE (799), JOY HOLDER (UC)
4-692-150-01 4-692-150-01 PLATE (799), VG REAR RETAINER (UC)
X-2593-924-2 X-2593-924-2 PLATE ASSY (799), (REAR) (UC)
1-846-425-13 1-846-425-13 POWER CORD (MAINS LEAD) (US, CND) (UC)
5-025-349-01 5-025-349-01 RADIATION SHEET (LENS) (ILCE-7RM3A) (UC)
4-731-837-01 4-731-837-01 RADIATION SHEET SW (62000) (UC)
4-731-836-01 4-731-836-01 RADIATION SHEET YM (62000) (UC)
4-729-641-01 4-729-641-01 REAR EV WP CUSHION (62000) (UC)
4-729-643-01 4-729-643-01 REAR FPC RETAINER (62000) (UC)

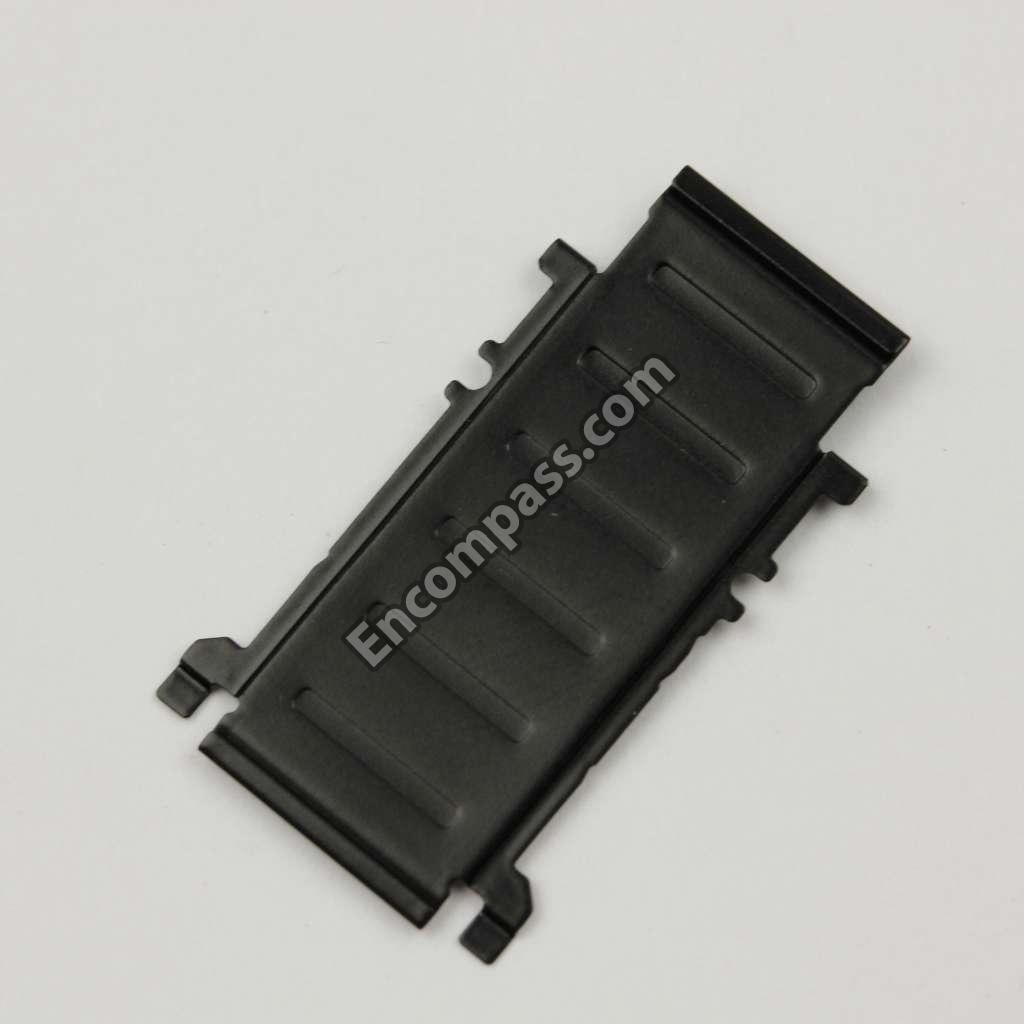

4-729-636-01 4-729-636-01 REAR PLATE (62000) (UC)
4-729-622-02 4-729-622-02 REC BUTTON (62000) (UC)
4-729-626-01 4-729-626-01 REC BUTTON RUBBER (62000) (UC)
A-5008-309-B A-5008-309-B RECHARGEABLE BATTERY PACK (NP-FZ100/UC)(US, CND) (UC)
4-729-594-01 4-729-594-01 RL PROTECTION SHEET (62000) (UC)
4-734-384-01 4-734-384-01 RLS SIDE WP CUSHION (62000) (UC)
4-729-644-01 4-729-644-01 RS PROTECTION SHEET (62200) (UC)
A-5026-902-A A-5026-902-A RS-1021 FLEXIBLE BOARD, COMPLETE (ILCE-7RM3A) (UC)
4-692-278-11 4-692-278-11 RUBBER (799), FN BUTTON (UC)
4-691-747-01 4-691-747-01 RUBBER (799), JOY (UC)
4-691-304-01 4-691-304-01 RUBBER (799), MEDIA LID (UC)
4-692-236-01 4-692-236-01 RUBBER (799), MICROPHONE (UC)
4-692-279-11 4-692-279-11 RUBBER (799), PLAYBACK DELETE (UC)
4-691-303-01 4-691-303-01 RUBBER (799), REAR GRIP (UC)
4-559-277-01 4-559-277-01 SCREW (786), TRIPOD (UC)
4-287-435-11 4-287-435-11 SCREW (M1.4 EUROPE) TYPE (L = 1.4 MM) (UC)
3-091-481-31 3-091-481-31 SCREW (M1.7 X 4.0) (UC)
2-635-562-01 2-635-562-01 SCREW (M1.7) (L = 2.0 MM) (UC)
2-635-562-11 2-635-562-11 SCREW (M1.7) (L = 2.5 MM) (UC)
4-446-949-31 4-446-949-31 SCREW (M1.7) (L = 2.5 MM) (UC)
2-599-475-21 2-599-475-21 SCREW (M1.7) (L = 3.0 MM) (UC)
2-635-562-31 2-635-562-31 SCREW (M1.7) (L = 4.0 MM) (UC)
4-446-949-01 4-446-949-01 SCREW (M1.7) (L = 4.0 MM) (UC)
4-287-436-21 4-287-436-21 SCREW (M1.7) (L = 5.0 MM) (UC)
2-599-475-51 2-599-475-51 SCREW (M1.7) (L = 6.0 MM) (UC)
2-630-005-31 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (L = 4.0 MM) (UC)
2-630-005-01 2-630-005-01 SCREW (M2), NEW TRUSTER, P2 (L = 5.0 MM) (UC)
4-692-632-01 4-692-632-01 SCREW, 0+P1 M2X6 (SPIN) (UC)
4-186-545-01 4-186-545-01 SCREW, 0+Z M1.7 SG (SPIN) (L = 4.0 MM) (UC)
A-2199-897-A A-2199-897-A SERVICE (620), BOTTOM FR B-ASSY (UC)
A-2199-681-A A-2199-681-A SERVICE (620), CNT DIAL F B-ASSY (UC)
A-2199-682-A A-2199-682-A SERVICE (620), CNT DIAL R B-ASSY (UC)
A-2199-685-A A-2199-685-A SERVICE (620), EYELET G B-ASSY (UC)
A-2199-684-A A-2199-684-A SERVICE (620), EYELET L B-ASSY (UC)
A-2199-691-A A-2199-691-A SERVICE (620), JACK BASE R ASSY (UC)
A-2199-689-A A-2199-689-A SERVICE (620), MEDIA LID B-ASSY (UC)
A-2199-683-A A-2199-683-A SERVICE (62000), CAB TOP B-ASSY (UC)
A-2199-898-A A-2199-898-A SERVICE (62000), CABINET (F) (UC)
A-2199-899-A A-2199-899-A SERVICE (62000), JK BASE F ASSY (UC)

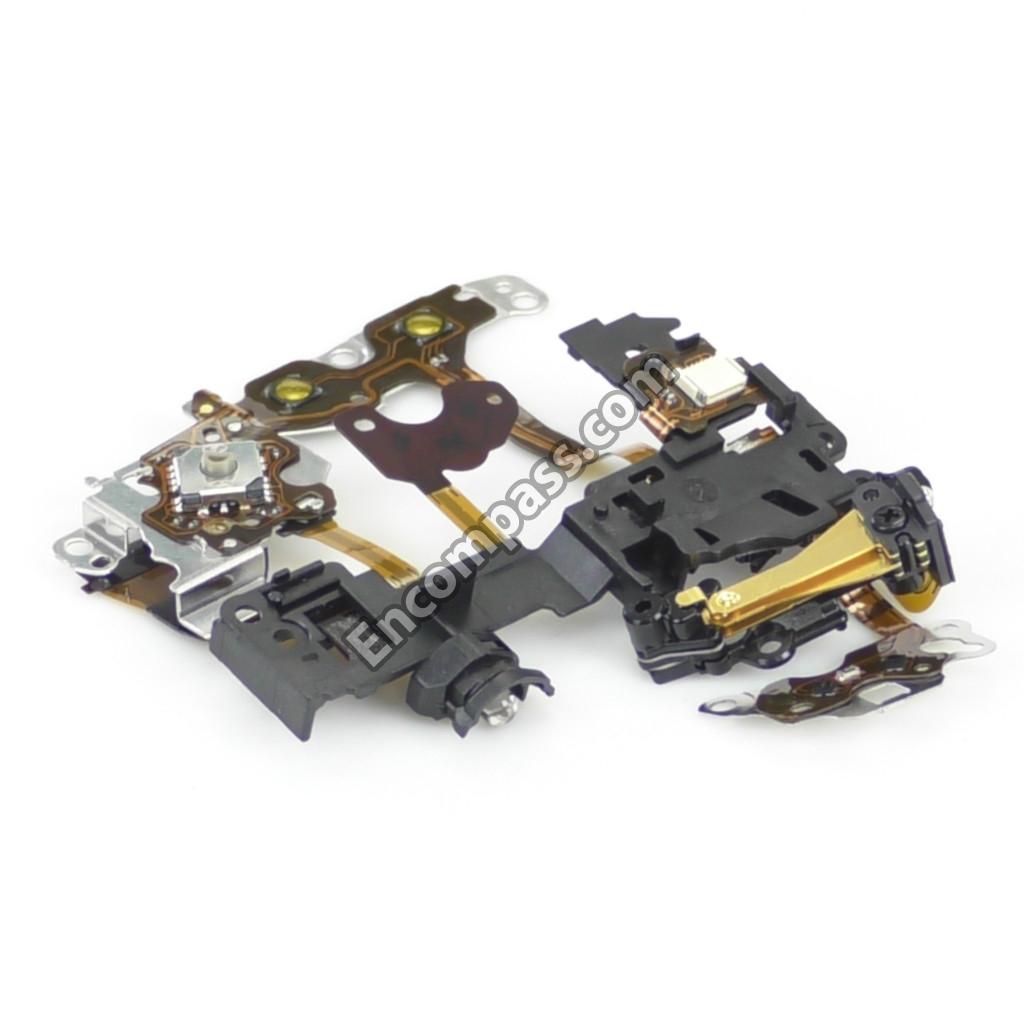

A-2199-687-A A-2199-687-A SERVICE (62000), KY BLOCK ASSY (KY-1023 FLEXIBLE BOARD, COMPLETE) (UC)
A-2199-688-A A-2199-688-A SERVICE (62000), LC LOCK B-ASSY (UC)
A-2199-900-A A-2199-900-A SERVICE (62000), MEDIA BASE (UC)
A-2199-894-B A-2199-894-B SERVICE (62000), MIC HOLDER (UC)
A-2199-686-B A-2199-686-B SERVICE (62000), RL BLOCK ASSY (RL-1053 FLEXIBLE BOARD, COMPLETE) (UC)
A-5029-449-A A-5029-449-A SERVICE (888), SY M-FRAME B-ASSY (ILCE-7RM3A) (UC)
A-5032-247-A A-5032-247-A SERVICE (88800), CAB R B-ASSY (ILCE-7RM3A) (UC)
A-5028-479-A A-5028-479-A SERVICE (88800), PANEL B-ASSY (LCD MODULE) (ILCE-7RM3A) (UC)
A-5010-485-A A-5010-485-A SERVICE OPTFLTRBLK (OFB-01-122) (NOTE 1) (UC)
A-2189-051-B A-2189-051-B SERVICE, MECHA DEVICE (5400) (NOTE 1) (UC)

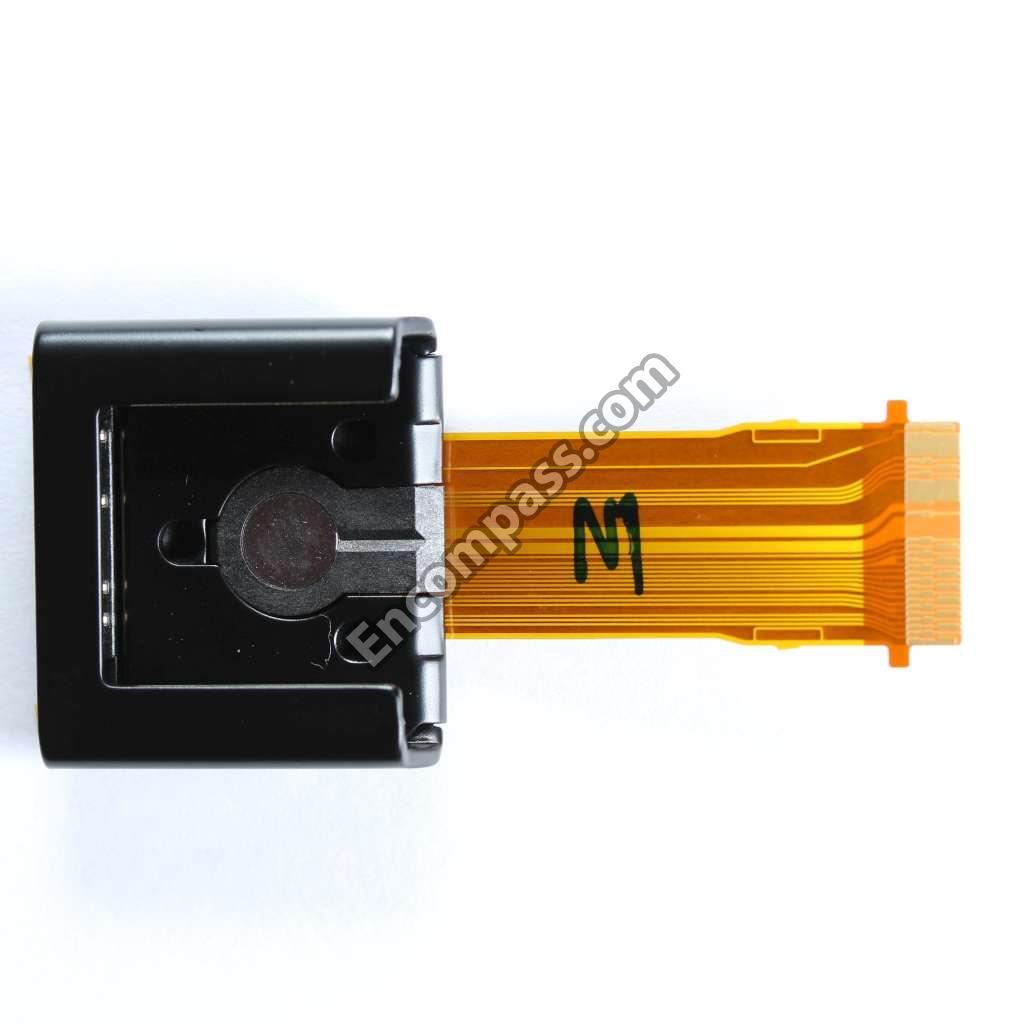

A-2185-509-A A-2185-509-A SERVICE, TERMINAL UNIT SOLDER (FLASH SYNC) (UC)
4-729-602-01 4-729-602-01 SH CORE WP SHEET A (62000) (UC)
4-729-603-01 4-729-603-01 SH CORE WP SHEET B (62000) (UC)
4-729-575-01 4-729-575-01 SH FPC BASE (62000) (UC)
4-729-595-01 4-729-595-01 SH PROTECTION SHEET (62000) (UC)
A-2196-474-A A-2196-474-A SH-1022 FLEXIBLE BOARD, COMPLETE (UC)
4-559-196-01 4-559-196-01 SHAFT (786), BT LOCK CLAW (UC)
4-692-134-01 4-692-134-01 SHEET (3 (799)), GRIP ADHESIVE (NOTE) (UC)
4-576-761-02 4-576-761-02 SHEET (5100), SPACER (UC)
4-731-534-01 4-731-534-01 SHEET (62000), LC PROTECTION (UC)
4-692-124-01 4-692-124-01 SHEET (799), FOOT (UC)
4-692-111-11 4-692-111-11 SHEET (799), GASKET (Y) FIXED (UC)
4-692-693-01 4-692-693-01 SHEET (799), GRIP SUSTAINER (UC)
4-692-129-01 4-692-129-01 SHEET (799), NFC ADHESIVE (UC)
4-692-130-01 4-692-130-01 SHEET (799), NFC PERFORMANCE (NOTE) (UC)
4-692-281-11 4-692-281-11 SHEET (799), RE RUBBER ADHESIVE (UC)
4-692-334-01 4-692-334-01 SHEET (799), RUBBER ADHESIVE (UC)
4-685-880-11 4-685-880-11 SHEET (BL) (799), PROTECTION (UC)
4-692-105-01 4-692-105-01 SHEET (C (799)), FP PROTECTION (UC)
4-684-435-11 4-684-435-11 SHEET (FRONT (799)), ANTI DUST (UC)
4-684-432-11 4-684-432-11 SHEET (PD (799)), ADHESIVE (UC)
4-692-102-11 4-692-102-11 SHEET (RE (799)), SY RADIATION (ILCE-7RM3) (UC)
4-692-101-01 4-692-101-01 SHEET (REGI H (799), SY RADIATION (UC)
4-692-100-01 4-692-100-01 SHEET (U H (799)), SY RADIATION (UC)
4-534-395-01 4-534-395-01 SHEET (WIFI), ADHESIVE (UC)
2-649-300-01 2-649-300-01 SHEET, ADHESIVE (NOTE) (UC)
4-564-830-01 4-564-830-01 SHEET, PANEL FLEXIBLE ADHESIVE (UC)
A-2199-895-A A-2199-895-A SHOE BASE ASSY (799) (UC)
4-438-734-03 4-438-734-03 SHOE CAP (875) (UC)
4-729-653-01 4-729-653-01 SHOULDER STRAP (UC)
1-493-061-14 1-493-061-14 SHUTTER UNIT (AFE-3379) (UC)
4-729-579-01 4-729-579-01 SP HARNESS PROTECTOR (62000) (UC)
4-178-124-01 4-178-124-01 SPECIAL (M1.4 (D2.75)) (L = 2.0 MM) (UC)
4-692-147-11 4-692-147-11 SPRING (799), BT LOCK (UC)
4-729-613-01 4-729-613-01 SW PACKING RETAINERPLATE (62000) (UC)
1-493-292-11 1-493-292-11 SWITCH BLOCK, CONTROL (BK79900) (UC)
1-493-293-22 1-493-293-22 SWITCH BLOCK, CONTROL (EV62000) (UC)
1-493-336-22 1-493-336-22 SWITCH BLOCK, CONTROL (RL79900) (UC)
A-2199-707-B A-2199-707-B SY-1085 BOARD, COMPLETE (SERVICE) (UC)
A-5028-256-C A-5028-256-C SY-1119 BOARD, COMPLETE (SERVICE) (UC)
4-729-528-01 4-729-528-01 SYNC GND PLATE (62000) (UC)
4-729-529-01 4-729-529-01 SYNC PROTECTION SHEET (62000) (UC)
4-485-165-01 4-485-165-01 TAPE (AS (0609)) (UC)
4-274-987-01 4-274-987-01 TAPE (AS 1/2) (C) (UC)
4-300-113-11 4-300-113-11 TAPPING (1.7) (CH) (L = 4.0 MM) (UC)
A-2166-305-A A-2166-305-A TEX-5300 (UC)
4-729-577-01 4-729-577-01 TOP L CONNECT PLATE (62000) (UC)
4-729-633-01 4-729-633-01 UH HINGE WP CUSHION (62000) (UC)
4-729-534-02 4-729-534-02 US LID (62000) (UC)
1-011-894-31 1-011-894-31 USB TYPE-C CABLE (UC)
4-729-500-01 4-729-500-01 VF BLIND SHEET (62000) (UC)
A-2179-154-A A-2179-154-A VF BLOCK ASSY (UC)
4-575-780-01 4-575-780-01 VF SHEET, RADIATION (795) (UC)
A-2178-924-A A-2178-924-A VG-1005 FLEXIBLE BOARD, COMPLETE (UC)
Main Menu x
