Model Image
Manufacturer

Sony

Model Number

ILCE7RM4A

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
5-009-235-01 5-009-235-01 ADHESIVE BT FPC (88100) (UC)
5-004-115-01 5-004-115-01 ADHESIVE LC CAB REAR (88100) (UC)
5-003-888-01 5-003-888-01 AEL BUTTON (88100) (UC)
5-011-618-01 5-011-618-01 AEL BUTTON RETAINER SHEET (881) (UC)
A-5013-739-A A-5013-739-A AEL BUTTON RUBBER (SERVICE_881) (UC)
5-003-887-01 5-003-887-01 AF BUTTON (88100) (UC)
5-011-617-01 5-011-617-01 AF BUTTON RETAINER SHEET (881) (UC)
A-5013-738-A A-5013-738-A AF BUTTON RUBBER (SERVICE_881) (UC)
5-003-917-01 5-003-917-01 AF FIXED FRAME (88100) (UC)
A-5001-902-A A-5001-902-A AN-1034 BOARD, COMPLETE (UC)
4-685-117-01 4-685-117-01 AS GRAPHITE SHEET BTM (5300) (NOTE 3) (UC)
4-685-118-01 4-685-118-01 AS GRAPHITE SHEET IMG (5300) (NOTE 3) (UC)
4-685-116-01 4-685-116-01 AS GRAPHITE SHEET TOP (5300) (NOTE 3) (UC)
1-493-243-35 1-493-243-35 BATTERY CHARGER (BC-QZ1) (UC)
1-493-243-13 1-493-243-13 BATTERY CHARGER (BC-QZ1) (US, CND, JE) (UC)
1-756-135-34 1-756-135-34 BATTERY, LITHIUM SECONDARY (NOTE) (UC)
X-5000-275-3 X-5000-275-3 BOTTOM COVER ASSY (88100) (UC)
5-003-938-01 5-003-938-01 BOTTOM COVER PLATE (88100) (UC)
X-5002-283-2 X-5002-283-2 BT LID ASSY (88100) (UC)
A-5009-325-A A-5009-325-A BT SOLDER (INCLUDING BT-2029 FLEXIBLE BOARD) (UC)
5-004-626-01 5-004-626-01 BTFPC PROTECTION SHEET (88100) (UC)
X-5000-259-2 X-5000-259-2 BTH ASSY (88100) (UC)
4-300-106-11 4-300-106-11 BTITE (1.4 (CH)) (L = 5.0 MM) (UC)
X-5000-274-4 X-5000-274-4 BUTTOM INNER PLATE ASSY (881) (UC)
5-003-856-01 5-003-856-01 C1 BUTTON (88100) (UC)
5-003-857-01 5-003-857-01 C2 BUTTON (88100) (UC)
5-003-884-01 5-003-884-01 C3 BUTTON (88100) (UC)
5-003-889-01 5-003-889-01 C3 MENU RUBBER (88100) (UC)
1-846-787-31 1-846-787-31 CABLE (UC)
X-5000-276-2 X-5000-276-2 CABLE PROTECTOR (UC)
1-846-474-41 1-846-474-41 CABLE, COAXIAL (45 MM) (UC)
4-559-162-01 4-559-162-01 CAP (LC) (786), FLEXIBLE (UC)
4-188-536-01 4-188-536-01 CAP, BODY (NOTE) (UC)
5-004-625-01 5-004-625-01 CN PROTECTION SHEET (88100) (UC)
X-5002-538-1 X-5002-538-1 CNT DIAL F ASSY (88100) (UC)
5-059-947-01 5-059-947-01 COIN BATTERY WARNING LABEL (UC)
1-569-007-31 1-569-007-31 CONVERSION (2P) ADAPTOR (E: NTSC, JE) (UC)
4-692-149-01 4-692-149-01 CUSHION (799), GYRO (UC)
4-692-572-01 4-692-572-01 CUSHION (T (799)), GYRO (UC)
5-004-113-01 5-004-113-01 CUSION LC-FPC-WP (88100) (UC)
5-003-858-01 5-003-858-01 CUSTOM BUTTON RUBBER (88100) (UC)
5-003-672-01 5-003-672-01 CV DIOPTER ADJUST DIAL (88100) (UC)
5-003-897-01 5-003-897-01 DELETE BUTTON (88100) (UC)
5-003-740-01 5-003-740-01 DIOPTER COVER WP SHEET B (881) (UC)
A-5001-905-A A-5001-905-A DL-1005 FLEXIBLE BOARD, COMPLETE (UC)
8-756-073-42 8-756-073-42 ECX339AA-1 (COLOR EVF UNIT) (UC)
A-2196-477-A A-2196-477-A ES-1005 FLEXIBLE BOARD, COMPLETE (UC)
5-003-864-01 5-003-864-01 EVF PROTECTOR (88100) (UC)
X-2594-593-1 X-2594-593-1 EYE CUP ASSY (799) (UC)
A-5013-735-A A-5013-735-A EYELET G (SERVICE) (88100) (UC)
A-5013-734-A A-5013-734-A EYELET L (SERVICE) (88100) (UC)
5-003-872-01 5-003-872-01 EYELET PLATE G (88100) (UC)
4-531-703-02 4-531-703-02 EYELET TRIANGLE (775) (UC)
A-5013-740-A A-5013-740-A FINDER COVER ASSY (SERVICE_881) (UC)
5-003-895-01 5-003-895-01 FN BUTTON (88100) (UC)
1-984-221-11 1-984-221-11 FP-2438 FLEXIBLE BOARD (UC)
5-006-835-01 5-006-835-01 FPC 2438 PROTECT SHEET (88100) (UC)
A-5010-647-A A-5010-647-A FRONT COVER B-ASSY (SERVICE 881) (UC)
5-003-704-01 5-003-704-01 FRONT GRIP RUBBER (88100) (UC)
4-692-107-01 4-692-107-01 GASKET (CN (799)) (UC)
5-004-669-01 5-004-669-01 GASKET USB (88100) (UC)
5-003-668-01 5-003-668-01 GF SHEET AS (88100) (NOTE) (UC)
5-003-669-01 5-003-669-01 GF SHEET LE (88100) (NOTE) (UC)
5-003-698-01 5-003-698-01 GRIP ADHESIVE 1 (88100) (NOTE) (UC)
5-003-699-01 5-003-699-01 GRIP ADHESIVE 2 (88100) (NOTE) (UC)
3-270-483-01 3-270-483-01 GRIP, (M1.7 X 4.0) (2 MAIN EG) (UC)
A-2064-122-A A-2064-122-A GY-1008 BOARD, COMPLETE (UC)
A-5009-700-A A-5009-700-A GY-1018 BOARD, COMPLETE (SERVICE) (UC)
5-003-862-01 5-003-862-01 GYRO HOLDER (88100) (UC)
X-5000-252-2 X-5000-252-2 HINGE ASSY (88100) (UC)
4-487-875-11 4-487-875-11 HOLDER, EYELET TRIANGLE (779) (UC)
4-597-750-01 4-597-750-01 IM IMAGER FIX SHAFT (5300) (UC)
4-575-430-01 4-575-430-01 IM MASK PLATE (5100) (UC)
4-558-386-02 4-558-386-02 IM PLATE (5000), GLASS RETAINER (UC)
4-685-635-02 4-685-635-02 IM RADIATION SHEET A (5300) (UC)
4-685-636-02 4-685-636-02 IM RADIATION SHEET B (5300) (UC)
4-688-448-02 4-688-448-02 IM RADIATION SHEET C (5300) (UC)
4-725-468-01 4-725-468-01 IM SHIELD SHEET (5400) (UC)
A-5046-182-A A-5046-182-A IMAGER UNIT ASSY(5600) SERVICE
1-982-424-11 1-982-424-11 ISL-2009 FLEXIBLE BOARD (UC)
1-982-425-11 1-982-425-11 ISP-2008 FLEXIBLE BOARD (UC)
5-003-667-01 5-003-667-01 JK HOLDER (88100) (UC)
A-5001-911-A A-5001-911-A JK-1027 FLEXIBLE BOARD, COMPLETE (UC)
A-5014-708-A A-5014-708-A JOY HOLDER PLATE (SERVICE_881) (UC)
5-003-899-01 5-003-899-01 JOY KNOB (88100) (UC)
5-003-902-01 5-003-902-01 JOY RETAINER PLATE (88100) (UC)
5-003-901-01 5-003-901-01 JOY RUBBER (88100) (UC)
A-5001-912-A A-5001-912-A JS-1012 FLEXIBLE BOARD, COMPLETE (UC)
1-984-110-11 1-984-110-11 KY-1028 FLEXIBLE BOARD (UC)
A-5014-707-A A-5014-707-A LC CAB REAR (SERVICE) (88100) (UC)
5-003-655-01 5-003-655-01 LC CAB REAR PLATE (88100) (UC)
5-004-240-01 5-004-240-01 LC LOCK (88100) (UC)
5-006-845-01 5-006-845-01 LC LOCK WP CUSHION (88100) (UC)
5-005-092-01 5-005-092-01 LC WP CUSHION (88100) (UC)
1-859-210-12 1-859-210-12 LOUDSPEAKER (1.0 CM) (UC)
4-748-371-01 4-748-371-01 MB CH FLOATING SHAFT (5600) (UC)
A-2231-470-C A-2231-470-C MB CHARGE UNIT (5600) (UC)
NSI NSI MB CUSHION SHEET (5400) (UC)
4-692-895-02 4-692-895-02 MB F PREVENTION SHEET (5300) (UC)
4-693-930-01 4-693-930-01 MB LENS LOCK SPRING (5300) (UC)
4-748-355-01 4-748-355-01 MB LL BUTTON (5600) (UC)
4-748-367-01 4-748-367-01 MB LL BUTTON SPRING (5600) (UC)
4-688-175-02 4-688-175-02 MB LL PIN (5300) (UC)
4-575-535-02 4-575-535-02 MB MASK SHEET (5100) (UC)
4-558-372-02 4-558-372-02 MB MASK SHEET TAPE (5000) (UC)
X-2594-611-2 X-2594-611-2 MB N CONTACT UNIT (5300) (UC)
4-748-366-01 4-748-366-01 MB N HOLDER A (5600) (UC)
5-007-195-01 5-007-195-01 MB N PLATE A (5300) (UC)
4-748-363-01 4-748-363-01 MB N PLATE SP1 (5600) (UC)
4-748-364-01 4-748-364-01 MB N PLATE SP2 (5600) (UC)
4-185-990-01 4-185-990-01 MB SCREW, CHARGE UNIT FIXED (M1.6 X 4.5) (UC)
A-5010-651-A A-5010-651-A MD DIAL B-ASSY (CERVICE) (88100) (UC)
X-5000-271-1 X-5000-271-1 MEDIA LID ASSY (88100) (UC)
5-003-910-01 5-003-910-01 MEDIA LID ROTATION SPRING (881) (UC)
5-003-914-01 5-003-914-01 MEDIA LID SHAFT (88100) (UC)
5-006-079-01 5-006-079-01 MEDIA LID WP CUSHION (88100) (UC)
5-008-857-01 5-008-857-01 MEDIA LID WP SHEET (88100) (UC)
5-003-885-01 5-003-885-01 MENU BUTTON (88100) (UC)
5-006-713-01 5-006-713-01 MF SY PROTECT SHEET (88100) (UC)
5-003-959-01 5-003-959-01 MI SHOE FIX PLATE (88100) (UC)
5-016-955-01 5-016-955-01 MI SHOE FPC WP RUBBER(850) (UC)
5-002-946-02 5-002-946-02 MI SHOE SCREW COVER (88100) (UC)
5-002-943-02 5-002-943-02 MI SHOE SHELL PLATE (88100) (UC)
5-002-945-02 5-002-945-02 MI SHOE SPRING PLATE (88100) (UC)
5-011-558-01 5-011-558-01 MIC FPC ADHESIVE SHEET (88100) (UC)
1-542-721-81 1-542-721-81 MICROPHONE BLOCK (L) (UC)
A-5054-227-A A-5054-227-A MIS-2006 FLEXIBLE BOARD, COMPLETE (UC)
5-003-694-01 5-003-694-01 NFC ADHESIVE (88100) (UC)
1-015-561-11 1-015-561-11 NFC ANTENNA (UC)
5-003-697-01 5-003-697-01 NFC BASE (88100) (UC)
5-003-695-01 5-003-695-01 NFC PERFORMANCE SHEET (88100) (UC)
A-5010-646-A A-5010-646-A PANEL B-ASSY (SERVICE) (88100) (INCL. PD-1061 BD AND LC-1048 FLEXIBLE BD) (UC)
A-5029-452-A A-5029-452-A PANEL B-ASSY (SERVICE) (88900) (INCL. PD-1069 BD AND LC-1053 FLEXIBLE BD) (UC)
5-003-896-01 5-003-896-01 PLAYBACK BUTTON (88100) (UC)
5-003-898-01 5-003-898-01 PLAYBACK DELETE RUBBER (88100) (UC)

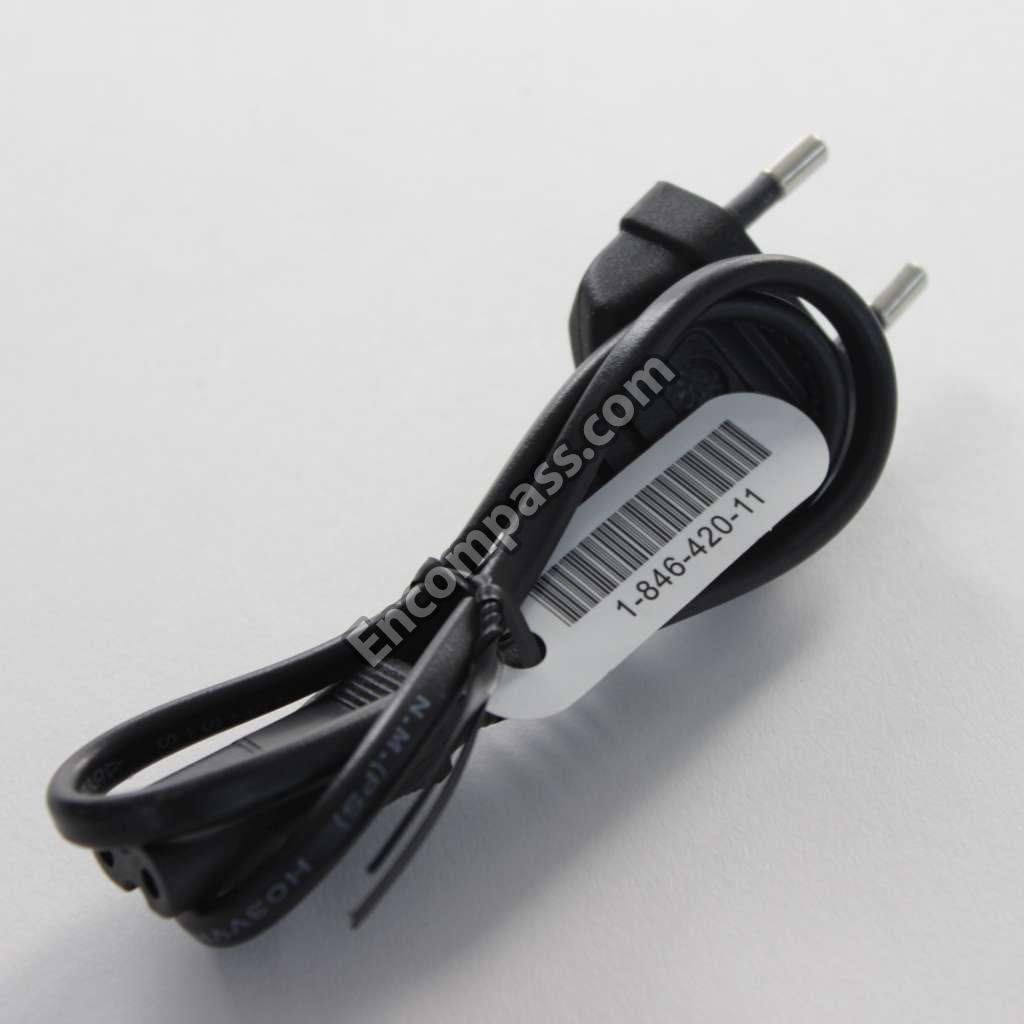

1-837-421-14 1-837-421-14 POWER CORD (MAINS LEAD) (UC)
1-846-420-11 1-846-420-11 POWER CORD (MAINS LEAD) (UC)
1-846-425-13 1-846-425-13 POWER CORD (MAINS LEAD) (US, CND) (UC)
5-003-893-01 5-003-893-01 REAR BUTTON PLATE L (88100) (UC)
5-003-894-01 5-003-894-01 REAR BUTTON PLATE R (88100) (UC)
A-5032-248-A A-5032-248-A REAR COVER B-ASSY (SERVICE_881) (UC)
5-005-093-01 5-005-093-01 REAR EV WP CUSHION (88100) (UC)
A-5013-737-A A-5013-737-A REAR FPC RETAINER (SERVICE881) (UC)
5-006-078-01 5-006-078-01 REAR FRONT WP CUSHION (88100) (UC)
5-003-903-01 5-003-903-01 REAR PLATE (88100) (UC)
5-003-886-01 5-003-886-01 REC BUTTON (88100) (UC)
5-003-890-01 5-003-890-01 REC FN RUBBER (88100) (UC)
A-5008-309-C A-5008-309-C RECHARGEABLE BATTERY PACK (NP-FZ100-UC) (UC)
A-5010-650-A A-5010-650-A RL BLOCK ASSY (SERVICE) (88100) (UC)
4-729-644-01 4-729-644-01 RS PROTECTION SHEET (62200) (UC)
A-5010-653-A A-5010-653-A RS-1015 B-ASSY (SERVICE) (88100) (UC)
A-5029-736-A A-5029-736-A RS-1020 B-ASSY (SERVICE) (88900) (UC)
4-692-236-01 4-692-236-01 RUBBER (799), MICROPHONE (UC)
4-287-435-11 4-287-435-11 SCREW (M1.4 EUROPE) TYPE (L = 1.4 MM) (UC)
3-091-481-31 3-091-481-31 SCREW (M1.7 X 4.0) (UC)
2-599-475-01 2-599-475-01 SCREW (M1.7) (L = 2.0 MM) (UC)
4-446-949-31 4-446-949-31 SCREW (M1.7) (L = 2.5 MM) (UC)
2-635-562-11 2-635-562-11 SCREW (M1.7) (L = 2.5 MM) (UC)
2-599-475-21 2-599-475-21 SCREW (M1.7) (L = 3.0 MM) (UC)
4-446-949-01 4-446-949-01 SCREW (M1.7) (L = 4.0 MM) (UC)
2-599-475-41 2-599-475-41 SCREW (M1.7) (L = 5.0 MM) (UC)
5-002-947-11 5-002-947-11 SCREW (M1.7) SPECIAL HEAD (L = 3.3 MM) (UC)
2-187-345-21 2-187-345-21 SCREW (M1.7), P2 (L = 2.5 MM) (UC)
2-630-005-31 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (L = 4.0 MM) (UC)
2-630-005-01 2-630-005-01 SCREW (M2), NEW TRUSTER, P2 (L = 5.0 MM) (UC)
4-692-632-01 4-692-632-01 SCREW, 0+P1 M2X6 (SPIN) (UC)
4-186-545-11 4-186-545-11 SCREW, 0+Z M1.7 SG (SPIN) (L = 5.5 MM) (UC)
A-5010-485-A A-5010-485-A SERVICE OPTFLTRBLK (OFB-01-122) (UC)
A-5012-098-B A-5012-098-B SERVICE, DEVICE UNIT (5600) (NOTE 1) (UC)
A-2185-509-A A-2185-509-A SERVICE, TERMINAL UNIT SOLDER (SYNCHRONISE TERMINAL UNIT) (UC)
5-003-863-01 5-003-863-01 SH FPC BASE (88100) (UC)
A-5001-909-A A-5001-909-A SH-1024 FLEXIBLE BOARD, COMPLETE (UC)
4-576-761-02 4-576-761-02 SHEET (5100), SPACER (UC)
4-692-520-11 4-692-520-11 SHEET (799), FPC GUIDE (UC)
4-692-102-11 4-692-102-11 SHEET (RE (799)), SY RADIATION (UC)
5-008-063-01 5-008-063-01 SHEET CHG FPC PROTECT (88100) (UC)
5-003-923-01 5-003-923-01 SHEET LCD FPC ADHESIVE (88100) (UC)
4-575-818-11 4-575-818-11 SHEET, VF FLEXIBLE ADHESIVE (UC)
4-438-734-03 4-438-734-03 SHOE CAP (875) (UC)
5-010-977-05 5-010-977-05 SHOULDER STRAP (UC)
1-493-061-14 1-493-061-14 SHUTTER UNIT (AFE-3379) (UC)
X-5000-260-4 X-5000-260-4 SIDE CABINET ASSY (88100) (UC)
1-251-928-21 1-251-928-21 SOCKET, BATTERY (NOTE) (UC)
5-004-630-01 5-004-630-01 SP HARNESS GUIDE SHEET (88100) (UC)
5-004-631-01 5-004-631-01 SP INSULATION SHEET (88100) (UC)
5-003-736-01 5-003-736-01 SPEAKER GND SHEET (88100) (UC)
4-178-124-01 4-178-124-01 SPECIAL (M1.4 (D2.75)) (L = 2.0 MM) (UC)
A-5001-913-A A-5001-913-A SW-1033 FLEXIBLE BOARD, COMPLETE (UC)
1-001-891-41 1-001-891-41 SWITCH BLOCK, CONTROL (BK88100) (UC)
1-001-892-12 1-001-892-12 SWITCH BLOCK, CONTROL (EV88100) (UC)
1-002-038-12 1-002-038-12 SWITCH BLOCK, CONTROL (RL88100) (UC)
X-5000-255-1 X-5000-255-1 SY MAIN FRAME ASSY (88100) (UC)
A-5009-424-A A-5009-424-A SY-1098 BOARD, COMPLETE (SERVICE) (UC)

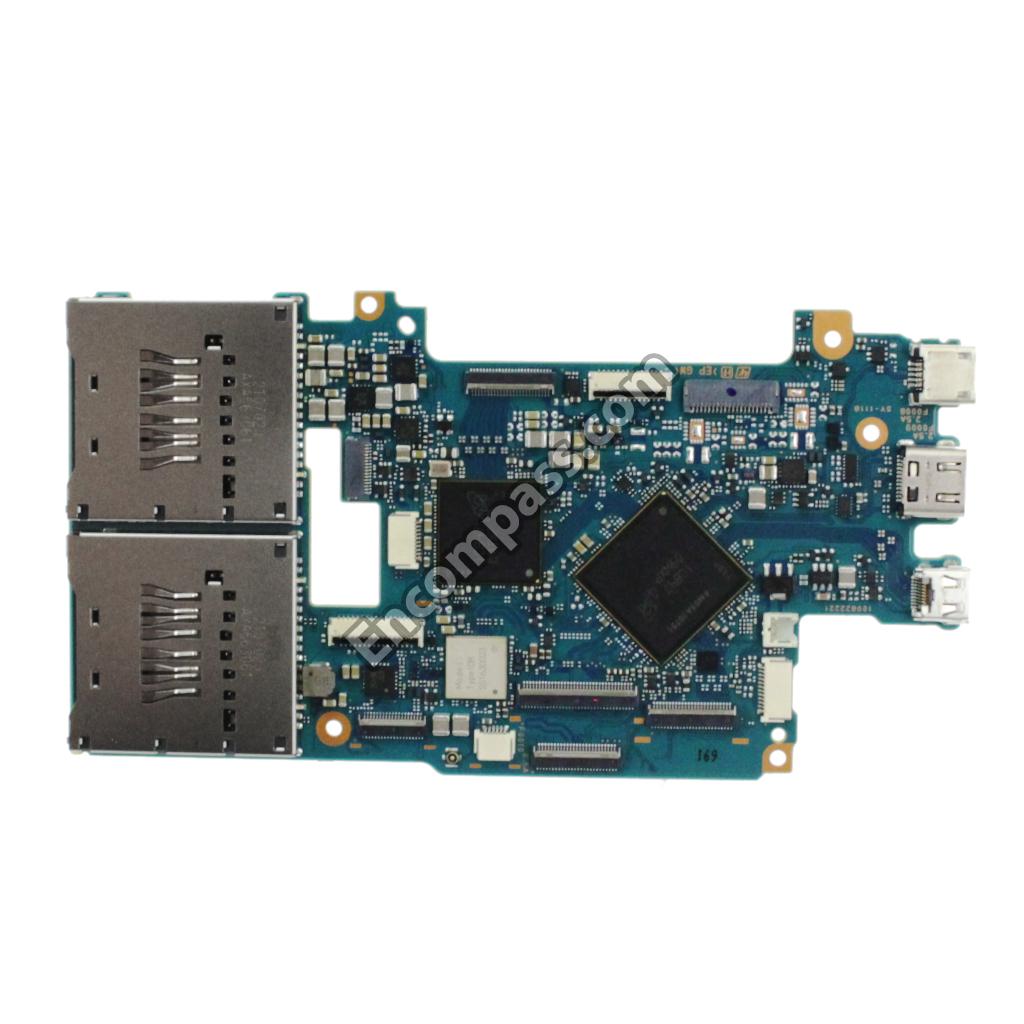

A-5028-417-B A-5028-417-B SY-1118 BOARD, COMPLETE (SERVICE) (UC)
5-003-734-01 5-003-734-01 SYNC GND PLATE (88100) (UC)
5-003-731-01 5-003-731-01 SYNC HARNESS SHEET (88100) (UC)
5-003-732-01 5-003-732-01 SYNC HOLDER (88100) (UC)
4-274-987-01 4-274-987-01 TAPE (AS 1/2) (C) (UC)
4-300-113-11 4-300-113-11 TAPPING (1.7) (CH) (L = 4.0 MM) (UC)
A-2166-305-A A-2166-305-A TEX-5300 (UC)
5-003-853-01 5-003-853-01 TOP CONNECT PLATE L (88100) (UC)
5-003-855-01 5-003-855-01 TOP CONNECT REAR PLATE (88100) (UC)
A-5010-648-B A-5010-648-B TOP COVER B-ASSY (SERVICE_881) (UC)
5-009-467-01 5-009-467-01 TOP WP CUSHION F6 (88100) (UC)
5-009-468-01 5-009-468-01 TOP WP CUSHION R6 (88100) (UC)
1-011-894-31 1-011-894-31 USB TYPE-C CABLE (UC)
4-729-500-01 4-729-500-01 VF BLIND SHEET (62000) (UC)
A-5013-324-A A-5013-324-A VF BLOCK ASSY (SERVICE) (88100) (UC)
4-575-780-01 4-575-780-01 VF SHEET, RADIATION (795) (UC)
5-003-712-01 5-003-712-01 VG FPC FIX PLATE (88100) (UC)
A-5001-907-A A-5001-907-A VG-1007 FLEXIBLE BOARD, COMPLETE (UC)
5-007-084-01 5-007-084-01 WP CUSHION NFC (88100) (UC)
Main Menu x
