Model Image
Manufacturer

Sony

Model Number

KD43X705G

Description

43-inch Led, 4k Ultra Hd, High Dynamic Range (hdr)

Interactive Exploded View

Parts List

Part Number Description
4-744-641-02 4-744-641-02 BEZEL (SM NCS) A (BR6) (PANEL PART) (BLACK)
4-744-641-12 4-744-641-12 BEZEL (SM NCS) A (BR6) (PANEL PART) (SILVER)
1-910-805-82 1-910-805-82 CONNECTOR ASSY 15P (BR6) (PANEL PART)
4-692-608-11 4-692-608-11 CUSHION, HS (BR6) (PANEL PART)
4-746-362-01 4-746-362-01 DIFFUSER SHEET (SM) (BR6) (PANEL PART)
1-849-850-21 1-849-850-21 FLEXIBLE FLAT CABLE 60P (BR6) (PANEL PART) (BM10)
1-849-851-21 1-849-851-21 FLEXIBLE FLAT CABLE 60P (BR6) (PANEL PART) (BM11)
A-5000-502-A A-5000-502-A HEAT SPREADER (SERVICE)43SN/SG (BR6) (PANEL PART)
4-596-360-01 4-596-360-01 LGP STOPPER L (BR6) (PANEL PART)
4-596-361-01 4-596-361-01 LGP STOPPER R (BR6) (PANEL PART)
4-746-361-01 4-746-361-01 LIGHT GUIDE PLATE (SM) (BR6) (PANEL PART)
1-001-518-11 1-001-518-11 LIQUID CRYSTAL ELEMENT(L430EQY (BR6) (PANEL PART)
4-595-680-31 4-595-680-31 MIDDLE CHASSIS BT (SM F) A (BR6) (PANEL PART)
4-595-679-11 4-595-679-11 MIDDLE CHASSIS L (SM F) A (BR6) (PANEL PART)
4-595-679-03 4-595-679-03 MIDDLE CHASSIS L (SM F) A (BR6) (PANEL PART)
4-595-678-11 4-595-678-11 MIDDLE CHASSIS R (SM F) A (BR6) (PANEL PART)
4-595-678-03 4-595-678-03 MIDDLE CHASSIS R (SM F) A (BR6) (PANEL PART)
4-595-677-11 4-595-677-11 MIDDLE CHASSIS TP (SM F) A (BR6) (PANEL PART)
4-595-677-04 4-595-677-04 MIDDLE CHASSIS TP (SM F) A (BR6) (PANEL PART)

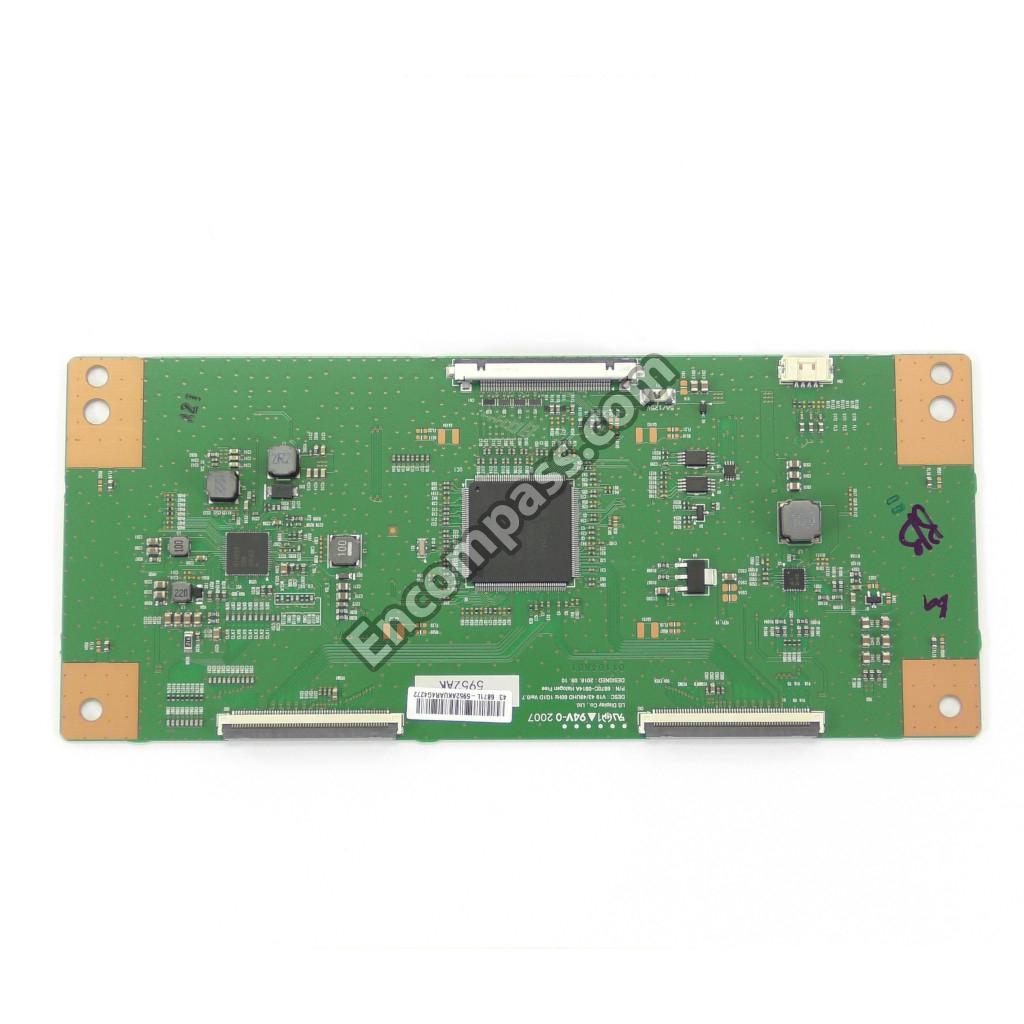

1-001-519-11 1-001-519-11 MOUNTED PWB E-T-CON (43) (BR6) (PANEL PART)
1-897-343-11 1-897-343-11 MOUNTED PWB LS BAR (43) (BR6) (PANEL PART)
4-595-767-11 4-595-767-11 PANEL REAR COVER (SM) (BR6) (PANEL PART) (BM10)
4-595-767-01 4-595-767-01 PANEL REAR COVER (SM) (BR6) (PANEL PART) (BM11)
5-009-634-01 5-009-634-01 POLARIZER F/CF (6308L-8893A) (BR6) (PANEL PART)
5-009-635-01 5-009-635-01 POLARIZER R/TFT (6308L-8894A) (BR6) (PANEL PART)
4-746-365-01 4-746-365-01 PRISM H SHEET (SM) (BR6) (PANEL PART)
4-746-364-11 4-746-364-11 REFLECTIVE POLARIZER (SM) (BR6) (PANEL PART)
4-746-364-01 4-746-364-01 REFLECTIVE POLARIZER (SM) (BR6) (PANEL PART)
4-746-363-01 4-746-363-01 REFLECTIVE SHEET (SM) (BR6) (PANEL PART)

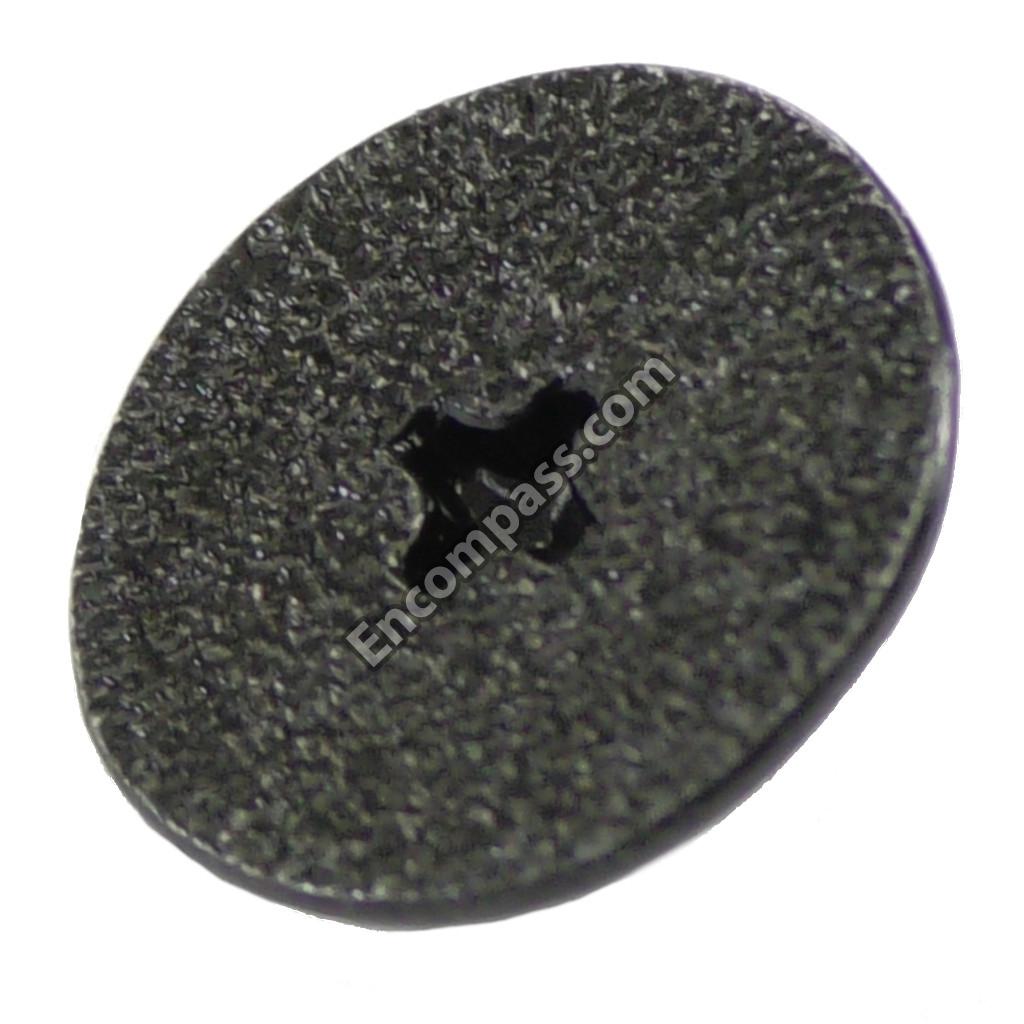

4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (BR6) (PANEL PART)
4-595-770-01 4-595-770-01 SCREW, STEP M3X2.1 (BR6) (PANEL PART)
5-001-758-01 5-001-758-01 SHEET, SHADING (SM) FOLDED (BR6) (PANEL PART)
4-457-451-11 4-457-451-11 SHEET, THERMAL (BAF) (BR6) (PANEL PART)
4-549-186-02 4-549-186-02 SHEET, THERMAL(BM) (BR6) (PANEL PART)
4-699-975-01 4-699-975-01 SHEET,THERMAL(5567H) (BR6) (PANEL PART)
1-897-333-11 1-897-333-11 SOURCE DRIVER IC MT BOARD (0ISWL-0379B) (BR6) (PANEL PART)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK (BR6) (PANEL PART)
4-689-320-01 4-689-320-01 TAPE, OPT HOOK (BR6) (PANEL PART)
4-684-187-01 4-684-187-01 TAPE, SEALING BC (BR6) (PANEL PART)
