Manufacturer
Sony
Model Number
KD43X80J
Description
43-inch Class 4k Ultra Hd (hdr) Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
(MAIN CBA) COMPL_BM5A_APH_UCM (UCM) |
|
|

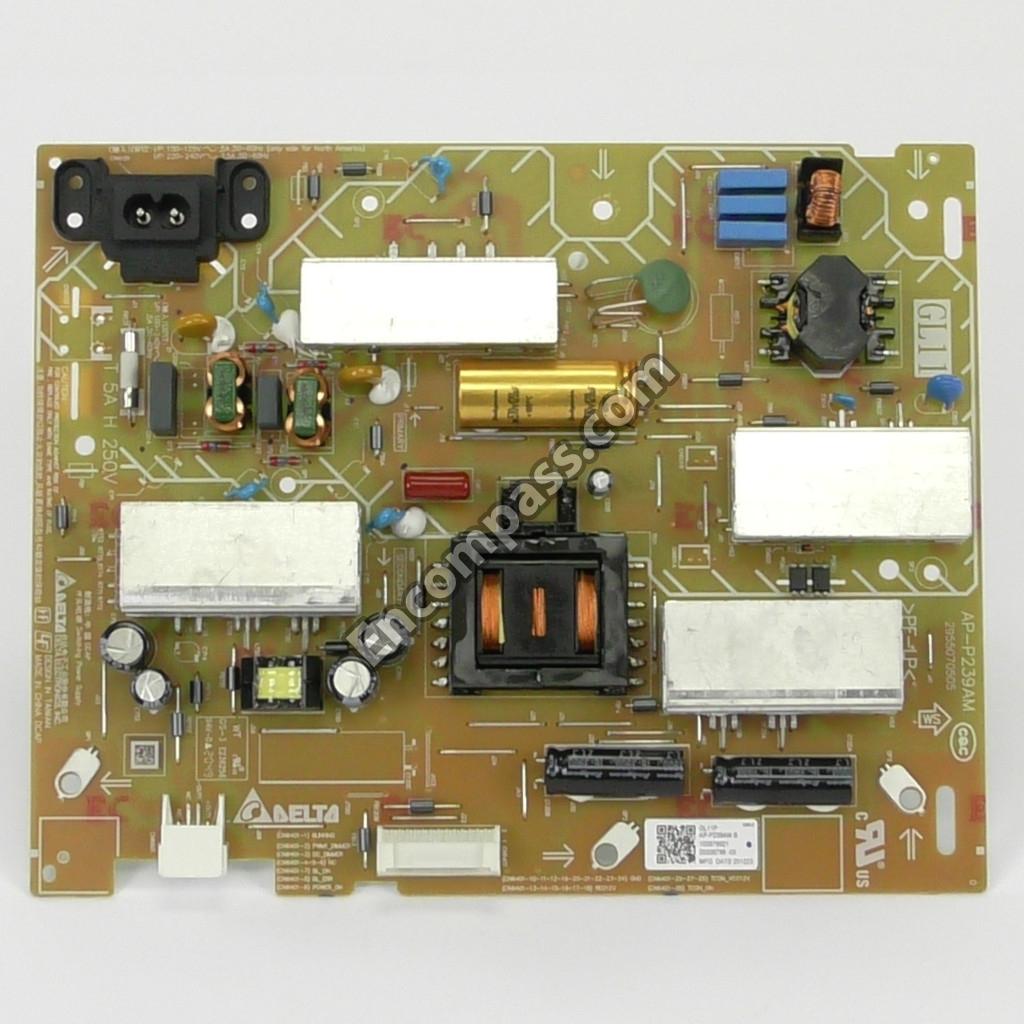

(POWER CBA) GL11-STATIC CONVERTER (TV) (UCM) |
|
|
BAG, CL ASSY (SM LYX) (UCM) |
|
|
BAG,PROTECTION PEHD(1200X900) (UCM) |
|
|
BEZEL ASSY (SM PHN) (UCM) |
|
|
BEZEL ASSY (SM PHN) (UCM) |
|
|
BEZEL ASSY (SM PHN) (UCM) (PANEL PART) |
|
|
BEZEL ASSY (SM PHN) (UCM) (PANEL PART) |
|
|
BRACKET, SIDE(BNN) A (UCM) |
|
|
BRACKET, SIDE(BNN) A. (UCM) |
|
|
BRACKET, WIFI(BNN) (UCM) |
|
|
BRACKET, WIFI(BNN) (UCM) |
|
|
C7L AC POWER CODE SETS (US) (UCM) |
|
|
CONNECTOR ASSY 30P (UCM) |
|
|
CONNECTOR ASSY 4P (SP) (UCM) |
|
|
COVER, BTM(SM PHN) A (UCM) |
|
|
COVER, TOP(COM) (UCM) |
|
|
COVER, TOP(COM) (UCM) |
|
|
DIFFUSER PLATE (PHN SM) (UCM) (PANEL PART) |
|
|

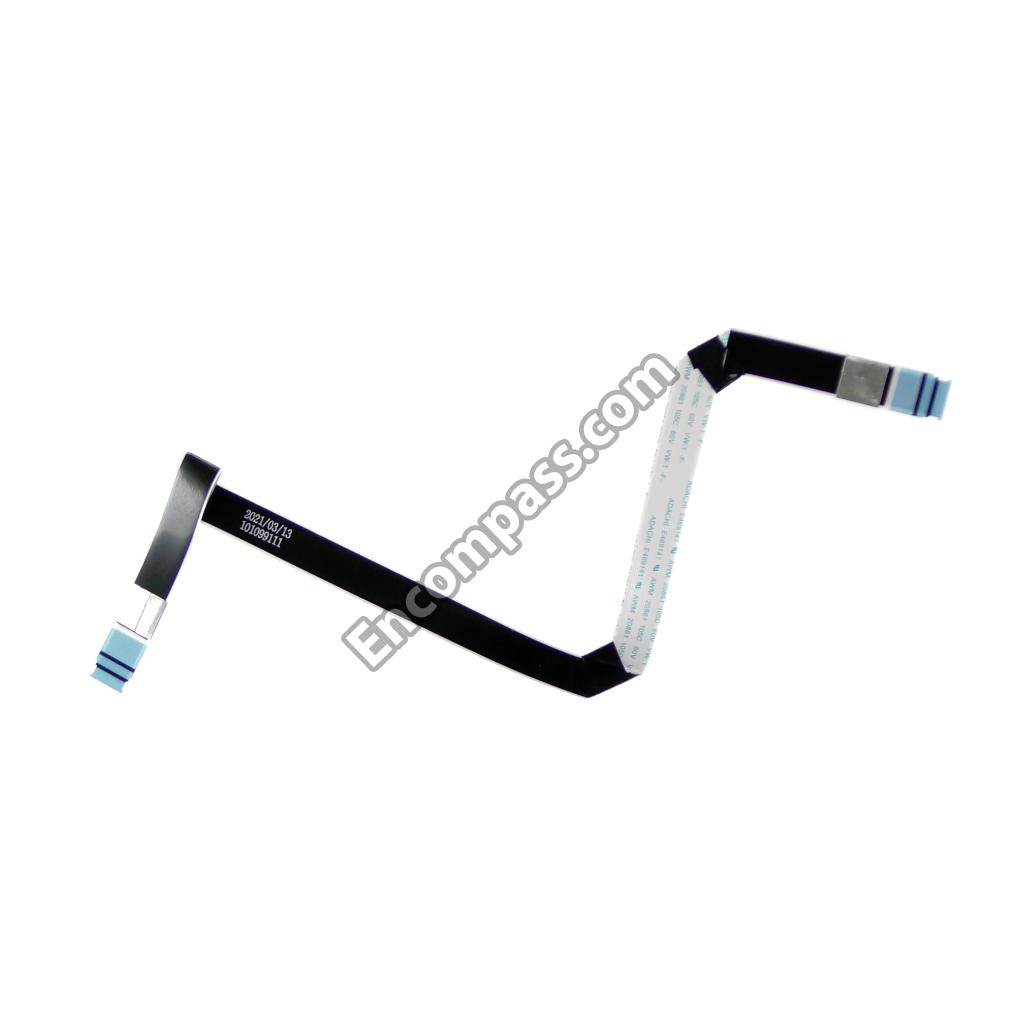

FLEXIBLE FLAT CABLE 20P (UCM) |
|
|
FLEXIBLE FLAT CABLE 20P (UCM) |
|
|
FLEXIBLE FLAT CABLE 25P (UCM) |
|
|
FLEXIBLE FLAT CABLE 25P (UCM) |
|
|
FLEXIBLE FLAT CABLE 51P (UCM) |
|
|
FLEXIBLE FLAT CABLE 51P (UCM) |
|
|
FLEXIBLE FLAT CABLE 68P (UCM) (PANEL PART) |
|
|
FLEXIBLE FLAT CABLE 68P (UCM) (PANEL PART) |
|
|
FORMING REF. SHEET (PHN SM) (UCM) (PANEL PART) |
|
|
GASKET SB (AL TYPE) (UCM) (PANEL PART) |
|
|
GL11P-STATIC CONVERTER (TV) (UCM) |
|
|
HT2_WW_CT_PR MOUNT (UCM) |
|
|
HT2_WW_EV_PR MOUNT (UCM) |
|
|
LABEL, SIDE TERMINAL (PHN) (UCM) |
|
|
LIQUID CRYSTAL ELEMENT(B430QUB (UCM) |
|
|
MID CHASSIS BT ASSY (SM PHN) (UCM) (PANEL PART) |
|
|
MID CHASSIS BT ASSY (SM PHN) (UCM) (PANEL PART) |
|
|
MID CHASSIS SIDE ASSY (SM PHN) (UCM) (PANEL PART) |
|
|
MID CHASSIS SIDE ASSY (SM PHN) (UCM) (PANEL PART) |
|
|
MID CHASSIS TP ASSY (SM PHN) (UCM) (PANEL PART) |
|
|
MID CHASSIS TP ASSY (SM PHN) (UCM) (PANEL PART) |
|
|

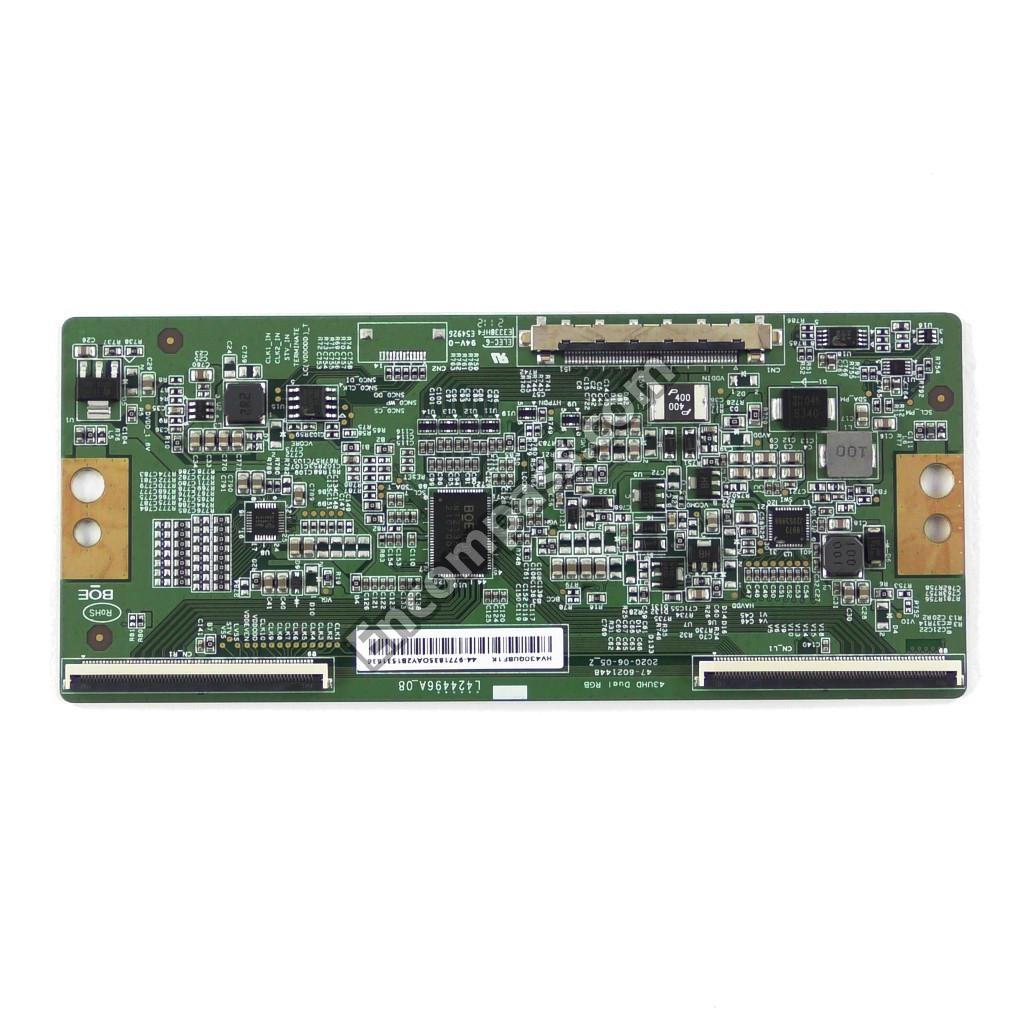

MOUNTED PWB E-T-CON (43) (44-9771835) (UCM) (PANEL PART) |
|
|
MOUNTED PWB LS BAR (PHN SM) (UCM) |
|
|
P-MOD (YSBM043CNO11) (UCM) |
|
|
P-MOD(YSBM043CNO01)SVC (UCM) |
|
|
POLARIZER F/CF (38-1005190) (UCM) (PANEL PART) |
|
|
POLARIZER R/TFT (38-1007144) (UCM) (PANEL PART) |
|
|
POWER-SUPPLY CORD SET (UCM) |
|
|
PRISM ON PRISM SHEET (PHN SM) (UCM) (PANEL PART) |
|
|
RADIATOR ADHESIVE (SV380C) (UCM) |
|
|
REAR COVER ASSY (SM PHN) (UCM) |
|
|
REFERENCE GUIDE (UCM) |
|
|
REFLECTIVE POLARIZER (PHN SM) (UCM) (PANEL PART) |
|
|
REMOTE COMMANDER (RMF-TX520U) (UCM) |
|
|
SCREW, +PSW M3X6 (UCM) (PANEL PART) |
|
|
SCREW, +PSW M3X8 (UCM) |
|
|
SCREW, +PSW M5X14 (UCM) |
|
|
SETUP GUIDE (UCM) |
|
|
SHEET, INSULATION (SM PHN) A (UCM) |
|
|
SHEET, INSULATION (SM PHN) A (UCM) |
|
|
SHEET, THERMAL(BAF) (UCM) |
|
|
SHEET, THERMAL(BM) (UCM) (PANEL PART) |
|
|
SOURCE DRIVER IC MT BOARD (47-7011913) (UCM) (PANEL PART) |
|
|
SP-BOX ASSY,FY21 W30 ONE BOX (UCM) |
|
|

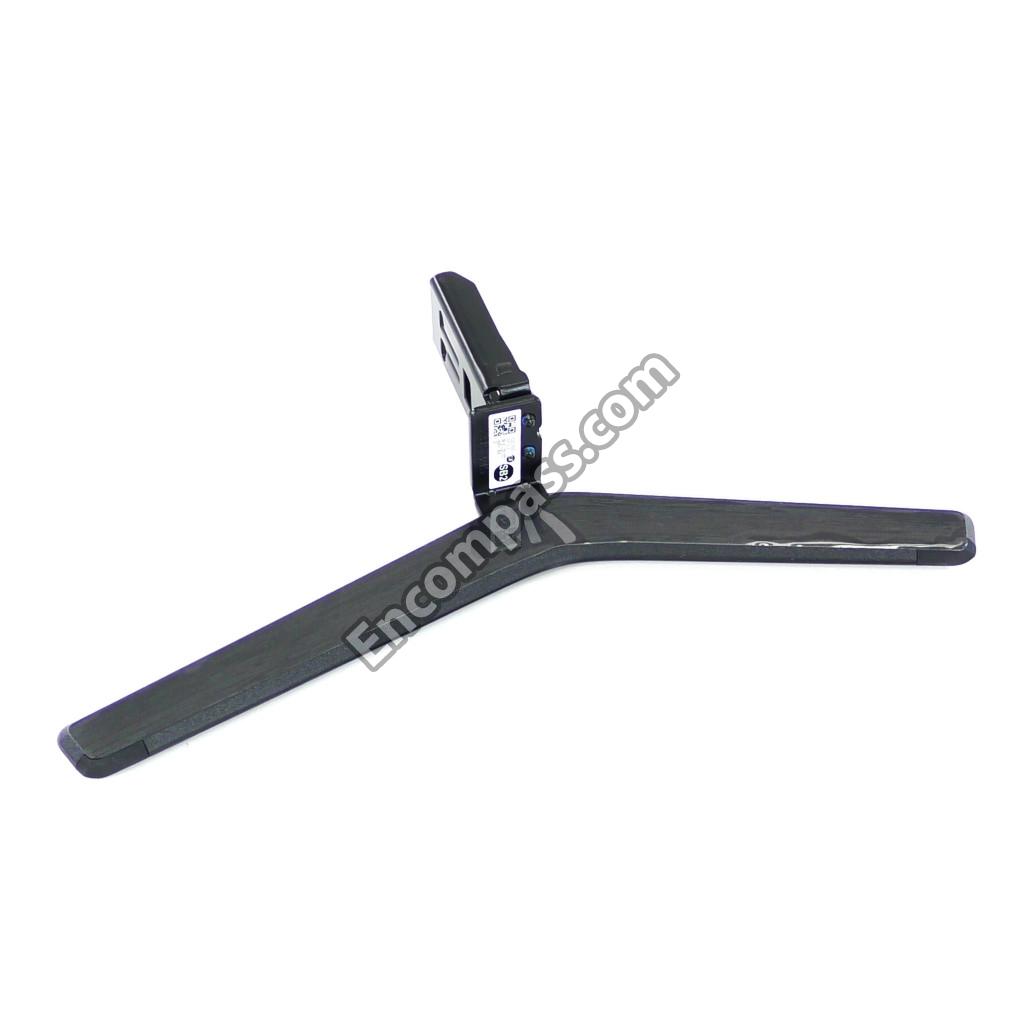

STAND, L (SM LYX) A (UCM) |
|
|
STAND, R (SM LYX) A (UCM) |
|
|
VESA SPACER S A (COM) (UCM) |
|
|
WLAN/BT MODULE (11AC) (UCM) |
|
|
WLAN/BT MODULE(11AC) DHUR-SY63 (UCM) |
