Model Image
Manufacturer

Sony

Model Number

KD49X727E

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
A-2183-104-A A-2183-104-A (MAIN CBA) COMPL_SVC_BB8_COL_ADP (CO1)
1-493-004-44 1-493-004-44 AC ADAPTOR (120W) (CO1)
1-493-298-12 1-493-298-12 AC ADAPTOR (160W) ACDP-160D02 (CO1)

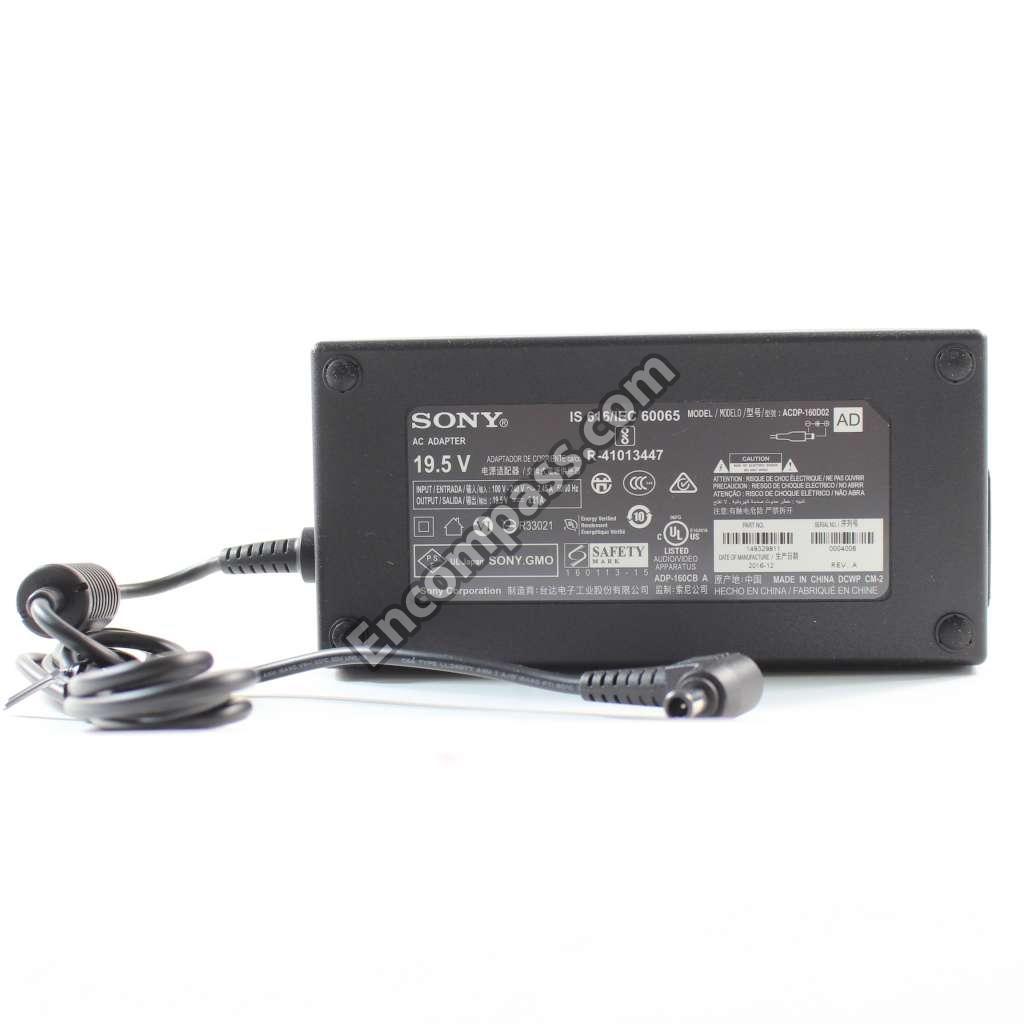

1-493-298-11 1-493-298-11 ACDP-160D02 (CO1)
4-596-469-01 4-596-469-01 BEZEL (M CPN) A (BLACK) (PANEL PART) (CO1)
4-596-469-11 4-596-469-11 BEZEL (M CPN) A (SILVER) (PANEL PART) (CO1)
4-690-594-51 4-690-594-51 BRACKET, SIDE (FRE) (CO1)
4-595-951-41 4-595-951-41 BRACKET, UNDER (FRE) (CO1)
1-458-959-13 1-458-959-13 CARD, WIRELESS LAN (CO1)
4-262-708-03 4-262-708-03 CLAMPER, CABLE (CO1)
1-910-805-85 1-910-805-85 CONNECTOR ASSY 15P (CO1)
1-910-806-12 1-910-806-12 CONNECTOR ASSY 30P (CO1)

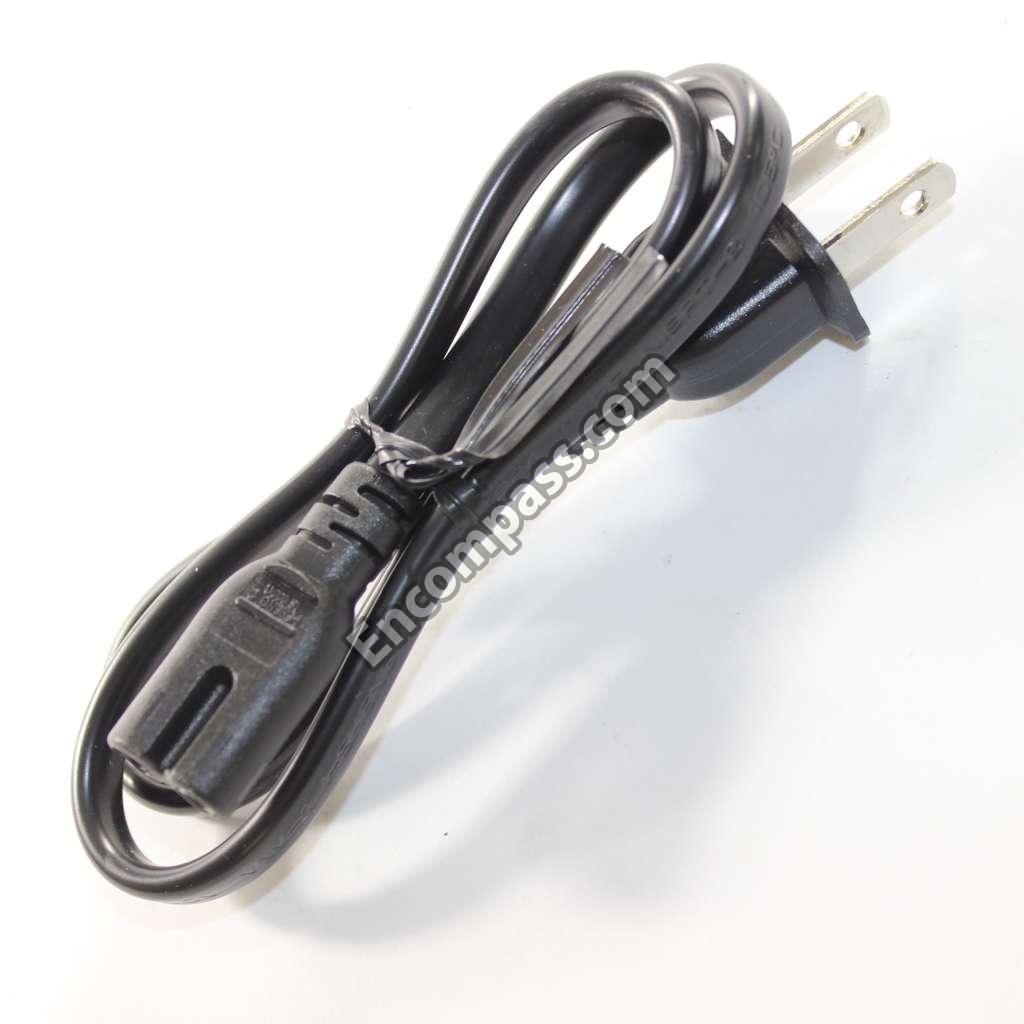

1-838-955-41 1-838-955-41 CORD SET, POWER-SUPPLY (CO1)
4-692-608-21 4-692-608-21 CUSHION, HS (CO1)
4-686-917-02 4-686-917-02 DIFFUSER SHEET (M) (CO1)

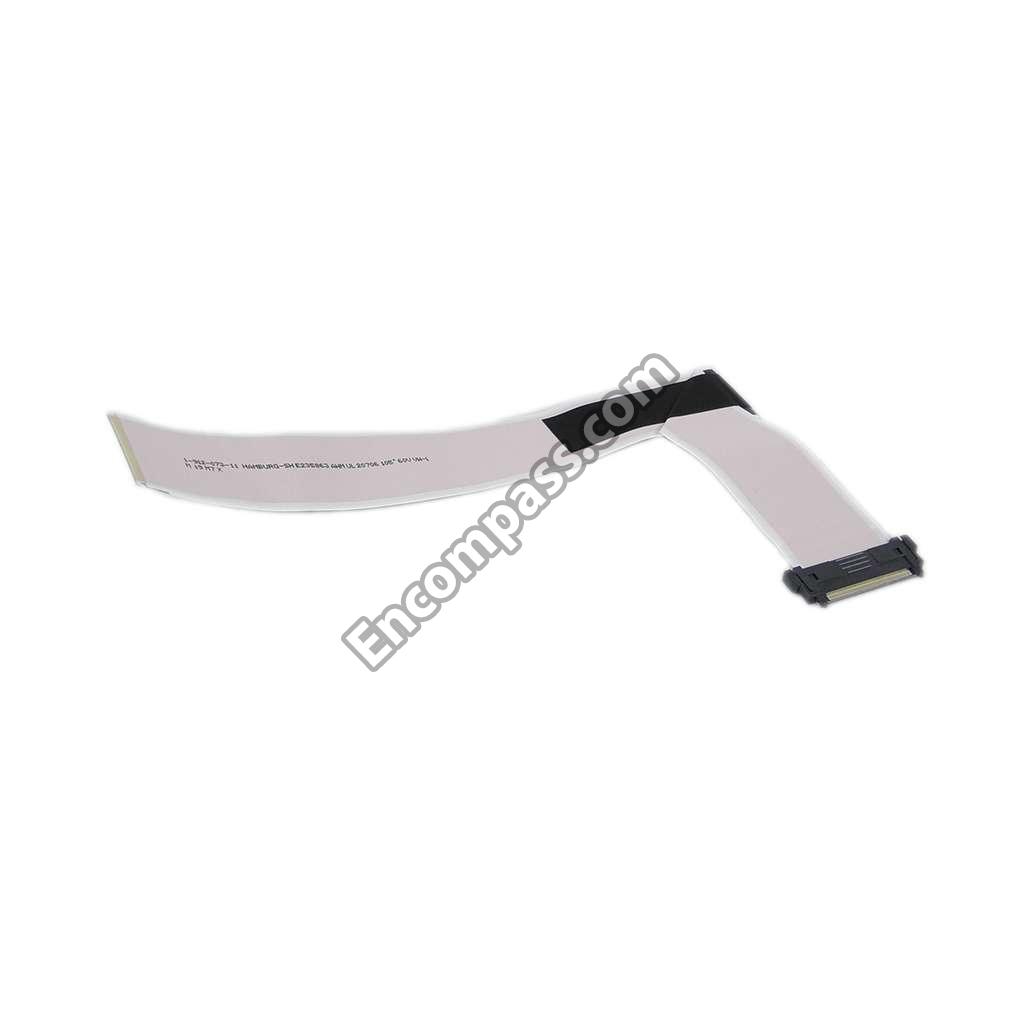

1-912-073-11 1-912-073-11 FLEXIBLE FLAT CABLE 51P (CO1)
1-912-085-11 1-912-085-11 FLEXIBLE FLAT CABLE 51P (CO1)
1-912-081-11 1-912-081-11 FLEXIBLE FLAT CABLE 5P (CO1)
1-912-078-11 1-912-078-11 FLEXIBLE FLAT CABLE 5P (CO1)
1-849-850-21 1-849-850-21 FLEXIBLE FLAT CABLE 60P (CO1)
1-849-851-21 1-849-851-21 FLEXIBLE FLAT CABLE 60P (CO1)
1-910-806-11 1-910-806-11 HARNESS ASSY (CO1)
A-2181-405-A A-2181-405-A HEAT SPREADER (SERVICE) 49KC (CO1)
4-595-715-21 4-595-715-21 LABEL, UNDER TERMINAL (CPN) (CO1)
4-596-360-01 4-596-360-01 LGP STOPPER L (CO1)
4-596-361-01 4-596-361-01 LGP STOPPER R (CO1)
4-595-703-01 4-595-703-01 LIGHT GUIDE PLATE (M MZT) (CO1)
4-595-703-02 4-595-703-02 LIGHT GUIDE PLATE (M) (PANEL PART) (CO1)
1-812-352-11 1-812-352-11 LIQUID CRYSTAL ELEMENT(L490EQY (PANEL PART) (CO1)

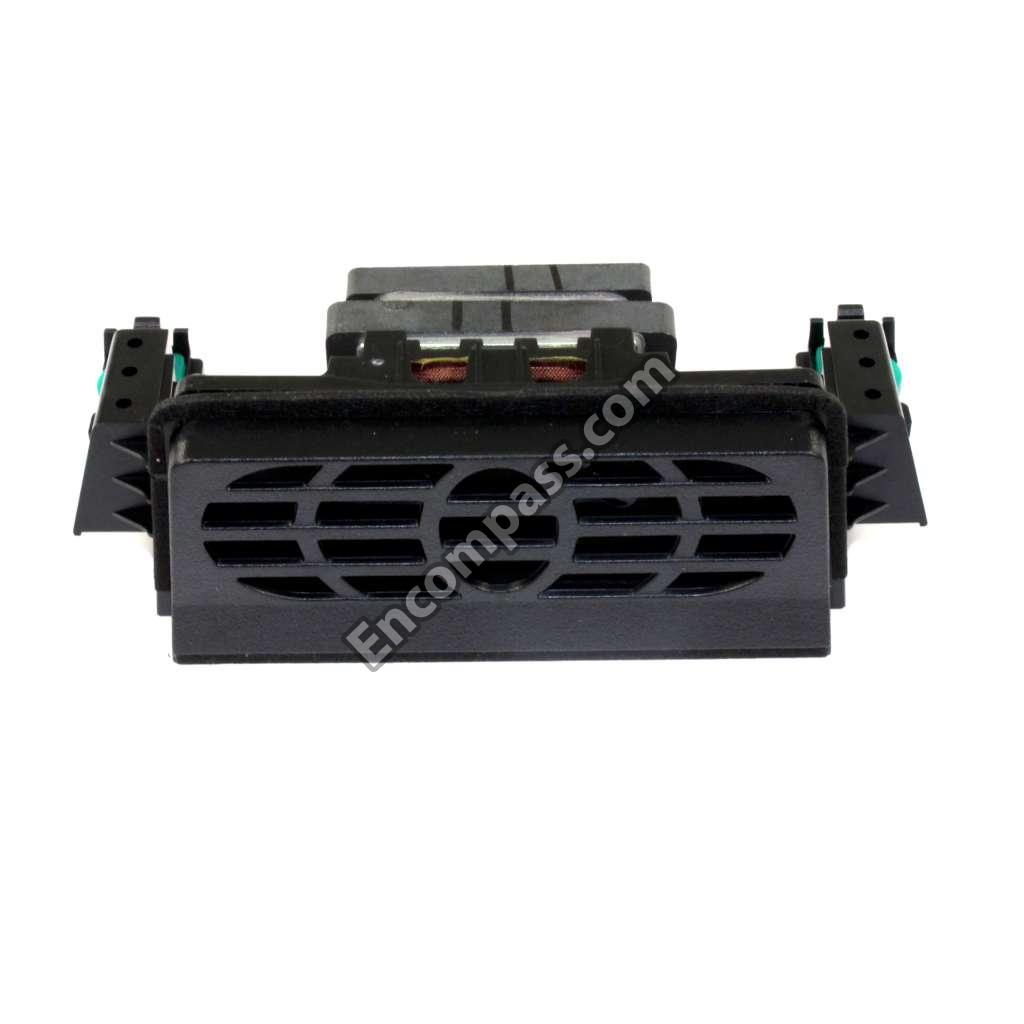

1-859-227-21 1-859-227-21 LOUD SPEAKER (FY17 4X10CM (B) ) (CO1)
4-595-688-03 4-595-688-03 MIDDLE CHASSIS BT (M F) A (CO1)
4-595-688-04 4-595-688-04 MIDDLE CHASSIS BT (M F) A (PANEL PART) (CO1)
4-595-687-01 4-595-687-01 MIDDLE CHASSIS L (M F) A (CO1)
4-595-687-02 4-595-687-02 MIDDLE CHASSIS L (M F) A (PANEL PART) (CO1)
4-595-686-01 4-595-686-01 MIDDLE CHASSIS R (M F) A (CO1)
4-595-686-02 4-595-686-02 MIDDLE CHASSIS R (M F) A (PANEL PART) (CO1)
4-595-685-01 4-595-685-01 MIDDLE CHASSIS TP (M F) A (CO1)
4-595-685-02 4-595-685-02 MIDDLE CHASSIS TP (M F) A (PANEL PART) (CO1)
1-897-134-11 1-897-134-11 MOUNTED PWB E-T-CON (49) (CO1)
A-2165-664-A A-2165-664-A P-MOD (YS7F490HNG0101) (CO1)
A-2180-814-A A-2180-814-A P-MOD (YS7S490HNG0101)(SERVICE (CO1)
4-596-444-11 4-596-444-11 PANEL REAR COVER (M) (PANEL PART) (CO1)
4-596-444-01 4-596-444-01 PANEL REAR COVER (M) (PANEL PART) (CO1)
4-696-866-01 4-696-866-01 POLARIZER F/CF (6308R-0097A) (PANEL PART) (CO1)
4-696-867-01 4-696-867-01 POLARIZER R/TFT (6308R-0098A) (PANEL PART) (CO1)

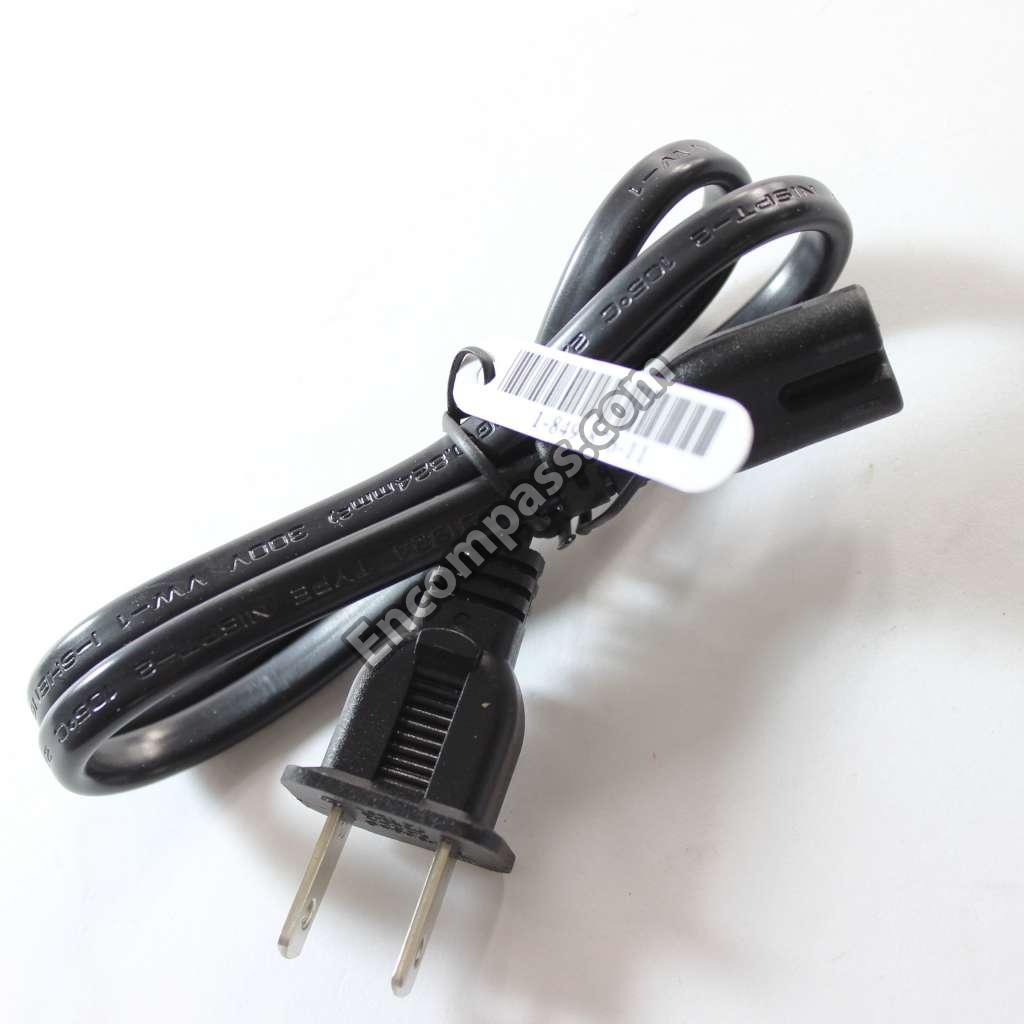

1-849-876-11 1-849-876-11 POWER-SUPPLY CORD SET (CO1)
4-596-286-01 4-596-286-01 PRISM H SHEET (M) (CO1)
4-596-286-02 4-596-286-02 PRISM H SHEET (M) (PANEL PART) (CO1)
4-696-413-21 4-696-413-21 REAR COVER (M CPN) A (CO1)
4-686-919-02 4-686-919-02 REFLECTIVE POLARIZER (M) (CO1)
4-698-540-01 4-698-540-01 REFLECTIVE SHEET (M MZT,CPN) (PANEL PART) (CO1)
1-493-313-11 1-493-313-11 REMOTE COMMANDER(RMT-TX300B) (CO1)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (PANEL PART) (CO1)
4-685-048-11 4-685-048-11 SHEET SHADING (M) (CO1)
4-567-100-02 4-567-100-02 SHEET, THERMAL T-CON (3L CRN) (CO1)
4-457-451-11 4-457-451-11 SHEET, THERMAL(BAF) (CO1)
4-549-186-02 4-549-186-02 SHEET, THERMAL(BM) (CO1)
4-699-975-01 4-699-975-01 SHEET,THERMAL(5567H) (PANEL PART) (CO1)
1-897-155-11 1-897-155-11 SOURCE DRIVER IC MT BOARD (0ISWL-0379A) (PANEL PART) (CO1)
A-2184-654-B A-2184-654-B SPRO LD1 BOARD KC 49 (CO1)
4-595-697-31 4-595-697-31 STAND BASE (M FRE) A, N (CO1)
1-474-647-41 1-474-647-41 SWITCH UNIT (3M-P-B3) (CO1)
1-474-676-12 1-474-676-12 SWITCH UNIT (3M-P-B3) (CO1)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK (PANEL PART) (CO1)
4-689-320-01 4-689-320-01 TAPE, OPT HOOK (CO1)
4-684-187-01 4-684-187-01 TAPE, SEALING BC (CO1)
8-594-325-00 8-594-325-00 UNIVERSAL SIL-TU SUT-DB251ZP (CO1)
