Model Image
Manufacturer

Sony

Model Number

KD49X750F

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-493-004-45 1-493-004-45 AC ADAPTOR (120W) (UC2,LA1)
4-728-004-01 4-728-004-01 BEZEL (M BCH) A (LA1)
4-726-502-01 4-726-502-01 BRACKET, SW (PPK) (UC2,LA1)
4-726-499-11 4-726-499-11 BRACKET, UNDER (PPK) (LA1)
4-726-499-21 4-726-499-21 BRACKET, UNDER (PPK) (UC2)
NSI NSI COMPL_SVC_BCX2_4K_MX (LA1)
A-2199-502-A A-2199-502-A COMPL_SVC_BCX2_4K_UC (UC2)
1-910-805-85 1-910-805-85 CONNECTOR ASSY 15P (UC2) (PANEL PART)
4-692-608-21 4-692-608-21 CUSHION, HS (UC2) (PANEL PART)
4-686-917-02 4-686-917-02 DIFFUSER SHEET (M) (UC2) (PANEL PART)
1-912-520-11 1-912-520-11 FLEXIBLE FLAT CABLE 41P (UC2,LA1)
1-912-615-11 1-912-615-11 FLEXIBLE FLAT CABLE 51P (UC2,LA1)
1-849-851-21 1-849-851-21 FLEXIBLE FLAT CABLE 60P (BM10) (UC2) (PANEL PART)
1-849-850-21 1-849-850-21 FLEXIBLE FLAT CABLE 60P (BM11) (UC2) (PANEL PART)
4-736-043-01 4-736-043-01 GASKET, TCON CH (UC2) (PANEL PART)
1-910-806-25 1-910-806-25 HARNESS ASSY (UC2,LA1)
A-2198-902-A A-2198-902-A HEAT SPREADER (SERVICE)49CH (UC2,LA1)
4-727-926-21 4-727-926-21 LABEL UNDER TERMINAL (PPK) (LA1)
4-727-926-11 4-727-926-11 LABEL UNDER TERMINAL (PPK) (UC2)
A-2199-999-A A-2199-999-A LDK2_CH_49 MOUNT (UC2,LA1)
4-596-360-01 4-596-360-01 LGP STOPPER L (UC2) (PANEL PART)
4-596-361-01 4-596-361-01 LGP STOPPER R (UC2) (PANEL PART)
4-595-703-02 4-595-703-02 LIGHT GUIDE PLATE (M) (BM10) (UC2) (PANEL PART)
4-595-703-11 4-595-703-11 LIGHT GUIDE PLATE (M) (BM11) (UC2) (PANEL PART)
1-812-413-11 1-812-413-11 LIQUID CRYSTAL ELEMENT(L490EQY (UC2) (PANEL PART)
1-812-413-21 1-812-413-21 LIQUID CRYSTAL ELEMENT(L490EQY (UC2) (PANEL PART)
4-595-688-06 4-595-688-06 MIDDLE CHASSIS BT (M F) A (UC2) (PANEL PART)
4-595-687-03 4-595-687-03 MIDDLE CHASSIS L (M F) A (UC2) (PANEL PART)
4-595-686-03 4-595-686-03 MIDDLE CHASSIS R (M F) A (UC2) (PANEL PART)
4-595-685-04 4-595-685-04 MIDDLE CHASSIS TP (M F) A (UC2) (PANEL PART)
1-897-274-12 1-897-274-12 MOUNTED PWB E-T-CON (49) (6871L-5461B) (UC2) (PANEL PART)
A-2198-887-A A-2198-887-A P-MOD (YM8S490HNG0101)(SERVICE (UC2,LA1)
4-596-444-11 4-596-444-11 PANEL REAR COVER (M) (BM10) (UC2) (PANEL PART)
4-596-444-01 4-596-444-01 PANEL REAR COVER (M) (BM11) (UC2) (PANEL PART)
4-690-643-01 4-690-643-01 PANEL REAR COVER (M) (UC2) (PANEL PART)
4-723-561-01 4-723-561-01 POLARIZER F/CF (6308L-7932A) (UC2) (PANEL PART)
4-747-338-01 4-747-338-01 POLARIZER F/CF (UC2)(6308L-7933A)(PANEL PART)
4-696-856-01 4-696-856-01 POLARIZER R/TFT (6308L-7644A) (UC2) (PANEL PART)
4-596-286-02 4-596-286-02 PRISM H SHEET (M) (UC2) (PANEL PART)
4-737-225-01 4-737-225-01 PRISM H SHEET (M) (UC2) (PANEL PART)
4-739-541-01 4-739-541-01 REAR COVER (M BCH) A (UC2,LA1)
4-686-919-02 4-686-919-02 REFLECTIVE POLARIZER (M) (UC2) (PANEL PART)
4-698-540-01 4-698-540-01 REFLECTIVE SHEET (M MZT,CPN) (BM10) (UC2) (PANEL PART)
4-737-224-03 4-737-224-03 REFLECTIVE SHEET (M PPK) (BM11) (UC2) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2) (PANEL PART)
4-595-770-01 4-595-770-01 SCREW, STEP M3X2.1 (UC2) (PANEL PART)
4-732-747-11 4-732-747-11 SETUP GUIDE (UC2,LA1)
4-685-048-21 4-685-048-21 SHEET SHADING (M) (UC2) (PANEL PART)
4-457-451-11 4-457-451-11 SHEET, THERMAL (BAF) (UC2) (PANEL PART)
4-733-008-01 4-733-008-01 SHEET, THERMAL (BCH TCON) (UC2) (PANEL PART)
4-728-619-01 4-728-619-01 SHEET, THERMAL (CCB) (UC2) (PANEL PART)
4-699-975-01 4-699-975-01 SHEET,THERMAL(5567H) (UC2) (PANEL PART)
1-897-317-11 1-897-317-11 SOURCE DRIVER IC MT BOARD (0ISWL-0466B) (UC2) (PANEL PART)

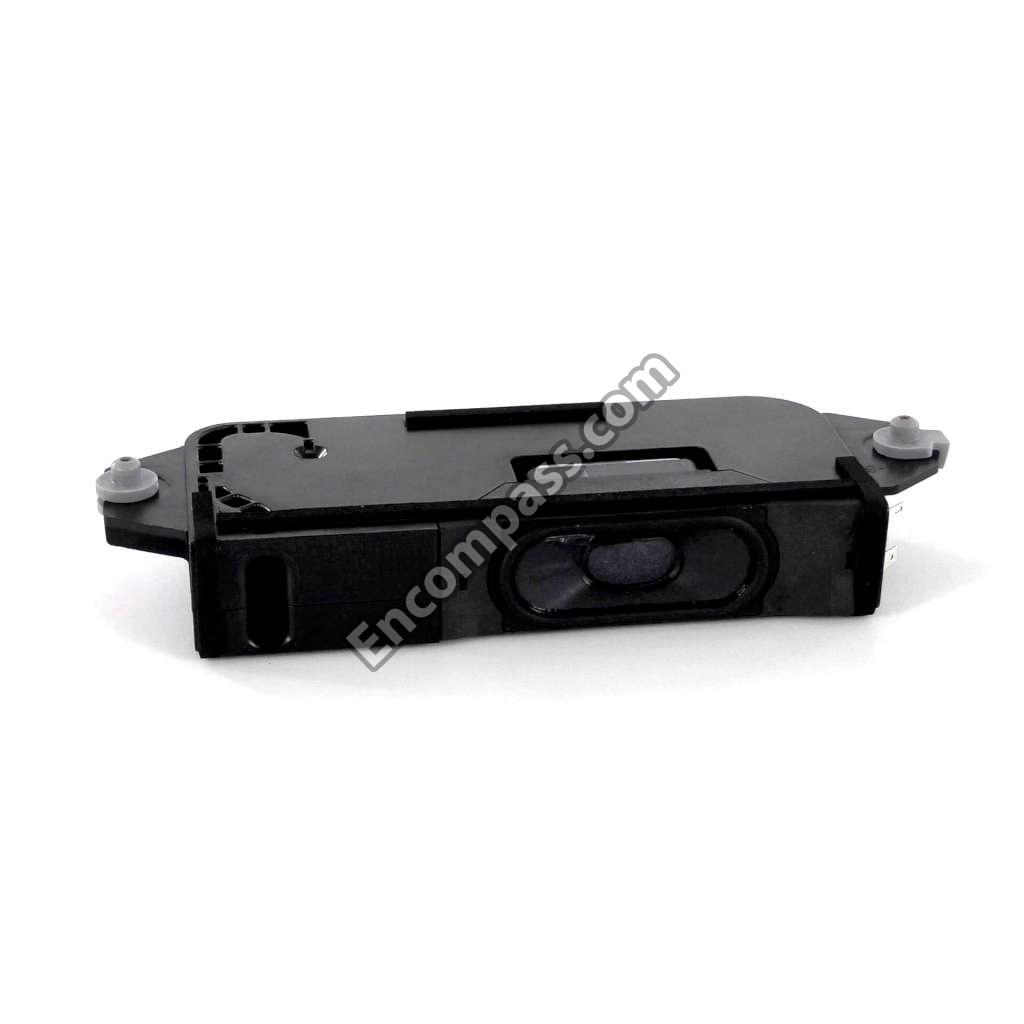

1-859-256-11 1-859-256-11 SP-BOX ASSY,FY18 W30SMALL-A (UC2,LA1)
1-859-256-21 1-859-256-21 SP-BOX ASSY,FY18 W30SMALL-B (UC2,LA1)
4-734-881-11 4-734-881-11 STAND L (M HRH) A (UC2,LA1)
4-734-882-11 4-734-882-11 STAND R (M HRH) A (UC2,LA1)
4-689-320-01 4-689-320-01 TAPE, OPT HOOK (UC2) (PANEL PART)
4-684-187-01 4-684-187-01 TAPE, SEALING BC (UC2) (PANEL PART)
