Model Image
Manufacturer

Sony

Model Number

KD50X80J

Description

50-inch Class 4k Ultra Hd (hdr) Smart Tv

Interactive Exploded View

Parts List

Part Number Description
5-022-201-11 5-022-201-11 BAG, CL ASSY (SM LYX) (UCM)
5-022-432-21 5-022-432-21 BEZEL ASSY (ML PHN) (UCM)
5-022-432-11 5-022-432-11 BEZEL ASSY (ML PHN) (UCM)
5-022-432-22 5-022-432-22 BEZEL ASSY (ML PHN) (UCM) (PANEL PART)
5-022-432-12 5-022-432-12 BEZEL ASSY (ML PHN) (UCM) (PANEL PART)
5-015-416-31 5-015-416-31 BRACKET, SIDE(BNN) A (UCM)
5-021-551-31 5-021-551-31 BRACKET, SIDE(BNN) A. (UCM)
5-009-258-11 5-009-258-11 BRACKET, WIFI(BNN) (UCM)
5-009-258-21 5-009-258-21 BRACKET, WIFI(BNN) (UCM)
1-005-642-11 1-005-642-11 C7L AC POWER CODE SETS (US) (UCM)

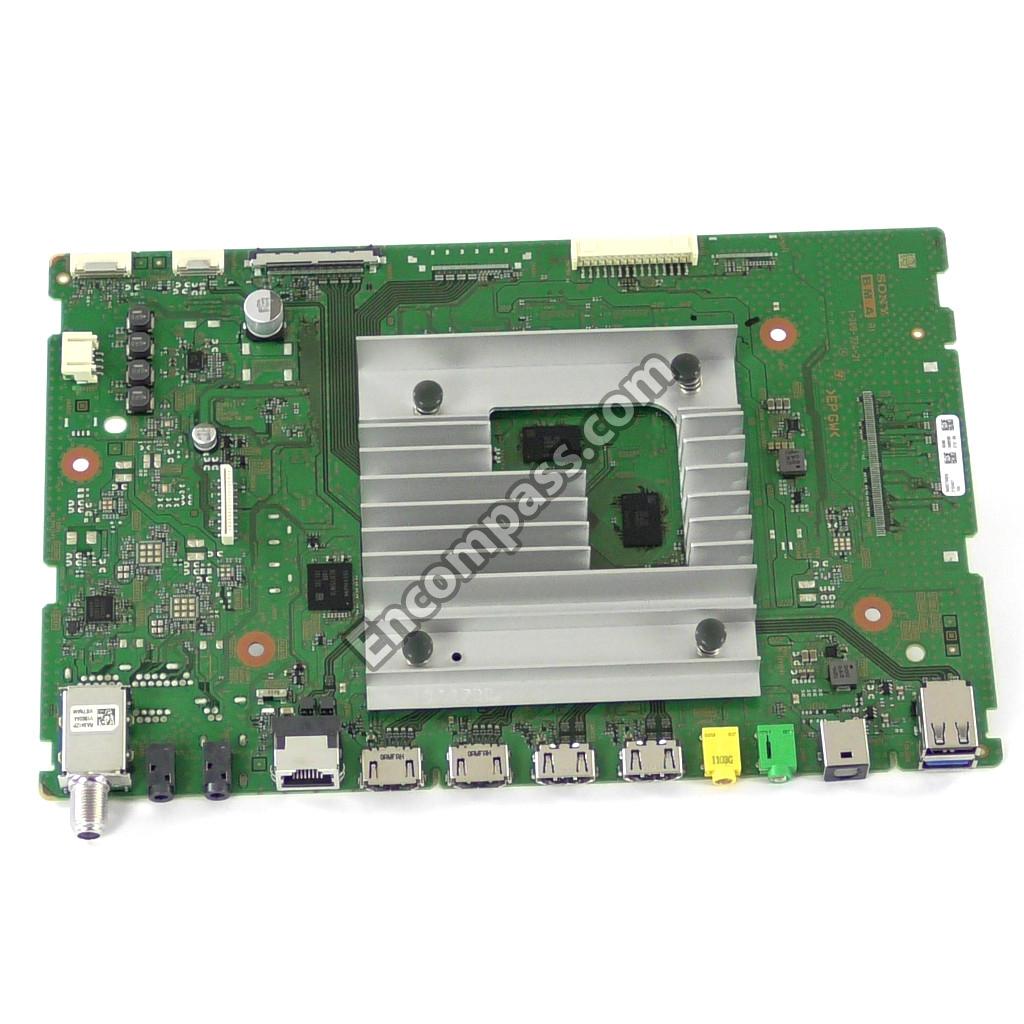

A-5027-342-A A-5027-342-A COMPL_BM5A_APH_UCM
1-011-001-11 1-011-001-11 CONNECTOR ASSY 30P (UCM)
1-010-989-12 1-010-989-12 CONNECTOR ASSY 4P (SP) (UCM)
5-025-951-11 5-025-951-11 COVER, BTM(SM PHN) A (UCM)
5-024-516-22 5-024-516-22 COVER, TOP(COM) (UCM)
5-023-069-23 5-023-069-23 COVER, TOP(COM) (UCM)
5-023-172-01 5-023-172-01 DIFFUSER PLATE (PHN M) (UCM) (PANEL PART)
1-011-003-11 1-011-003-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-011-002-11 1-011-002-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-011-005-11 1-011-005-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-011-004-11 1-011-004-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-011-007-11 1-011-007-11 FLEXIBLE FLAT CABLE 51P (UCM)
1-011-010-11 1-011-010-11 FLEXIBLE FLAT CABLE 60P (UCM) (PANEL PART)
1-011-009-11 1-011-009-11 FLEXIBLE FLAT CABLE 60P (UCM) (PANEL PART)
5-023-171-01 5-023-171-01 FORMING REF. SHEET (PHN M) (UCM) (PANEL PART)
4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (UCM) (PANEL PART)

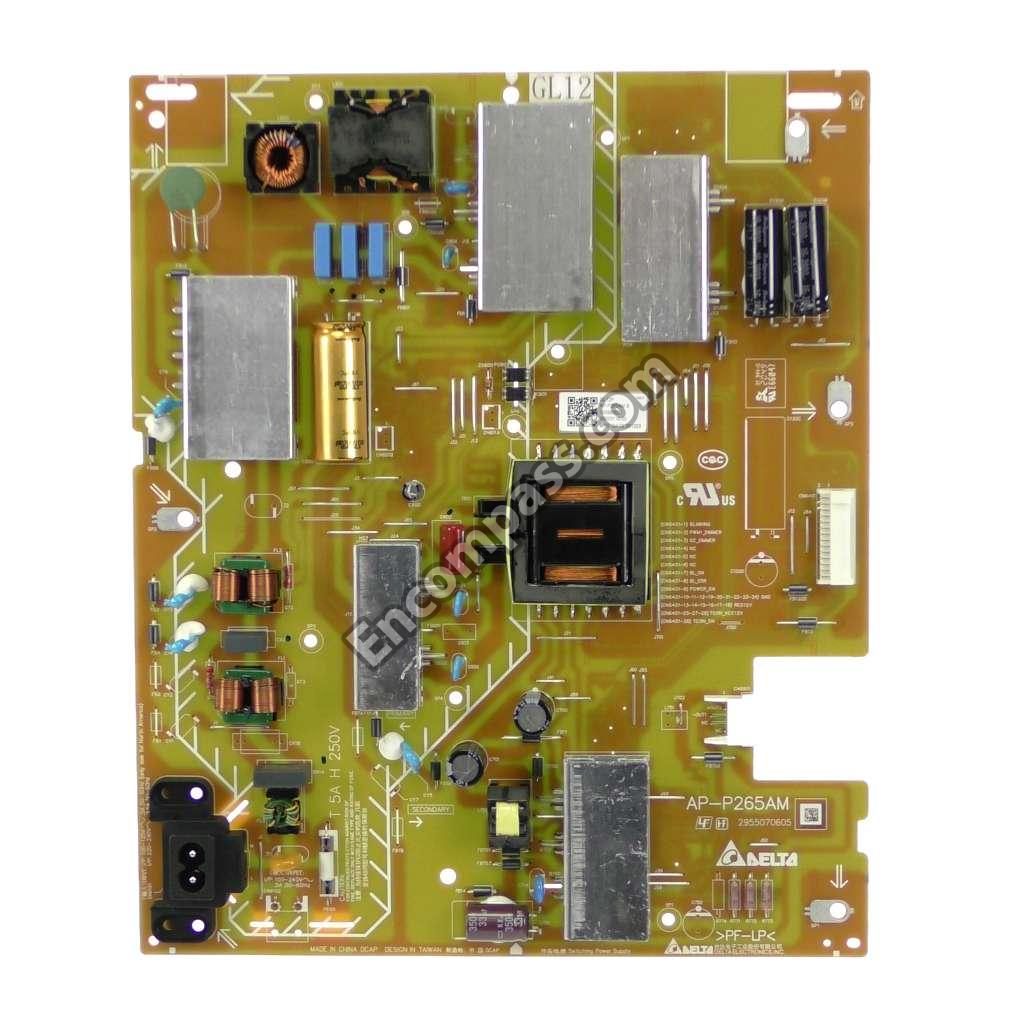

1-009-800-11 1-009-800-11 GL12-STATIC CONVERTER (TV) (UCM)
1-009-800-21 1-009-800-21 GL12P-STATIC CONVERTER (TV) (UCM)
A-5028-234-A A-5028-234-A HT2_WW_CT_PR MOUNT (UCM)
A-5028-235-A A-5028-235-A HT2_WW_EV_PR MOUNT (UCM)
5-022-943-71 5-022-943-71 LABEL, SIDE TERMINAL (PHN) (UCM)
1-011-263-11 1-011-263-11 LIQUID CRYSTAL ELEMENT(A500QVN (UCM)
5-023-173-01 5-023-173-01 MICROLENS ON PRISM (PHN M) (UCM) (PANEL PART)
5-022-440-21 5-022-440-21 MID CHASSIS BT ASSY (ML PHN) (UCM) (PANEL PART)
5-022-440-11 5-022-440-11 MID CHASSIS BT ASSY (ML PHN) (UCM) (PANEL PART)
5-022-444-21 5-022-444-21 MID CHASSIS SIDE ASSY (ML PHN) (UCM) (PANEL PART)
5-022-444-11 5-022-444-11 MID CHASSIS SIDE ASSY (ML PHN) (UCM) (PANEL PART)
5-022-436-21 5-022-436-21 MID CHASSIS TP ASSY (ML PHN) (UCM) (PANEL PART)
5-022-436-11 5-022-436-11 MID CHASSIS TP ASSY (ML PHN) (UCM) (PANEL PART)
1-011-264-11 1-011-264-11 MOUNTED PWB E-T-CON (50) (UCM)
1-010-132-11 1-010-132-11 MOUNTED PWB LS BAR (PHN M) (UCM)
A-5027-806-A A-5027-806-A P-MOD (YSBM050CNU11) (UCM)
A-5029-030-A A-5029-030-A P-MOD(YSBM050CNU01)SVC (UCM)
5-032-679-01 5-032-679-01 POLARIZER F/CF (66.T4U69.118) (UCM) (PANEL PART)
5-032-680-01 5-032-680-01 POLARIZER R/TFT (66.C4U73.111) (UCM) (PANEL PART)
1-005-629-11 1-005-629-11 POWER-SUPPLY CORD SET (UCM)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UCM)
5-027-083-21 5-027-083-21 REAR COVER ASSY (ML PHN) (UCM)
5-027-083-22 5-027-083-22 REAR,COVER,ASSY(ML PHN) (UCM)
5-025-048-11 5-025-048-11 REFERENCE GUIDE (UCM)

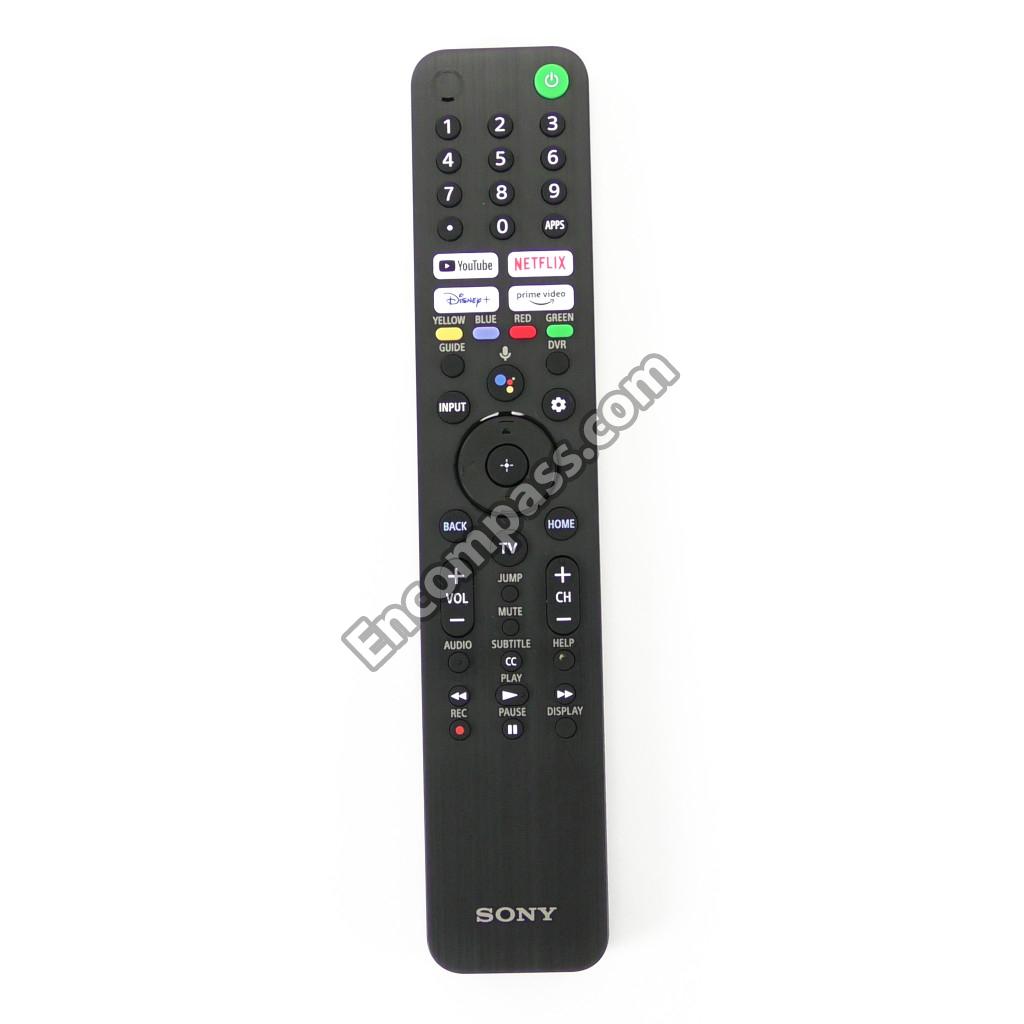

1-009-952-11 1-009-952-11 REMOTE COMMANDER (RMF-TX520U) (UCM)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCM) (PANEL PART)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UCM)
4-595-704-01 4-595-704-01 SCREW, +PSW M5X14 (UCM)
5-025-060-11 5-025-060-11 SETUP GUIDE (UCM)
5-023-072-11 5-023-072-11 SHEET, INSULATION (ML PHN) A (UCM)
5-023-072-01 5-023-072-01 SHEET, INSULATION (ML PHN) A (UCM)
4-457-451-11 4-457-451-11 SHEET, THERMAL(BAF) (UCM)
1-012-843-11 1-012-843-11 SOURCE DRIVER IC MT BOARD (46.S0966.373) (UCM) (PANEL PART)
1-009-790-11 1-009-790-11 SP-BOX ASSY,FY21 W30 ONE BOX (UCM)
5-022-892-21 5-022-892-21 STAND, L (ML LYX) A (UCM)
5-022-893-21 5-022-893-21 STAND, R (ML LYX) A (UCM)
5-027-414-01 5-027-414-01 VESA SPACER S A (COM) (UCM)

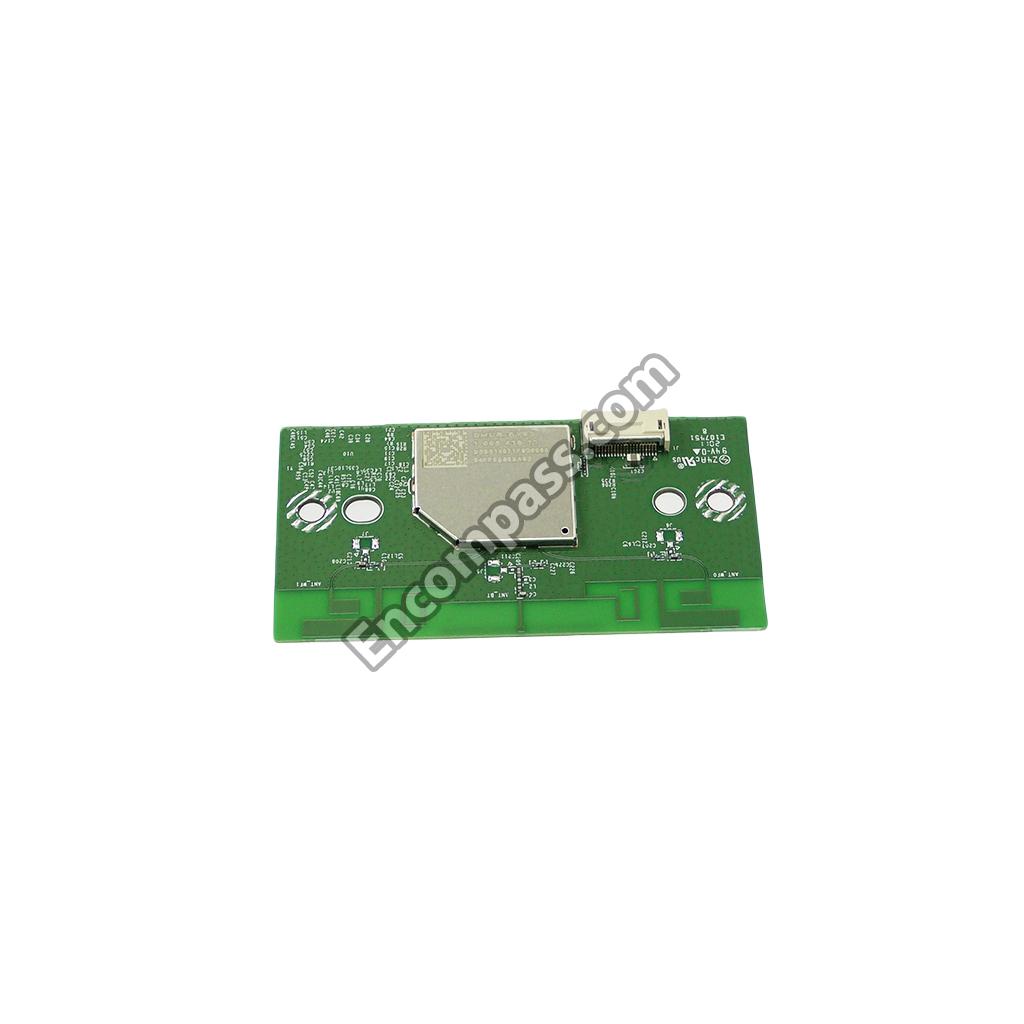

1-005-419-31 1-005-419-31 WLAN/BT MODULE (11AC) (UCM)
1-005-419-11 1-005-419-11 WLAN/BT MODULE(11AC) DHUR-SY63 (UCM)
