Manufacturer
Sony
Model Number
KD50X80K
Description
4k Hdr Led Tv With Smart Google Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BAG, CL ASSY (SM LYX) (UCM) |
|
|
BEZEL BT ASSY (ML EPH) (UCM) |
|
|
BEZEL TP ASSY (ML RIS) (UCM) |
|
|
BRACKET SIDE (BNN) A (UCM) |
|
|
BRACKET SIDE (BNN) A (UCM) |
|
|
BRACKET, WIFI(BNN) (UCM) |
|
|
BRACKET, WIFI(BNN) (UCM) |
|
|
CONNECTOR ASSY 30P (UCM) |
|
|
CONNECTOR ASSY 4P (SP) (UCM) |
|
|
COVER, BTM(SM EPH) A (UCM) |
|
|
COVER, TOP(COM) (UCM) |
|
|
FLEXIBLE FLAT CABLE 20P (UCM) |
|
|
FLEXIBLE FLAT CABLE 20P (UCM) |
|
|
FLEXIBLE FLAT CABLE 25P (UCM) |
|
|
FLEXIBLE FLAT CABLE 51P (UCM) |
|
|
FLEXIBLE FLAT CABLE 51P (UCM) |
|
|
FY22_HT2_WW_EV_PR MOUNT (UCM) |
|
|
LABEL, SIDE TERMINAL HP (EPH) (UCM) |
|
|
LIQUID CRYSTAL ELEMENT(I500DJ7 (UCM) |
|
|
LIQUID CRYSTAL ELEMENT(I500DJ7 (UCM) |
|
|

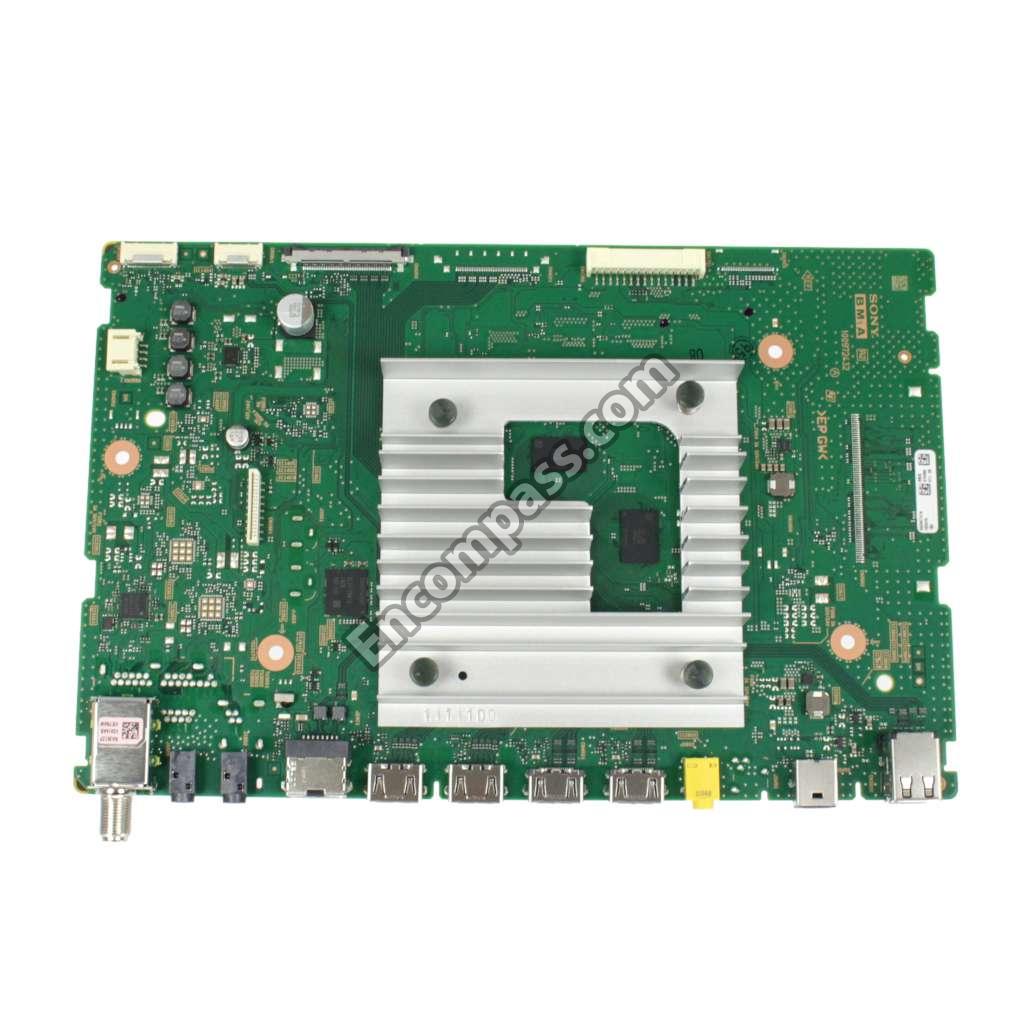

MAIN CBA_COMPL_BM5A_FE_UCM (UCM) |
|
|
MOUNTED PWB E-T-CON (50) (UCM) |
|
|
MOUNTED PWB E-T-CON (50) (UCM) |
|
|
MOUNTED PWB LS BAR (EPH M) (UCM) |
|
|
P-MOD (YSCM050CCN11) (UCM) |
|
|
POWER CBA_GL12P STATIC CONVERTER (TV) (UCM) |
|
|
POWER CBA_GL16B-STATIC CONVERTER (TV) (UCM) |
|
|
POWER-SUPPLY CORD SET (UCM) |
|
|
RADIATOR ADHESIVE (SV380C) (UCM) |
|
|
REAR COVER ASSY (ML LYX) (UCM) |
|
|
REFERENCE GUIDE (UCM) |
|
|
REMOTE COMMANDER (RMF-TX800U) (UCM) |
|
|
SCREW, +PSW M3X8 (UCM) |
|
|
SCREW, +PSW M5X14 (UCM) |
|
|
SETUP GUIDE (UCM) |
|
|
SHEET, INSULATION (ML PHN) A (UCM) |
|
|
SHEET, INSULATION (ML PHN) A (UCM) |
|
|
SHEET, THERMAL(BAF) (UCM) |
|
|
SP-BOX ASSY,FY21 W30 ONE BOX (UCM) |
|
|
SP-BOX ASSY,FY21 W30 ONE BOX (UCM) |
|
|
STAND, L (ML LYX) A (UCM) |
|
|
STAND, R (ML LYX) A (UCM) |
|
|
VESA SPACER S A (COM) (UCM) |
|
|
WLAN/BT MODULE (11AC) (UCM) |
|
|
WLAN/BT MODULE(11AC) (UCM) |
