Manufacturer
Sony
Model Number
KD55X706E
Description
55-inch Class 4k Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
(MAIN CBA) COMPL_SVC_BB8_SA_PSU (LA8) |
|
|
(POWER CBA) GL71 STATIC CONVERTER (TV) (LA8) |
|
|
AC COVER (LA8) |
|
|
ADAPTOR, CONVERSION (LA8) |
|
|
BC SHEET (760.0250P.0001) (PANEL PART) (LA1,LA8) |
|
|
BEZEL (760.0250Q.0001) (PANEL PART) (LA1,LA8) |
|
|
BEZEL (760.0250R.0001) (PANEL PART) (LA1,LA8) |
|
|
BRACKET, SIDE (FRE) (LA8) |
|
|
BRACKET, UNDER (FRE) (LA8) |
|
|
CABLE UNIVERSAL SIL-TU SUT-RT243ZP (LA8) |
|
|
CARD, WIRELESS LAN (LA8) |
|
|
CARD, WIRELESS LAN (LA8) |
|
|
CLAMPER, CABLE (LA8) |
|
|
CONNECTOR ASSY 30P (LA8) |
|
|
FFC (750.02601.0001) (PANEL PART) (LA1,LA8) |
|
|

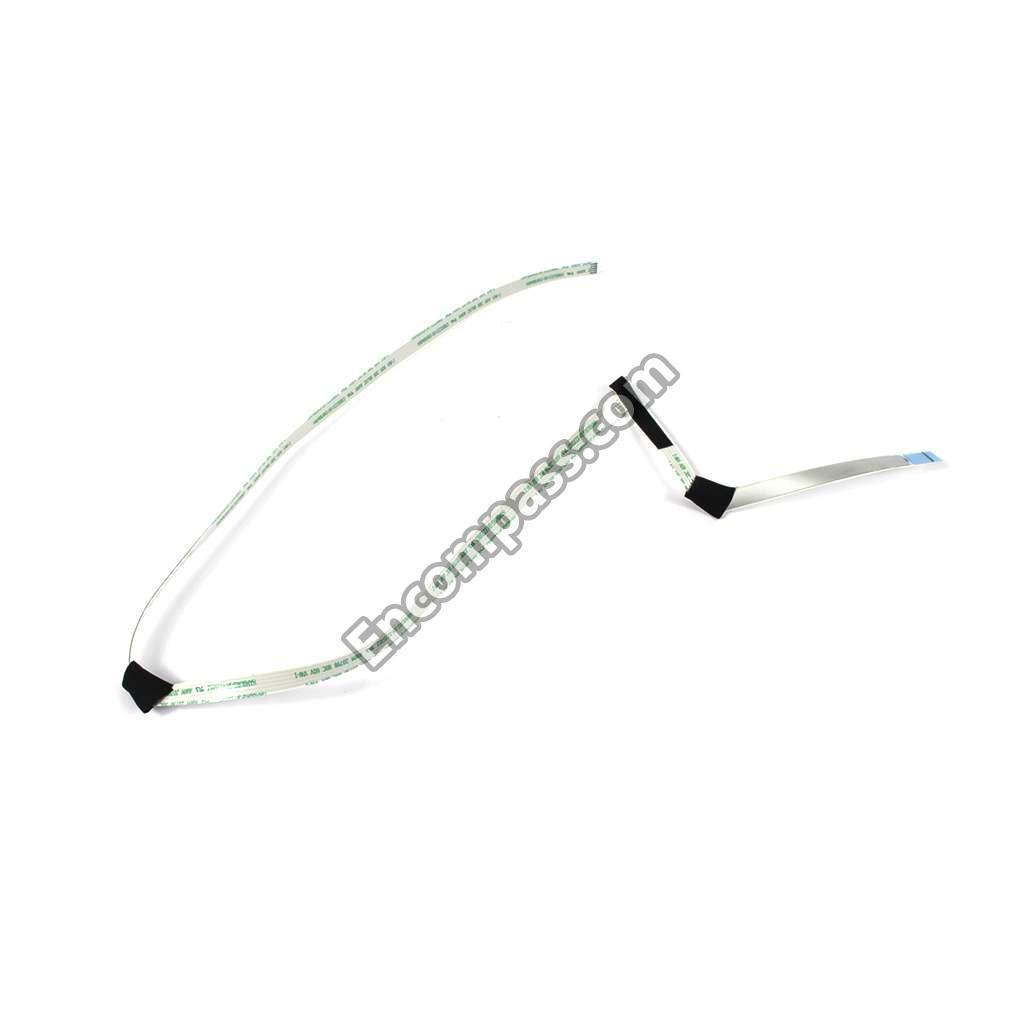

FLEXIBLE FLAT CABLE 51P (LA8) |
|
|
FLEXIBLE FLAT CABLE 5P (LA8) |
|
|
FLEXIBLE FLAT CABLE 5P (LA8) |
|
|
HARNESS ASSY (LA8) |
|
|
JOINT (LA8) |
|
|
LABEL, UNDER TERMINAL (CPN) (LA8) |
|
|
LCD PANEL(W55QWSEB) (LA8) |
|
|
LIQUID CRYSTAL ELEMENT (PANEL PART) (LA1,LA8) |
|
|

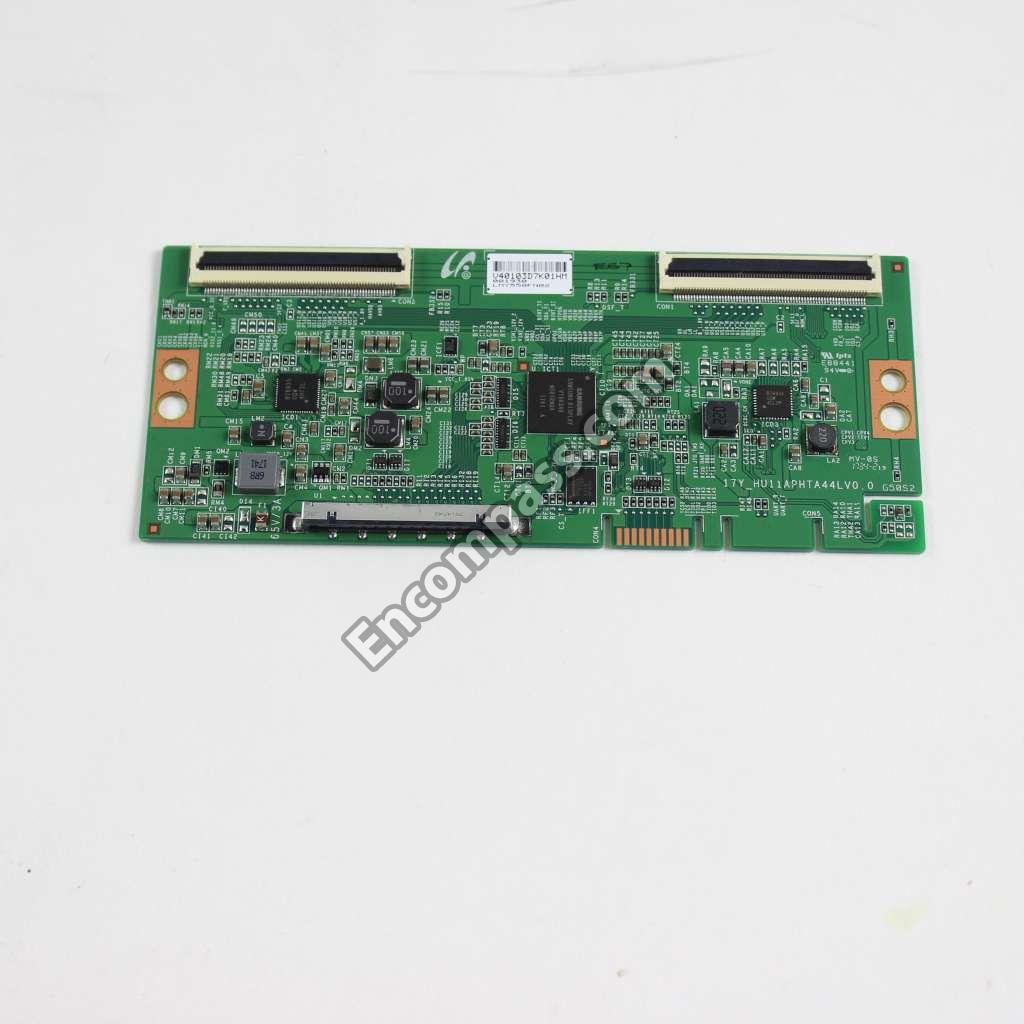

MOUNTED PWB E-T-CON (PANEL PART) (LA1,LA8) |
|
|
POLARIZER F/CF (LJ01-09697A) (PANEL PART) (LA1,LA8) |
|
|
POLARIZER R/TFT (LJ01-09642A) (PANEL PART) (LA1,LA8) |
|
|
POWER-SUPPLY CORD (WITH CONN.) (LA8) |
|
|
POWER-SUPPLY CORD (WITH CONN.) (LA8) |
|
|
REAR COVER (L CPN) A (LA8) |
|
|
REMOTE COMMANDER(RMT-TX300B) (LA8) |
|
|
SCREW,M3*3 (086.000DQ.0644) (PANEL PART) (LA1,LA8) |
|
|
SHEET, THERMAL(BM) (LA8) |
|
|
SOURCE DRIVER IC MT BOARD (LJ13-03674A) (PANEL PART) (LA1,LA8) |
|
|
SPACER(29)+C (LA8) |
|
|
SPEAKER BOX ASSY (LA8) |
|
|
SPEAKER BOX ASSY (LA8) |
|
|

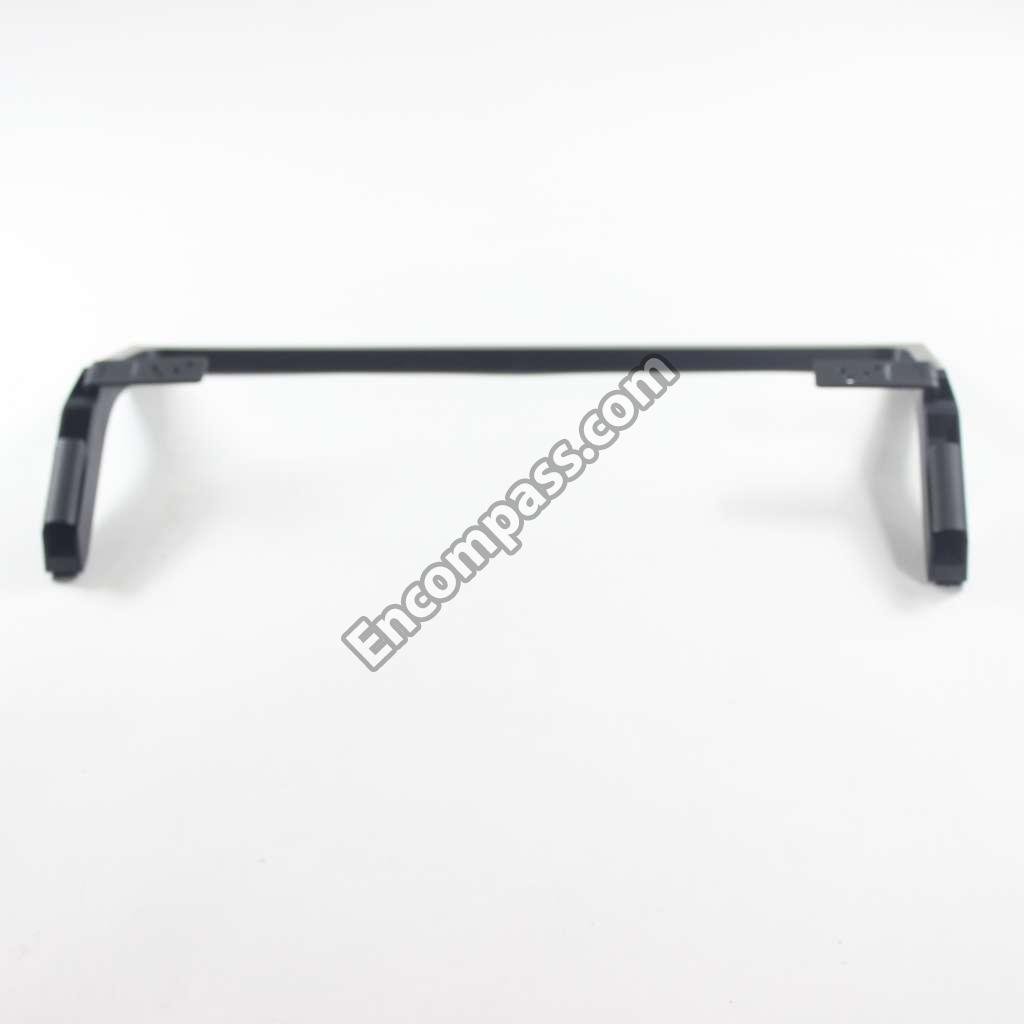

STAND BASE (L FRE) A, N (LA8) |
|
|
STAND BASE (L FRE) A, N (LA8) |
|
|
STAND NECK ASSY (FRE) (LA8) |
|
|
SWITCH UNIT (3M-P-B3) (LA8) |
|
|
SWITCH UNIT (3M-P-B3) (LA8) |
|
|
TAPE (740.01N0L.0001) (PANEL PART) (LA1,LA8) |
|
|
THERMAL SHEET, TCON (734.0250T.0001) (PANEL PART) (LA1,LA8) |
|
|
USA PIG (LA8) |
