Manufacturer
Sony
Model Number
KD55X85J
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
(MAIN CBA) COMPL_BM5A_AX_UCM (UCM) |
|
|

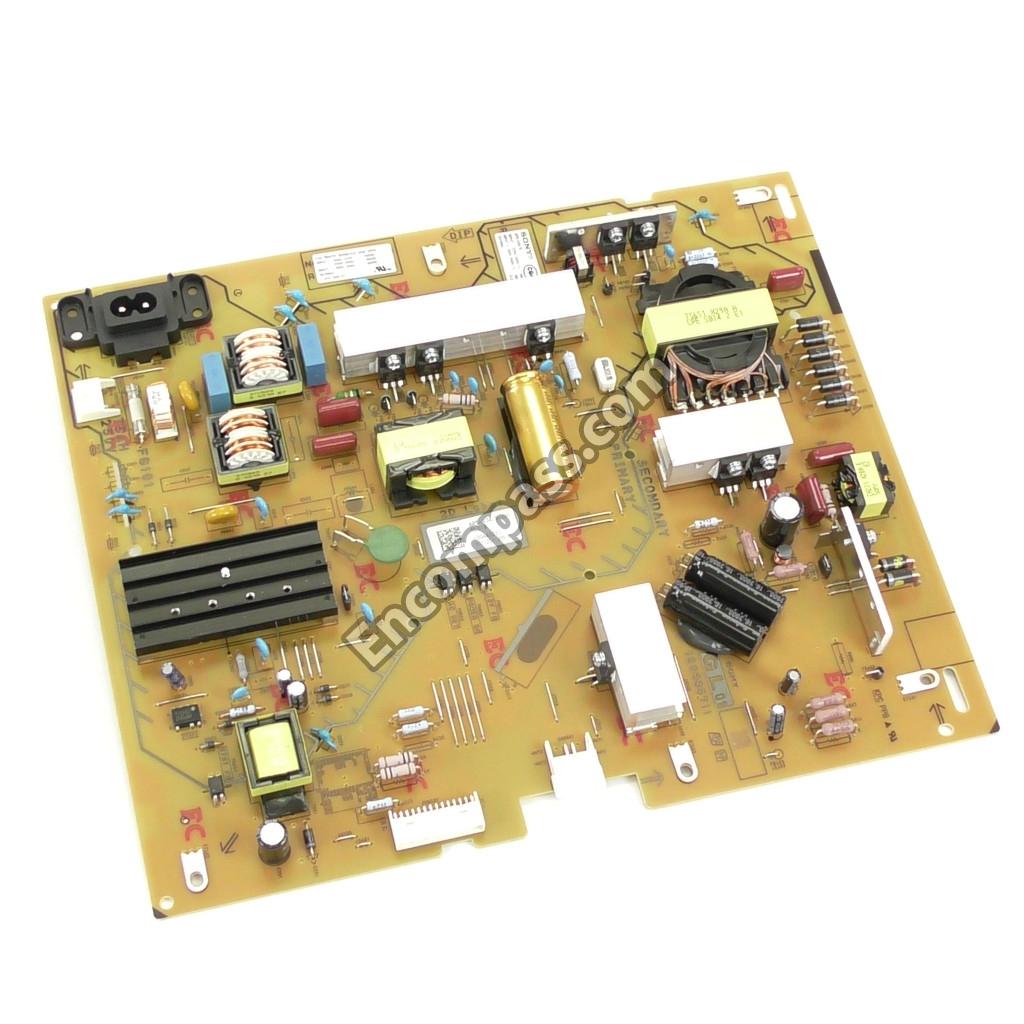

(POWER CBA) GL01B-STATIC CONVERTER(TV) (UCM) |
|
|
+PSW M6*16 W14 (UCM) |
|
|
BAG, CL ASSY (2L LYX) (UCM) |
|
|
BEZEL BT ASSY (L RIS) (UCM) |
|
|
BEZEL TP ASSY (L RIS) (UCM) |
|
|
BEZEL TP ASSY (L RIS) (UCM) (PANEL PART) |
|
|
BEZEL TP ASSY (L RIS) (UCM) (PANEL PART) |
|
|
BRACKET, SIDE(BNN) A (UCM) |
|
|
BRACKET, SIDE(BNN) A. (UCM) |
|
|
BRACKET, WIFI(BNN) (UCM) |
|
|
BRACKET, WIFI(BNN) (UCM) |
|
|
C7L AC POWER CODE SETS (US) (UCM) |
|
|
CONNECTOR ASSY 30P (UCM) |
|
|
CONNECTOR ASSY 4P (SP) (UCM) |
|
|
COVER, BTM(L RIS) A (UCM) |
|
|
COVER, TOP(COM) (UCM) |
|
|
COVER, TOP(COM) (UCM) |
|
|
DIFFUSER PLATE (LYX L) (UCM) (PANEL PART) |
|
|
FLEXIBLE FLAT CABLE 20P (UCM) |
|
|
FLEXIBLE FLAT CABLE 20P (UCM) |
|
|
FLEXIBLE FLAT CABLE 25P (UCM) |
|
|
FLEXIBLE FLAT CABLE 25P (UCM) |
|
|
FLEXIBLE FLAT CABLE 41P (UCM) |
|
|
FLEXIBLE FLAT CABLE 41P (UCM) |
|
|
FLEXIBLE FLAT CABLE 51P (UCM) |
|
|
FLEXIBLE FLAT CABLE 51P (UCM) |
|
|
FLEXIBLE FLAT CABLE 60P (UCM) (PANEL PART) |
|
|
FLEXIBLE FLAT CABLE 60P (UCM) (PANEL PART) |
|
|
GASKET SB (3L BGO) (UCM) (PANEL PART) |
|
|
GASKET, TCON CH (APL) (UCM) (PANEL PART) |
|
|
GASKET, TCON SS (4L APL) (UCM) (PANEL PART) |
|
|
HT2_WW_CT_PR MOUNT (UCM) |
|
|
HT2_WW_EV_PR MOUNT (UCM) |
|
|
LABEL, SIDE TERMINAL (RIS) (UCM) |
|
|
LIQUID CRYSTAL ELEMENT(C550D11 (ST5461D11-3) (UCM) (PANEL PART) |
|
|
LIQUID CRYSTAL ELEMENT(C550D11 (UCM) |
|
|

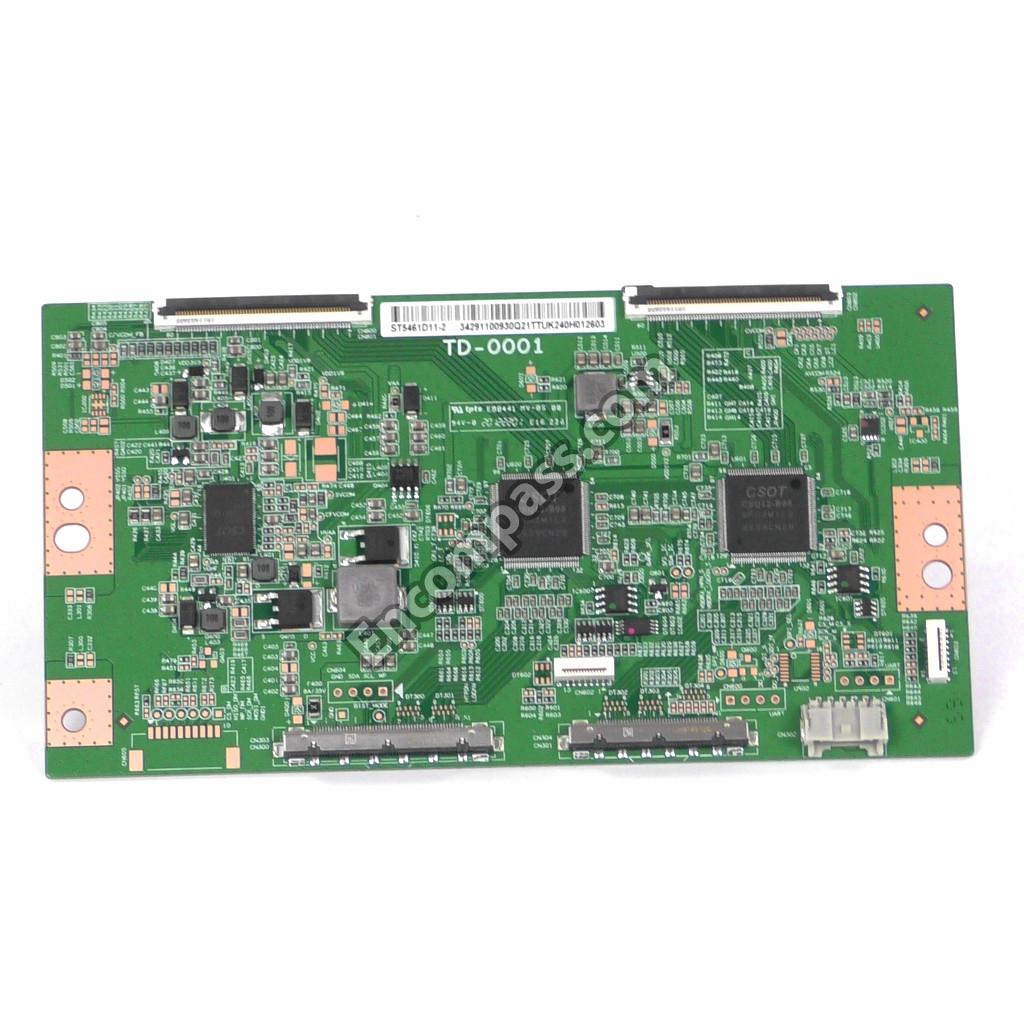

MOUNTED PWB E-T-CON (55) (342911009C0911) (UCM) (PANEL PART) |
|
|
MOUNTED PWB E-T-CON (55) (UCM) |
|
|
MOUNTED PWB LS BAR (LYX L) (UCM) |
|
|
P-MOD (YDBM055CCS11) (UCM) |
|
|
POLARIZER F/CF (3130703W00000G) (UCM) (PANEL PART) |
|
|
POLARIZER F/CF (313070JD000004 ) (UCM) (PANEL PART) |
|
|
POWER-SUPPLY CORD SET (UCM) |
|
|
RADIATOR ADHESIVE (SV380C) (UCM) |
|
|
REAR COVER ASSY (L LYX) (UCM) |
|
|
REF. POLARIZER ON POP (RIS L) (UCM) (PANEL PART) |
|
|
REFERENCE GUIDE (UCM) |
|
|
REFLECTIVE SHEET (PHN L) (UCM) (PANEL PART) |
|
|
REMOTE COMMANDER (RMF-TX520U) (UCM) |
|
|
SCREW M3X3.0 STEP (UCM) |
|
|
SCREW, +PSW M3X6 (UCM) (PANEL PART) |
|
|
SCREW, +PSW M3X8 (UCM) |
|
|
SCREW, M3X3 (UCM) (PANEL PART) |
|
|
SETUP GUIDE (UCM) |
|
|
SHEET, INSULATION (L PHN) A (UCM) |
|
|
SHEET, INSULATION (L PHN) A (UCM) |
|
|
SHEET, THERMAL (RIS) (UCM) (PANEL PART) |
|
|
SHEET, THERMAL CSOT (APL) (UCM) (PANEL PART) |
|
|
SHEET, THERMAL(BAF) (UCM) |
|
|
SOURCE DRIVER IC MT BOARD (330210000001CB) (UCM) (PANEL PART) |
|
|
SOURCE DRIVER IC MT BOARD (330210000001FB) (UCM) (PANEL PART) |
|
|
SPEAKER BOX ASSY (FY20 W30L-FA) (UCM) |
|
|
SPEAKER BOX ASSY (FY20 W30L-FB) (UCM) |
|
|

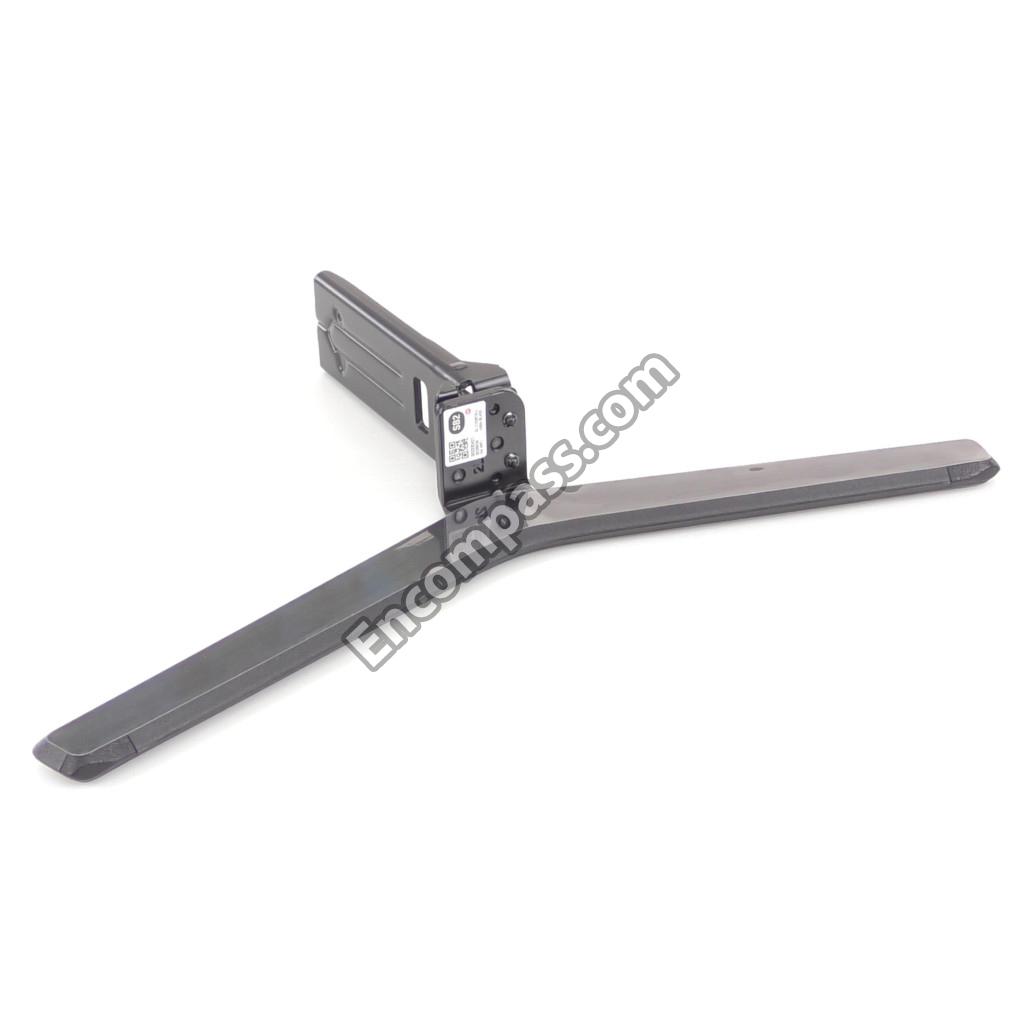

STAND, L (2L LYX) A (UCM) |
|
|
STAND, R (2L LYX) A (UCM) |
|
|
SUPPORTER PIN (COM) (UCM) (PANEL PART) |
|
|
SUPPORTER PIN (COM) (UCM) (PANEL PART) |
|
|
TAPE (1350FB-1) 30MMX66M BLK (UCM) (PANEL PART) |
|
|
VESA SPACER A (COM) (UCM) |
|
|
WLAN/BT MODULE (11AC) (UCM) |
|
|
WLAN/BT MODULE(11AC) (UCM) |
