Model Image
Manufacturer

Sony

Model Number

KD55X85K

Description

4k Hdr Led Tv With Smart Google Tv

Interactive Exploded View

Parts List

Part Number Description
5-015-521-01 5-015-521-01 +PSW M6*16 W14 (UCM)
1-005-642-12 1-005-642-12 7L AC POWER CODE SETS (US) (UCM)
5-022-225-12 5-022-225-12 BAG, CL ASSY (2L LYX) (UCM)
5-034-430-02 5-034-430-02 BC DUST TAPE (UCM) (PANEL PART)
5-037-347-01 5-037-347-01 BEZEL BT ASSY (L HRS) (UCM)
5-026-220-14 5-026-220-14 BEZEL TP ASSY (L RIS) (UCM)
5-023-363-24 5-023-363-24 BEZEL TP ASSY (L RIS) (UCM) (PANEL PART)
5-023-363-14 5-023-363-14 BEZEL TP ASSY (L RIS) (UCM) (PANEL PART)
5-023-363-31 5-023-363-31 BEZEL TP ASSY (L RIS) (UCM) (PANEL PART)
5-009-217-12 5-009-217-12 BRACKET COVER (COM) (UCM) (PANEL PART)
5-009-217-32 5-009-217-32 BRACKET COVER (COM) (UCM) (PANEL PART)
5-039-955-11 5-039-955-11 BRACKET SIDE (BNN) A (UCM)
5-039-953-11 5-039-953-11 BRACKET SIDE (BNN) A (UCM)
5-009-258-21 5-009-258-21 BRACKET, WIFI(BNN) (UCM)
5-009-258-11 5-009-258-11 BRACKET, WIFI(BNN) (UCM)
5-009-030-01 5-009-030-01 CLAMPER,CABLE L(BNN) (UCM) (PANEL PART)
5-009-031-02 5-009-031-02 CLAMPER,CABLE S(BNN) (UCM) (PANEL PART)
1-014-429-11 1-014-429-11 CONNECTOR ASSY 30P (UCM)
1-006-437-22 1-006-437-22 CONNECTOR ASSY 4P (LS) (UCM) (PANEL PART)
1-006-437-12 1-006-437-12 CONNECTOR ASSY 4P (LS) (UCM) (PANEL PART)
1-006-501-43 1-006-501-43 CONNECTOR ASSY 4P (SP) (UCM)
5-036-705-11 5-036-705-11 COVER, BTM(3L EPH) A (UCM)
5-023-069-23 5-023-069-23 COVER, TOP(COM) (UCM)
5-026-876-01 5-026-876-01 DIFFUSER PLATE (LYX L) (UCM) (PANEL PART)
A-5071-683-A A-5071-683-A F-CELL ASSY 55 (SVC) AX/AR/FH/FT (UCM) (PANEL PART)
1-006-505-11 1-006-505-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-006-506-11 1-006-506-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-006-510-11 1-006-510-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-011-598-12 1-011-598-12 FLEXIBLE FLAT CABLE 41P (UCM)
1-011-599-21 1-011-599-21 FLEXIBLE FLAT CABLE 41P (UCM)
1-010-542-12 1-010-542-12 FLEXIBLE FLAT CABLE 51P (UCM)
1-011-292-11 1-011-292-11 FLEXIBLE FLAT CABLE 60P (UCM) (PANEL PART)
1-011-291-11 1-011-291-11 FLEXIBLE FLAT CABLE 60P (UCM) (PANEL PART)
A-5042-373-A A-5042-373-A FY22_HT2_WW_EV_PR MOUNT (UCM)
4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (UCM) (PANEL PART)
5-011-453-01 5-011-453-01 GASKET, TCON CH (APL) (UCM) (PANEL PART)
5-039-646-01 5-039-646-01 LABEL, SIDE TERMINAL HP (HRS) (UCM)
1-014-112-11 1-014-112-11 LIQUID CRYSTAL ELEMENT(C550D11 (UCM)
A-5042-692-A A-5042-692-A MAIN CBA_COMPL_BM5A_FH_UCM (UCM)
5-035-535-01 5-035-535-01 MOP SHEET (HRS L) (UCM) (PANEL PART)
1-014-113-11 1-014-113-11 MOUNTED PWB E-T-CON (55) (UCM)
1-013-667-11 1-013-667-11 MOUNTED PWB LS BAR (HRS L) (UCM)
A-5043-582-A A-5043-582-A P-MOD (YDCM055CCS11) (UCM)
5-033-416-01 5-033-416-01 POLARIZER F/CF (313070JD000004) (UCM) (PANEL PART)
5-044-577-01 5-044-577-01 POLARIZER F/CF (3130901T000003) (UCM) (PANEL PART)
1-013-506-11 1-013-506-11 POWER CBA_GL23-STATIC CONVERTER (TV) (UCM)
1-013-506-31 1-013-506-31 POWER CBA_GL23-STATIC CONVERTER (TV) (UCM)
1-013-506-21 1-013-506-21 POWER CBA_GL23P-STATIC CONVERTER (TV) (UCM)
1-013-506-41 1-013-506-41 POWER CBA_GL23P-STATIC CONVERTER (TV) (UCM)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UCM)
5-027-815-23 5-027-815-23 REAR COVER ASSY (L LYX) (UCM)
5-037-718-11 5-037-718-11 REFERENCE GUIDE (UCM)
5-035-536-31 5-035-536-31 REFLECTIVE SHEET (HRS L) (UCM) (PANEL PART)
1-013-691-23 1-013-691-23 REMOTE COMMANDER (RMF-TX800U) (UCM)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UCM)
4-690-738-01 4-690-738-01 SCREW, +LH M3X3 (PUC) (UCM) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCM) (PANEL PART)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UCM)
4-726-549-01 4-726-549-01 SCREW, M3X3 (UCM) (PANEL PART)
5-005-753-01 5-005-753-01 SCREW, M3X4 (UCM) (PANEL PART)
5-038-479-11 5-038-479-11 SETUP GUIDE (UCM)
5-027-740-02 5-027-740-02 SHEET, INSULATION (L PHN) A (UCM)
5-027-740-12 5-027-740-12 SHEET, INSULATION (L PHN) A (UCM)
5-027-341-01 5-027-341-01 SHEET, THERMAL (RIS) (UCM) (PANEL PART)
5-020-359-01 5-020-359-01 SHEET, THERMAL CSOT (APL) (UCM) (PANEL PART)
4-457-451-12 4-457-451-12 SHEET, THERMAL(BAF) (UCM)
1-012-979-11 1-012-979-11 SOURCE DRIVER IC MT BOARD (330210000001FB) (UCM) (PANEL PART)

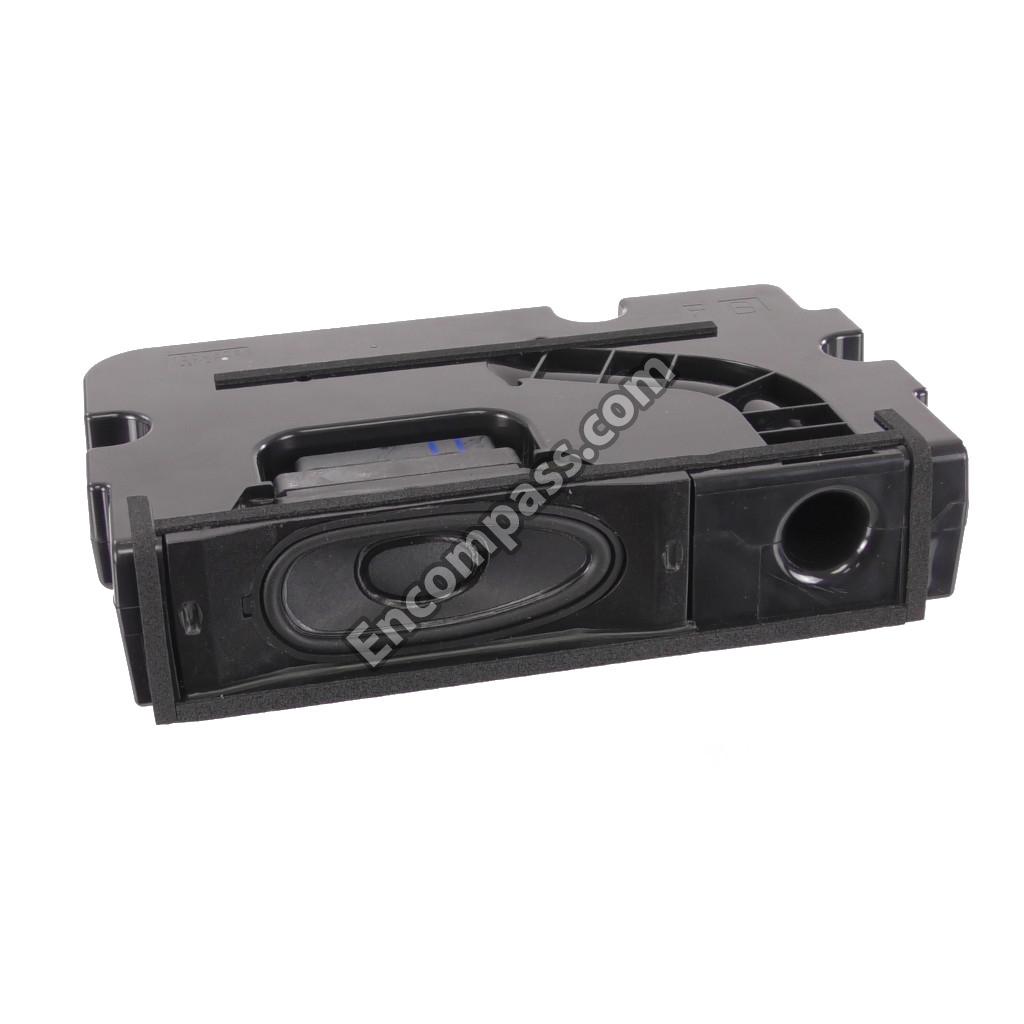

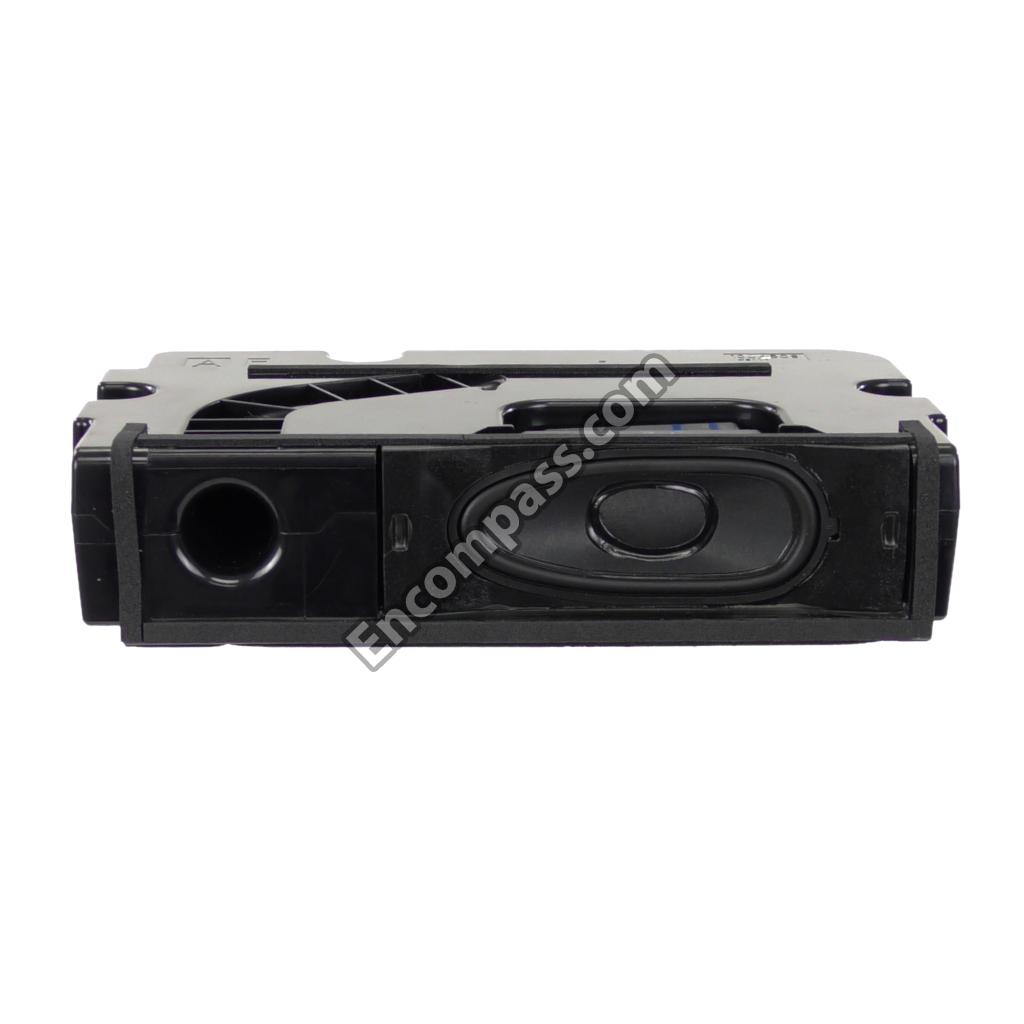

1-004-509-12 1-004-509-12 SPEAKER BOX ASSY (FY20 W30L-FA (UCM)
1-004-509-22 1-004-509-22 SPEAKER BOX ASSY (FY20 W30L-FB (UCM)
5-022-204-22 5-022-204-22 STAND, L (2L LYX) A (UCM)
5-022-205-22 5-022-205-22 STAND, R (2L LYX) A (UCM)
5-013-482-11 5-013-482-11 SUPPORTER PIN (COM) (UCM) (PANEL PART)
5-009-047-31 5-009-047-31 SUPPORTER PIN (COM) (UCM) (PANEL PART)
5-013-482-31 5-013-482-31 SUPPORTER PIN (COM) (UCM) (PANEL PART)
7-600-036-11 7-600-036-11 TAPE (1350FB-1) 30MMX66M BLK (UCM) (PANEL PART)
5-014-076-01 5-014-076-01 TAPE LIGHT LEAKAGE (UCM) (PANEL PART)
5-014-075-01 5-014-075-01 TAPE LL BLC (NO AD) (UCM) (PANEL PART)
5-034-641-21 5-034-641-21 TAPE, F-CELL SIDE (EPH) (UCM) (PANEL PART)
5-034-639-21 5-034-639-21 TAPE, F-CELL TOP LEFT (EPH) (UCM) (PANEL PART)
5-034-640-21 5-034-640-21 TAPE, F-CELL TOP RIGHT (EPH) (UCM) (PANEL PART)
5-019-178-11 5-019-178-11 TAPE, LL INSIDE (COM) (UCM) (PANEL PART)
5-009-861-12 5-009-861-12 VESA SPACER A (COM) (UCM)
1-005-419-32 1-005-419-32 WLAN/BT MODULE (11AC) (UCM)
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC) (UCM)
