Model Image
Manufacturer

Sony

Model Number

KD65X9000B

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4-484-957-02 4-484-957-02 BRACKET RC (2L CAN)
4-531-743-02 4-531-743-02 BRACKET RC (CAN)
4-486-586-01 4-486-586-01 BRACKET SC(CAN L)
4-486-587-01 4-486-587-01 BRACKET SC(CAN R)
4-480-396-01 4-480-396-01 BRACKET SIDE (MOLD)
4-480-396-11 4-480-396-11 BRACKET SIDE (MOLD)
4-486-527-01 4-486-527-01 BRACKET STAND C (CAN)
4-484-097-11 4-484-097-11 BRACKET VESA (M)
1-458-794-11 1-458-794-11 CAMERA MODULE(BUILT IN)
4-535-168-01 4-535-168-01 COVER CAM A
4-478-078-12 4-478-078-12 COVER TERMINAL SIDE
4-478-080-12 4-478-080-12 COVER, TERMINAL REAR
1-910-109-23 1-910-109-23 FLEXIBLE FLAT CABLE 20P
1-474-578-11 1-474-578-11 G7B(CH)-STATIC CONVERTER(TV)
1-910-109-20 1-910-109-20 HARNESS ASSY(GB/BK)
4-447-962-01 4-447-962-01 HOLDER (HS)
A-2031-746-A A-2031-746-A K1 MOUNT
4-478-086-11 4-478-086-11 ORNAMENT MFS (CAN)
4-478-087-01 4-478-087-01 ORNAMENT SWF (CAN)
4-478-088-01 4-478-088-01 ORNAMENT TW (CAN)
1-814-687-11 1-814-687-11 QUARTZCRYSTALUNITS37125MHZ
4-478-048-02 4-478-048-02 REAR COVER (2L CAN) A

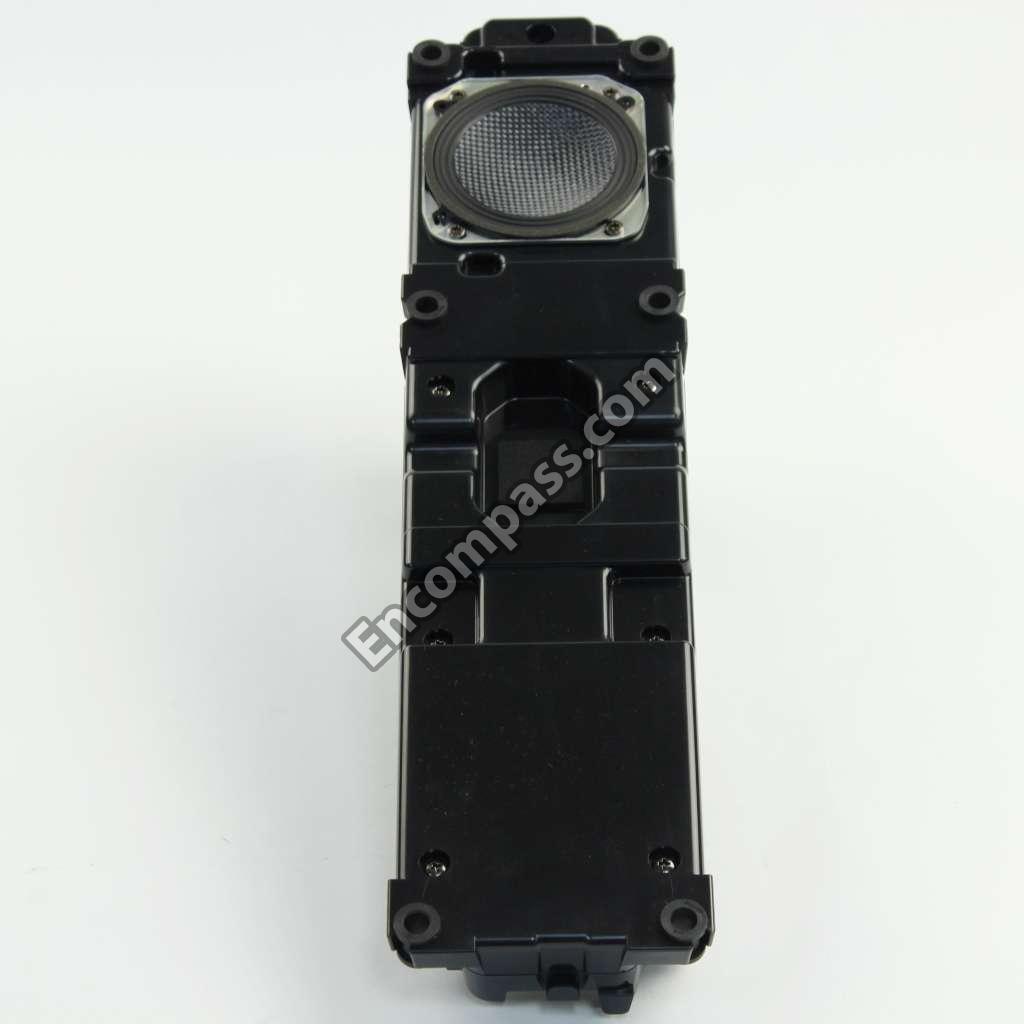

1-858-974-11 1-858-974-11 SP BOX ASSY
1-858-974-21 1-858-974-21 SP BOX ASSY
1-858-974-31 1-858-974-31 SP BOX ASSY
1-858-975-11 1-858-975-11 SP BOX ASSY (L)
1-858-975-21 1-858-975-21 SP BOX ASSY (R)
4-478-105-11 4-478-105-11 STANDLEFT (L CAN)
4-478-109-11 4-478-109-11 STANDRIGHT (L CAN)
4-534-647-01 4-534-647-01 STOPPER PSU
4-478-075-01 4-478-075-01 UNDER COVER CL(CAN)
4-488-543-01 4-488-543-01 UNDER COVER CR(CAN)
1-848-339-11 1-848-339-11 USB CABLE(MINIB TO MICROB)
