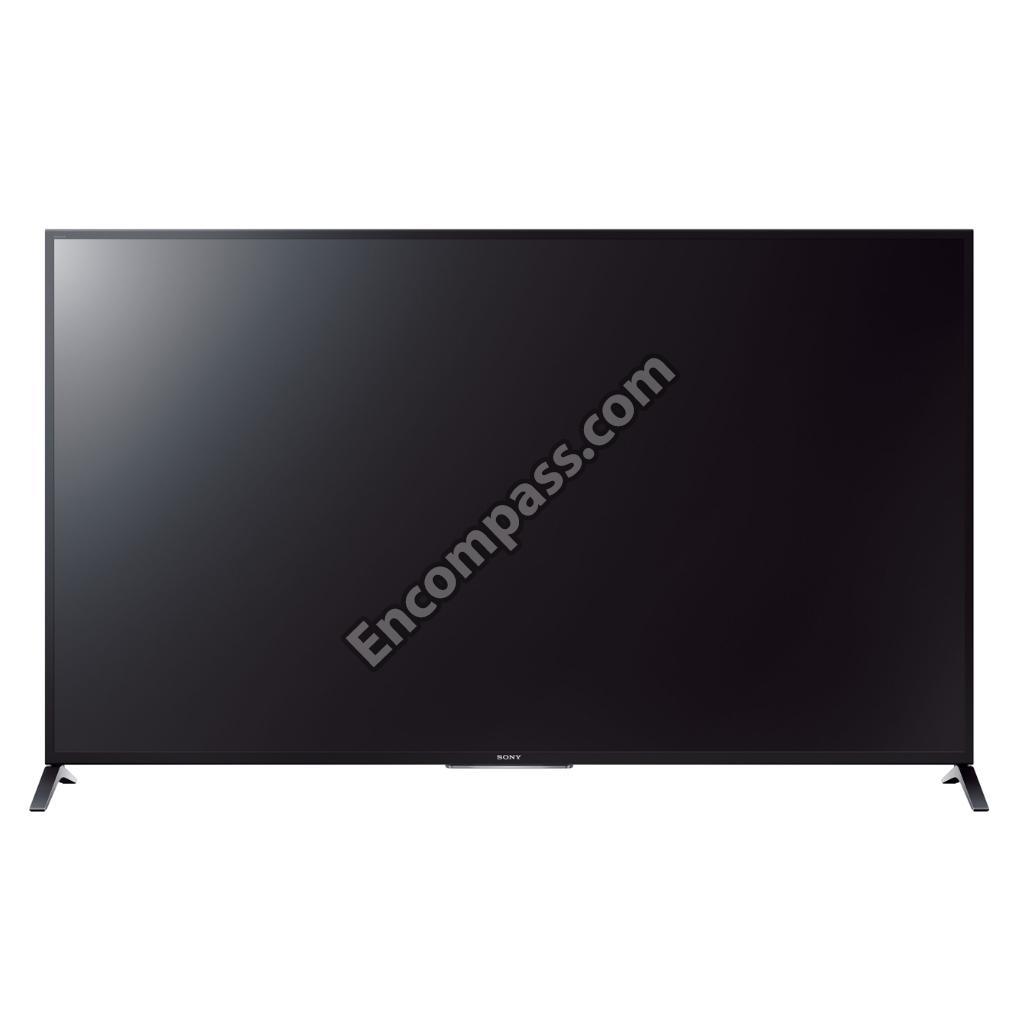

Model Image
Manufacturer

Sony

Model Number

KD70X8500B

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4-536-557-01 4-536-557-01 BRACKET RC SIDE (3L HWI)
4-536-835-01 4-536-835-01 BRACKETSP ASSY L (3L HWI)
4-536-836-01 4-536-836-01 BRACKETSP ASSY R (3L HWI)
1-910-109-43 1-910-109-43 CONNECTOR ASSY 14P
1-910-109-41 1-910-109-41 CONNECTOR ASSY 28P
1-910-109-44 1-910-109-44 FLEXIBLE FLAT CABLE 20P
1-848-370-11 1-848-370-11 FLEXIBLE FLAT CABLE(41P)
1-848-371-11 1-848-371-11 FLEXIBLE FLAT CABLE(51P)
1-910-109-42 1-910-109-42 HARNESS ASSY (MAIN)
4-535-900-01 4-535-900-01 HOLDER NECK L (3L HWI)
4-535-901-01 4-535-901-01 HOLDER NECK R (3L HWI)
1-895-704-11 1-895-704-11 LD MT BOARD
4-535-584-01 4-535-584-01 REAR COVER (3L HWI) A
4-535-594-01 4-535-594-01 REFLECTOR SP (3L HWI)
4-536-414-01 4-536-414-01 STAND L (3L HWI) A
4-536-416-01 4-536-416-01 STAND R (3L HWI) A
