Model Image
Manufacturer

Sony

Model Number

KD75X750H

Description

75-inch Class 4k Hdr Led Tv

Interactive Exploded View

Parts List

Part Number Description
1-001-393-11 1-001-393-11 (POWER CBA) GL92B-STATIC CONVERTER (TV) (UCM)

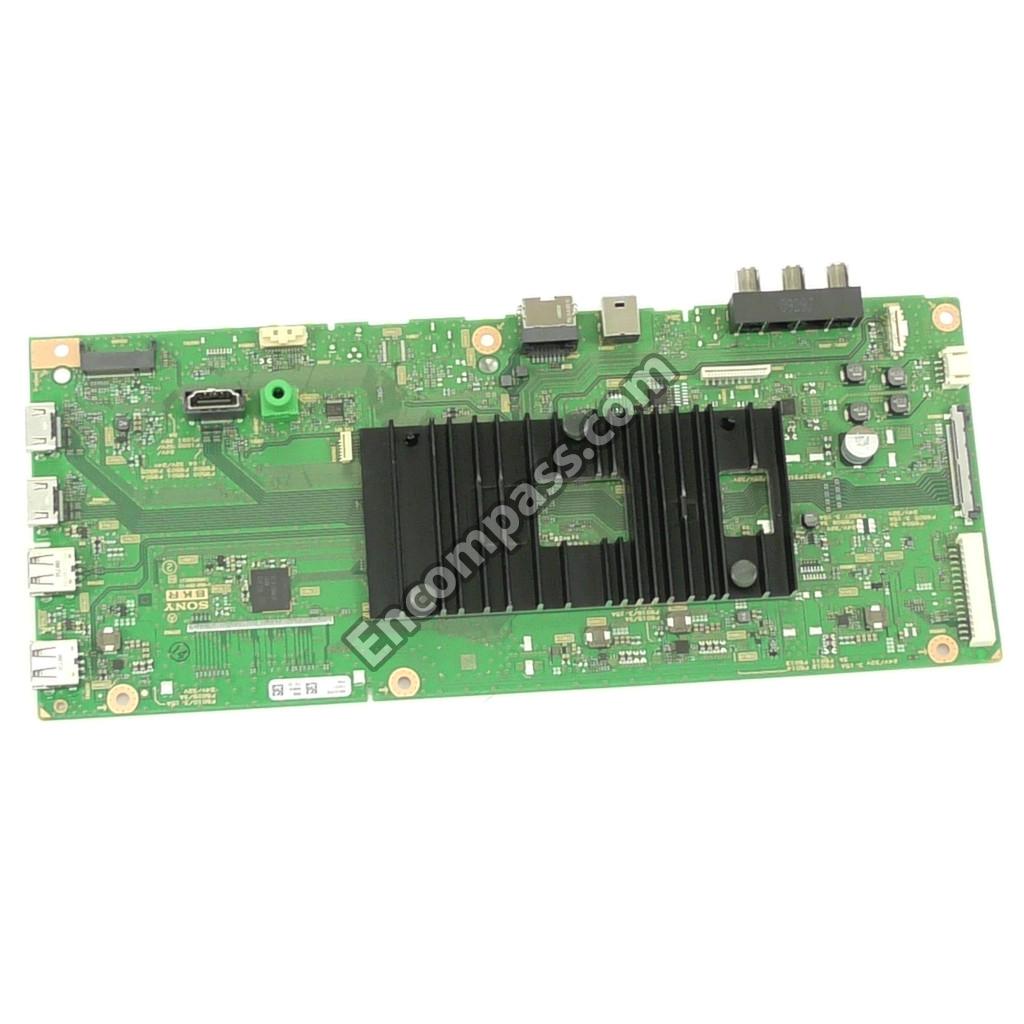

A-5019-132-B A-5019-132-B COMPL_SVC_BKR_UC
1-008-783-11 1-008-783-11 CONNECTOR ASSY 30P (UCM)
1-008-785-11 1-008-785-11 FLEXIBLE CABLE 20P (UCM)

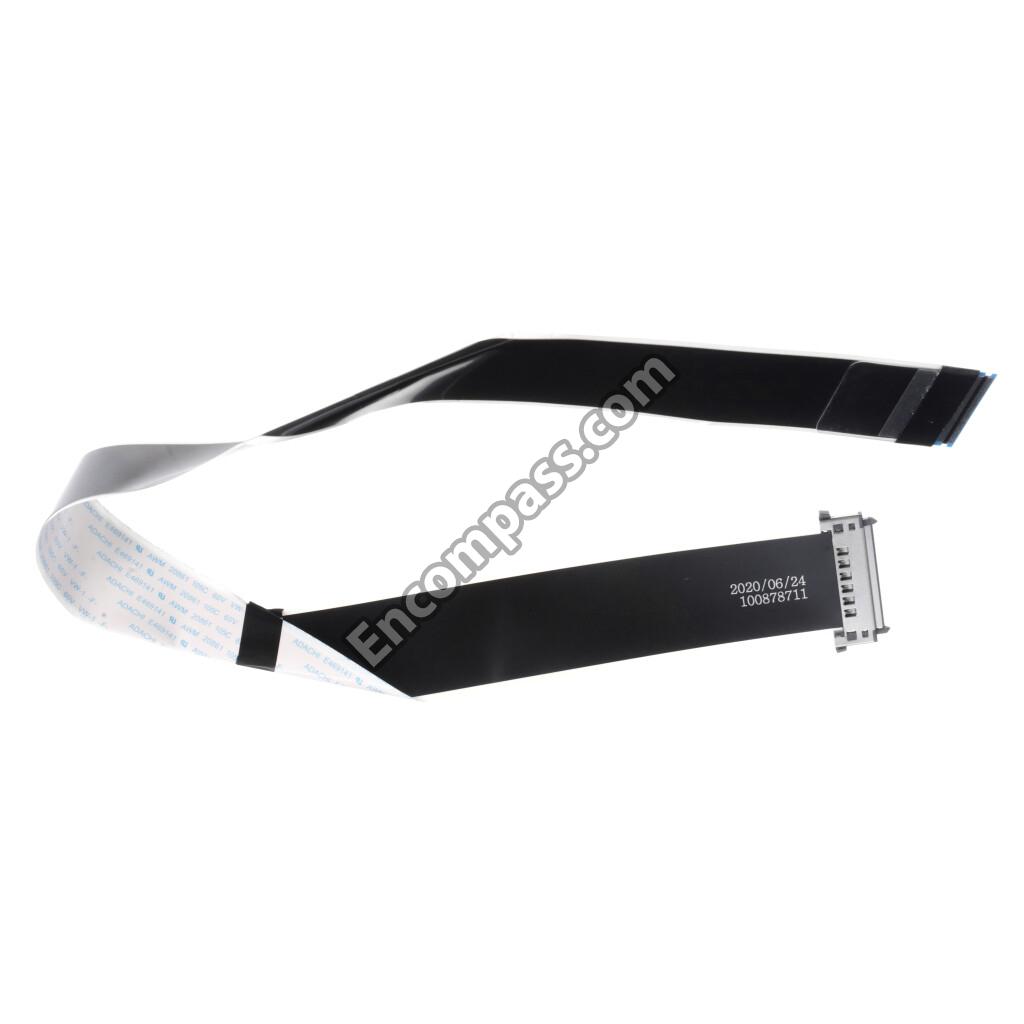

1-008-787-11 1-008-787-11 FLEXIBLE CABLE 51P (UCM)
1-008-782-11 1-008-782-11 HARNESS ASSY (UCM)
A-5022-764-A A-5022-764-A P-MOD (YSAF075CNU01)(SERVICE) (UCM)
5-002-561-61 5-002-561-61 REAR COVER (3L NCS) A (UCM)
5-013-504-12 5-013-504-12 SETUP GUIDE (UCM)
5-017-097-11 5-017-097-11 STAND, NECK (3L RBY) A (UCM)
