Model Image
Manufacturer

Sony

Model Number

KD75X80CJ

Description

75-inch Class 4k Ultra Hd (hdr) Smart Tv (google T

Interactive Exploded View

Parts List

Part Number Description
A-5027-342-A A-5027-342-A (MAIN CBA) COMPL_BM5A_APH_UCM (UC2)

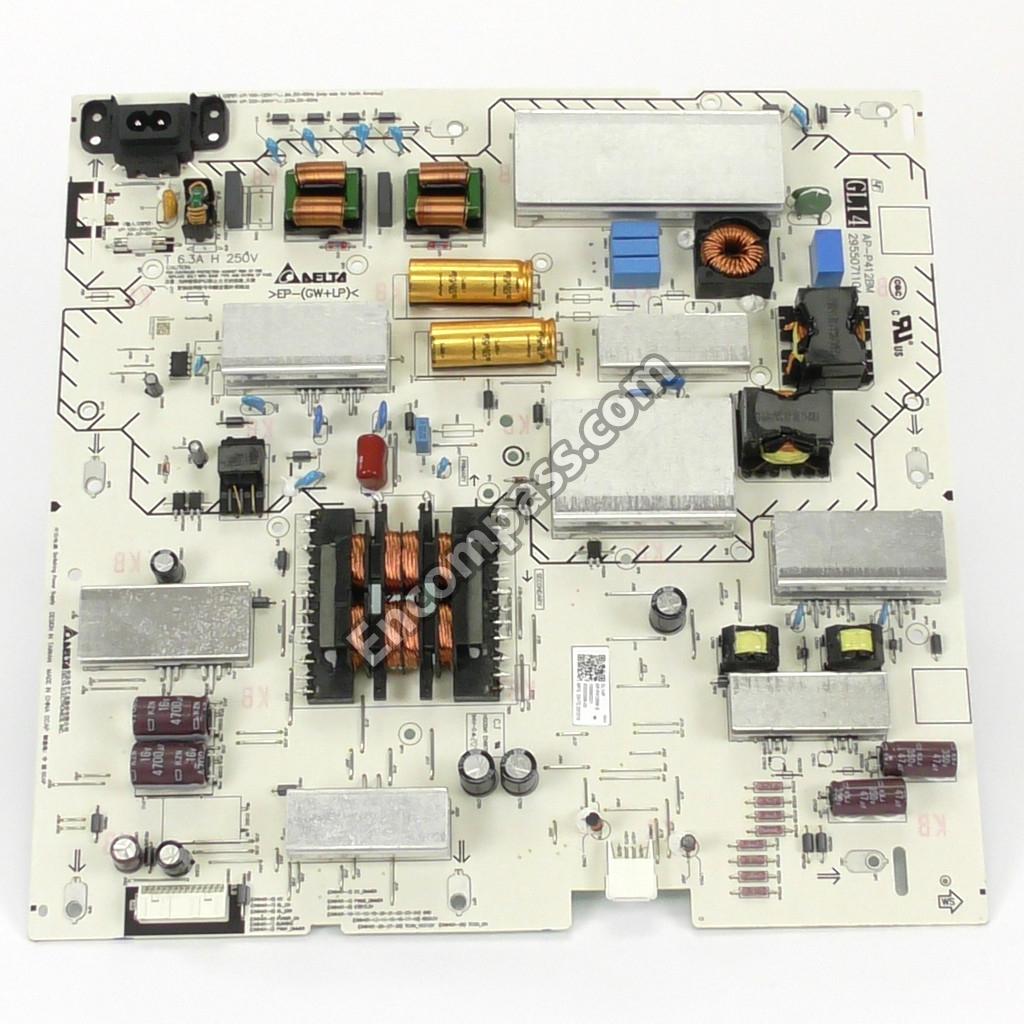

1-009-802-11 1-009-802-11 (POWER CBA) GL14-STATIC CONVERTER (TV) (UC2)
5-015-521-01 5-015-521-01 +PSW M6*16 W14 (UC2)
5-022-248-11 5-022-248-11 BAG, CL ASSY (3L LYX) (UC2)
5-028-045-23 5-028-045-23 BEZEL ASSY (3L PHN) (UC2)
5-028-045-21 5-028-045-21 BEZEL ASSY (3L PHN) (UC2)
5-022-643-23 5-022-643-23 BEZEL ASSY (3L PHN) (UC2) (PANEL PART)
5-015-416-31 5-015-416-31 BRACKET, SIDE(BNN) A (UC2)
5-021-551-31 5-021-551-31 BRACKET, SIDE(BNN) A. (UC2)
5-009-258-11 5-009-258-11 BRACKET, WIFI(BNN) (UC2)
5-009-258-21 5-009-258-21 BRACKET, WIFI(BNN) (UC2)
1-005-642-11 1-005-642-11 C7L AC POWER CODE SETS (US) (UC2)
1-006-502-11 1-006-502-11 CONNECTOR ASSY 30P (UC2)
1-006-514-11 1-006-514-11 CONNECTOR ASSY 4P (SP) (UC2)
5-025-952-11 5-025-952-11 COVER, BTM(L PHN) A (UC2)
5-024-516-22 5-024-516-22 COVER, TOP(COM) (UC2)
5-023-069-23 5-023-069-23 COVER, TOP(COM) (UC2)
5-009-701-01 5-009-701-01 DIFFUSER PLATE (3L) (UC2) (PANEL PART)
1-006-506-11 1-006-506-11 FLEXIBLE FLAT CABLE 20P (UC2)
1-006-505-11 1-006-505-11 FLEXIBLE FLAT CABLE 20P (UC2)
1-006-509-11 1-006-509-11 FLEXIBLE FLAT CABLE 25P (UC2)
1-006-510-11 1-006-510-11 FLEXIBLE FLAT CABLE 25P (UC2)
1-010-543-11 1-010-543-11 FLEXIBLE FLAT CABLE 51P (UC2)
1-010-542-11 1-010-542-11 FLEXIBLE FLAT CABLE 51P (UC2)
1-009-493-11 1-009-493-11 FLEXIBLE FLAT CABLE 68P (UC2) (PANEL PART)
4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (UC2) (PANEL PART)
1-009-802-21 1-009-802-21 GL14P-STATIC CONVERTER (TV) (UC2)
A-5028-234-A A-5028-234-A HT2_WW_CT_PR MOUNT (UC2)
A-5028-235-A A-5028-235-A HT2_WW_EV_PR MOUNT (UC2)
5-022-943-71 5-022-943-71 LABEL, SIDE TERMINAL (PHN) (UC2)
1-009-497-12 1-009-497-12 LIQUID CRYSTAL ELEMENT(B750QUB (UC2) (PANEL PART)
5-009-711-31 5-009-711-31 MICROLENS ON PRISM (3L) (UC2) (PANEL PART)
5-025-599-21 5-025-599-21 MIDDLE CHASSIS B (3L PHN) A (UC2) (PANEL PART)
5-008-995-21 5-008-995-21 MIDDLE CHASSIS L (3L BNN) A (UC2) (PANEL PART)
5-008-997-21 5-008-997-21 MIDDLE CHASSIS R (3L BNN) A (UC2) (PANEL PART)
5-025-598-21 5-025-598-21 MIDDLE CHASSIS T (3L PHN) A (UC2) (PANEL PART)
1-009-498-12 1-009-498-12 MOUNTED PWB E-T-CON (75) (44-9771667A) (UC2) (PANEL PART)
1-010-136-11 1-010-136-11 MOUNTED PWB LS BAR (PHN 3L) (UC2)
A-5027-800-A A-5027-800-A P-MOD (YSBM075CNO11) (UC2)
A-5027-725-A A-5027-725-A P-MOD(YSBM075CNO02)SVC (UC2)
5-029-504-01 5-029-504-01 POLARIZER F/CF (38-1007085) (UC2) (PANEL PART)
5-032-722-01 5-032-722-01 POLARIZER R/TFT (38-1007086) (UC2) (PANEL PART)
1-005-629-11 1-005-629-11 POWER-SUPPLY CORD SET (UC2)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UC2)
5-023-505-11 5-023-505-11 REAR COVER (3L PHN) A (UC2)
5-025-048-11 5-025-048-11 REFERENCE GUIDE (UC2)
5-023-498-01 5-023-498-01 REFLECTIVE SHEET (PHN 3L) (UC2) (PANEL PART)
1-009-952-11 1-009-952-11 REMOTE COMMANDER (RMF-TX520U) (UC2)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UC2)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2) (PANEL PART)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UC2)
5-025-059-11 5-025-059-11 SETUP GUIDE (UC2)
5-027-742-11 5-027-742-11 SHEET, INSULATION (3L PHN) A (UC2)
4-457-451-11 4-457-451-11 SHEET, THERMAL(BAF) (UC2)
4-549-186-02 4-549-186-02 SHEET, THERMAL(BM) (UC2) (PANEL PART)
1-011-870-11 1-011-870-11 SOURCE DRIVER IC MT BOARD (47-7012176) (UC2) (PANEL PART)
5-014-769-01 5-014-769-01 SPACER(26) WF +C (UC2)
1-004-511-12 1-004-511-12 SPEAKER BOX ASSY (FY20 W30XL-A) (UC2)
1-004-511-22 1-004-511-22 SPEAKER BOX ASSY (FY20 W30XL-B) (UC2)
5-022-231-11 5-022-231-11 STAND, L (3L LYX) A (UC2)
5-022-232-11 5-022-232-11 STAND, R (3L LYX) A (UC2)
5-009-861-12 5-009-861-12 VESA SPACER A (COM) (UC2)
5-009-861-02 5-009-861-02 VESA SPACER A (COM) (UC2)
1-005-419-31 1-005-419-31 WLAN/BT MODULE (11AC) (UC2)
1-005-419-11 1-005-419-11 WLAN/BT MODULE(11AC) DHUR-SY63 (UC2)
