Model Image
Manufacturer

Sony

Model Number

KD84X9000

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-458-321-31 1-458-321-31 3D GLASSES
4-443-737-02 4-443-737-02 BAG ASSY RUDDER LOCK (REA)
4-435-223-01 4-435-223-01 BASE A
4-447-792-01 4-447-792-01 BRACKET BOTTOM ASSY
4-436-032-02 4-436-032-02 BRACKET SP A (LB)
4-443-446-02 4-443-446-02 BRACKET SP A (LT)
4-436-031-02 4-436-031-02 BRACKET SP A (RB)
4-443-444-02 4-443-444-02 BRACKET SP A (RT)
4-432-552-11 4-432-552-11 BRACKET UNDER
4-432-979-01 4-432-979-01 BRACKET VESA
4-444-524-01 4-444-524-01 CARTON INDIVIDUAL (REA 84)
4-451-135-01 4-451-135-01 CLAMPER CABLE
4-440-745-01 4-440-745-01 CUSHION LOWER (REA)
4-440-747-01 4-440-747-01 CUSHION SIDE (REA)
4-440-744-01 4-440-744-01 CUSHION UPPER (REA)
1-846-333-11 1-846-333-11 FFC WITH CONNECTOR
1-846-344-11 1-846-344-11 FLEXIBLE FLAT CABLE 20P
1-846-346-11 1-846-346-11 FLEXIBLE FLAT CABLE 41P
1-846-334-11 1-846-334-11 FLEXIBLE FLAT CABLE 51P

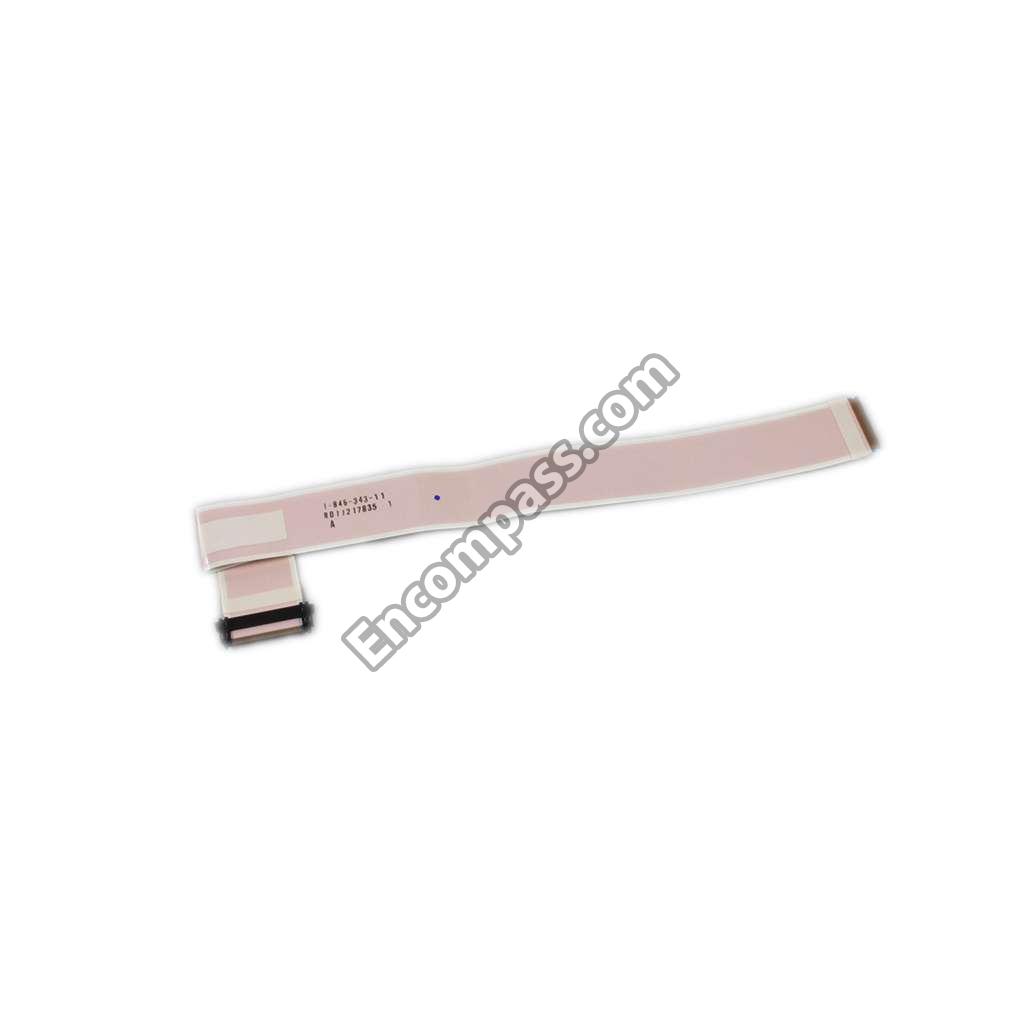

1-846-343-11 1-846-343-11 FLEXIBLE FLAT CABLE 51P
1-846-345-11 1-846-345-11 FLEXIBLE FLAT CABLE 68P
4-432-994-01 4-432-994-01 FRAME BTM CORNER(L)
4-432-993-01 4-432-993-01 FRAME BTM CORNER(R)
4-432-992-02 4-432-992-02 FRAME TOP CORNER
4-432-997-01 4-432-997-01 FRAME(C)
4-432-996-01 4-432-996-01 FRAME(R)

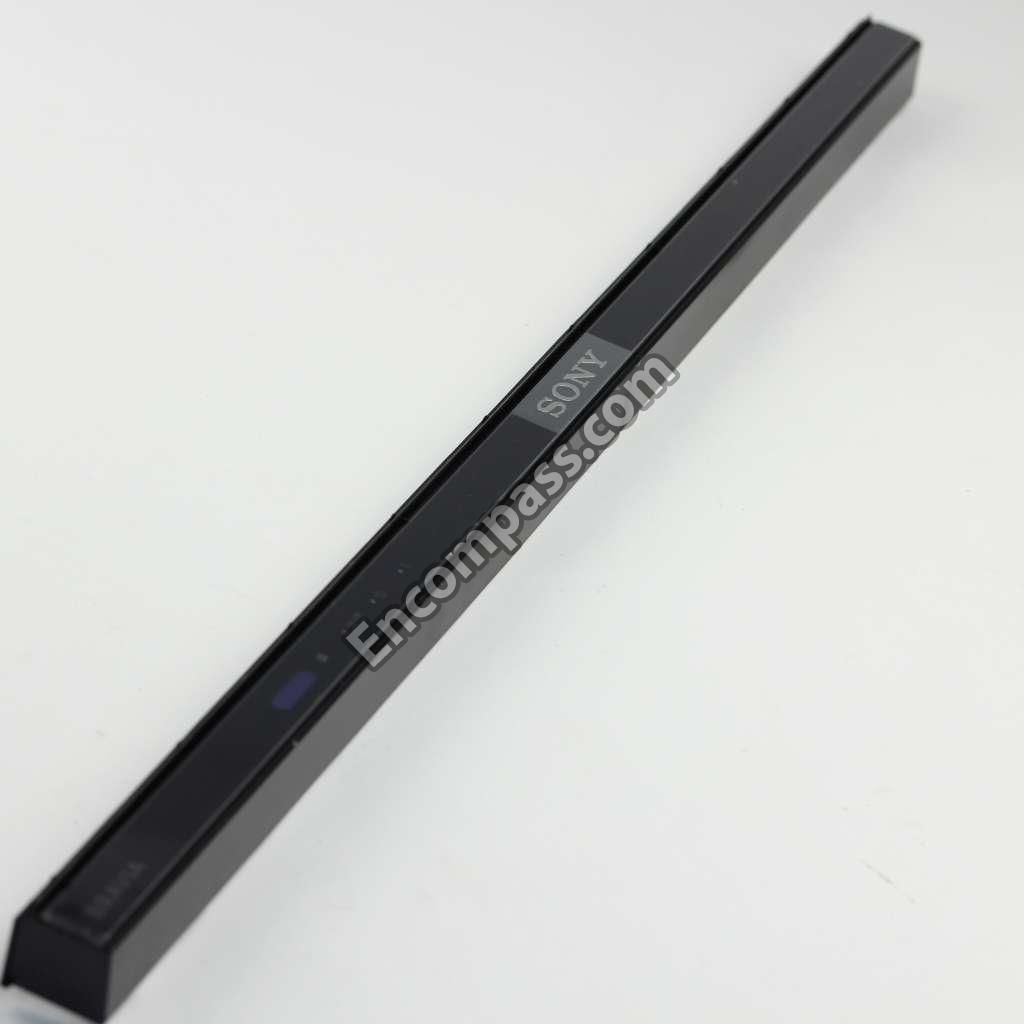

4-433-933-03 4-433-933-03 FRONT PANEL ASSY
1-474-417-11 1-474-417-11 G16-STATIC CONVERTER (TV)
1-474-418-11 1-474-418-11 G17-STATIC CONVERTER (TV)
4-432-977-01 4-432-977-01 HOTEL COVER

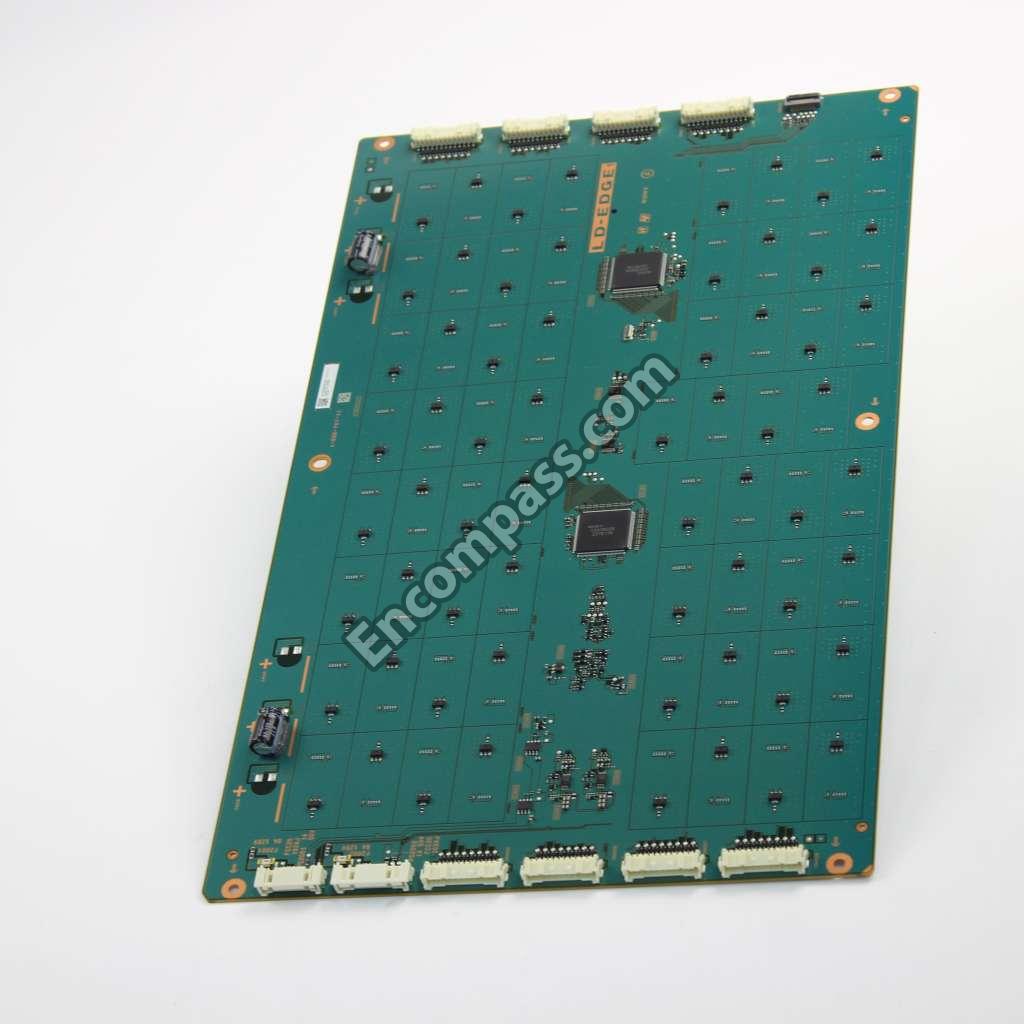

A-1898-025-A A-1898-025-A LD-EDGE1 COMPLE
4-435-226-01 4-435-226-01 NECK A(L) L
4-439-646-01 4-439-646-01 NECK A(L) R
4-435-229-01 4-435-229-01 NECK A(S)

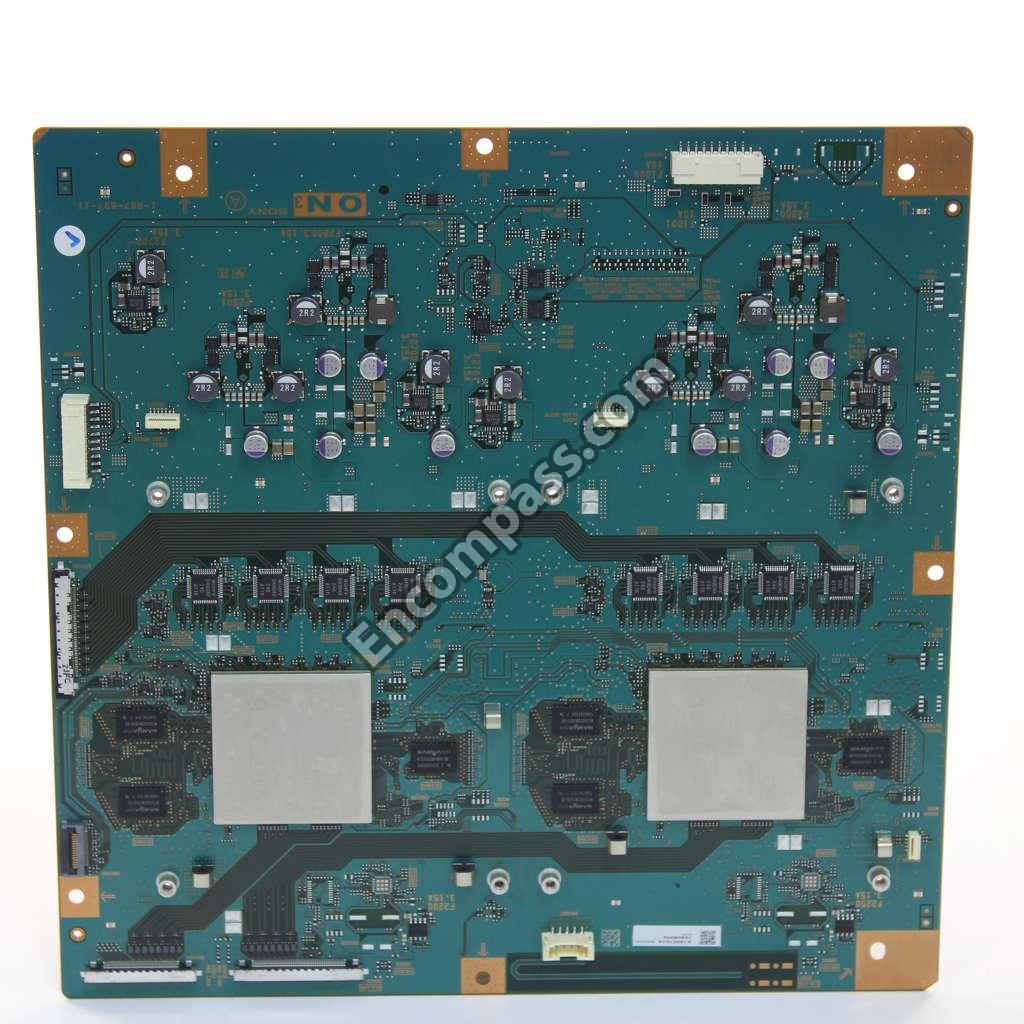

A-1902-157-A A-1902-157-A ON3 COMPLE
A-1902-158-A A-1902-158-A P3L COMPLE
4-444-146-01 4-444-146-01 SCREW DAMPER M3
4-436-624-01 4-436-624-01 SCREW ORNAMETAL M6X20
A-1906-639-A A-1906-639-A SP BOX L SERVICE
A-1906-640-A A-1906-640-A SP BOX R SERVICE
3-674-673-02 3-674-673-02 STOPPER (A)
4-435-232-01 4-435-232-01 SUPPORT COVER(L) L
4-439-648-01 4-439-648-01 SUPPORT COVER(L) R
4-435-233-01 4-435-233-01 SUPPORT COVER(S)
4-440-748-01 4-440-748-01 TRAY (REA)
