Manufacturer
Sony
Model Number
KD85X80K
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
(MAIN CBA) COMPL_BM5A_FH_UCM (UC2) |
|
|

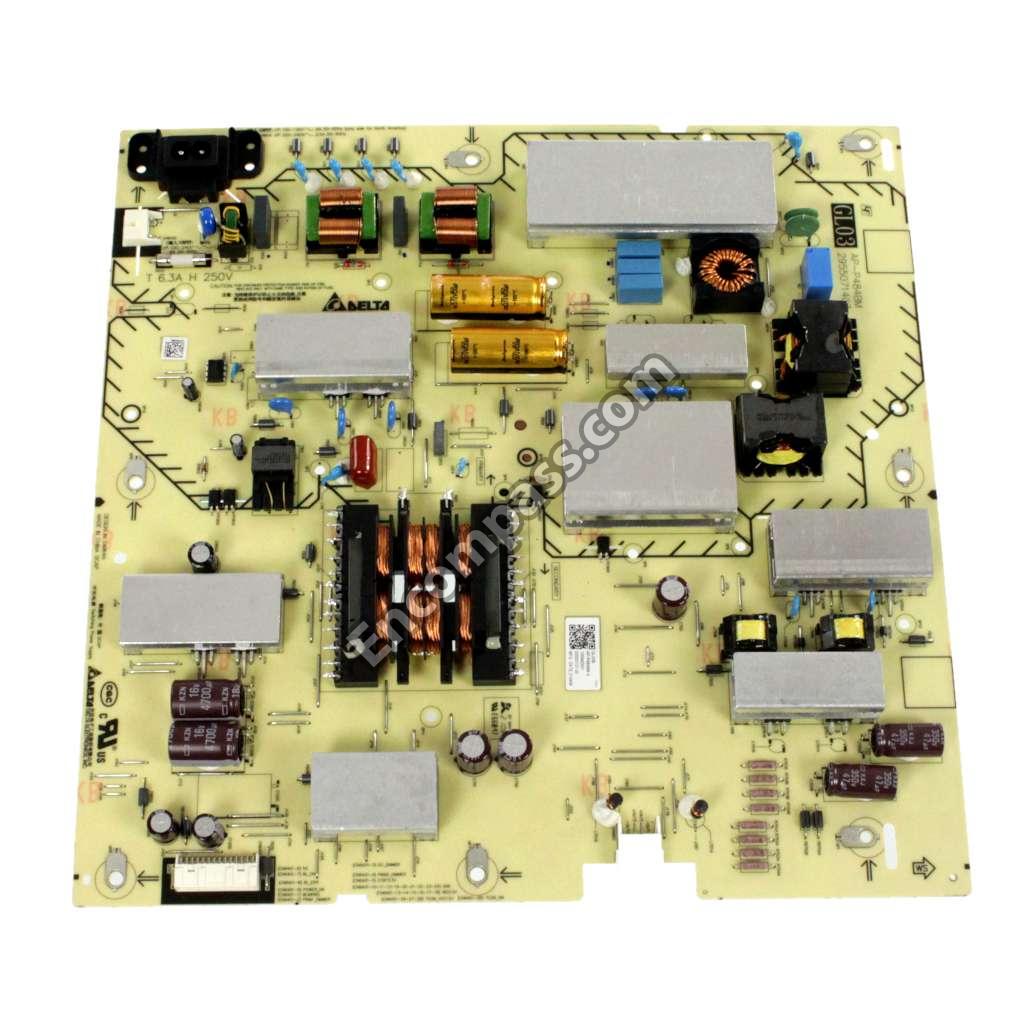

(POWER CBA) GL03B-STATIC CONVERTER (TV) (UC2) |
|
|
(POWER CBA) GL03BP STATIC CONVERTER (TV) (UC2) |
|
|
+PSW M6*16 W14 (UC2) |
|
|
7L AC POWER CODE SETS (US) (UC2) |
|
|
BAG, CL ASSY (4L LYX) (UC2) |
|
|
BEZEL BT ASSY(4L HRS) (UC2) |
|
|
BEZEL TP ASSY (4L TGR) (UC2) |
|
|
BEZEL TP ASSY (4L TGR) (UC2) |
|
|
BEZEL TP ASSY (4L TGR) (UC2) |
|
|
BRACKET SIDE (BNN) A (UC2) |
|
|
BRACKET SIDE (BNN) A (UC2) |
|
|
BRACKET, WIFI(BNN) (UC2) |
|
|
BRACKET, WIFI(BNN) (UC2) |
|
|
CONNECTOR ASSY 30P (UC2) |
|
|
CONNECTOR ASSY 4P (SP) (UC2) |
|
|
COVER, BTM(4L TGR) A (UC2) |
|
|
COVER, TOP(COM) (UC2) |
|
|
FLEXIBLE FLAT CABLE 20P (UC2) |
|
|
FLEXIBLE FLAT CABLE 20P (UC2) |
|
|
FLEXIBLE FLAT CABLE 25P (UC2) |
|
|
FLEXIBLE FLAT CABLE 25P (UC2) |
|
|
FLEXIBLE FLAT CABLE 41P (UC2) |
|
|
FLEXIBLE FLAT CABLE 41P (UC2) |
|
|
FLEXIBLE FLAT CABLE 51P (UC2) |
|
|
FLEXIBLE FLAT CABLE 51P (UC2) |
|
|
FY22_HT2_WW_EV_PR MOUNT (UC2) |
|
|
LABEL, SIDE TERMINAL HP (HRS) (UC2) |
|
|
LIQUID CRYSTAL ELEMENT(I850DK2 (UC2) |
|
|
MOUNTED PWB E-T-CON (85) (UC2) |
|
|
MOUNTED PWB LS BAR (HRS 4L) (UC2) |
|
|
P-MOD (YDCM085CCN11) (UC2) |
|
|
POWER-SUPPLY CORD SET (UC2) |
|
|
RADIATOR ADHESIVE (SV380C) (UC2) |
|
|
REAR COVER ASSY (4L HRS) (UC2) |
|
|
REFERENCE GUIDE (UC2) |
|
|
REMOTE COMMANDER (RMF-TX800U) (UC2) |
|
|
SCREW M3X3.0 STEP (UC2) |
|
|
SCREW, +PSW M3X8 (UC2) |
|
|
SETUP GUIDE (UC2) |
|
|
SHEET, INSULATION (3L PHN) A (UC2) |
|
|
SPEAKER BOX ASSY (FY20 W30XL-A) (UC2) |
|
|
SPEAKER BOX ASSY (FY20 W30XL-B) (UC2) |
|
|

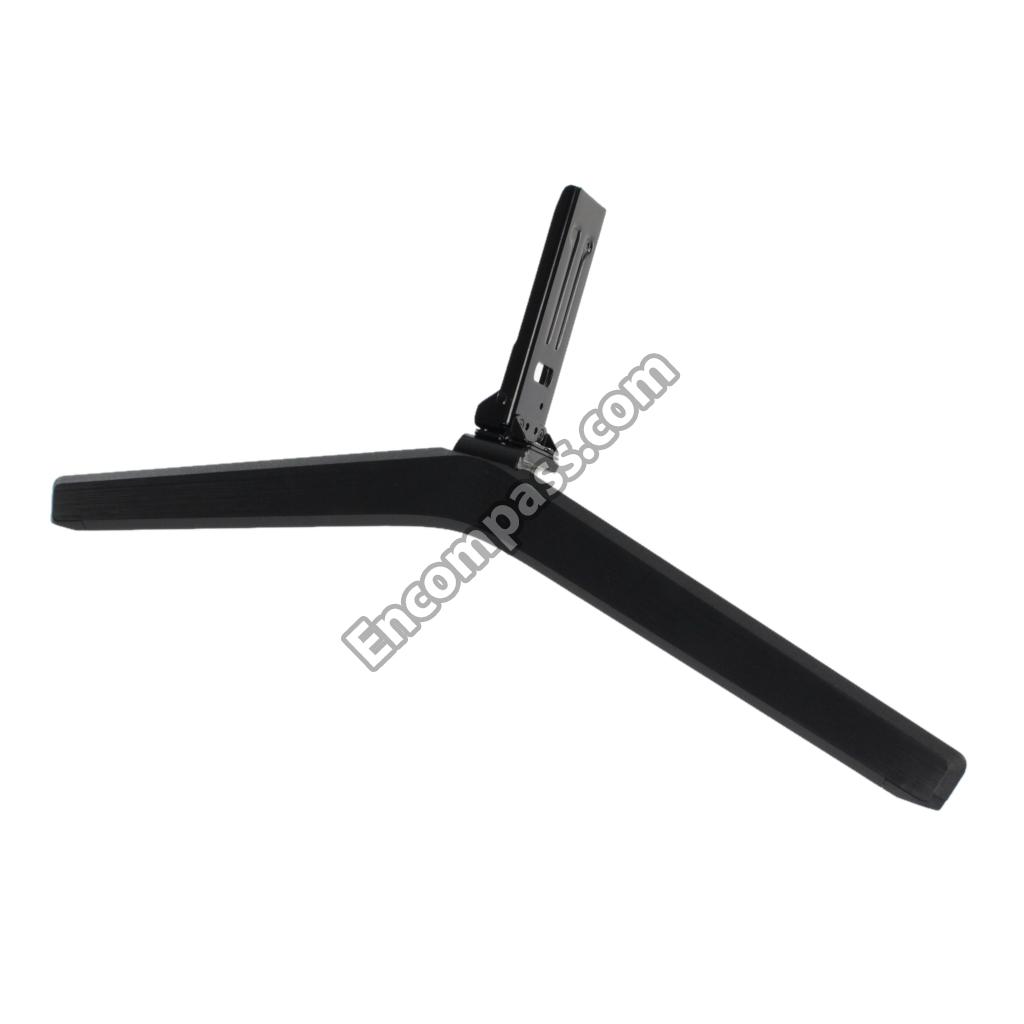

STAND, L (4L LYX) A (UC2) |
|
|
STAND, R (4L LYX) A (UC2) |
|
|
VESA SPACER A (COM) (UC2) |
|
|
WLAN/BT MODULE (11AC) (UC2) |
|
|
WLAN/BT MODULE(11AC) (UC2) |
