Model Image
Manufacturer

Sony

Model Number

KD85X85K

Description

4k Hdr Led Tv With Smart Google Tv

Interactive Exploded View

Parts List

Part Number Description
5-015-521-01 5-015-521-01 +PSW M6*16 W14 (UCM)
1-005-642-12 1-005-642-12 7L AC POWER CODE SETS (US) (UCM)
5-022-260-11 5-022-260-11 BAG, CL ASSY (4L LYX) (UCM)
5-037-376-01 5-037-376-01 BEZEL BT ASSY(4L HRS) (UCM)
5-041-321-01 5-041-321-01 BEZEL TP ASSY (4L TGR) (UCM)
5-034-609-01 5-034-609-01 BEZEL TP ASSY (4L TGR) (UCM)
5-034-607-01 5-034-607-01 BEZEL TP ASSY (4L TGR) (UCM)
5-039-953-11 5-039-953-11 BRACKET SIDE (BNN) A (UCM)
5-039-955-11 5-039-955-11 BRACKET SIDE (BNN) A (UCM)
5-009-258-11 5-009-258-11 BRACKET, WIFI(BNN) (UCM)
5-009-258-21 5-009-258-21 BRACKET, WIFI(BNN) (UCM)
5-009-030-01 5-009-030-01 CLAMPER,CABLE L(BNN) (UCM) (PANEL PART)
5-009-031-02 5-009-031-02 CLAMPER,CABLE S(BNN) (UCM) (PANEL PART)

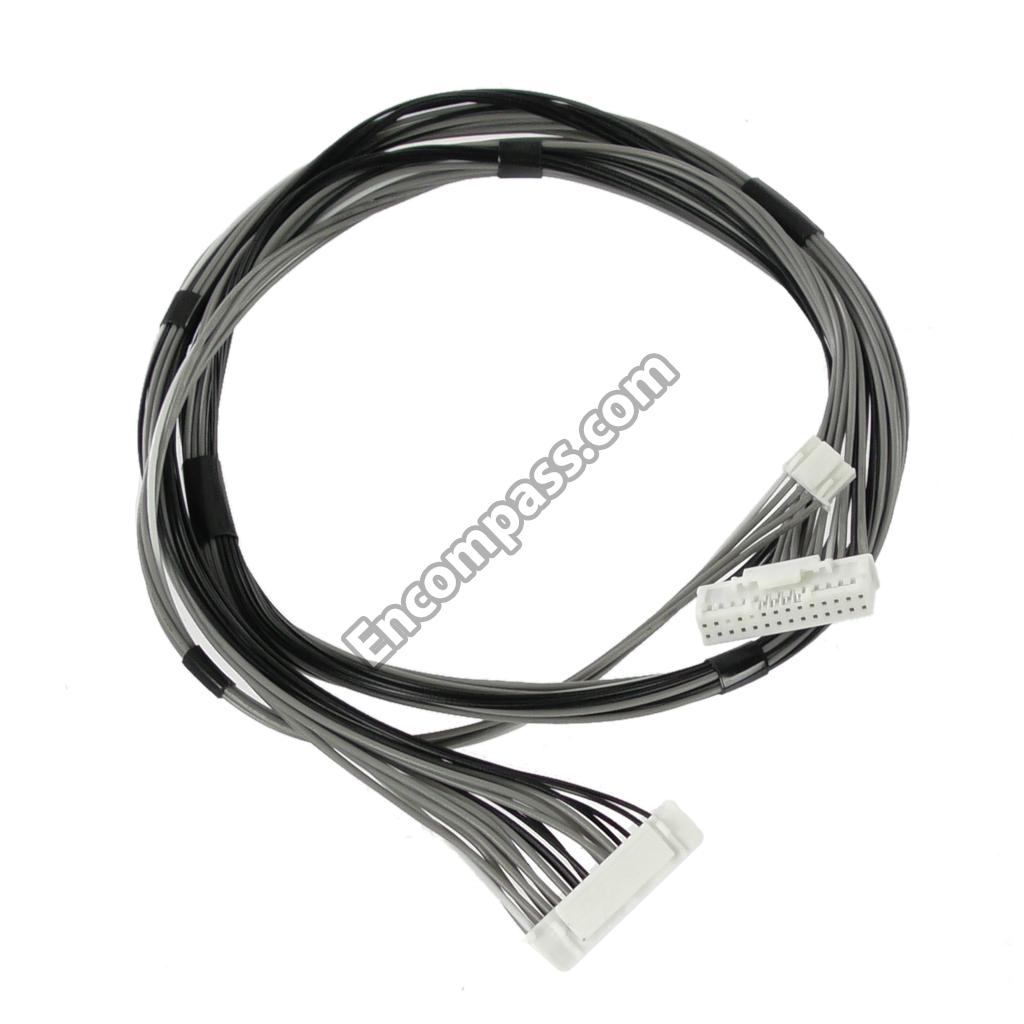

1-011-595-11 1-011-595-11 CONNECTOR ASSY 30P (UCM)
1-006-440-12 1-006-440-12 CONNECTOR ASSY 4P (LS) (UCM) (PANEL PART)
1-006-517-11 1-006-517-11 CONNECTOR ASSY 4P (SP) (UCM)
5-036-684-11 5-036-684-11 COVER, BTM(4L TGR) A (UCM)
5-023-069-23 5-023-069-23 COVER, TOP(COM) (UCM)
5-035-539-01 5-035-539-01 DIFFUSER PLATE (HRS 4L) (UCM) (PANEL PART)
A-5071-669-A A-5071-669-A F-CELL ASSY 85 (SVC) FH (UCM) (PANEL PART)
1-006-522-11 1-006-522-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-006-521-11 1-006-521-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-011-607-11 1-011-607-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-011-605-11 1-011-605-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-011-601-11 1-011-601-11 FLEXIBLE FLAT CABLE 41P (UCM)
1-011-600-11 1-011-600-11 FLEXIBLE FLAT CABLE 41P (UCM)
1-014-738-11 1-014-738-11 FLEXIBLE FLAT CABLE 51P (UCM)
1-014-737-11 1-014-737-11 FLEXIBLE FLAT CABLE 51P (UCM)
1-014-740-11 1-014-740-11 FLEXIBLE FLAT CABLE 80P (UCM) (PANEL PART)
A-5042-373-A A-5042-373-A FY22_HT2_WW_EV_PR MOUNT (UCM)
4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (UCM) (PANEL PART)
5-011-453-01 5-011-453-01 GASKET, TCON CH (APL) (UCM) (PANEL PART)
4-081-035-03 4-081-035-03 JOINT (UCM) (PANEL PART)
5-039-646-01 5-039-646-01 LABEL, SIDE TERMINAL HP (HRS) (UCM)
1-014-128-11 1-014-128-11 LIQUID CRYSTAL ELEMENT(A850QVN (UCM) (PANEL PART)
1-014-134-11 1-014-134-11 LIQUID CRYSTAL ELEMENT(I850DK2 (UCM)
A-5042-692-A A-5042-692-A MAIN CBA_COMPL_BM5A_FH_UCM (UCM)

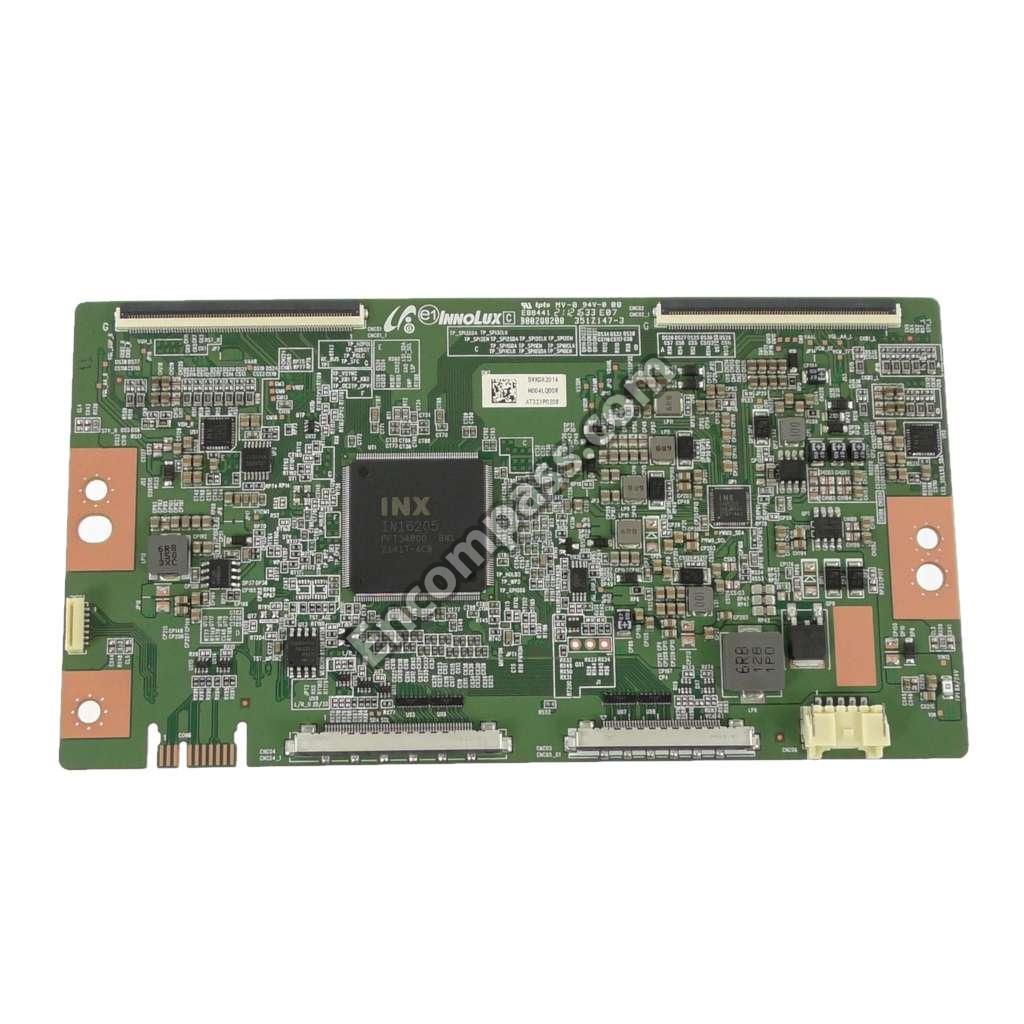

1-014-135-11 1-014-135-11 MOUNTED PWB E-T-CON (85) (UCM)
1-014-129-11 1-014-129-11 MOUNTED PWB E-T-CON (85) (UCM) (PANEL PART)
1-015-359-21 1-015-359-21 MOUNTED PWB LS BAR (HRS 4L) (UCM)
1-015-359-11 1-015-359-11 MOUNTED PWB LS BAR (HRS 4L) (UCM) (PANEL PART)
A-5043-574-A A-5043-574-A P-MOD (YDCM085CCN11) (UCM)
5-044-745-01 5-044-745-01 POLARIZER F/CF (66.C4V57.349) (UCM) (PANEL PART)

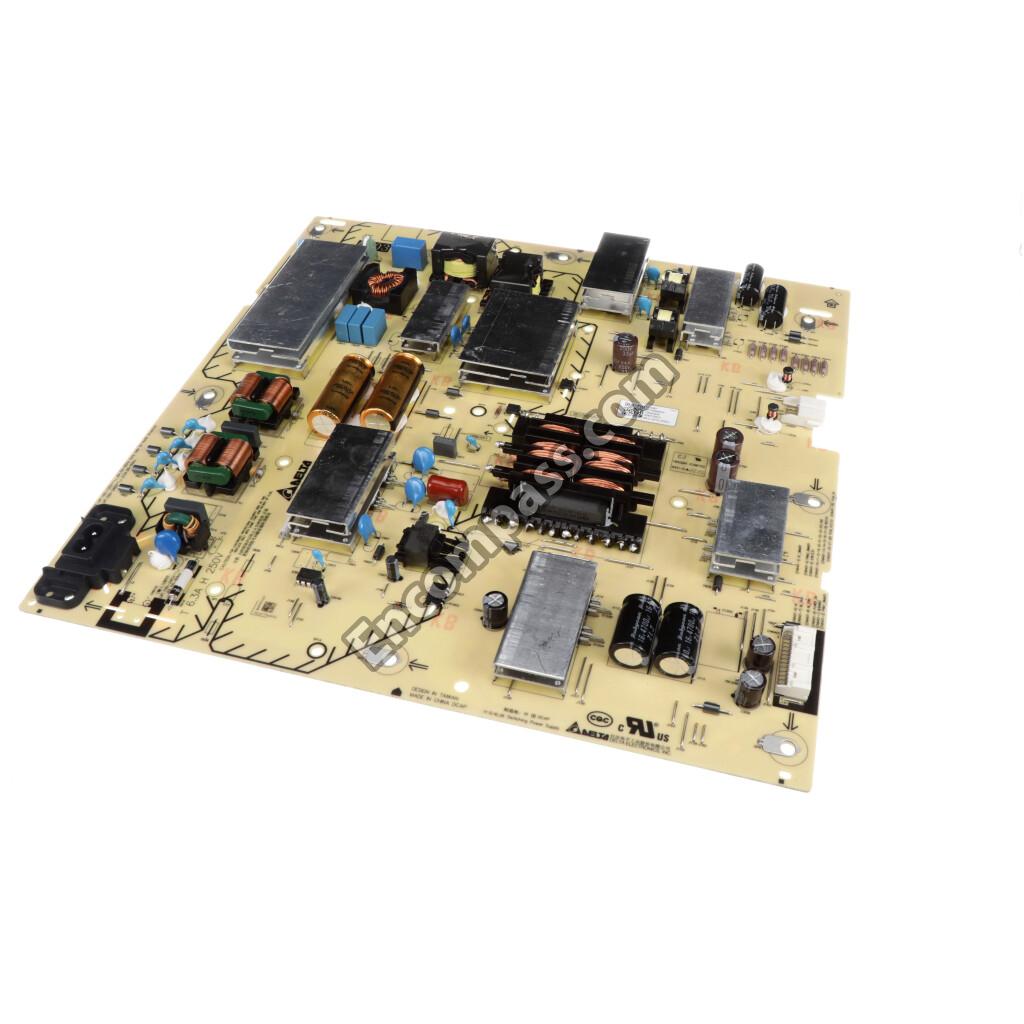

1-004-424-32 1-004-424-32 POWER CBA_GL03B-STATIC CONVERTER (TV) (UCM)
1-004-424-42 1-004-424-42 POWER CBA_GL03BP STATIC CONVERTER (TV) (UCM)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UCM)
5-039-627-01 5-039-627-01 REAR COVER ASSY (4L HRS) (UCM)
5-022-711-01 5-022-711-01 REF. POLARIZER ON PRISM (4L) (UCM) (PANEL PART)
A-5046-948-A A-5046-948-A REF. POLARIZER ON PRISM(FH85) (UCM) (PANEL PART)
5-037-718-11 5-037-718-11 REFERENCE GUIDE (UCM)
5-035-538-01 5-035-538-01 REFLECTIVE SHEET (HRS 4L) (UCM) (PANEL PART)
1-013-691-24 1-013-691-24 REMOTE COMMANDER (RMF-TX800U) (UCM)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UCM)
4-690-738-01 4-690-738-01 SCREW, +LH M3X3 (PUC) (UCM) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCM) (PANEL PART)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UCM)
4-726-549-01 4-726-549-01 SCREW, M3X3 (UCM) (PANEL PART)
5-005-753-01 5-005-753-01 SCREW, M3X4 (UCM) (PANEL PART)
5-037-726-11 5-037-726-11 SETUP GUIDE (UCM)
5-027-742-11 5-027-742-11 SHEET, INSULATION (3L PHN) A (UCM)
1-012-387-11 1-012-387-11 SOURCE DRIVER IC MT BOARD (46.S0966.386 ) (UCM) (PANEL PART)
1-004-511-12 1-004-511-12 SPEAKER BOX ASSY (FY20 W30XL-A) (UCM)
1-004-511-21 1-004-511-21 SPEAKER BOX ASSY (FY20 W30XL-B) (UCM)
5-022-250-13 5-022-250-13 STAND, L (4L LYX) A (UCM)
5-022-251-14 5-022-251-14 STAND, R (4L LYX) A (UCM)
5-009-047-11 5-009-047-11 SUPPORTER PIN (COM) (UCM) (PANEL PART)
5-013-482-11 5-013-482-11 SUPPORTER PIN (COM) (UCM) (PANEL PART)
5-014-770-11 5-014-770-11 SUPPORTER PIN (COM) (UCM) (PANEL PART)
7-600-036-11 7-600-036-11 TAPE (1350FB-1) 30MMX66M BLK (UCM) (PANEL PART)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK (UCM) (PANEL PART)
NSI NSI TAPE (3M 1350FB-1)15MMX66M BLK (UCM) (PANEL PART)
5-014-076-01 5-014-076-01 TAPE LIGHT LEAKAGE (UCM) (PANEL PART)
5-019-179-31 5-019-179-31 TAPE, REF FIX (UCM) (PANEL PART)
5-009-861-02 5-009-861-02 VESA SPACER A (COM) (UCM)
1-005-419-32 1-005-419-32 WLAN/BT MODULE (11AC) (UCM)
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC) (UCM)
