Manufacturer
Sony
Model Number
KD85X91J
Description
85-inch Class Full Array Led 4k Ultra Hd (hdr) Sma
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
(MAIN CBA) BM5_UC2 COMPL (UC2) |
|
|
(POWER CBA) G03-STATIC CONVERTER (TV) (UC2) |
|
|
(POWER CBA) G03P STATIC CONVERTER (TV) (UC2) |
|
|
+PSW M6*16 W14 (UC2) |
|
|
20LD40A1 COMPL V1.001 (UC2) |
|
|
4P HARNESS(BM5-PZ) (UC2) |
|
|
BRACKET, SIDE(BNN) A (UC2) |
|
|
BRACKET, SIDE(BNN) A. (UC2) |
|
|
BRACKET, WIFI(BNN) (UC2) |
|
|
C7L AC POWER CODE SETS (US) (UC2) |
|
|
CLAMPER, CABLE (4L APL) A (UC2) |
|
|
CONNECTOR ASSY 15P (UC2) |
|
|
CONNECTOR ASSY 28P (UC2) |
|
|
CONNECTOR ASSY 6P (UC2) |
|
|
COVER, BTM(PCH) (UC2) |
|
|
COVER, TOP(BNN) (UC2) |
|
|

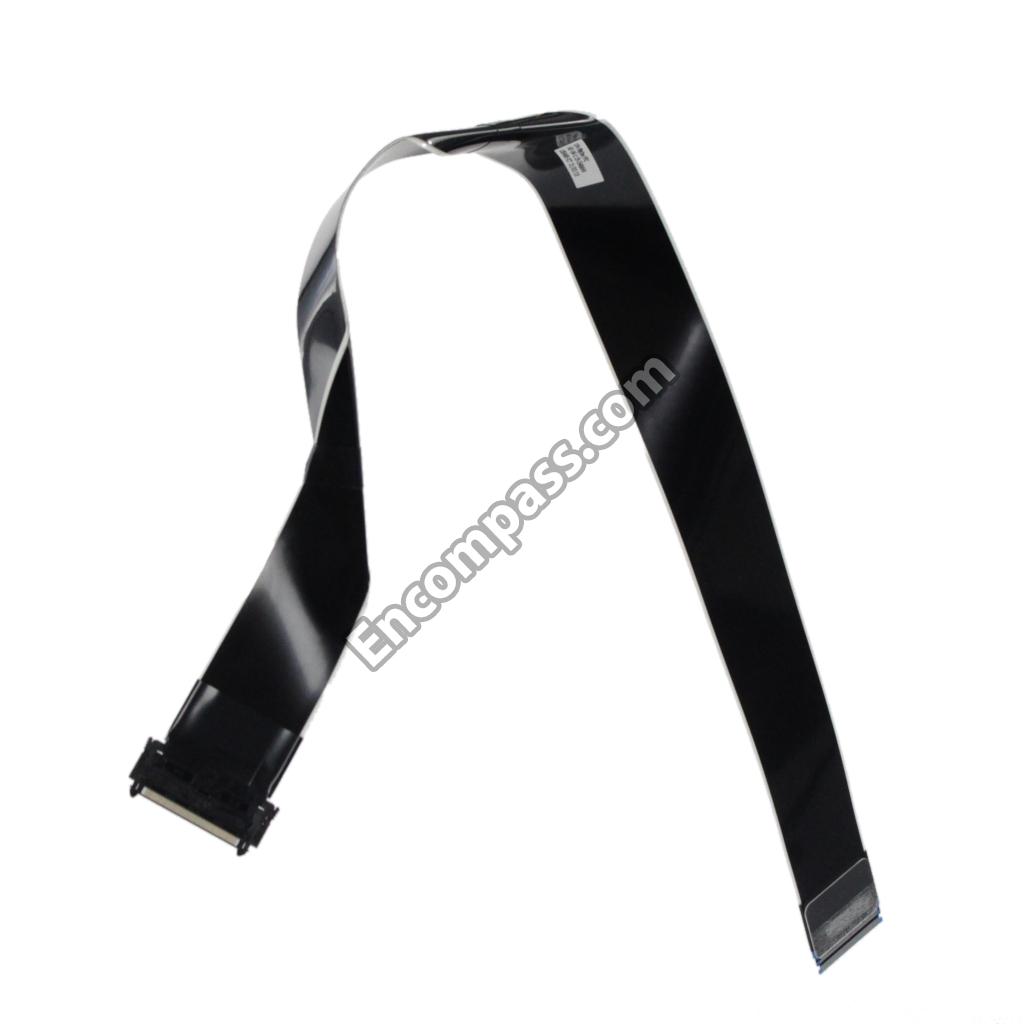

FLEXIBLE FLAT CABLE 20P (UC2) |
|
|
FLEXIBLE FLAT CABLE 20P (UC2) |
|
|
FLEXIBLE FLAT CABLE 25P (UC2) |
|
|
FLEXIBLE FLAT CABLE 25P (UC2) |
|
|
FLEXIBLE FLAT CABLE 30P (UC2) |
|
|
FLEXIBLE FLAT CABLE 30P (UC2) |
|
|
FLEXIBLE FLAT CABLE 41P (UC2) |
|
|
FLEXIBLE FLAT CABLE 51P (UC2) |
|
|
GASKET, B PLATE (PCH) (UC2) |
|
|
HT1_4K_CT_NX MOUNT (UC2) |
|
|
LABEL, SIDE TERMINAL (APL2) (UC2) |
|
|
LIGHT, GUIDE ILM(BNN) (UC2) |
|
|
LIGHT, GUIDE OPT(BNN) (UC2) |
|
|
MOUNTED PWB E-T-CON(85) (UC2) |
|
|
OP, INNER(BNN) A (UC2) |
|
|
POWER-SUPPLY CORD SET (UC2) |
|
|
REAR COVER (4L APL) A (UC2) |
|
|
REAR COVER (4L APL) A (UC2) |
|
|
REFERENCE GUIDE (UC2) |
|
|
REMOTE COMMANDER (RMF-TX520U) (UC2) |
|
|
SCREW M3X3.0 STEP (UC2) |
|
|
SCREW, +PSW M3X6 (UC2) |
|
|
SCREW, +PSW M3X8 (UC2) |
|
|
SETUP GUIDE (UC2) |
|
|
SHT, INSULATION A (BNN 3L) (UC2) |
|
|
SPACER(26) WF +C (UC2) |
|
|
SPEAKER ASSY (PZ25-25) (UC2) |
|
|
SPEAKER BOX ASSY (FY20 W30XL-A) (UC2) |
|
|
SPEAKER BOX ASSY (FY20 W30XL-B) (UC2) |
|
|

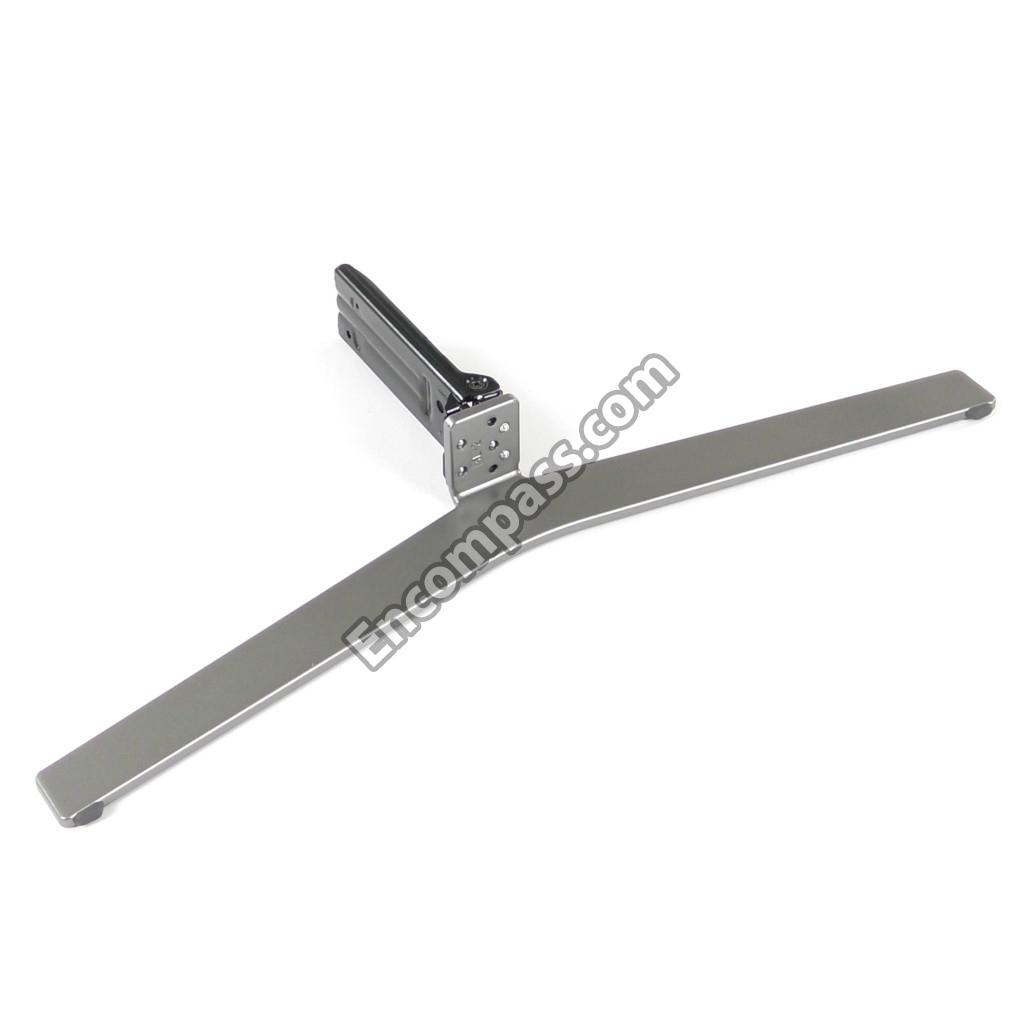

STAND, L (4L APL) A (UC2) |
|
|
STAND, R (4L APL) A (UC2) |
|
|
VESA SPACER A (COM) (UC2) |
|
|
WLAN/BT MODULE (11AC) (UC2) |
|
|
WLAN/BT MODULE(11AC) (UC2) |
