Model Image
Manufacturer

Sony

Model Number

KDL32R330B

Description

32 (diagonal) Led Hdtv

Interactive Exploded View

Parts List

Part Number Description
4-538-881-01 4-538-881-01 BACK CHASSIS (32)
AM4PTB2D AM4PTB2D BATTERY "AAA"
4-538-443-11 4-538-443-11 BEZEL (32)
4-542-280-01 4-542-280-01 BKT_CONNECTOR SGCC
4-542-283-01 4-542-283-01 BOLT, M3
4-538-884-01 4-538-884-01 BRACKET, SIDE
1-910-109-62 1-910-109-62 CONNECTOR ASSY 14P
1-910-109-64 1-910-109-64 CONNECTOR ASSY 4P
1-910-109-63 1-910-109-63 CONNECTOR ASSY 6P
4-538-446-11 4-538-446-11 DECO (32)
4-542-297-11 4-542-297-11 IO SIDE LABLE
A-2059-601-A A-2059-601-A LCM ASSY (32)(AUO T320XVN02.9)
1-859-049-11 1-859-049-11 LOUDSPEAKER (5W)

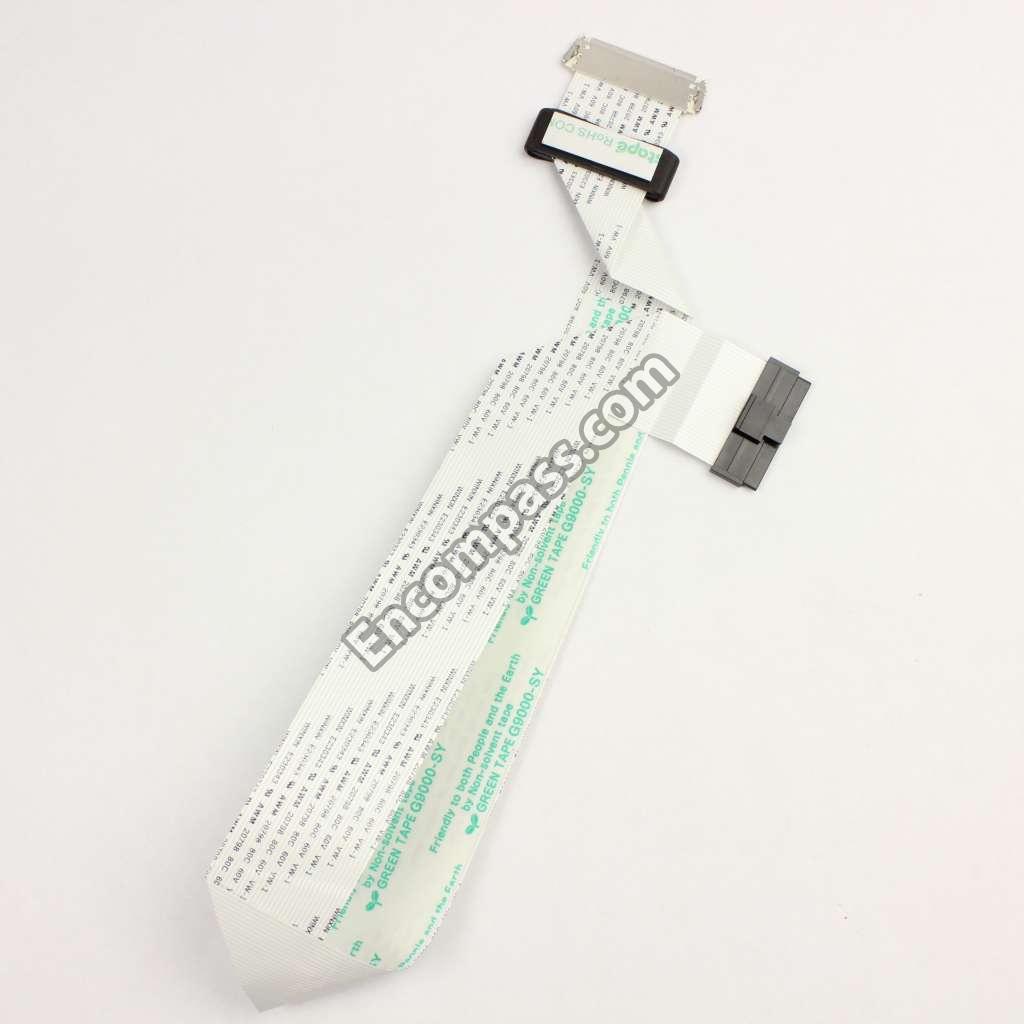

1-910-109-66 1-910-109-66 LVDS CABLE
4-538-876-01 4-538-876-01 MIDDLE FRAME (32)
1-895-630-21 1-895-630-21 MOUNTED PWB A
1-895-629-21 1-895-629-21 MOUNTED PWB H - IR BOARD
1-895-631-31 1-895-631-31 MOUNTED PWB POWER UNIT(SDC)
4-538-875-01 4-538-875-01 PCB COVER MYLAR (32)
1-838-955-11 1-838-955-11 POWER CORD
1-492-065-11 1-492-065-11 REMOTE COMMANDER (RM-YD092)
3-299-071-09 3-299-071-09 SAFETY AND REGULATORY BOOKLET
2-580-638-01 2-580-638-01 SCREW +BVTP2 4X8
7-682-903-11 7-682-903-11 SCREW +PWH 3X6(EPFE/ZNBK/CM2)
2-580-603-01 2-580-603-01 SCREW, +PSW M4X16
4-466-882-01 4-466-882-01 SCREW, M3X6 SW (FANT)
4-542-284-01 4-542-284-01 SHEET, INSULATION (32)
