Sony

Model Number

KDL32W600D

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-474-645-21 1-474-645-21 3M-E-B1 (SWITCH UNIT) (UC2,LA1)
1-493-145-11 1-493-145-11 AC ADAPTOR (ACDP-045S03) UC2,LA1
4-580-630-01 4-580-630-01 ATTACHMENT, WALL MOUNT (TPZ) A (UC2,LA1)
4-579-088-01 4-579-088-01 BACK LIGHT COVER (2S TPZ) A (PANEL PART) (UC2,LA1)
4-476-812-02 4-476-812-02 BAG, SCREW ASSY (MRS) (UC2,LA1)
4-447-715-32 4-447-715-32 BAG,PROTECTION (1000X850) (UC2,LA1)
4-579-083-01 4-579-083-01 BEZEL (2S TPZ) A (PANEL PART) (UC2,LA1)
4-585-061-01 4-585-061-01 BRACKET, UNDER BBA (TPZ) (LA1)
4-585-061-21 4-585-061-21 BRACKET, UNDER BBA (TPZ) (UC2)
4-586-950-01 4-586-950-01 CARTON, INDIVIDUAL (2S TPZ) (LA1)
4-586-947-01 4-586-947-01 CARTON, INDIVIDUAL (2S TPZ) (UC2)
4-262-708-03 4-262-708-03 CLAMPER, CABLE (UC2,LA1)
A-2119-888-A A-2119-888-A COMP SVC BBA (MAIN CBA)_QW_WXGA_PAD_PH-LA (LA1)

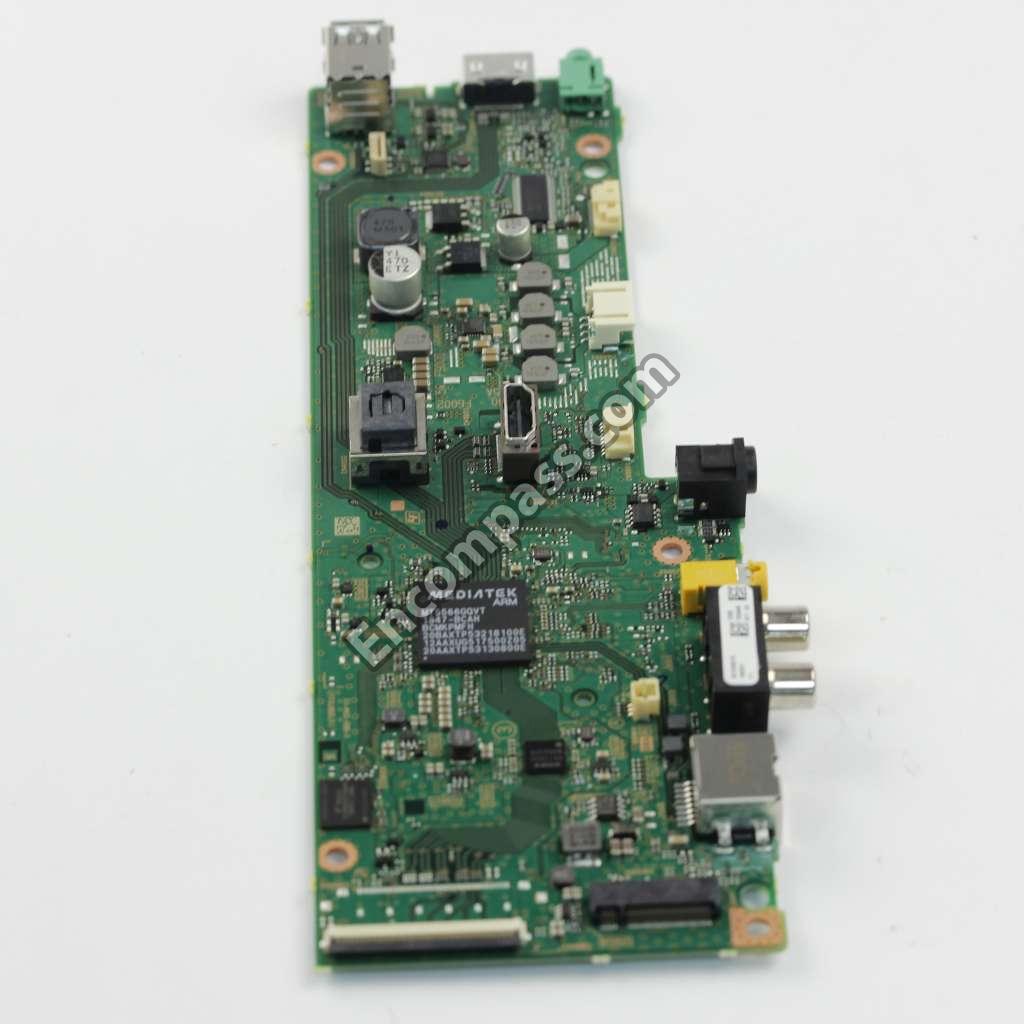

A-2103-931-A A-2103-931-A COMPL SVC BBA (MAIN CBA)_QW_WXGA_UC (UC2)
1-910-805-61 1-910-805-61 CONNECTOR ASSY 10P (PANEL PART) (UC2,LA1)
1-846-090-32 1-846-090-32 CORD SET, POWER-SUPPLY (UC2,LA1)
4-579-058-11 4-579-058-11 CUSHION, LOWER (2S TPZ) (UC2,LA1)
4-589-755-01 4-589-755-01 CUSHION, OPT TOP (2S TPZ) (UC2,LA1)
4-592-658-21 4-592-658-21 CUSHION, SEALING MC (TPZ) (LA1)
4-592-658-31 4-592-658-31 CUSHION, SEALING MC (TPZ) (LA1)
4-592-658-51 4-592-658-51 CUSHION, SEALING MC (TPZ) (LA1)
4-579-059-11 4-579-059-11 CUSHION, SIDE (2S TPZ) (UC2,LA1)
4-579-057-11 4-579-057-11 CUSHION, UPPER (2S TPZ) (UC2,LA1)
4-580-637-01 4-580-637-01 DIFFUSER PLATE (2S TPZ) (PANEL PART) (UC2,LA1)
4-581-474-01 4-581-474-01 DIFFUSER SHEET (2S TPZ) (PANEL PART) (UC2)
1-849-268-11 1-849-268-11 FLEXIBLE FLAT CABLE 30P (UC2,LA1)
1-849-271-11 1-849-271-11 FLEXIBLE FLAT CABLE 30P (UC2,LA1)
1-849-269-11 1-849-269-11 FLEXIBLE FLAT CABLE 5P (UC2,LA1)
1-849-270-11 1-849-270-11 FLEXIBLE FLAT CABLE 5P (UC2,LA1)
4-569-045-01 4-569-045-01 GASKET (5X5 (10)), SOFT (PANEL PART) (UC2)
4-569-045-21 4-569-045-21 GASKET(5X5 (10)), SOFT (UC2,LA1)
4-585-066-01 4-585-066-01 GUIDE LIGHT (TPZ) (UC2,LA1)
1-910-805-60 1-910-805-60 HARNESS ASSY (UC2,LA1)
A-2093-735-A A-2093-735-A HCY_MOUNT (UC2,LA1)
1-458-900-11 1-458-900-11 J20H090 (WIFI) (UC2,LA1)
4-580-738-01 4-580-738-01 LABEL, SIDE WALL (TPZ) (UC2,LA1)
4-580-097-01 4-580-097-01 LABEL, UNDER TERMINAL (TPZ) (LA1)
4-580-097-41 4-580-097-41 LABEL, UNDER TERMINAL (TPZ) (UC2)
1-812-200-11 1-812-200-11 LIQUID CRYSTAL ELEMENT(B32WHB) (PANEL PART) (UC2,LA1)
1-859-166-11 1-859-166-11 LOUD SPEAKER(FY16 4X8CM)(FOSTER) (UC2,LA1)
4-579-085-02 4-579-085-02 MIDDLE CHASSIS BT (2S TPZ) A (PANEL PART) (UC2)
4-579-085-01 4-579-085-01 MIDDLE CHASSIS BT (2S TPZ) A (UC2,LA1)
4-579-086-01 4-579-086-01 MIDDLE CHASSIS L (2S TPZ) A (PANEL PART) (UC2,LA1)
4-579-087-01 4-579-087-01 MIDDLE CHASSIS R (2S TPZ) A (PANEL PART) (UC2,LA1)
4-579-084-11 4-579-084-11 MIDDLE CHASSIS TP (2S TPZ) A (PANEL PART) (UC2)
4-579-084-01 4-579-084-01 MIDDLE CHASSIS TP (2S TPZ) A (UC2,LA1)
1-849-276-11 1-849-276-11 MINI PLUG VIDEO ADAPTER (UC2,LA1)
1-895-893-11 1-895-893-11 MOUNTED PWB LS BAR (32) (PANEL PART) (UC2,LA1)
1-844-457-11 1-844-457-11 PIN JACK 2P (UC2,LA1)
4-584-608-01 4-584-608-01 PLATE, MAIN (TPZ) (UC2,LA1)
4-580-640-01 4-580-640-01 PRISM H SHEET (2S TPZ) (PANEL PART) (UC2,LA1)
4-580-643-01 4-580-643-01 PRISM V SHEET (2S TPZ) (PANEL PART) (UC2)
4-585-191-01 4-585-191-01 REFLECTIVE POLARIZER (2S TPZ) (PANEL PART) (UC2,LA1)
4-580-646-01 4-580-646-01 REFLECTIVE SHEET (2S TPZ) (PANEL PART) (UC2)
4-580-646-21 4-580-646-21 REFLECTIVE SHEET (2S TPZ) (UC2,LA1)
1-492-980-11 1-492-980-11 REMOTE COMMANDER (RMT-TX102U) (UC2,LA1)
7-685-646-79 7-685-646-79 SCREW+BVTP 3X8 TYPE2 IT-3 (UC2,LA1)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2,LA1)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UC2,LA1)
2-580-608-01 2-580-608-01 SCREW, +PSW M5X16 (UC2,LA1)
4-256-393-02 4-256-393-02 SCREW, PSW M3X6 W12 (UC2,LA1)
4-549-186-02 4-549-186-02 SHEET, THERMAL(BM) (UC2,LA1)
4-579-082-01 4-579-082-01 SOURCE SHIELD (2S TPZ) (UC2,LA1)
4-585-067-01 4-585-067-01 SP BOSS BKT (TPZ) (UC2,LA1)
4-298-004-01 4-298-004-01 SPACER (B) (UC2,LA1)
4-544-286-11 4-544-286-11 SPACER (FJI) (UC2,LA1)
4-579-157-01 4-579-157-01 STAND BKT (2S TPZ) (UC2,LA1)
4-578-914-01 4-578-914-01 STAND, BASE ASSY (2S TPZ) (UC2,LA1)
4-584-789-11 4-584-789-11 STARTUP GUIDE (UC2,LA1)
4-180-215-11 4-180-215-11 SUPPLEMENT (TIPPING OVER) (UC2)
4-579-103-01 4-579-103-01 SUPPORTER, PIN (TPZ) (UC2,LA1)
7-600-036-11 7-600-036-11 TAPE (1350FB-1) 30MMX66M BLK (UC2,LA1)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK (PANEL PART) (UC2)
4-579-060-01 4-579-060-01 UNDER COVER (2S TPZ) A (UC2,LA1)
8-594-302-00 8-594-302-00 UNIVERSAL SIL-TU SUT-RA243ZP (UC2,LA1)
