Model Image
Manufacturer

Sony

Model Number

KDL40EX621

Description

40" (diag) Led Ex621-series Internet Tv

Interactive Exploded View

Parts List

Part Number Description
AM4PTB2D AM4PTB2D BATTERY "AAA"
A-1814-572-C A-1814-572-C BATV BOARD COMPLETE
4-275-901-11 4-275-901-11 BEZEL(40 CAS NON EM)
1-857-955-11 1-857-955-11 CONTROL MT BD / T-CON
4-272-200-01 4-272-200-01 DOUBLE SIDED TAPE (PANEL)

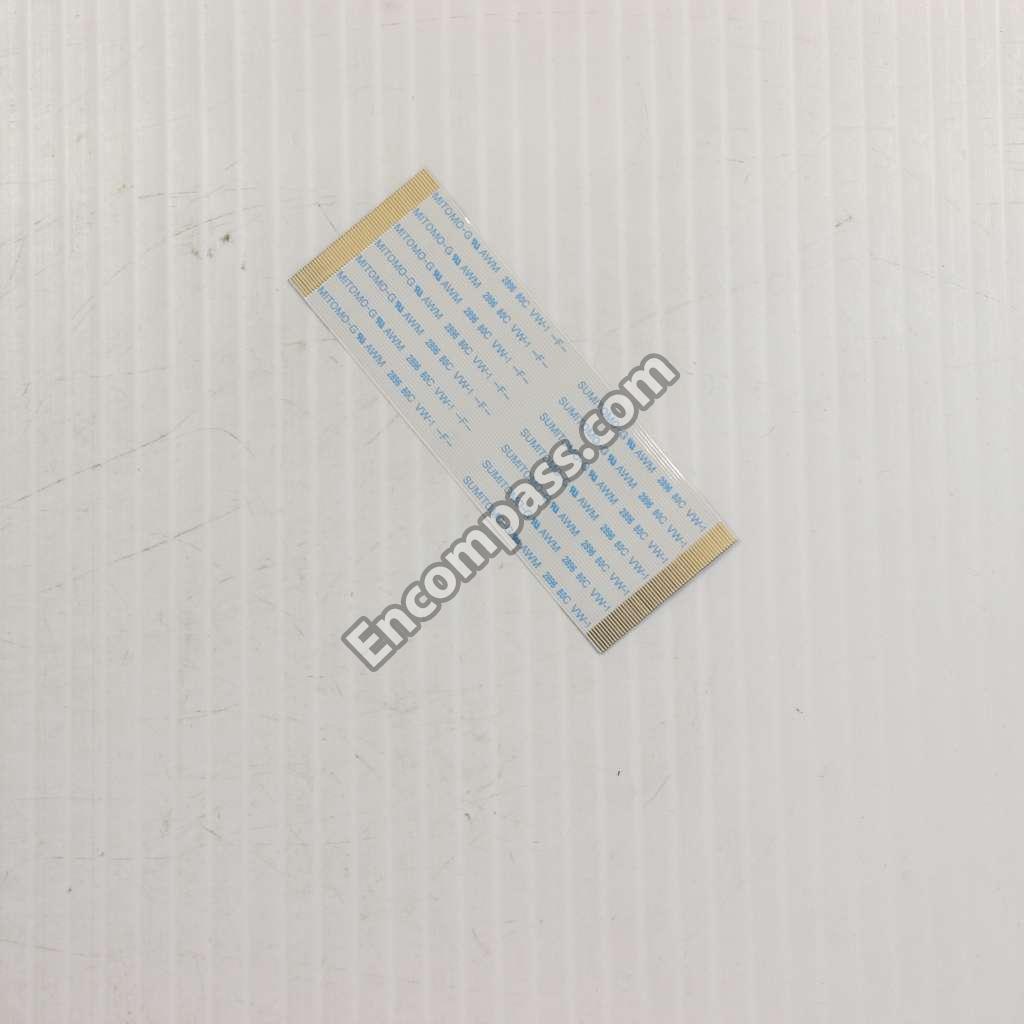

1-910-801-41 1-910-801-41 FFC 56PIN
1-474-300-11 1-474-300-11 G4B BOARD COMPLETE
4-188-302-11 4-188-302-11 HEXAGON WRENCH
A-1792-877-A A-1792-877-A HLR2 MOUNT(B-O)
4-256-435-11 4-256-435-11 LABEL SHEET (BAT-V MOLD SIDE)
4-275-420-02 4-275-420-02 REAR COVER(40)
1-489-484-11 1-489-484-11 REMOTE COMMANDER (RM-YD063)
3-299-071-05 3-299-071-05 SAFETY AND REGULATORY BOOKLET
4-259-541-02 4-259-541-02 SCREW- HEAD & BASE TO NECK (USES 2)
2-580-608-01 2-580-608-01 SCREW- STAND TO TV (USES 2)
4-268-443-01 4-268-443-01 SHEET INSULATION (G4)
4-256-443-01 4-256-443-01 SHEET RADIATION (BAT-L/V)
4-267-560-01 4-267-560-01 STAND BASE
4-259-180-02 4-259-180-02 STAND NECK
