Repair Jig

Model Number

KDL40R450A

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
KDL40R450A 40" 2013 SONY TV JIG KDL40R450A
1-895-371-11 1-895-371-11 A BOARD
AM4PTB2D AM4PTB2D BATTERY "AAA"
4-459-445-01 4-459-445-01 BRACKET, SP (40FANF)

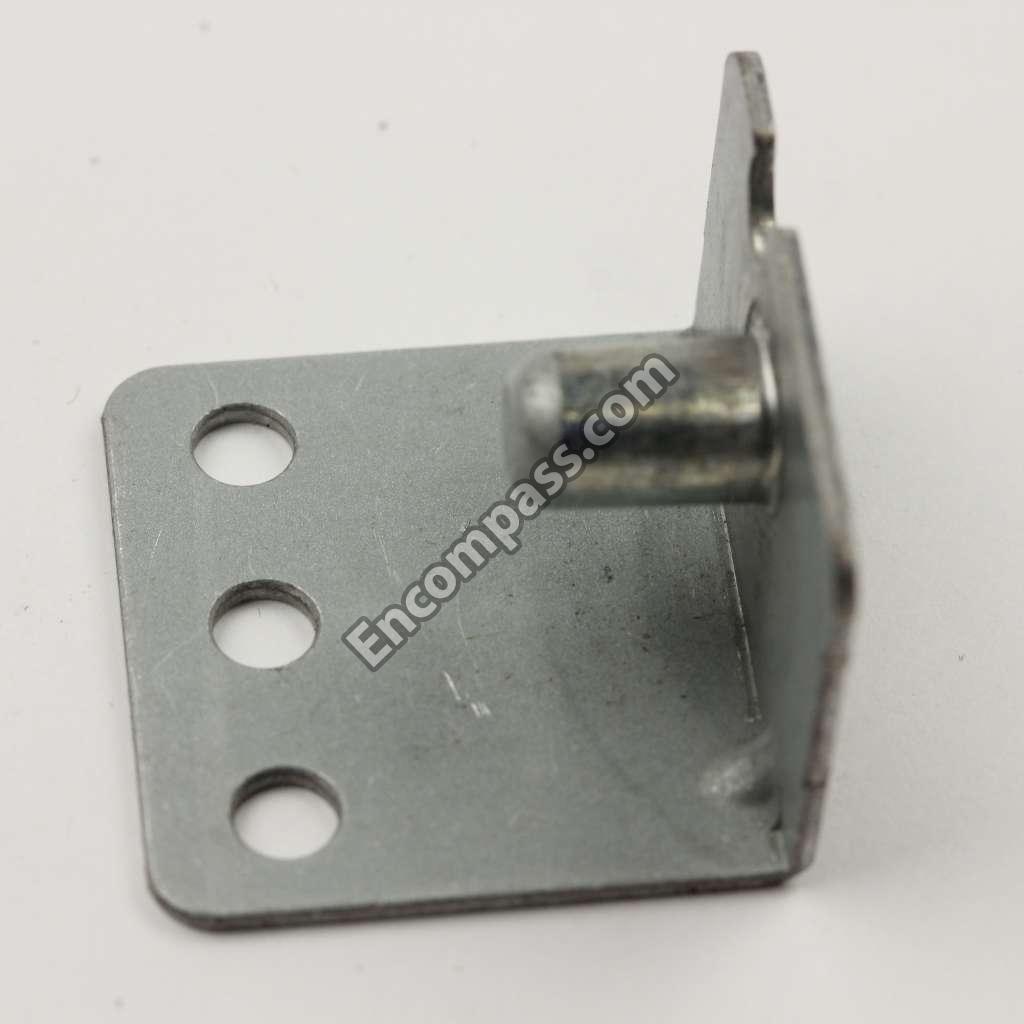

4-459-477-01 4-459-477-01 BRACKET, STAND A (40FANF)
4-459-475-01 4-459-475-01 BRACKET, VESA (FANF)
1-910-107-42 1-910-107-42 CONNECT ASSEM 40 MB-PSU 14P
1-910-107-43 1-910-107-43 CONNECT ASSEM 40 MB-SP LR 4P
1-910-107-47 1-910-107-47 CONNECT ASSEM 40/46 PSU-LED
4-459-536-01 4-459-536-01 CUSHION LOWER AR (40FANF)
4-459-537-01 4-459-537-01 CUSHION UPPER AR (40FANF)
1-910-107-50 1-910-107-50 FFC CABLE 40 MB-KEY 6P

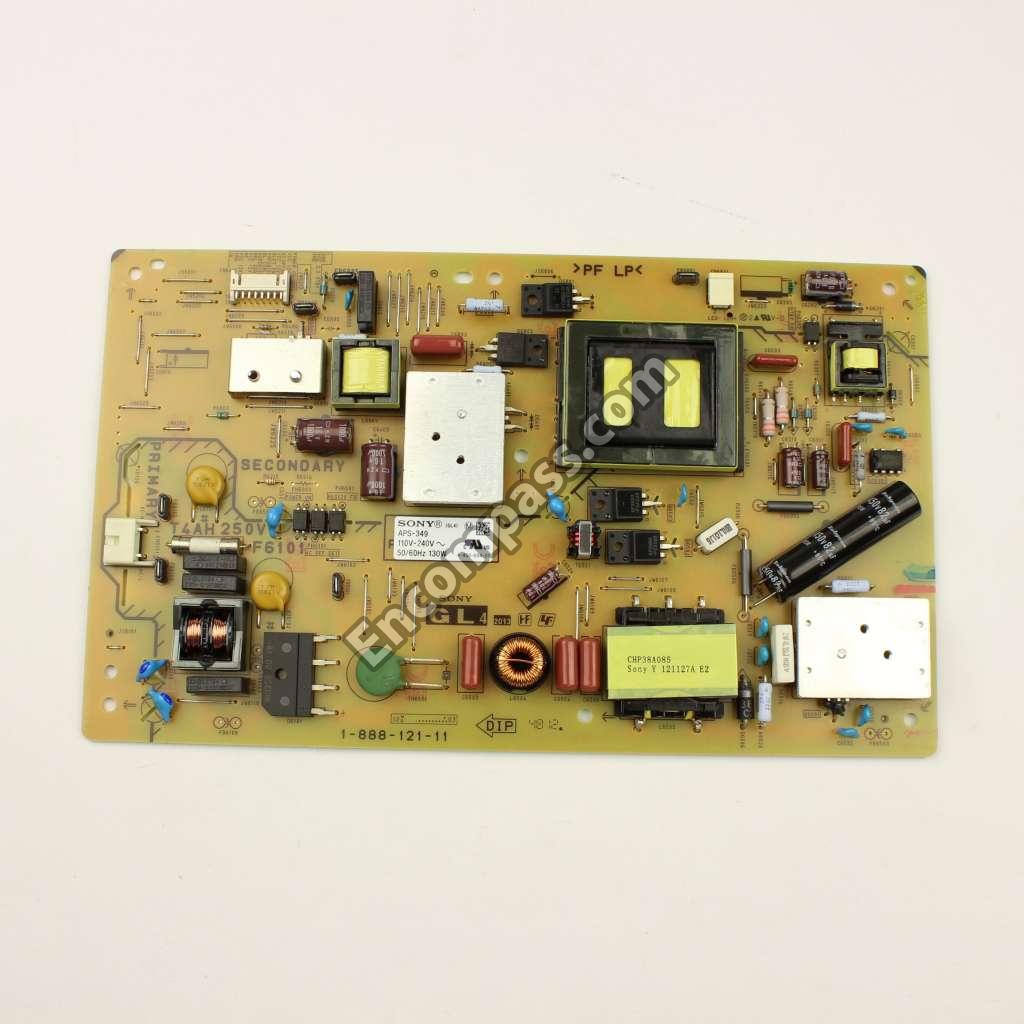

1-474-487-11 1-474-487-11 G4 BOARD
1-910-107-45 1-910-107-45 GROUND CABLE 40 MB-PSU (L)
1-910-107-44 1-910-107-44 GROUND CABLE 40 MB-PSU (M)
1-895-368-11 1-895-368-11 LIGHT SOURCE BOARD 40 LEDS
4-459-446-01 4-459-446-01 LOWER COVER (COVER UNDER -
1-895-376-21 1-895-376-21 MOUNTED PWB H
1-846-638-11 1-846-638-11 POWER SUPPLY BOARD
4-459-444-02 4-459-444-02 REAR COVER
4-459-444-01 4-459-444-01 REAR COVER ASSY (40FANF)
4-459-504-01 4-459-504-01 REFLECTION SHEET
1-492-065-11 1-492-065-11 REMOTE CONTROL
2-580-639-01 2-580-639-01 SCREW +BVTP2 4X12
2-580-608-01 2-580-608-01 SCREW, +PSW M5X16
1-895-426-11 1-895-426-11 SOURCE DRIVER IC MT BOARD
1-858-888-11 1-858-888-11 SPEAKER
4-459-511-11 4-459-511-11 STAND
1-492-329-11 1-492-329-11 SWITCH UNIT
7-685-646-79 7-685-646-79 TAP + BV 3.0 X 8.0 BLK TY2
