Manufacturer
Sony
Model Number
KDL40W590B
Description
40-inch Led Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
Sony AC ADAPTOR (85W) |
|
|
Sony BACK COVER(40SCL)W580B/590B |
|
|
Sony BATTERY "AAA" |
|
|

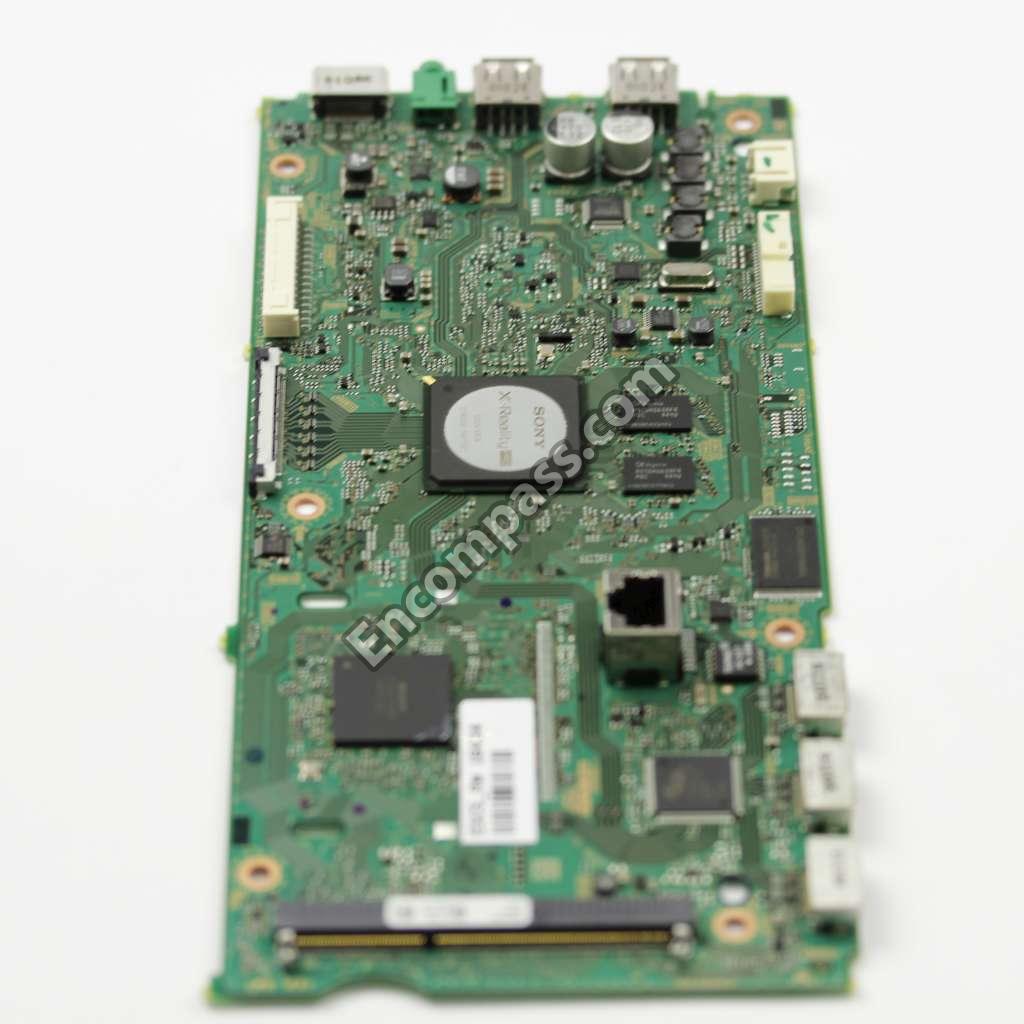

Sony BAXL BOARD COMPLETE |
|
|
Sony BEZEL (40) |
|
|
Sony BRACKET, SIDE |
|
|
Sony BRACKET, UNDER |
|
|

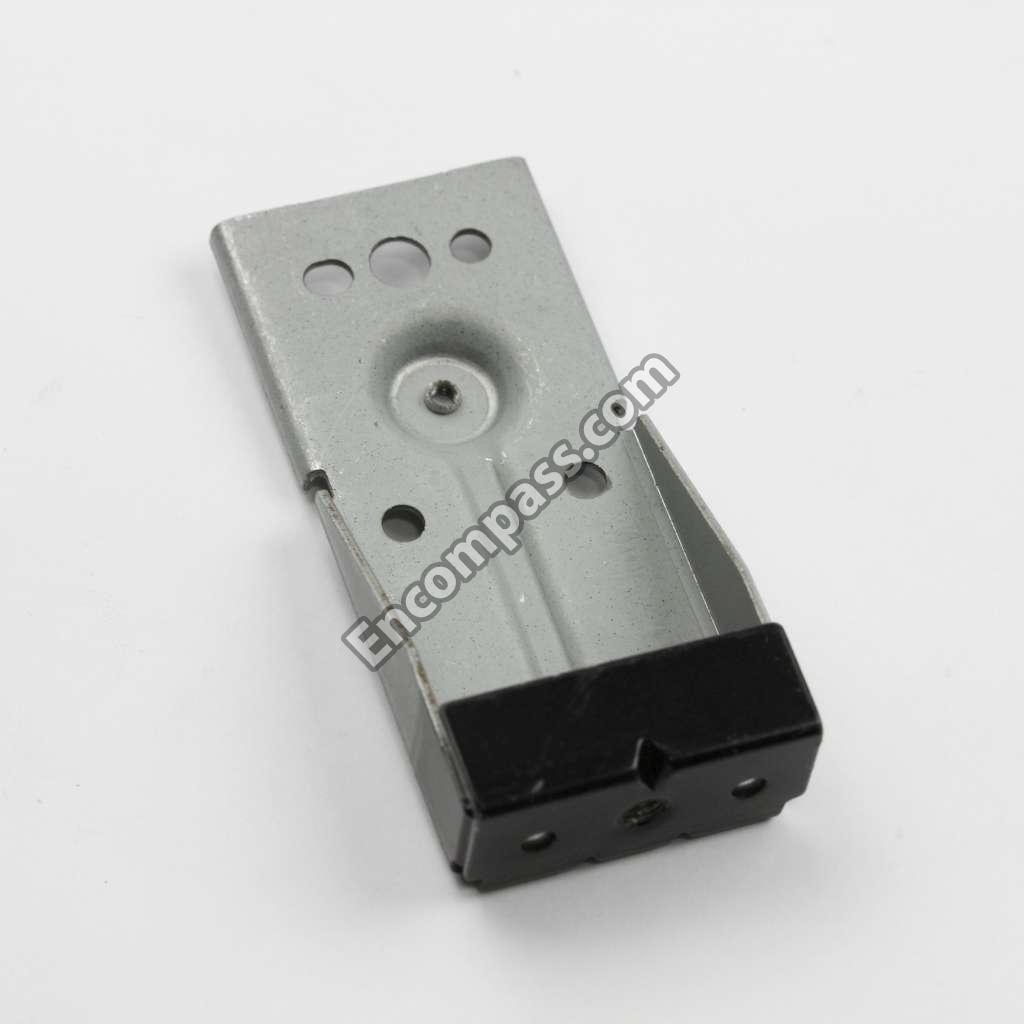

Sony BRACKET, VESA |
|
|
Sony CLAMPER, AC ADAPTER |
|
|
Sony CONNECTOR ASSEMBLY 20P |
|
|
Sony COVER, OP L |
|
|

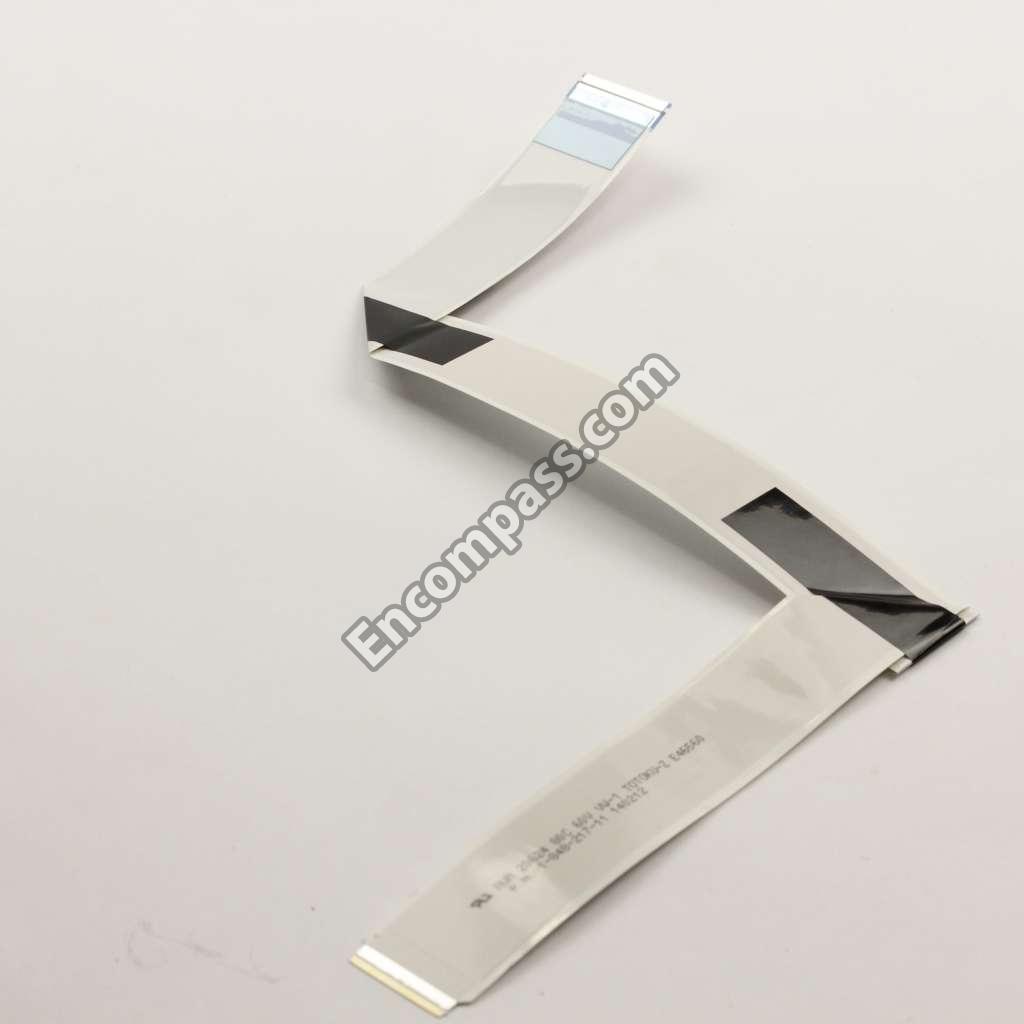

Sony FLEXIBLE FLAT CABLE (SERIAL 5000001-8100000)(SEE BULLETIN) |
|
|

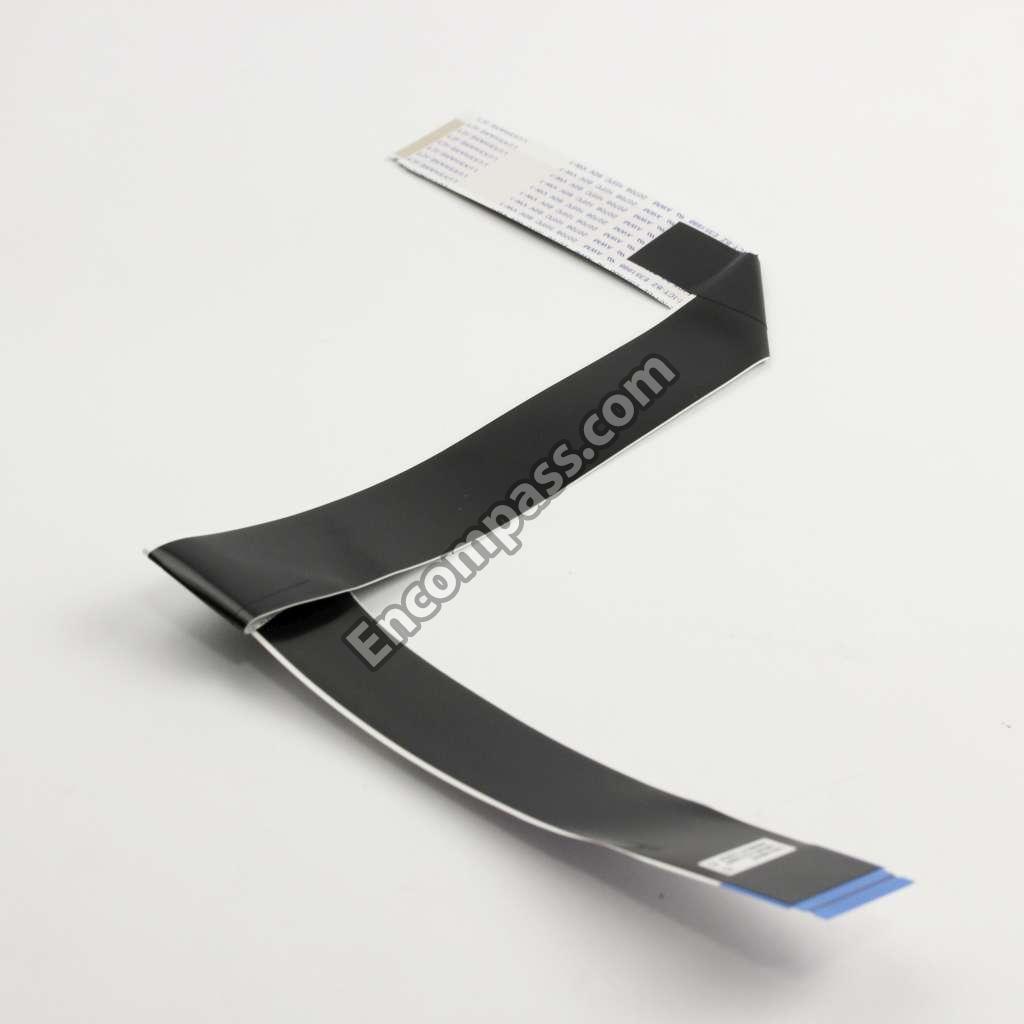

Sony FLEXIBLE FLAT CABLE (SERIAL 8100001-8500000)(SEE BULLETIN) |
|
|

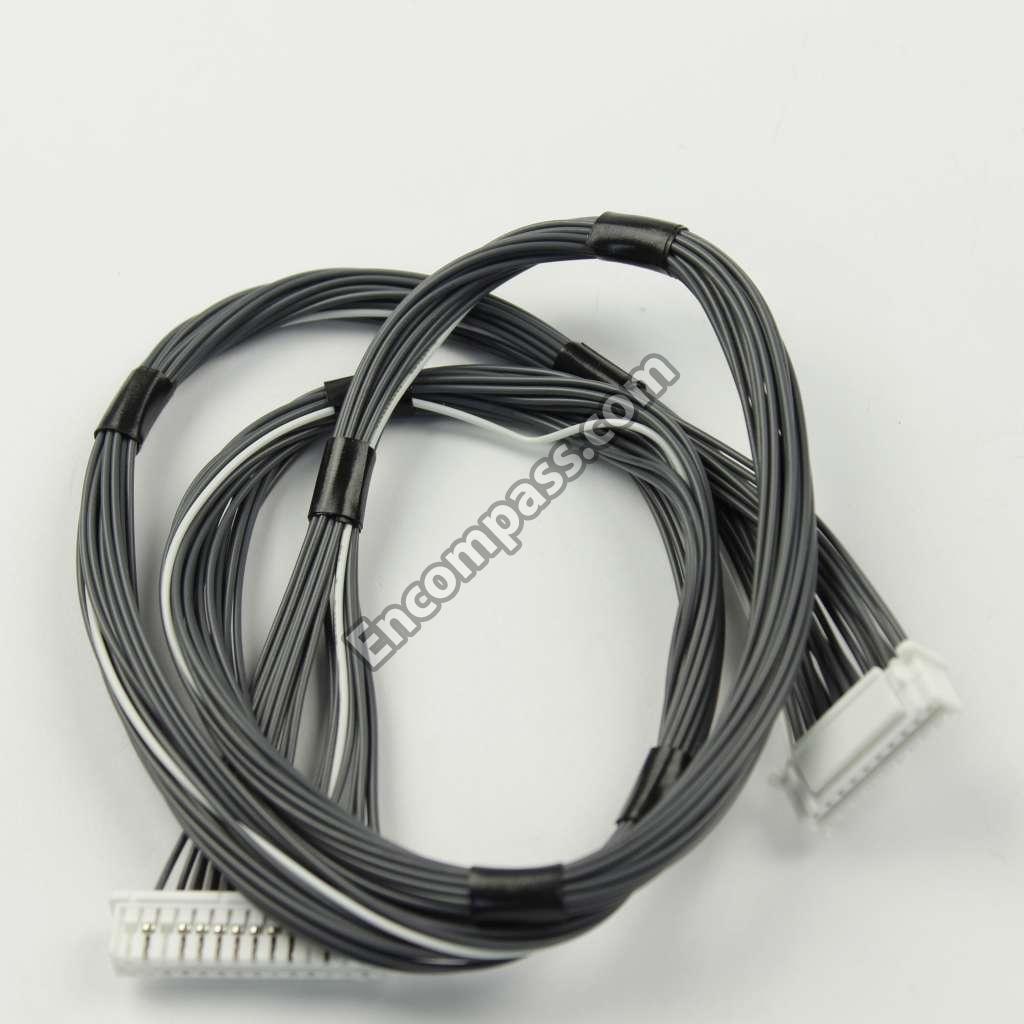

Sony HARNESS ASSEMBLY |
|
|
Sony HJM BOARD, MOUNTED |
|
|
Sony LD BOARD, MOUNTED |
|
|
Sony LOWER COVER (UNDER COVER 40) |
|
|

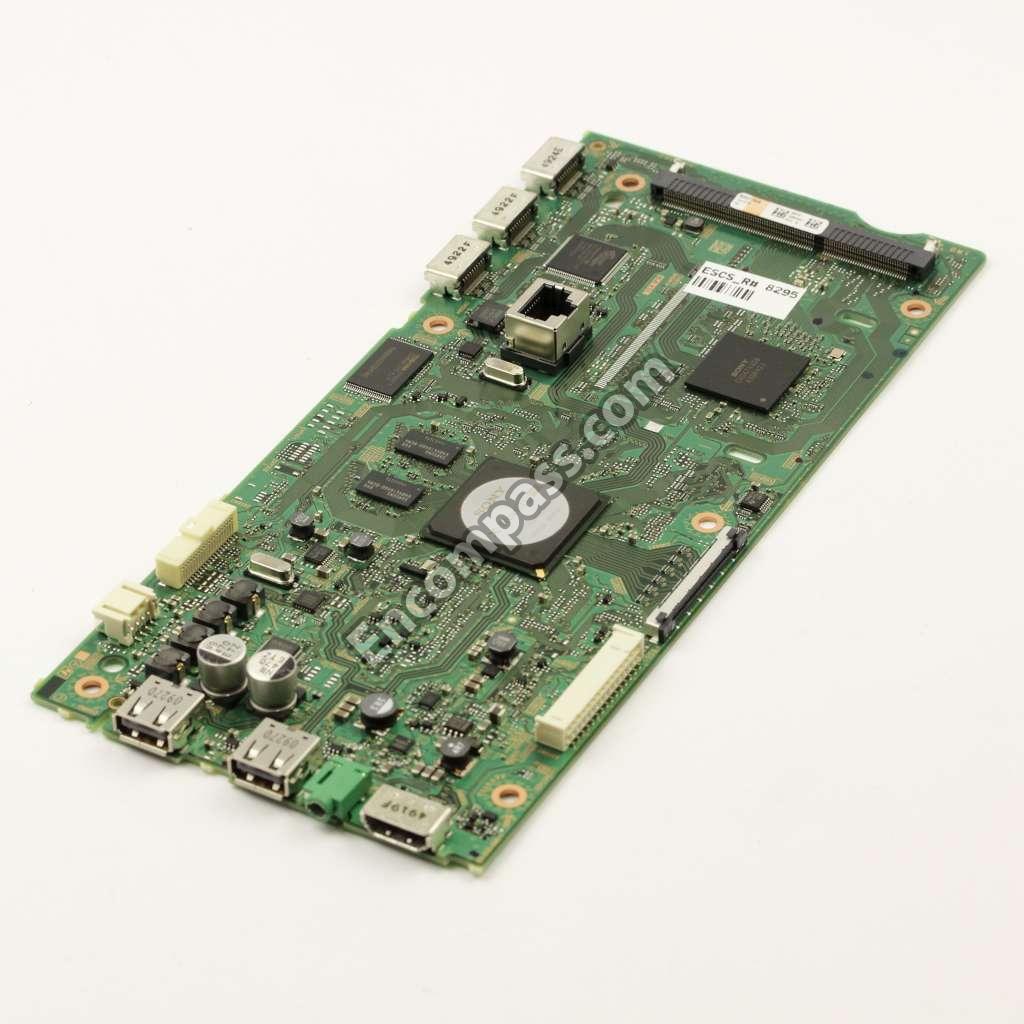

Sony MAIN BOARD BAX-L HM (SERIAL 8100001-8500000)(SEE BULLETIN) |
|
|
Sony PANEL, ORNAMENTAL L |
|
|
Sony POWER SUPPLY CORD |
|
|
Sony REMOTE COMMANDER (RM-YD103) |
|
|
Sony SHEET, THERMAL (AYU2) |
|
|
Sony SPEAKER BOX (LEFT) |
|
|
Sony SPEAKER BOX (RIGHT) |
|
|
Sony STAND BRACKET |
|
|
Sony STAND TO TV SCREW M5X20 (QTY 2 NEEDED) |
|
|
Sony SUPPORT BELT KIT |
|
|

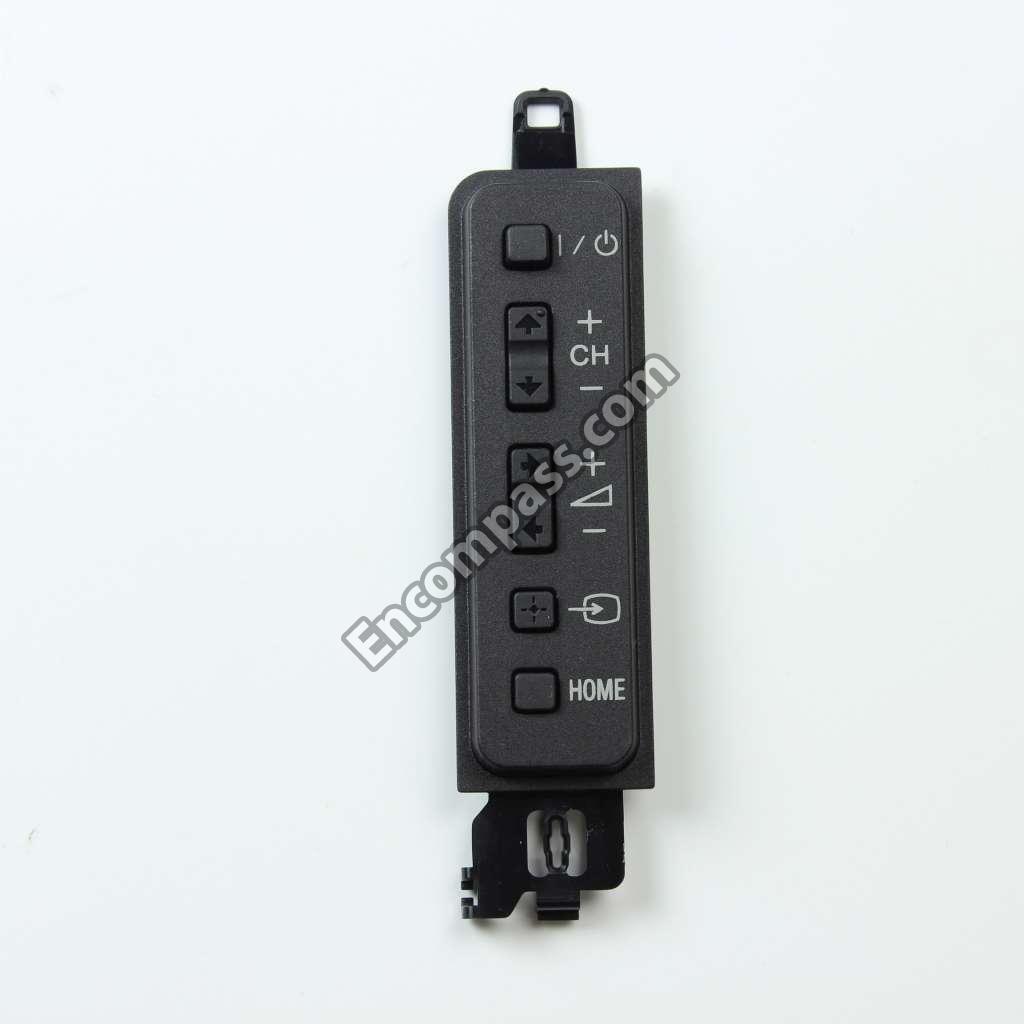

Sony SWITCH UNIT |
|
|
Sony WIRELESS LAN CARD |
